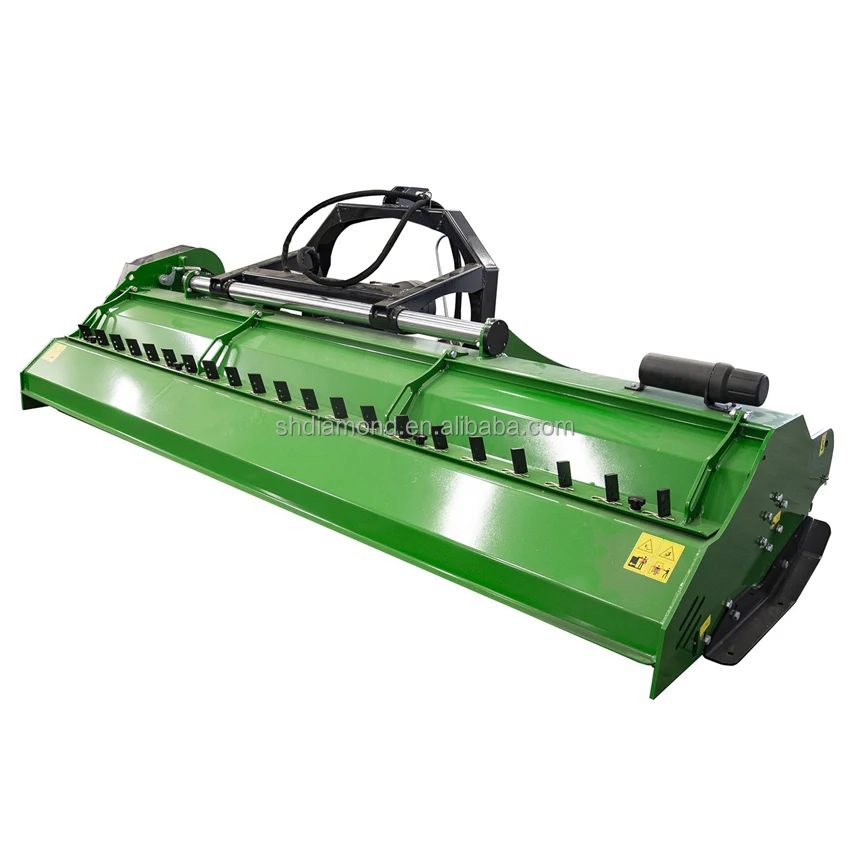

100 150HP Tractor 3PT Pto Flail Mower Cuts saplings, grass, straw and stubble up with Flap in 2.8m Work Width/Verge mower, Ce

Share on (60804215345):


Price:RUB 76,510.20 - RUB 137,718.36

Quantity:


Product Overview

Description

Product Description

 100 -150HP Tractor 3PT Pto Flail Mower Cuts saplings, grass, straw and stubble up with Flap in 2.8m Work Width/Verge mower, Ce



large flail mower with rear flap for 100 - 150 hp tractors



supporting roller for precise cutting height



idea for cutting saplings, grass, straw and stubble up to 40 mm high.

the side shift adjustment has two powerful chrome-plated slide tubes



 welded counter bars on the inside of the mower.

you can open the flail mower's chassis at the rear for optimal operation over particularly high, dense vegetation and for large flows of material and fast cutting.



it is with 22 hammer flails, each with a width of 140 mm, spaced along the roller for optimal balance





also can be operated with a closed chassis, either with or without counter blades.

Using counter blades gives you better shredding of your cut grass, as the grass is retained in the mower.

The counter blades help you to cut the grass shorter and more effectively



170 mm adjustable supporting roller with self-cleaning scraper



 this mower requires a double-acting hydraulic outlet on the tractor



SPEC:





Model MVFM280
Working width2800 mm
Tractor HP100hp to 150hp
Operating speed6 - 12 km/h
Number of Flails22
Three-point connectionCat. 2
RPM540 rpm
N.W890 kg
Hydraulic side shift adjustable
Cutting height 40mm
 counter bladefor optional use
170 mm adjustable supporting rollerYES
side skidcan be ajusted from 20mm to 60mm
collision protectionYES
Hose break check valveYES
Hydraulic ½ inch quick-coupling male hoses2
Rear flap
CE YES

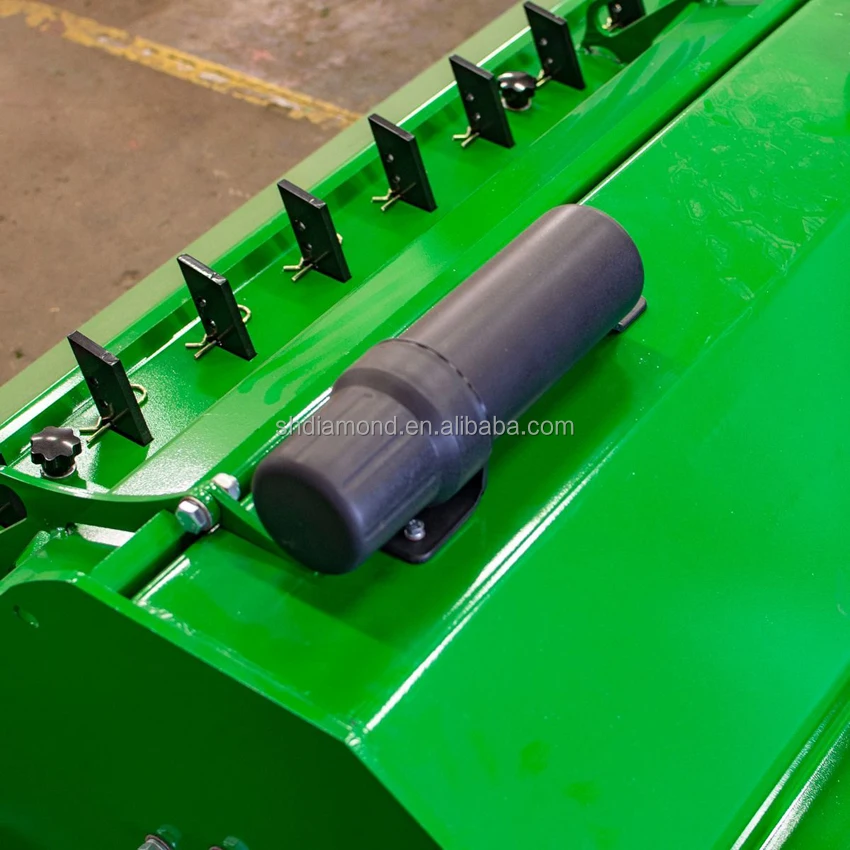

DETAILED PHOTOS:

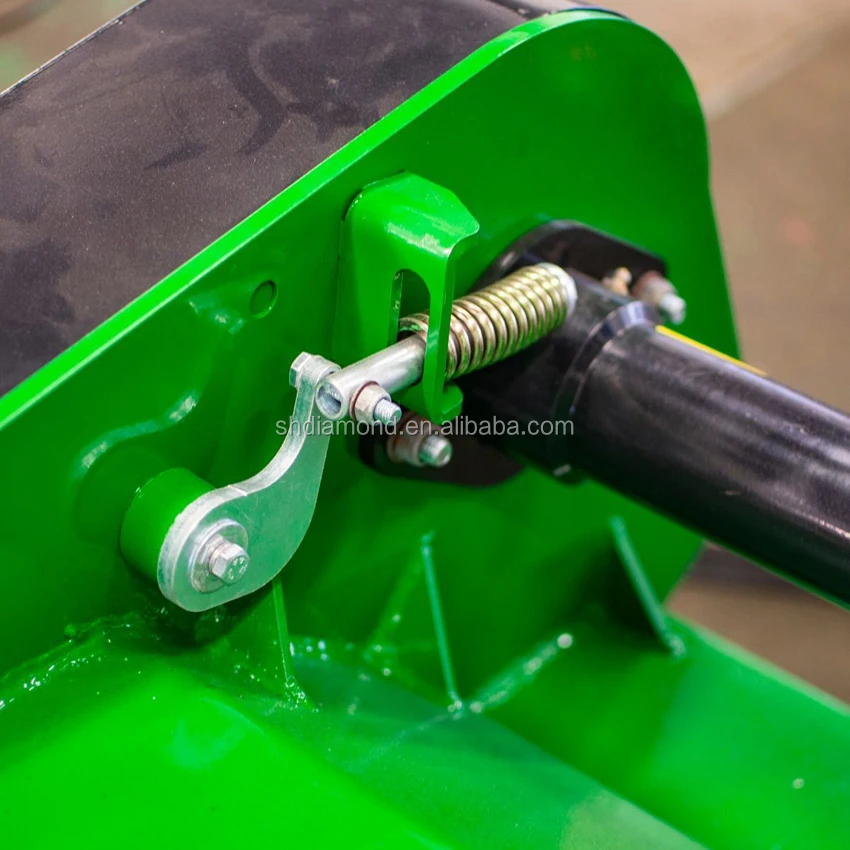

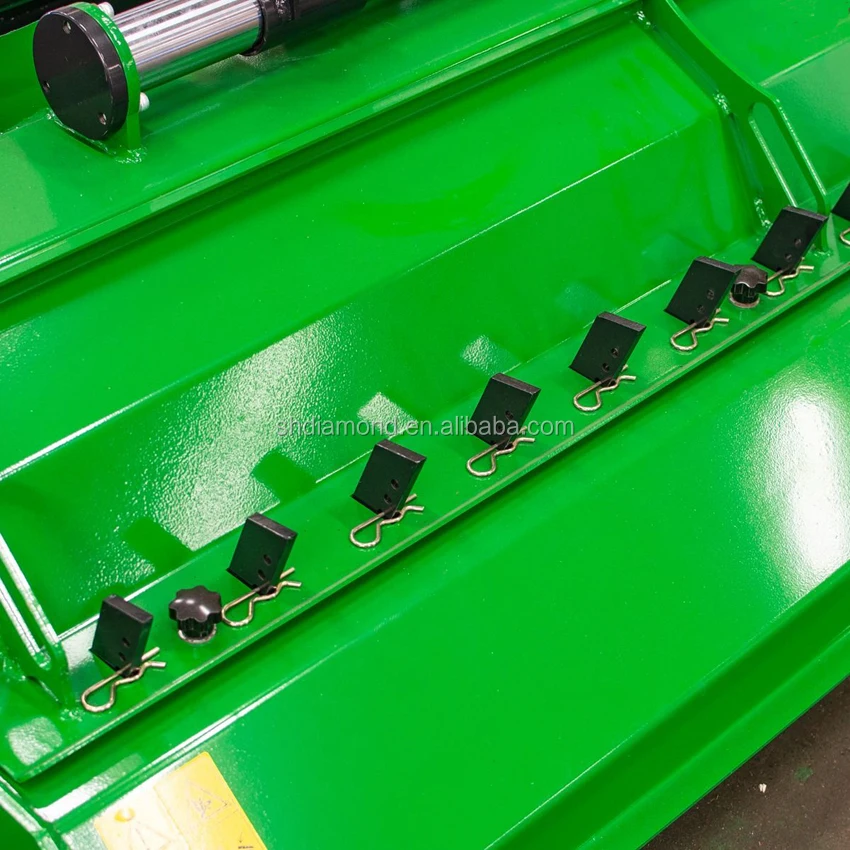

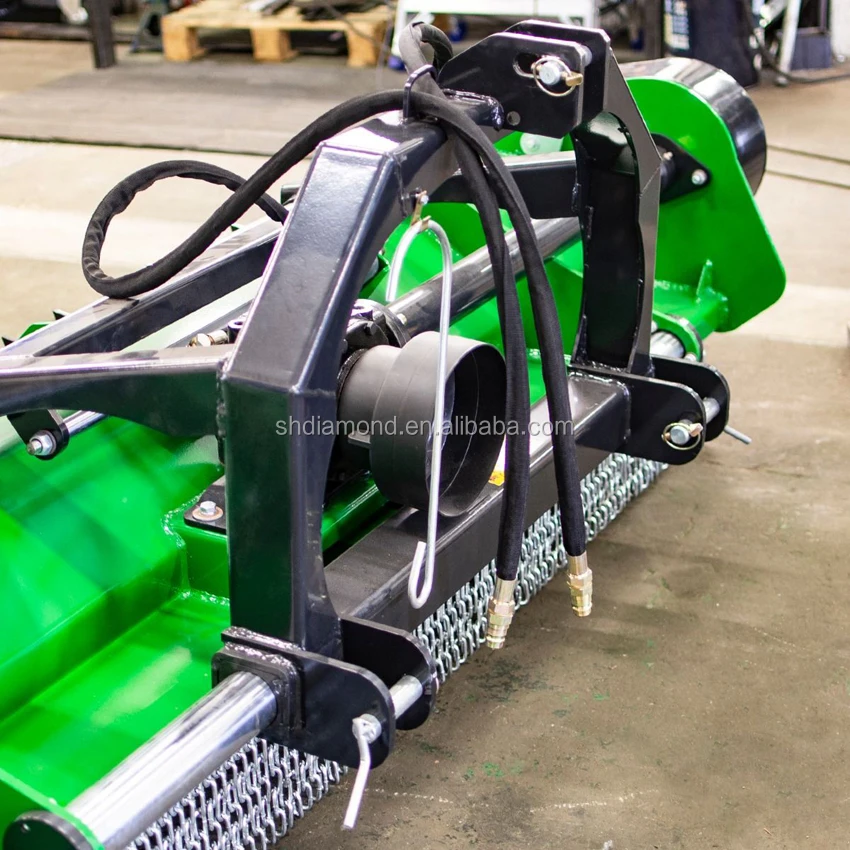

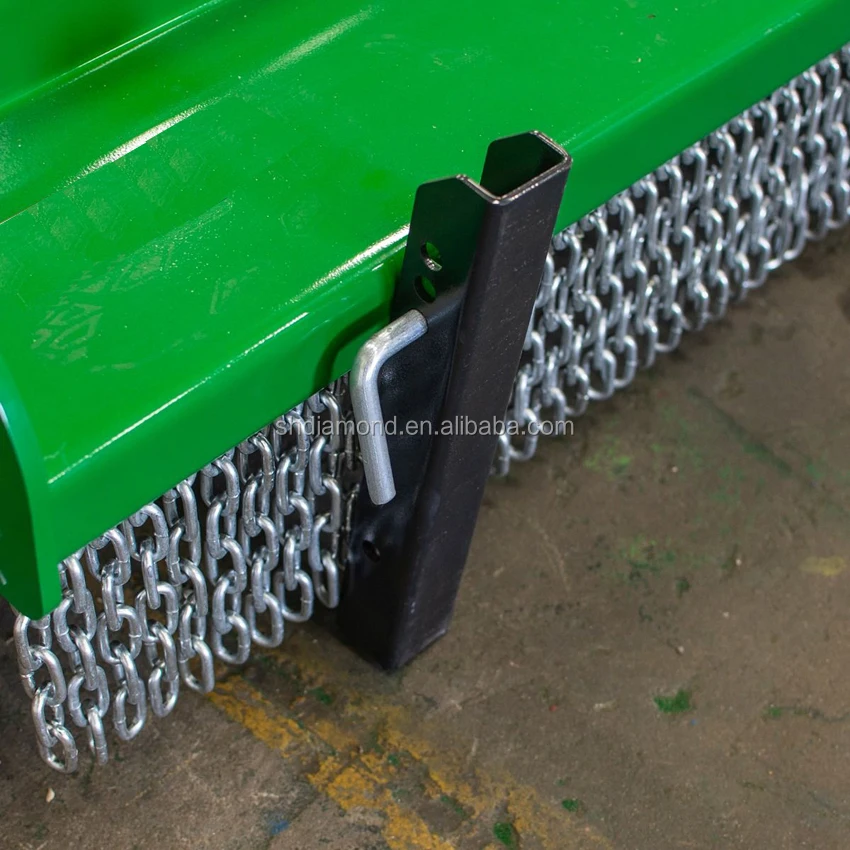

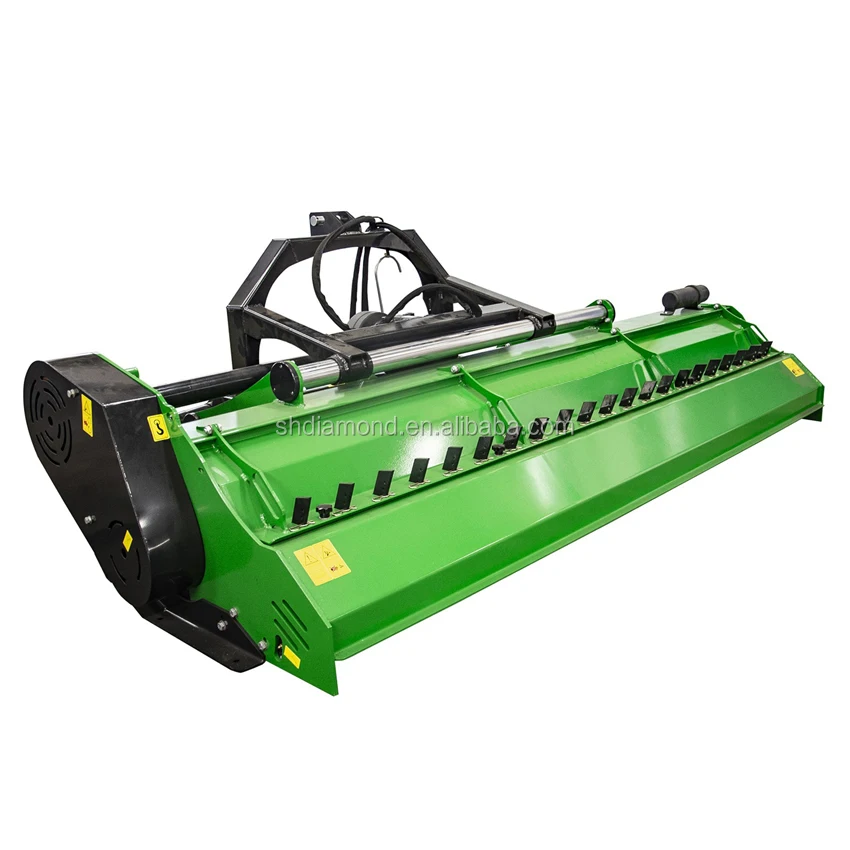

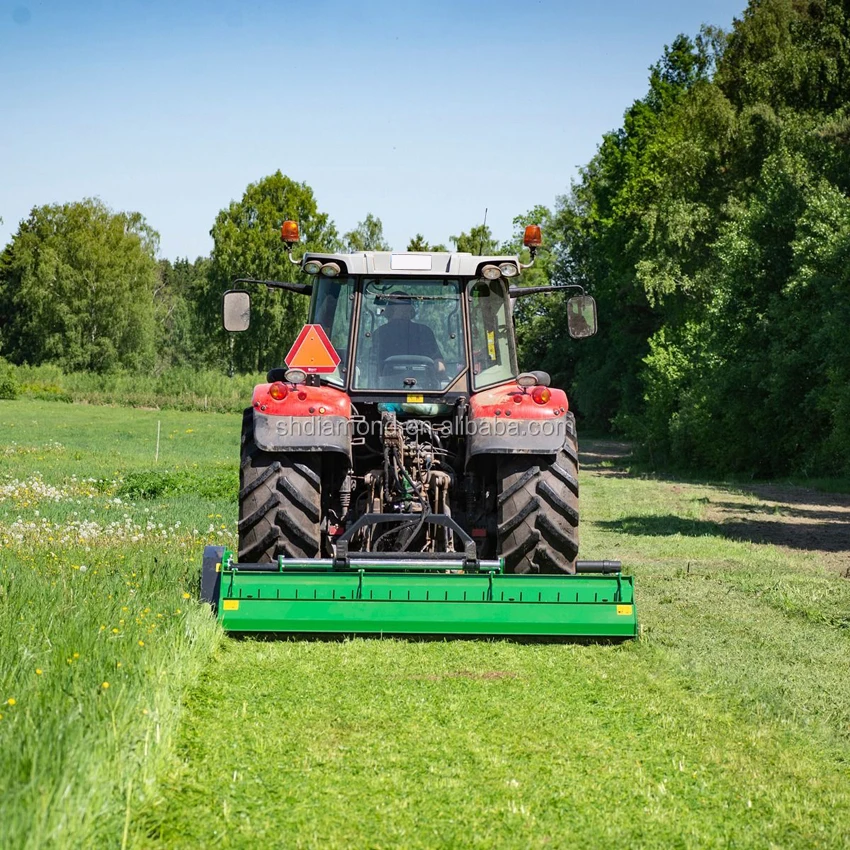

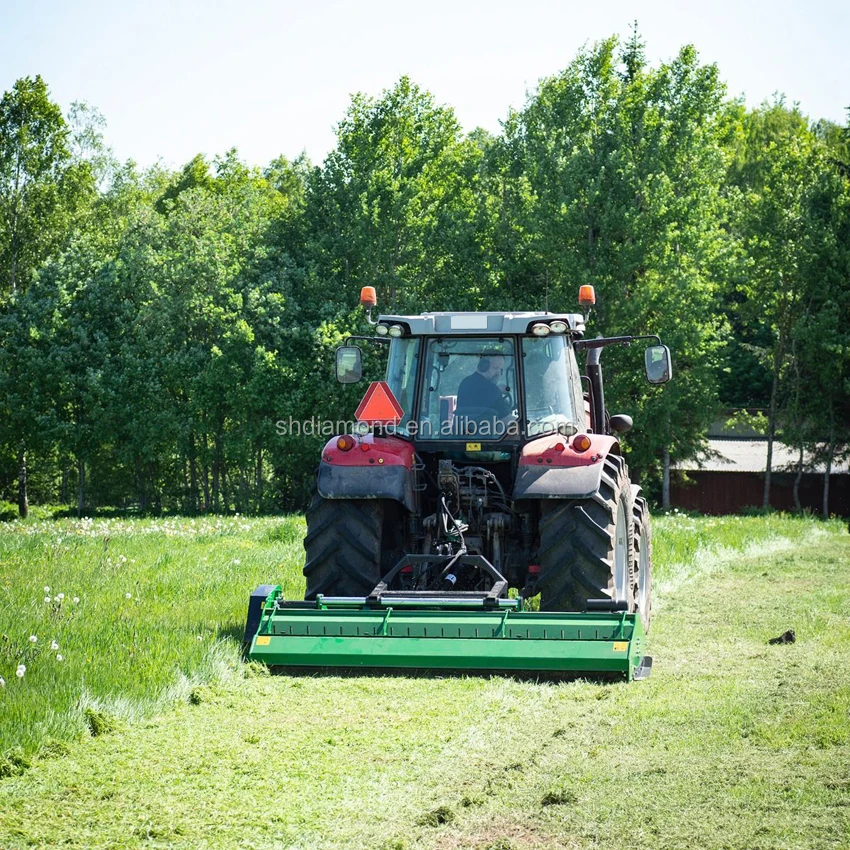

MVFM280 .jpgMVFM280 DETAIL .jpgMVFM280 DETAIL 2.jpgMVFM280 DETAIL 3.jpgMVFM280 DETAIL 4.jpgMVFM280 DETAIL 5.jpgMVFM280 FR RI 45.jpgMVFM280 SPOT 2.jpgMVFM280 SPOT3.jpg
