Product Overview

Description


Product Description

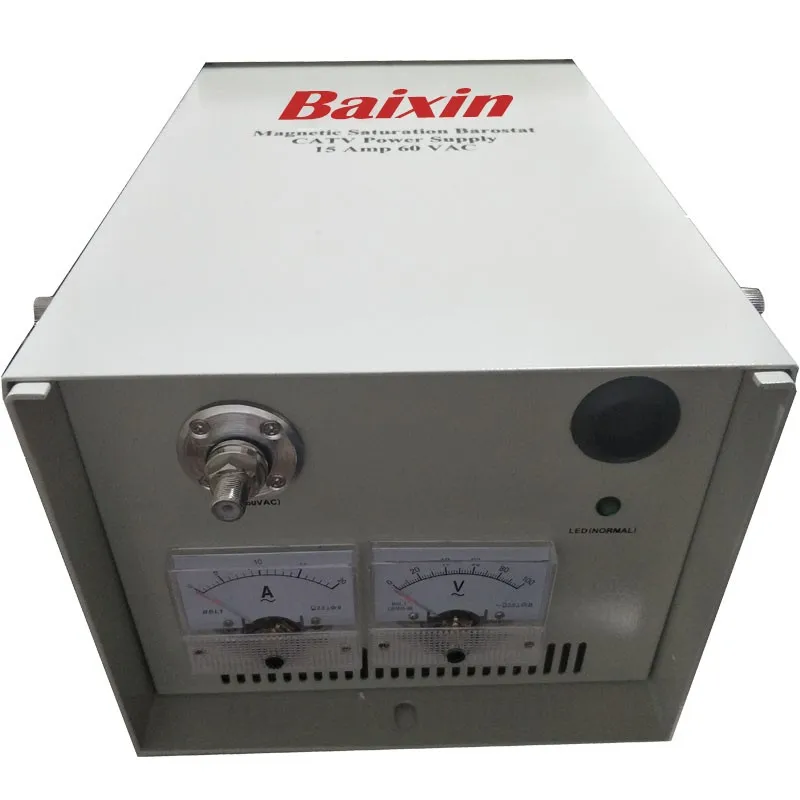

CATV Power supply, Coaxial Cable Network Power supply, 60VAC, 90VAC

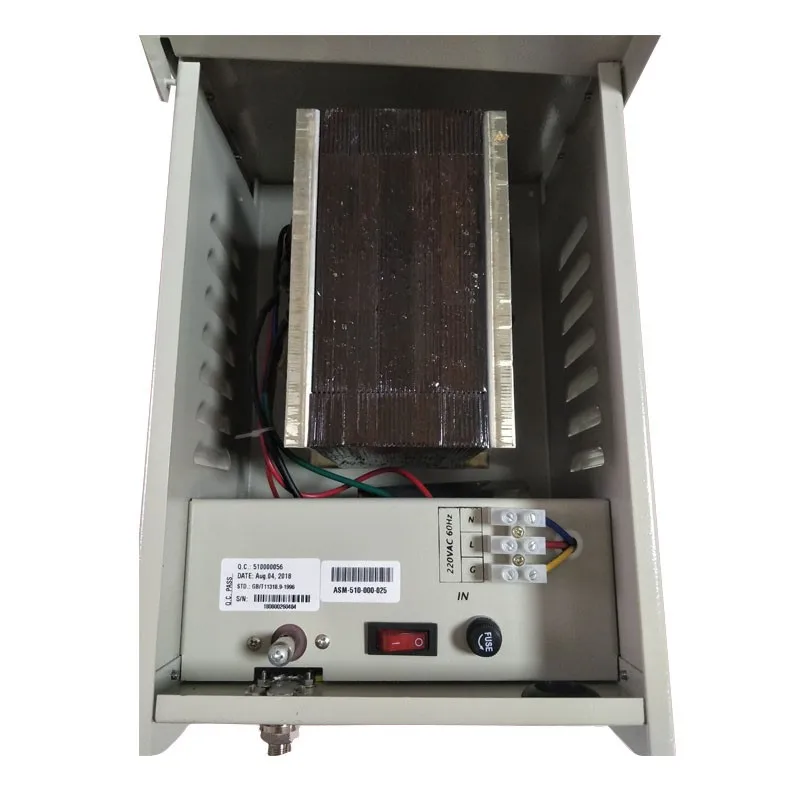

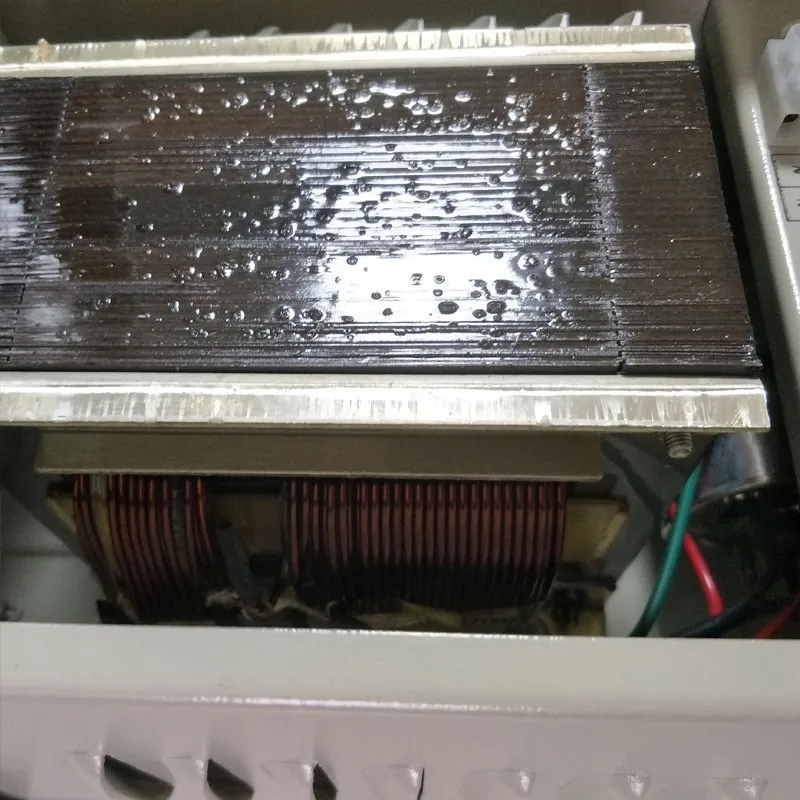

Constant voltage ferroresonant transformer

Fully regulated, clean and reliable output AC power

Input and output protection, lightning surge protection

Current limited output and short-circuit protection

Automatic restart upon removal of short

Field selectable output voltages*

Powder coated enclosure for outdoor applications

Pole & wall mount installations

5/8" female output connection

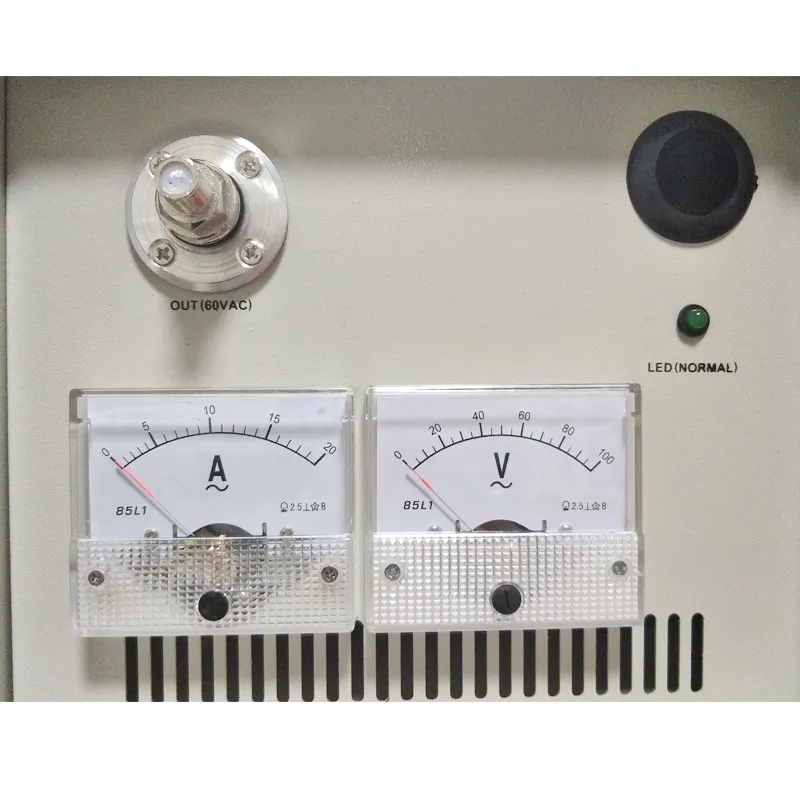

Durable LED indicator

Optional Time Delay Relay (TDR)

* These features are only available on certain models.
\t
Product Name
\t
60V 15A Magnetic Saturation Barostat Outdoor CATV Power Supply
\t
Item NO
\t
FYGD-C60-15A-L
\t
Input voltage
\t
220VAC
\t
Input voltage range
\t
-20% to 15%
\t
Input frequency
\t
60Hz
\t
Power factor
\t
0.90 at full load
\t
Output voltage
\t
60VAC
\t
Output regulation
\t
+/-5%
\t
Output current
\t
15A
\t
Output waveform
\t
Quasi-square
\t
Output protection
\t
Current limited
\t
Short current
\t
150% of max. current rating
\t
Output power
\t
900VA max.
\t
Efficiency
\t
≥90%
\t
Dimensions
\t
217 (W) x 190 (D) x335mm (H)
13.2" (W) x8.5" (D) x7.5" (H)
\t
Finish
\t
Powder coated
\t
Material
\t
Aluminum
\t
Operating temperature
\t
-40°C to 55°C
\t
Humidity
\t
0 to 90% non-condensing
Detail Specification

Nominal Specifications

\t

Model
\t
Input
voltage
(VAC)2
\t
Input
frequency
(Hz)
\t
Input fuse
protection
(A)
\t
Output
voltage
(VAC)
\t
Output
current
(A)
\t
Output
power
(VA)
\t
Net
Weight
(kg/lbs)
\t
FYGD-C60-8A-W
\t
220 or 240
\t
50
\t
8
\t
60
\t
8
\t
480
\t
12/26.5
\t
FYGD-C90-8A-L
\t
120 or 220
\t
60
\t
8
\t
90
\t
8
\t
720
\t
16/35.3
\t
FYGD-C60-10A-W
\t
220 or 240
\t
50
\t
8
\t
60
\t
10
\t
600
\t
15/33.1
\t
FYGD-C6090-10A-L
\t
120 or 220
\t
60
\t
8
\t
60/90
\t
6.6/10
\t
600
\t
15/33.1
\t
FYGD-C60-15A-L
\t
120 or 220
\t
60
\t
8
\t
60
\t
15
\t
900
\t
18/39.7
\t
FYGD-C60-15A-W
\t
220 or 240
\t
50
\t
8
\t
60
\t
15
\t
900
\t
18/39.7
\t
FYGD-C90-15A-L
\t
120 or 220
\t
60
\t
10
\t
90
\t
15
\t
1350
\t
22/48.5
\t
FYGD-C6090-15A-L
\t
120 or 220
\t
60
\t
8
\t
60/90
\t
10/15
\t
900
\t
18/39.7
\t
FYGD-C6090-15A-W
\t
220 or 240
\t
50
\t
8
\t
60/90
\t
10/15
\t
900
\t
18/39.7
\t
FYGD-C9060-15A-L
\t
120 or 220
\t
60
\t
10
\t
60/90
\t
15/22.5
\t
1350
\t
22/48.5
\t
FYGD-C9060-15A-W
\t
220 or 240
\t
50
\t
10
\t
60/90
\t
15/22.5
\t
1350
\t
22/48.5

1.Please see Ordering Information in next page for details about the model definition.

2.Input voltages of 100VAC 60Hz, 110VAC 60Hz, 115VAC 60Hz, 120VAC 60Hz, 220VAC 60Hz, 230VAC 50Hz and 240VAC 50Hz are available also. Please contact us directly for details.

3.Output voltage of the model is field selectable.

4.Both input voltage and output voltage can be customized. Please contact us for details.

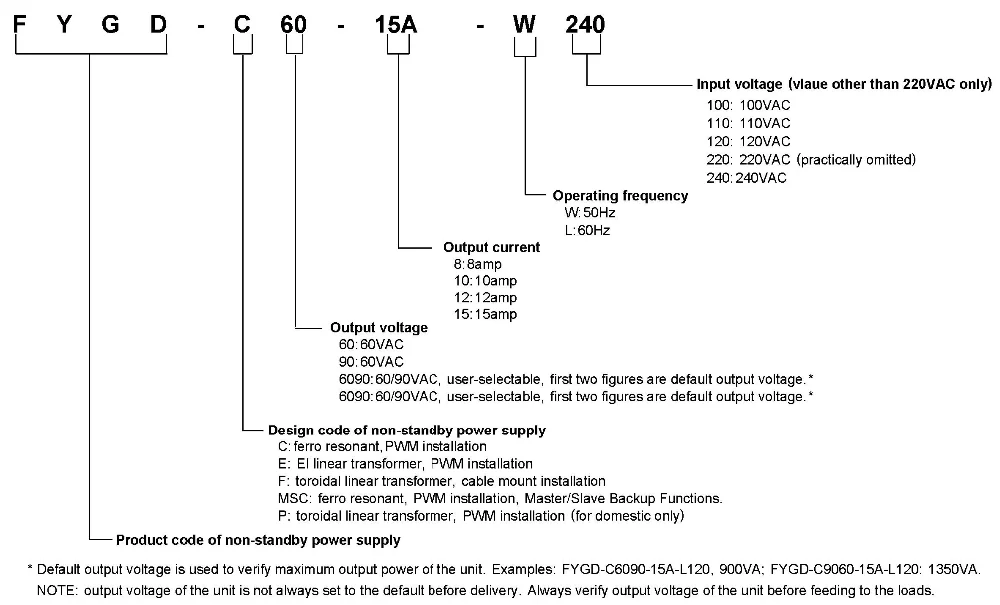

Ordering Information / Model Definition

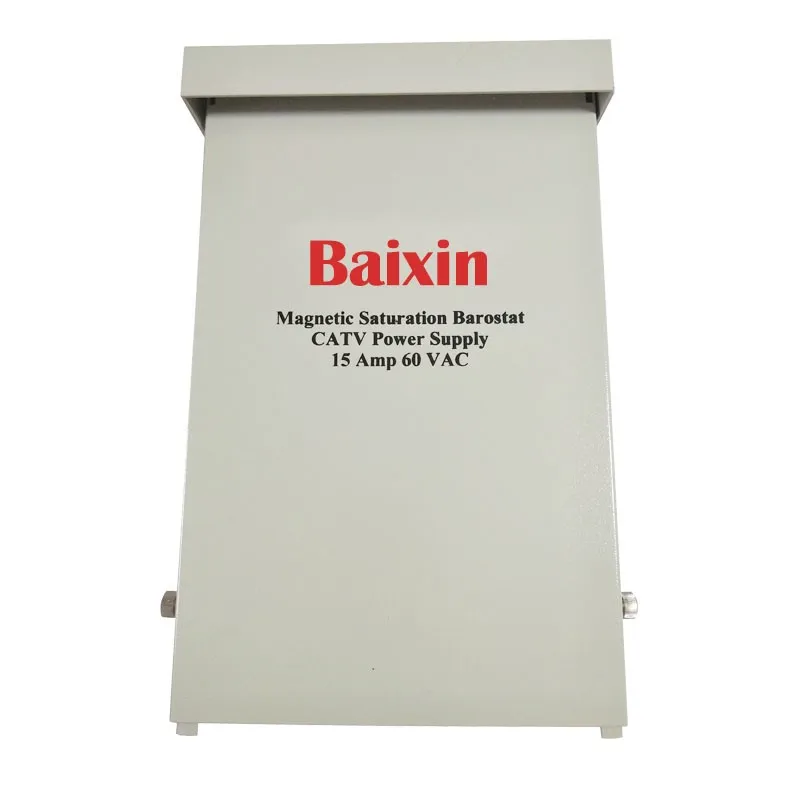

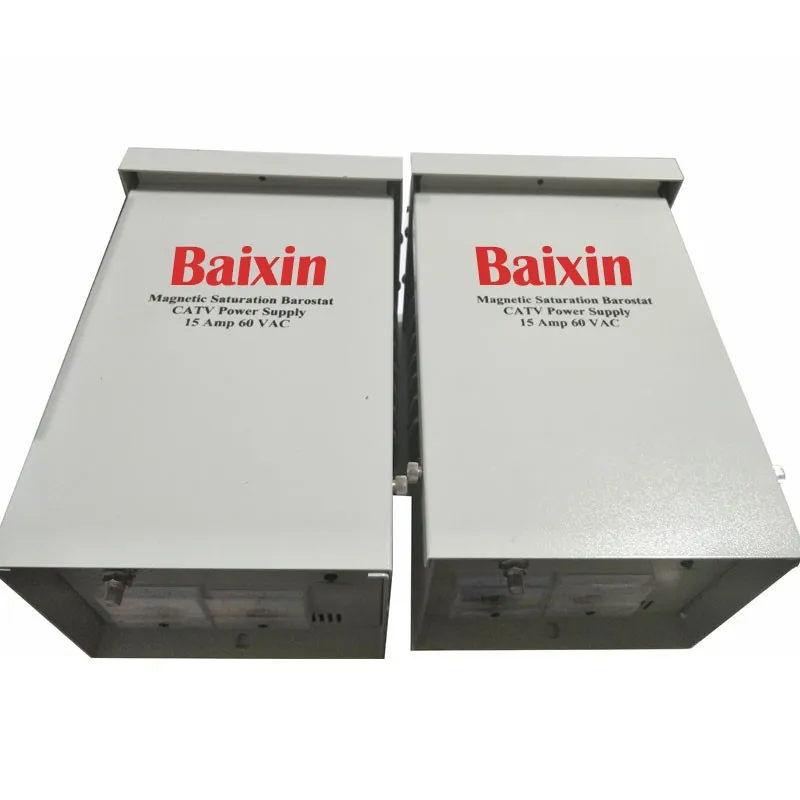

Pole & Wall Mount Enclosure


The enclosure is built of durable, weather-resistance, powder coated aluminum for outdoor applications. It is able to withstand the hardest environments.


With installation kit offered as standard feature, the unit can be easily mounted on a flat and vertical surface or on a wooden / concrete pole.

\t
Input
\t
Voltage range
\t
-20% to 15%
\t
Power factor
\t
>0.90 at full load
\t
Output
\t
Voltage regulation
\t
5%
\t
Waveform
\t
Quasi-square wave
\t
Protection
\t
Current limited
\t
Short circuit current
\t
150% of max. current rating
\t
Efficiency
\t
≥90%
\t
Mechanical
\t
Input connection
\t
Terminal block (3-pin)
\t
Output connections
\t
5/8" female or terminal block
\t
Finish
\t
Power coated
\t
Material
\t
Aluminum
\t




Dimensions
\t
FYGD-C60-8A-W
\t
310x188x174mm
\t
12.2"x7.4"x6.9"
\t
Other models
\t
335x217x190mm
\t
13.2"x8.5"x7.5"
\t
Environmental
\t
Operating temperature
\t
-40°C to 55°C / -40°F to 131°F
\t
Operating humidity
\t
0 to 95% non-condensing
\t
Optional features
\t
TDR
\t
Time delay relay
\t
\t
Typical 10 seconds

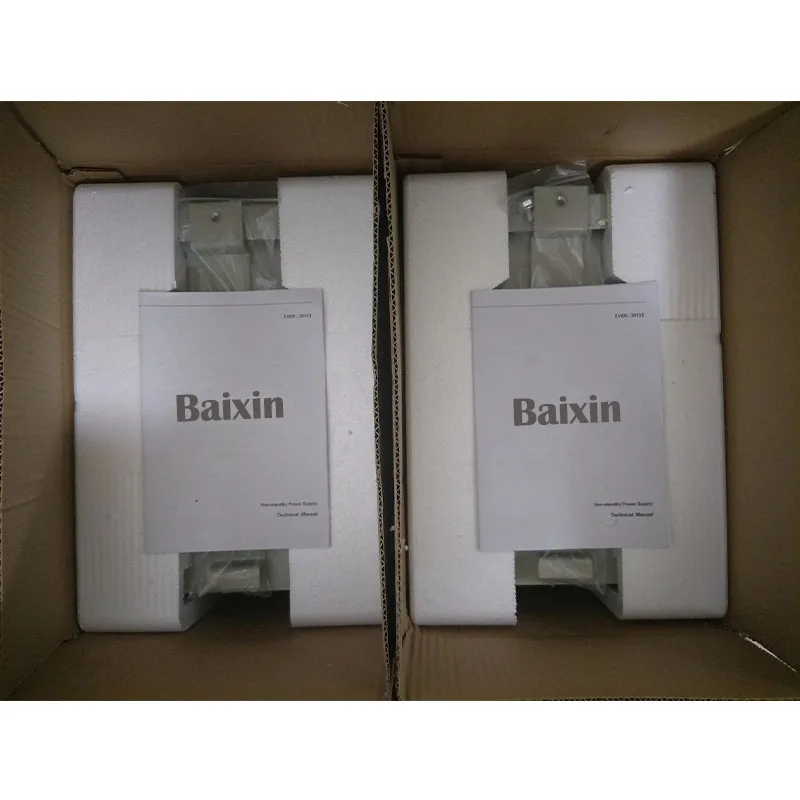

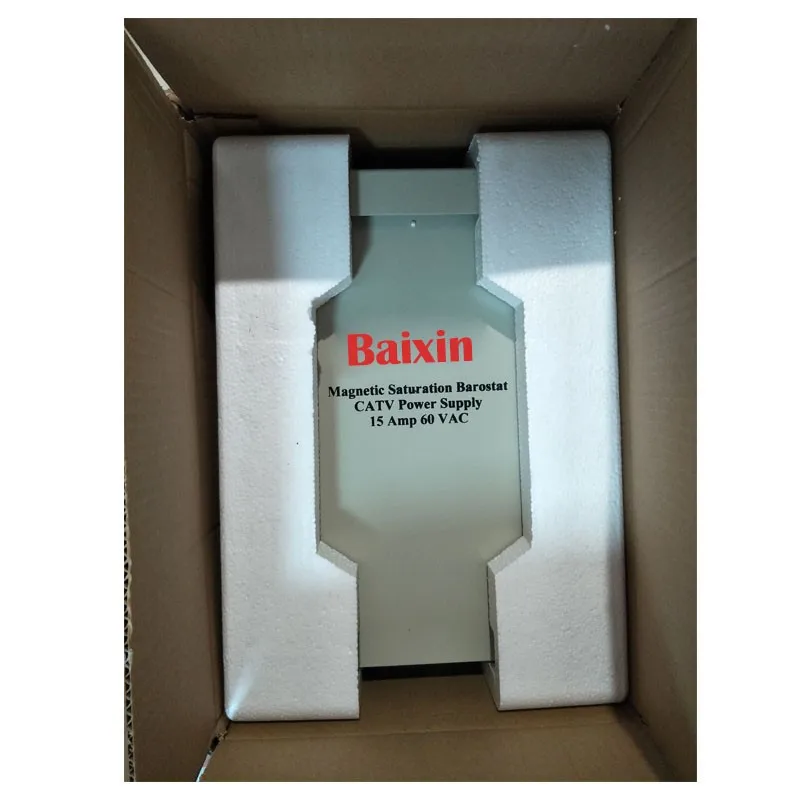

Packing & Delivery

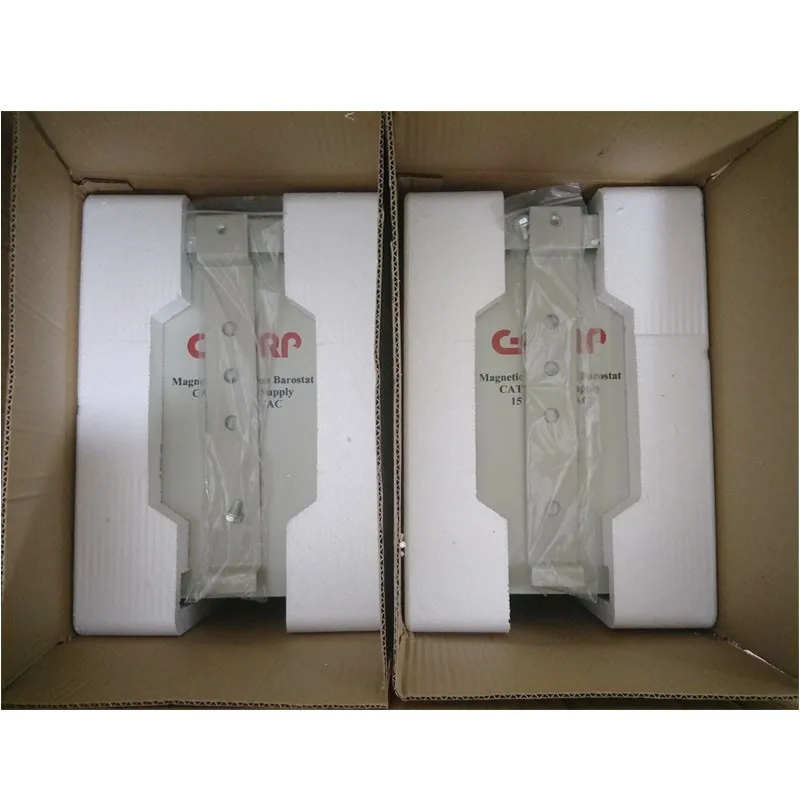

Q:What kind of packing  do you have?

A:1pc/box ,2pcs/carton.

Payment

Q:What kind of payment are you accepted ?

A: For large orders, T/T , L/C both can.
     For sample order or small orders, credit-cards Paypal, Western Union are accepted.

Shipment

Q:For Shipment,what are u use normally?

A:For sample order, normally,We ship by air or by express(about the express fee,if you have   express collect account,pls tell us ,we can arrange to your account,if you don't have ,you can pay by paypal,credit-card,western union).
    For large orders use LCL or container by sea.

FAQ

Q:What is your MOQ?

A:Free MOQ. You'll be highly appreciated,if you could provide us your QTY. Then we'l l calculate cost correspondingly.

Q:Can I get samples?

A:Yes. Samples will be sent for checking. We usually send samples by DHL,Fedex,UPS,TNT or Aramex. If you have carrier account,it'll be pleased to ship with your accoun t. If not,you can pay by Western Union,Paypal or others.

Q:How long is sample & production leadtime?

A:1.Sample leadtime: 3-5 days,after confirmed your payment.

    2.Production leadtime:15-20 days,after confirmed sample & payment.

Q:Do you accept OEM or ODM?

A:Yes,we're factory. And we have our own Engineering Department. You just need tosend us your requirements.
