36 Ton Truck Crane TTC36G SINOMACH Hydraulic Hoisting Construction Machinery

1. Driver's cab with European safety standards can make the operator safer and more comfortabel.

2. Hydraulic system makes the operator's operation more smoothly.

3. Reliable chassis and power.

SPECIFICATIONS FOR 36 TON TRUCK CRANE



Basic Specifications
Vehicle weight
37490kg
Axles loads(steering)
12690kg
Axles loads(driving)
24800kg
Min ground clearance
270mm
Overall dimensions
13150x2500x3410mm




Engine
Engine model
Weichai WP10.300N
No. of cylinders
6
Rated Power
221KW/1900rpm
Max torque
1390N.m/1200-1500rpm
Aspiration
Turbocharged
Fuel consumption 100 km
38L
Fuel tank capacity
270L








Lifting Capacity
Max capacity for main hook
36ton
Max capacity for auxiliary hook
3.5ton
Max load moment
1367~1588kN.m
Base boom length
11m
Base boom max lift height
10.77m
Base boom max working radius
9m
Fully extended boom length/heigth
41m/41m
Fully extended boom working radius
32m
Fully extended boom max lift height with jib
54.68m
Fully extended boom max working radius with jib
32.7m
Slewing speed
2.1rpm

Hydraulic system
Hydraulic system
LUDV
Combined with dual pump
Double pump
Joystic control
Pilot actuated multi -axis joystic control
Detailed Images

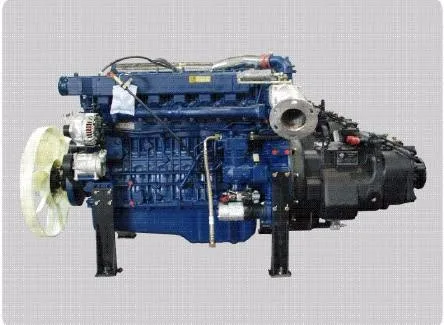

Engine

Brand: Weichai

Original: China

Weichai power, in-line 6-cylinder, four stroke, water cooled, supercharged intercooling, electronically controlled high pressure common rail diesel engine.

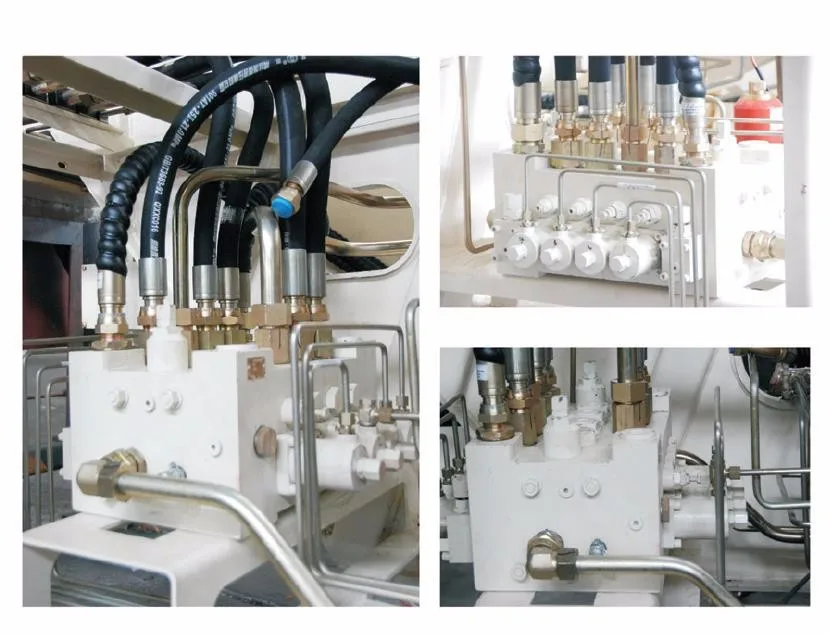

Hydraulic System
Meet with the Terex international standard.

LUDV hydraulic system, leading the industry.

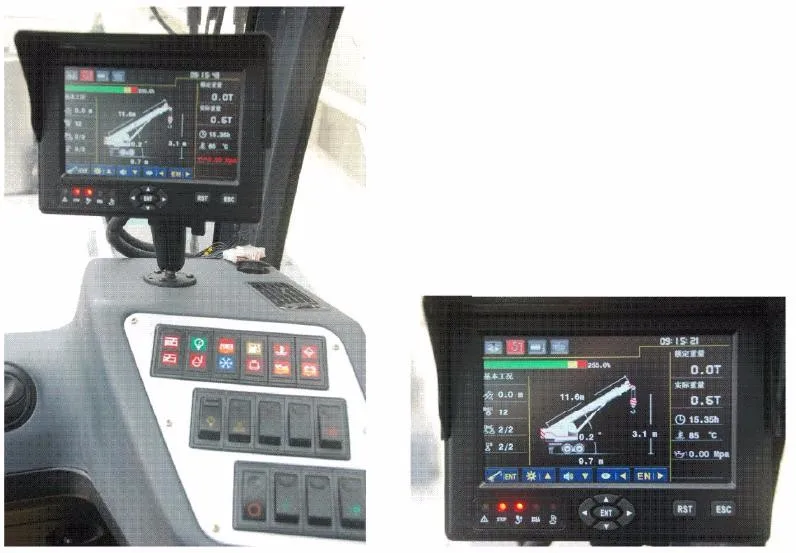

 Load moment Limiter

Changsha Huade  load moment limiter, high-capacity, stable performance, dependable and accurate system data.

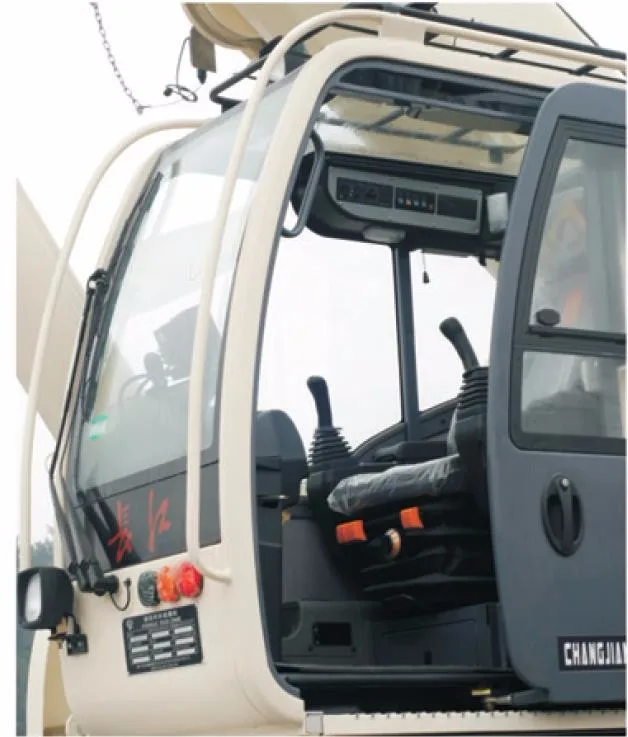

Operating Cab
1.Higher security and better crash-proof

2.Sliding door ensures space

3.AC with better heating and cooling

4.Easy operating and conforming to ergonomics

Our Company
Certifications
Packing & Delivery
Packaging
Size
13.15(L) * 2.5 (W) * 3.41 (D)
Weight
41.88 T



Packaging Details
RORO OR BULK
