PVC Electric Conduit Pipe Making Machine/PVC Water Pipe Production Line/PVC Plastic Pipe Extrusion Machine Line
- Category: Industrial Machinery >>>
- Supplier: Kunshan Oneplus Machinery Co. Ltd.
Share on (60804361810):
Product Overview
Description
Machine Description

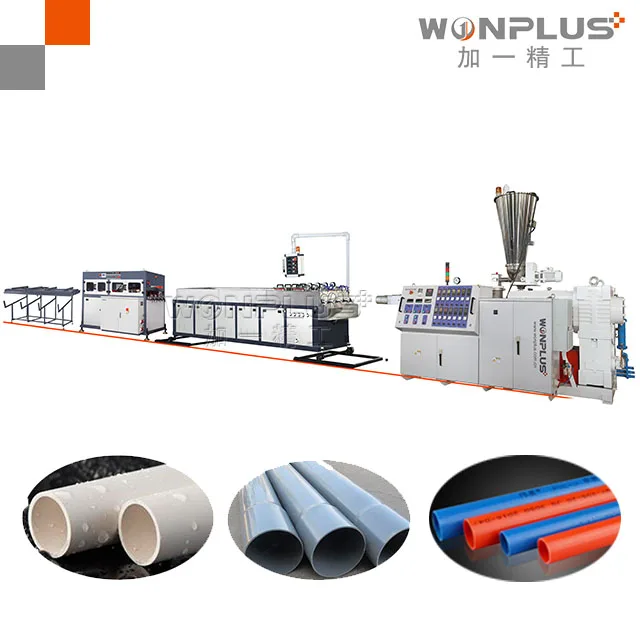

PVC pipe extrusion line consists of Conical twin-screw extruder, Vacuum forming equipment, Haul-off machine, Cutting machine, Stacker and other components, with good stability and high capacity, easy to operate, reliable. The production line can produce water supply and drainage pipe, the material is U-PVC, C-PVC. and small diameter pipe for electricity wire conduit pipe. Full automatic control by SIMENS PLC computer.
Machine Parameters
| Pipe OD (mm) | 16-32mm | 32-63mm |
| Mould type | 4 Outlet | 4 Outlet |
| Extruder (Conical twin screw) | SJZ-65/132 | SJZ-80/156 |
| Driven Motor (kw) | 37kw | 55kw |
| Installation Power(kw) | about 81kw | about 130kw |
| Design Capacity(kg/h) | 300kg/h | 400-450kg/h |
| Installation Length | about 18m | about 23m |
| Vaccum Calibration Tank | 5m | 5m |
| Traction Speed | 16m/s | 16m/s |
| Cutter | Non-dust or Saw cutting | Non-dust or Saw cutting |
Machinery Overview
Machinery Main Parts
 | Conical Twin Screw Extruder
Driven motor: Siemens brand Temperature control: Japan RKC, Omron, or Siemens computer Inverter: ABB brand Cotactor & Relay: Schneider brand Circuit breaker: DELIXI |

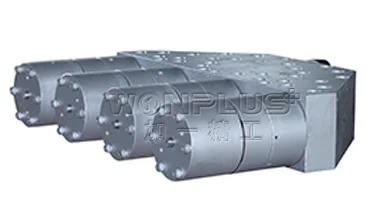

 | Extrusion Mould
|
 | Calibration Tank
|

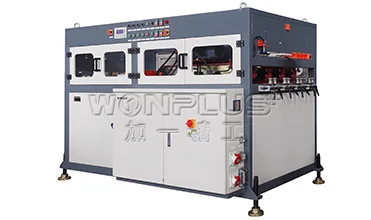

 | Hauler & CutterFour outlet PVC pipes Hauler and cutter are integrated. Traction motor reducer: Servo motor, INNOVANCE brand Electricity components: Schneider brand Cutting control: SIEMENS PLC computer Cutting type: Non-dust cutter, or Saw cutter. |

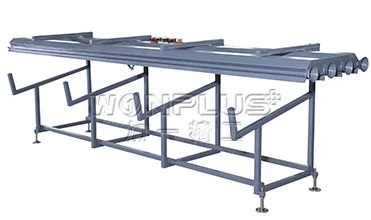

 | Stacker
Humanized design, humanpower saving |
Products Application
Four-outlet PVC pipe extrusion line normally make from OD 16-63mm, in this size range, most is widely used for electricity, such as conduit PVC pipe.The electric conduit PVC pipe has the performance of Non-conductive, Smooth surface, Fire resistant, Corrosion Resistance, Impact strength and so on.
Turnkey Project
Company Information
---Specialized In Plastic Extrusion Machinery---
Kunshan Oneplus Machinery Co.,Ltd. is specialized in twin and single screw extrusion line for pipes, profile,sheet and board, plastic recycling granulator. We manufacture both conical and parallel types of extrusion lines depending on the applications. The product has been exported to South East Asia, the Middle East, Africa,Europe and other regions.
