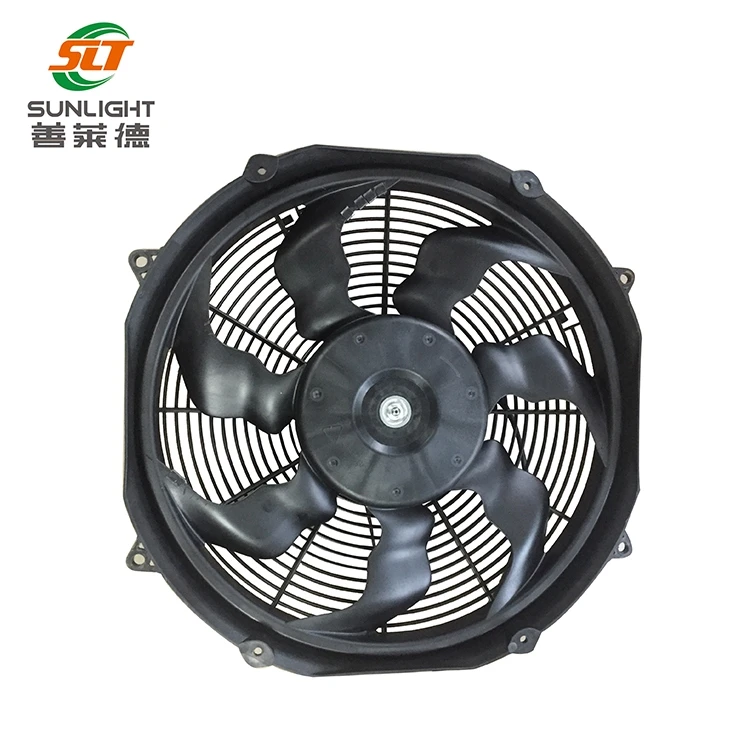

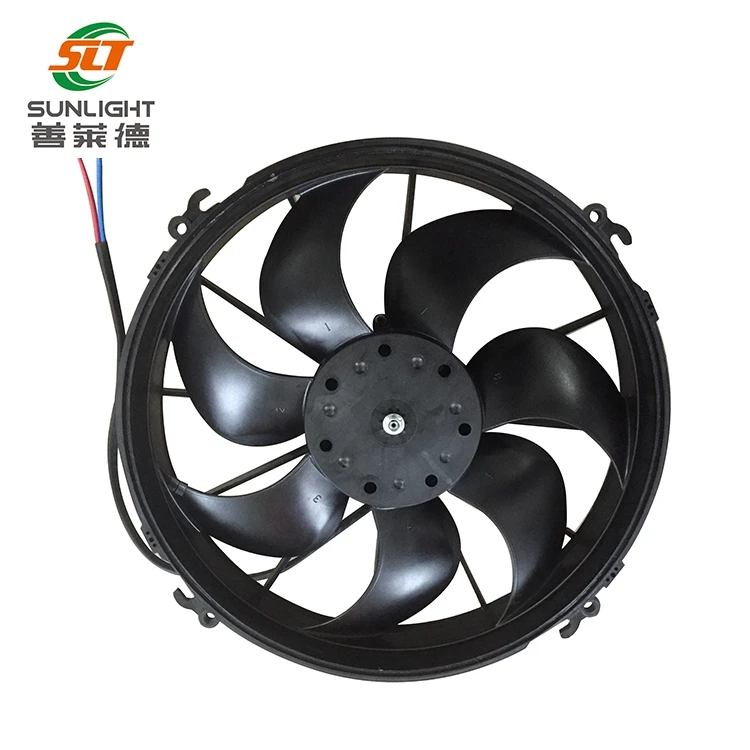

320mm 12V suction dc brushless radiator cooling fan for the Heat exchanger
- Category: Radiator >>>
- Supplier: Changzhou Sunlight Electrical Appliance Co. Ltd.
Share on (60804410853):
Product Overview
Description
Product Description
320mm 12V suction dc brushless radiator cooling fan for the Heat exchanger
320mm 12V suction dc brushless radiator cooling fan for the Heat exchanger
Specification of 320mm 12V suction dc brushless radiator cooling fan for the Heat exchanger
1, Black-13.5V/Brown-GND,CW Rotation
2,Pressure test,: <5mA@660VAC-1S
3,Protection: IP68
4,Insulation class:H
5,Humidity: 0-100℃
6,Life: 25000H min
7, Operaing temperture: -40℃-85℃
8, Lead length: 500±20mm,UL1015 12AWG
9, Voltage: 10~16V---13.5V Rated Voltage
10, Weight : 3Kg
Test data of 320mm 12V suction dc brushless radiator cooling fan for the Heat exchanger
| BLDC Axial Fan Performance Parameters(Test Voltage:13.5V) | ||||||||
| Staric Pressure (Pa) | Airflow(m³/h) | Current Input(A) | ||||||
| 0 | 2580 | 11.2 | ||||||
| 50 | 2295 | 12.4 | ||||||
| 100 | 1982 | 13.1 | ||||||
| 150 | 1480 | 13.6 | ||||||
| 200 | 860 | 14.1 | ||||||
| 250 | 520 | 14.5 | ||||||

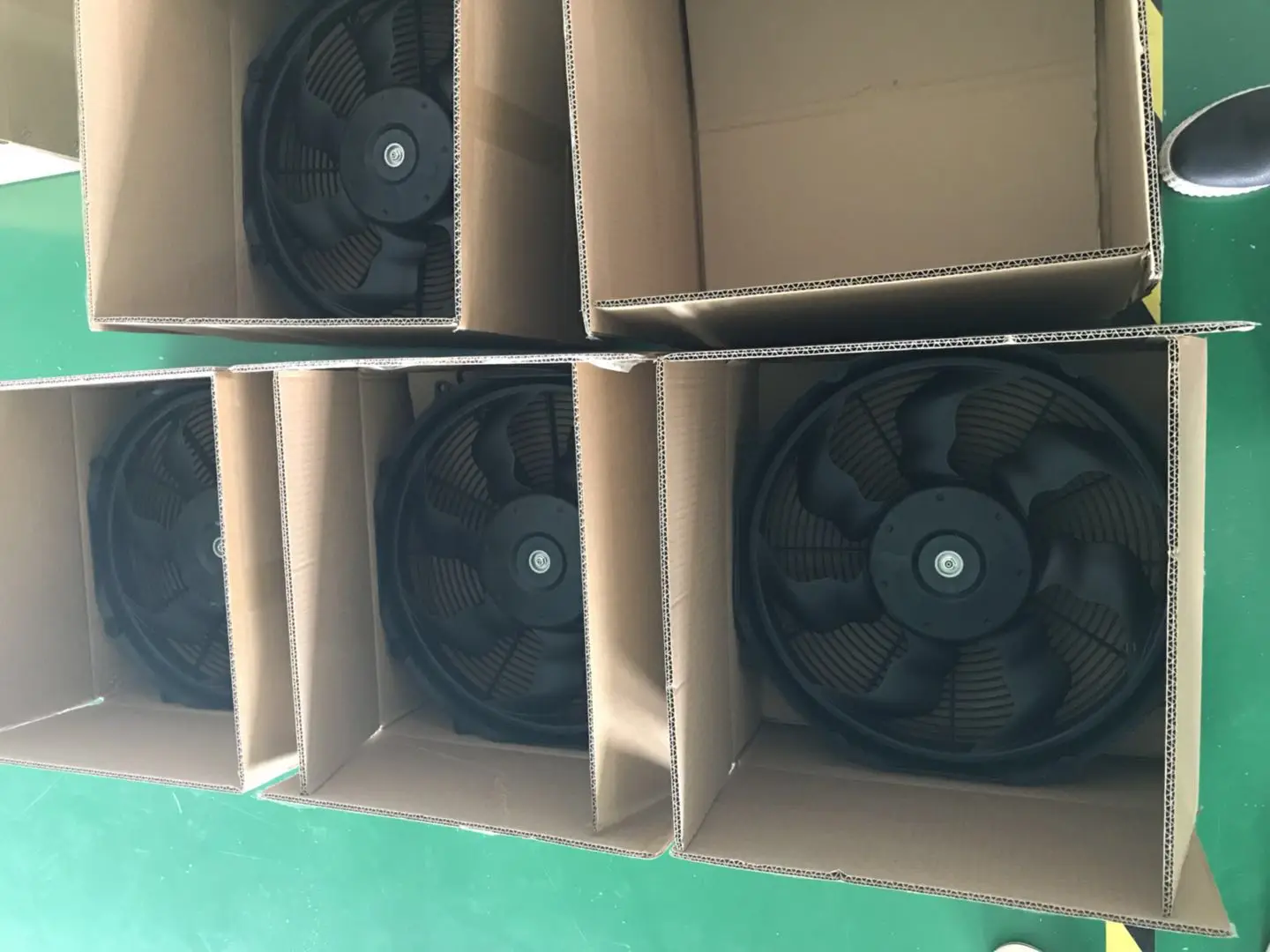

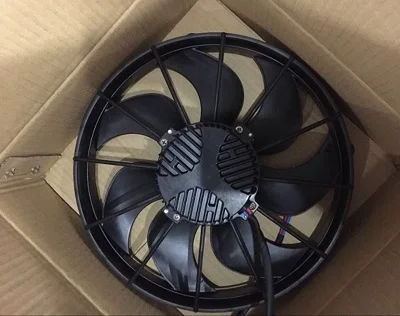

Packaging & Shipping
Company Information
Sunlight built the international sales team from 2015,it belongs to Rongda Group which was built in 1990.
Sunlight is specialized in providing DC Motor, Brushless Motor, Stepper Motor, Radiator Fan, Condenser Fan and other Parts. We also provide professional solutions for customers. The products are widely used in Home appliance, Office equipment, Transportation, Medical products ,Garden tools and so on. Our customers come from European, America, Asia, Africa,Middle East and other countries.
We always try our best to promote the development of motor industry and provide best service to our customers.
Help our customer to find the valuable products, Lead our factory to the world and build their brands
Some more ralted product with 12V 12inch high power cooling dc brushless fan for truck
