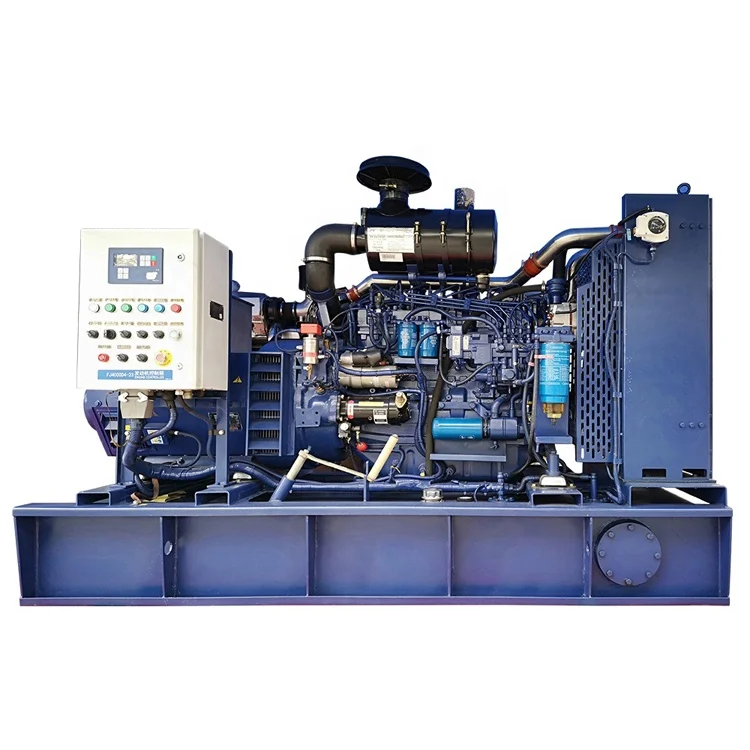

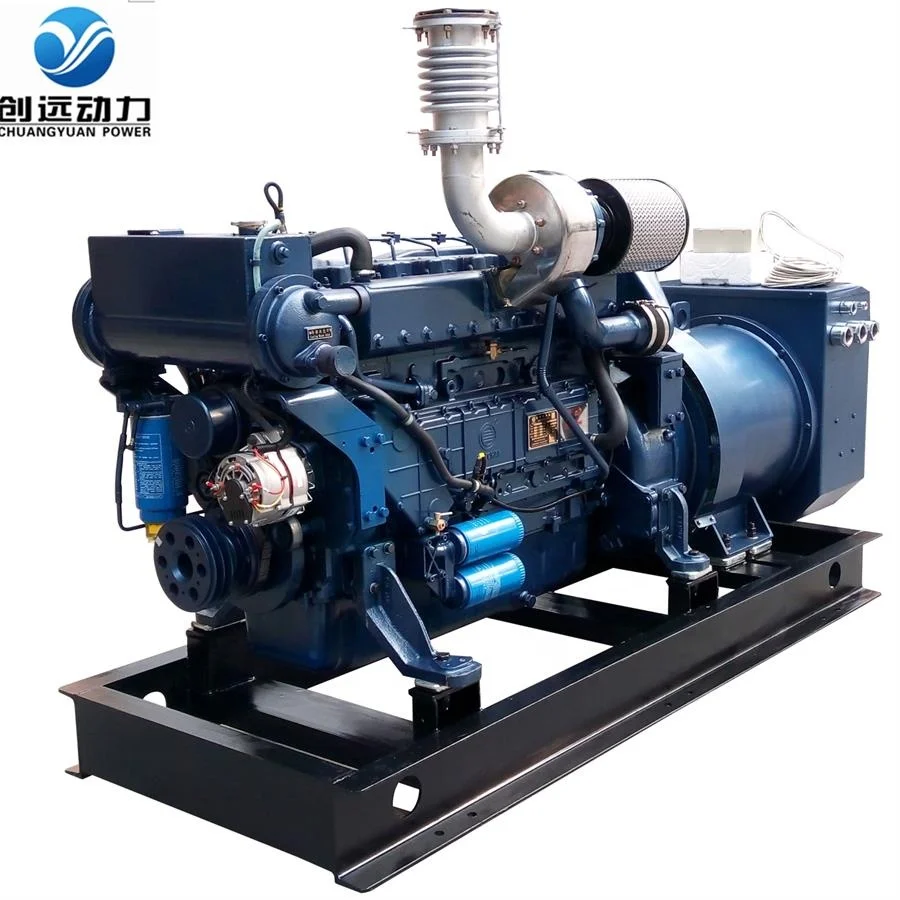

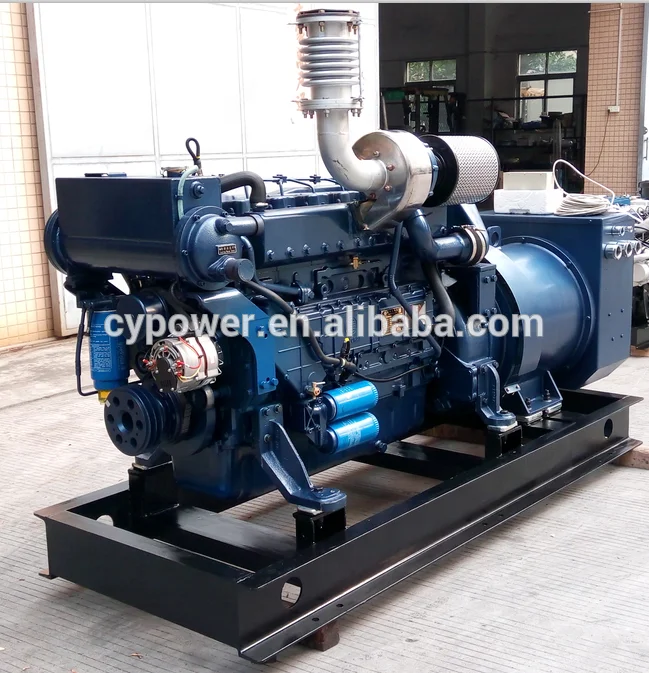

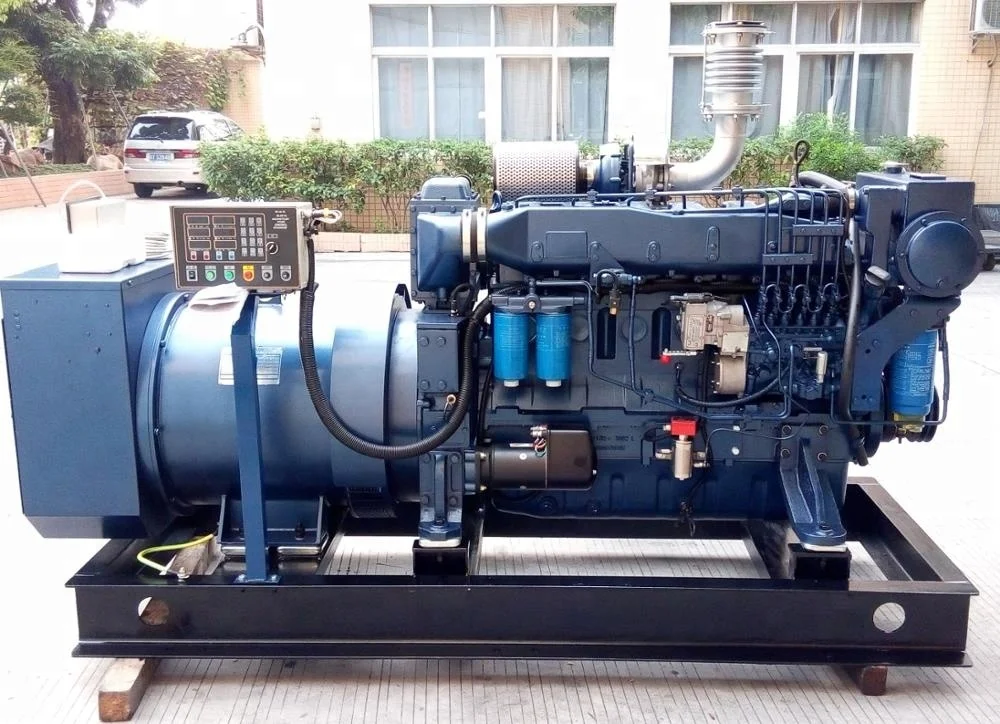

China manufacturer price WeiChai 1500rpm 3 phase kva 150kw marine diesel generating set
- Category: >>>
- Supplier: Zhongshan Chuangyuan Power Equipment Co. Ltd.
Share on (60804444775):
Product Overview
Description
Products Description
Genset Model | CCFJ150J |
Generator Output | 159kw |
Power factor | 0.8- 3 phase |
Frequency | 50HZ or 60HZ |
echanical controller | DC 24V electric starter | Air cooled & water cooled |
IP23 | H type insulation | Documents |
Common high pressure fuel pipe | Dry type exhaust manifold | Sea water pump |
Engine CCS +Tier II | Alternator CCS | Local Engine Monit |
Option
Double Skin high pressure fuel pipe | Fuel leak alarm | Dirty hand pump |
Electronical governor | Remote controller | Whole set CCS |
Maker | WeiChai Power |
Rated power | 182kw |
Rated speed | 1500rpm |
Engine Type | Inline-6 Cylinders,4-stroke Diesel engine |
Bore x Stroke | 126mm x 130mm |
Combustion system | Direct Injection |
Aspiration | Turbocharged & Intercooled |
Cylinder Number | 6 |
Cooling System | Heat Exchanger |
Displacement | 9.726L |
Rotation | Anti-clockwise (facing Flywheel) |
Size of Flywheel Housing &Flywheel | SAE1#14 in |
Emissions | IMO Tier II |
Dry Weight | 1056kg |
Dimension(L x W x H) | 1514 x 878 x 1407mm |
