CNC woodworking business favorite machine for Wood Cutting Usage Saw Mill
- Category: >>>
- Supplier: Binzhou Cosen CNC Equipment Technology Co. Ltd.
Share on (60804459405):

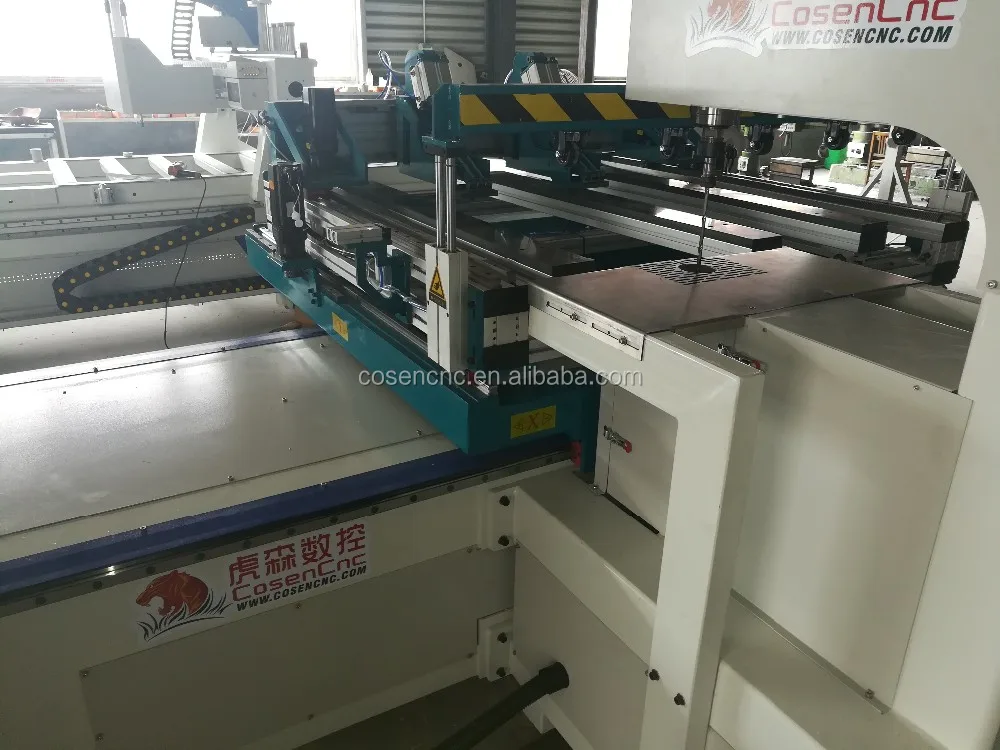

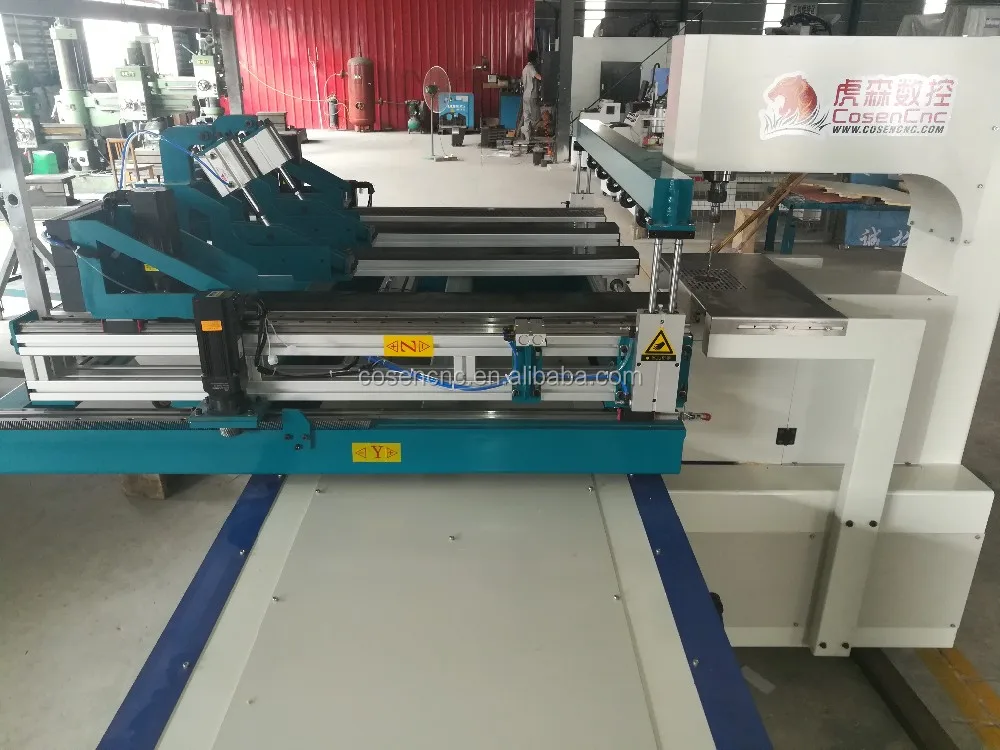

Product Overview
Description
CNC woodworking business favorite machine for Wood Cutting Usage Saw Mill
Product Features
Use a milling cutter instead of a saw blade with no r-angle restrictions. Any pattern can be cut
Whole machine is welded with seamless steel structure, which is high temperature annealing and vibrating stress relief, so the lathe body is stabilized and will not be deformed forever.
X Y and Z axis is transmitted by Sophisticated planetary reducer. This makes the machine work faster and has larger cutting force compared with ball screw transmission.
High soft and famous brand electric cables with high abrasion, fold, high temperature, acid or alkali resistance.
Use a milling cutter instead of a saw blade with no r-angle restrictions. Any pattern can be cut
Whole machine is welded with seamless steel structure, which is high temperature annealing and vibrating stress relief, so the lathe body is stabilized and will not be deformed forever.
X Y and Z axis is transmitted by Sophisticated planetary reducer. This makes the machine work faster and has larger cutting force compared with ball screw transmission.
High soft and famous brand electric cables with high abrasion, fold, high temperature, acid or alkali resistance.
Technique parameters
Max working thickness | 150mm |
Structure | Strong seamless steel structure |
X,Y,Z structure | X, Y,Z with 30 Linear guide rail |

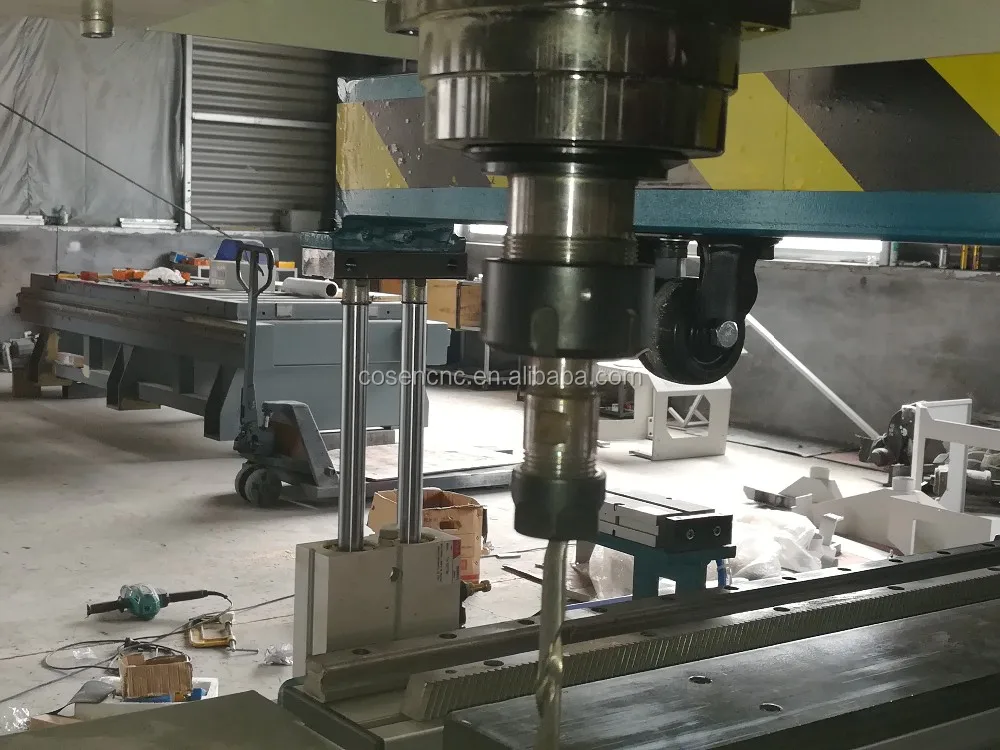

Spindle | Two 4.5kw air cooling spindle. 0-18000rpm/min |
Collect | ER32 |
Operating system | Original Mach3 control software |
Motor and Driver | Baigela servo motor and driver |
Reducer | Sophisticated LIMING reducer |
Working voltage | AC380V 3phase |
Inverter | 11kw Hpmont invert |
Cable Carrier | Highly flexible, silent, high-speed cable carrier |
Command code | G code |
Table | Double feeding table |
Software | Artcam software, Alphacam software |
Package size | 1050*700*1900mm 2700*1750*1600mm |
Gross weight | 2000KGS |
Related Machines
 |  |  | |
| LATHE MODEL | CNC315S/315K/315W | CNC415S/415K/415W | CNC425S/425K/415W |
| Max Processing Size | 1500x300mm | 1500x400mm | 2500x400mm |
| Spindle Power | 4kw | 4kw | 5kw |
| Quantity of Spindle | 1 | 1 | 1 |
| Quantity of Tools | 2 | 2 | 2 |
| Max Feed Speed | 35mm/s | 35mm/s | 35mm/s |
| Spindle Speed | 0-3500rpm | 0-3500rpm | 0-3500rpm |
| Accuracy | 0.001mm | 0.001mm | 0.001mm |
| Control System | CNC,PC+12"LCD Or DSP | CNC,PC+12"LCD Or DSP | CNC,PC+12"LCD Or DSP |
| Support Command | International G Code | International G Code | International G Code |
| Software | Coreldraw,Artcam,Type3,Ucancam,Caxa,UG,Mastercam,AutoCAD | ||
| Voltage | 380V/50HC | 380V/50HC | 380V/50HC |
| Machine Dimension | 2750x1200x1300mm | 2750x1300x1400mm | 3750x1300x1400mm |
| Weight | 1500kgs | 1500kgs | 2000kgs |
♣Applications As Following

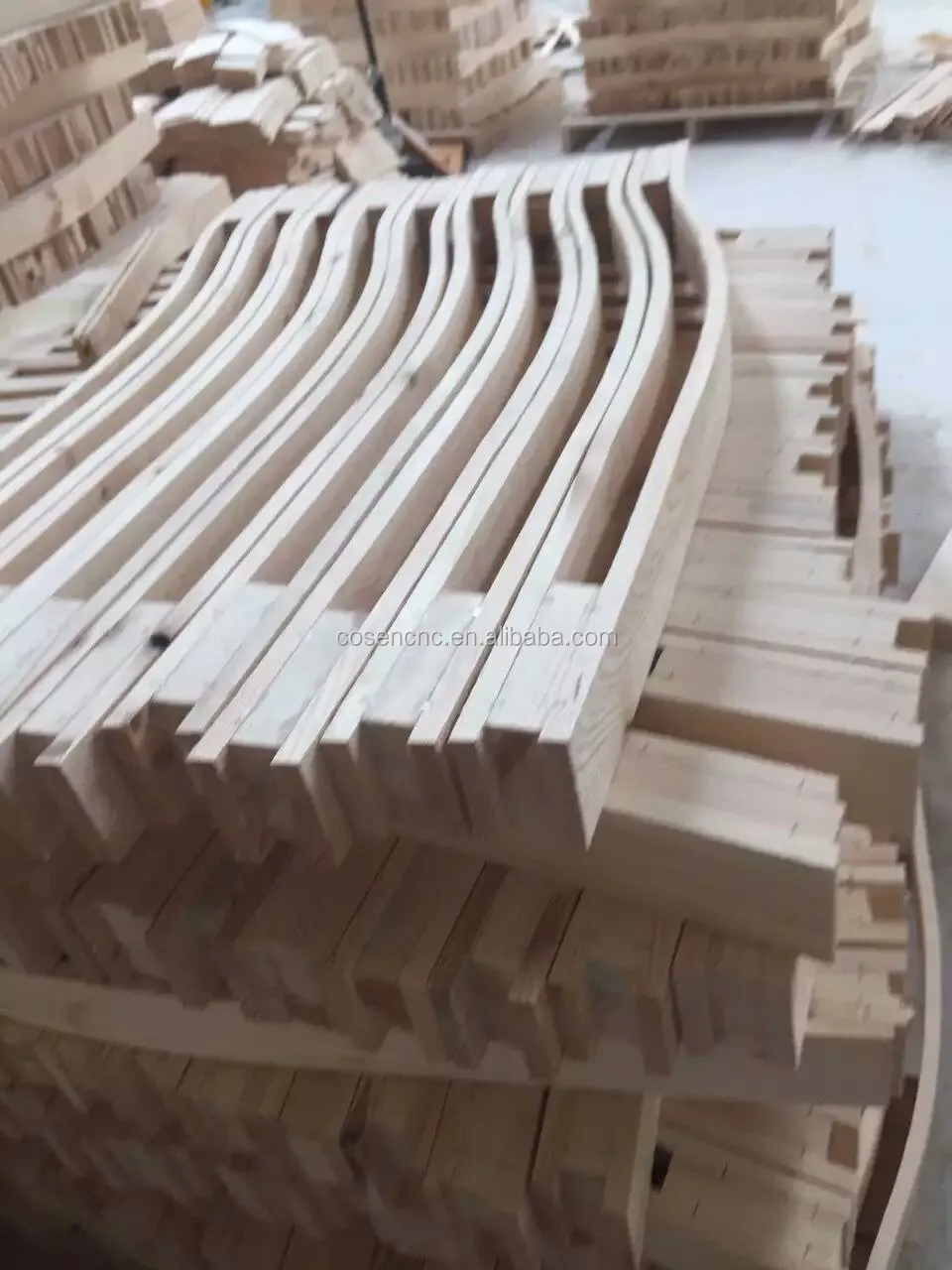

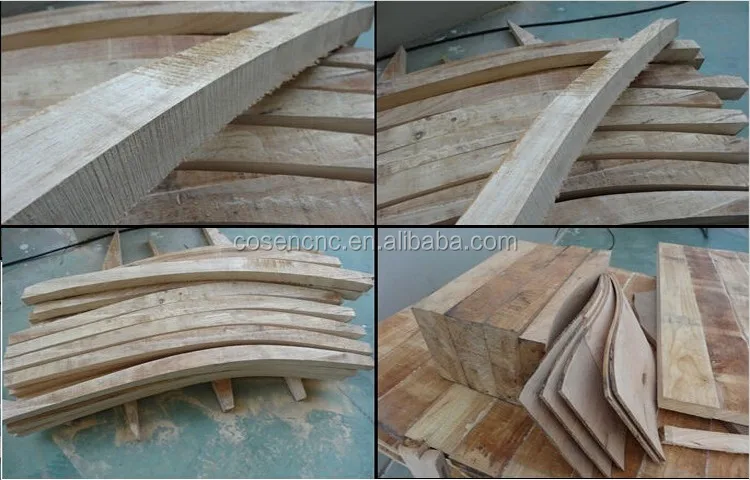

Woodworking: can process the parts for sofa,headboard or foot board for beds
Arts and Advertisement: can make art craft, souvenir, labels and number plate.
Materials: wood, MDF, plexiglass, plastic, bamboo, rubber, PVC, acrylic, double-colored board and so on.
♣Packing &shipping
Whole machine will be wrapped with cling plastic and then packed into plywood case.
♣ Packaging Details:CNC lathe with waterproof inner and plywood wooden case outside
♣ Delivery Time :within 7 days after received the date of deposit or L/C
♣Why Choose Us
♣. Perfect Design Teams
♣. Big Workshop
♣. Long time cooperated raw materail cooperators
♣. Qualified by China quality inspection department
♣. Richful home and abroad sales experiences
♣. Professional technician answer questions with technical support 24 hour on-line
♣. After-sale service guarantee slove questions in time
♣Certification
♣Factory and Company COSEN CNC ♣1. The company's main product is the engraving machine and laser machine, the use of these two kinds of machine is wide.
♣2. The company engaged in machinery production and sales professional for 6 years, to the needs of different customers can be satisfied.
♣3. The company is the best group is a research and development department and service department, the company has a sound management system.
♣Welcome your coming and visiting our factory COSEN CNC
♣.Welcome to visit our factory , we could train you how to use the machine at cosen factory or on-line for free.
Factory exact address:
No 593, Huanghe 6th Rd.,Binzhou City,Shandong Province,China.
Way to our factory:
(1). By air to BEIJING International Airport, JINAN or QINGDAO Airport of Shandong,China
(2). By high-speed train to ZIBO or JINAN Railway station of Shandong Province,China
♣Waiting for your kindly calling & inquiry.
Whatsapp: +8618266589190
Wechat: +8618266589190
Web: www.cosencnc.com
