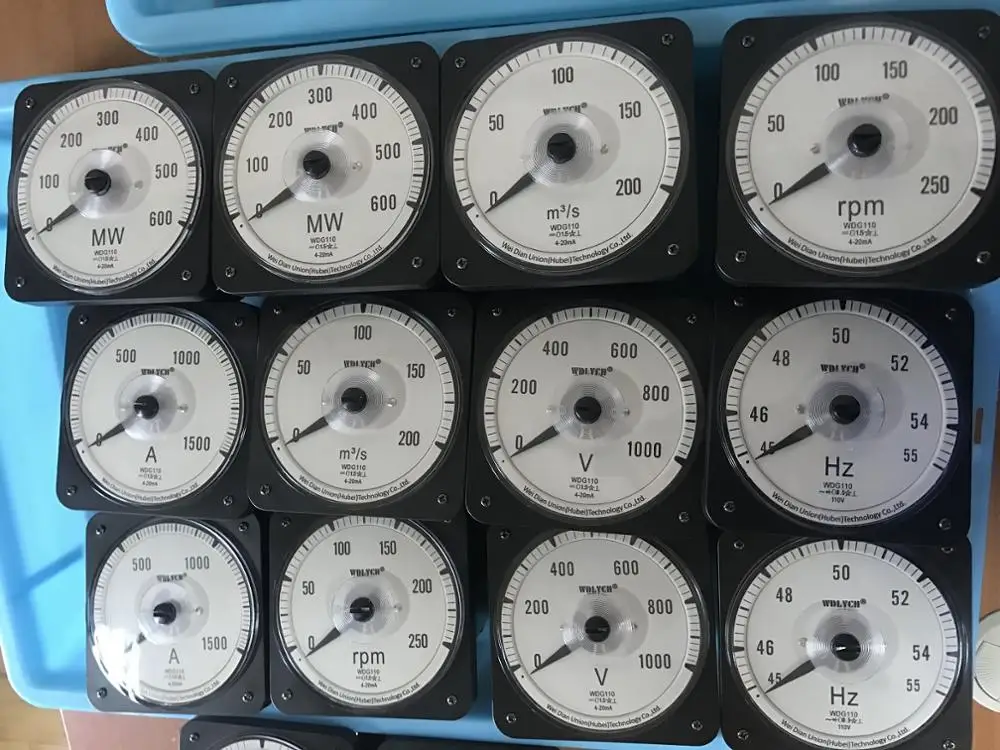

AC0-1000V 4-20mA Signal Input Voltmeter in Marine Application
AC0-1000V 4-20mA Signal Input Voltmeter in Marine Application
AC0-1000V 4-20mA Signal Input Voltmeter in Marine Application

AC0 1000V 4 20mA Signal Input Voltmeter in Marine Application

Share on (60804474961):


Price:

Quantity:


Product Overview

Description


Introduction

Introduction & Application:


The Meters is analog display, moving coil structure, mainly used for measuring AC/DC Voltage in transmission & distribution power system.
Standard: Comply with GB/T7676-98, international standard: IEC60092-50


Goods Description
\t
Product Name
\t

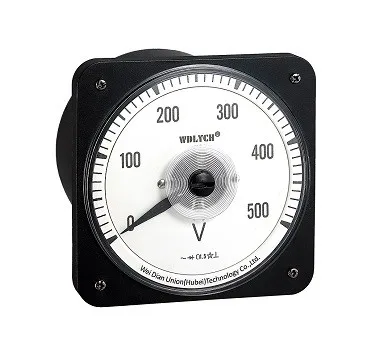

45 type analog voltmeter
\t
Scale
\t
240-270°
\t
Dimension
\t
110*110mm
\t
Hole Size
\t
101mm
\t
Measurement Range
\t
0-1000V/0-10KV
\t
Connection Way
\t
Direct connection or By PT
Usage & Application


Mainly used in various AC/DC transmission and distribution system, power control panel and electric equipment for various industries such as marine,rail, aviation, chemical and explosive-proof,nuclear power, hig/mid voltage equipment, power generator set and control engineering. It is high end meter, and suitable for complicated environment to measure electric/non-electric energy;


Also used on low voltage equipment, construction/mechanical equipment, various AC/DC power distribution system, electrical control panel and equipment. It is mid/low end meter, and suitable for universal environmental to measure electric/non-electrical energy.

Technical Parameters
\t
Item
\t
Technical Data
\t
International Standard
\t
Technical Standard
\t
GB/T7676-1998
\t
IEC60092-50
\t
Environment Standard
\t
GB8355-1987
\t
IEC92-504-74
\t
Safety Standard
\t
GB4793-20
\t
IEC61010
\t
Working Temperature
\t
-40℃-65℃
\t
\t
Temperature Influence
\t
-13-33℃, 100% comply with accuracy class
\t
Indicating Angle
\t
240-270° (Synchroscope meter:360°)
\t
Color of Shell
\t
Black/white , board frame , terminal plate : Black
\t
Color of Dial Plate
\t
Black/white, other colors are available on requests
\t
Mounting
\t
Vertical mounting
\t
\t

Dimension
\t
110*110mm,  80*80mm
\t
\t
96*96mm, 72*72mm, 48*48mm
\t
\t
Overshoot
\t
Less than 20% when scale reaches to 2/3
\t
Insulation Withstand
\t
Circuit & shell: AC2600V/1 minute(Water area)
\t
Vibration Resistance
\t
24.5m/s2
\t
\t
Impact Resistance
\t
147m/s2
\t
\t
Material
\t
Shell/terminal board: ABS;  Cover: Transparent Glass
