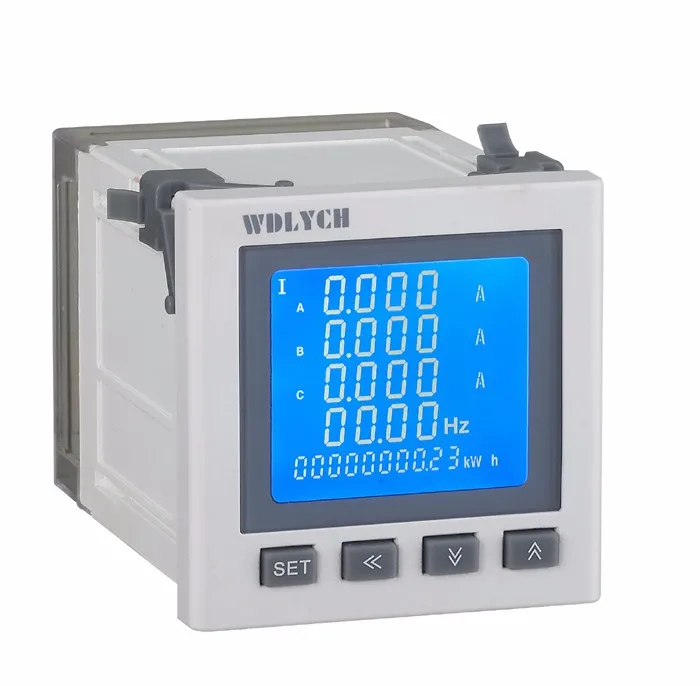

80*80mm LCD Display Digital Multi function Energy Meter
80*80mm LCD Display Digital Multi-function Energy Meter

80*80mm LCD Display Digital Multi function Energy Meter

Share on (60804531318):


Price:RUB 3,803.79 - RUB 4,947.13

Quantity:


Product Overview

Description

Product Description

Summary & Applications:


Three Phase multi-function meter is designed for electric monitoring in power system, industrial & mining enterprise, public facilities and intelligent building. It is able to set data on site and directly substitute normal power transmitter and auxiliary unit. Widely used in kinds of controlling & substation and distributing automation system.


Technical Parameters

Technical data:

1. Model: WDY-2E/9E/3E/AE;

2. Dimension(mm): 120*120/96*96/80*80/72*72;

3. Display: LCD display;

4. Input:  Current & Voltage;

5. Transformation ratio: Adjustable;

6. Measuring: 3 Phase(I3,U3,Hz,cos∅,Kw,Kvar,Kwh,Kvarh)

7. Internet: 3P3W,3P4W

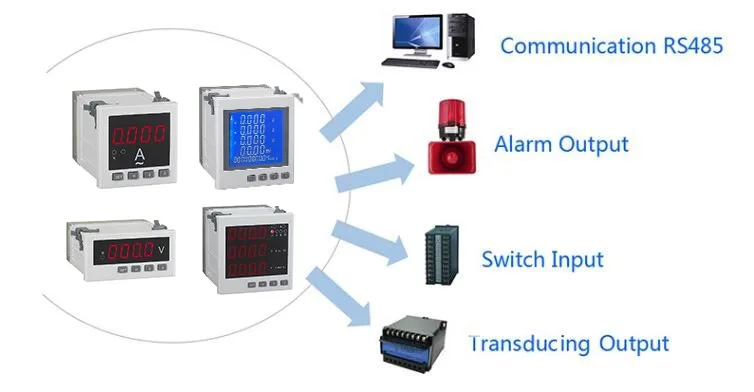

Optional Functions


Options:


1.Power supply: DC24V,AC380V,AC440V,AC690V;
2. Communication: RS485;
3. Switch input: 4 lines switches input;
4. Switch output: Relay output;
5. Analog output: 4 lines, 4-20mA/0-20mA


Certificate
FAQ



1. Who is Wei Dian Union?

Wei Dian Union is a new company, eastablished in the year of 2015, we have 15 technical engineer and 10 sales man, including domestic and international sales. Our team is young, which guarantee us more vitality.



2. Is your company manufacturer or trading company?

Yes, we are the manufacturer, we buy house and develop moudles all by ourselves.



3. What is the warranty of your products? and how about your quality?

All of our meters have 18 months warranty, and we cooperate with the university to develop new items and quality control, besides our own technical team.



4. How about your payment term and shipment?

We accept T/T, L/C and western union, prefer to TT, delivery date should be within one week after payment.



5. What's your advantage? Why should I choose your company?

Price: Compared with other famous company, our cost is much lower;

Quality: We have strict quality control, each meters have to accept life-time testing & inspection.


Sales supports: We are not big company, so our policy is flexible, quick action to any requirements.
