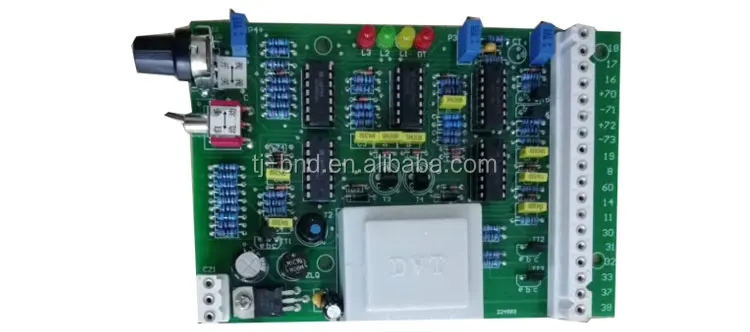

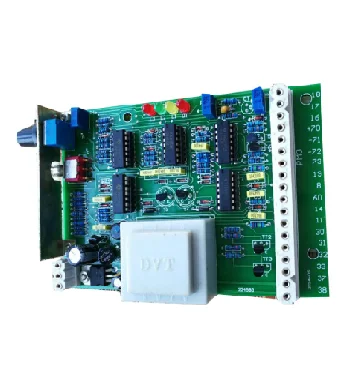

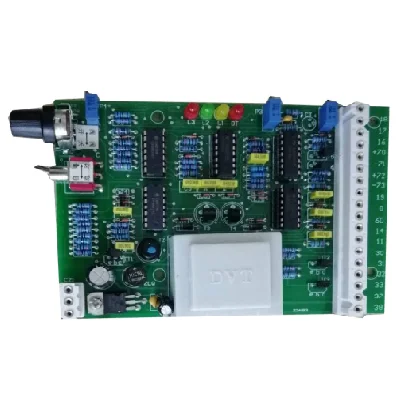

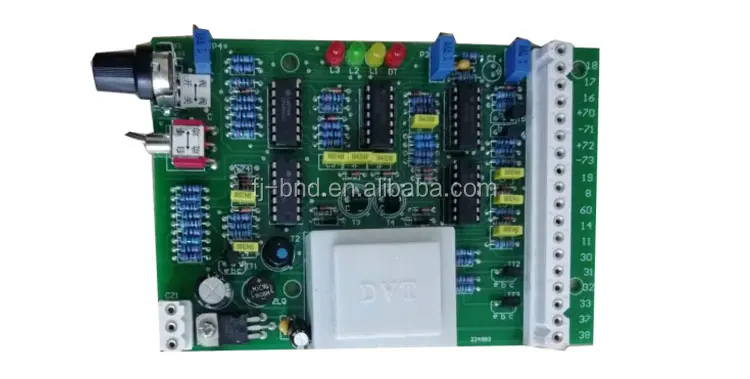

PM3 electrical control panel circuit control board

Product Overview

Description

PM3 electrical control panel circuit control board

Digital micro-control allows :

Push button proramming - eliminates Span and Zero pots

10-bit resolution

Off-line calibration - eliminates the need for loop calibrators



Product parameters

Operating temperature : +32°F to +158°F (0°c - 70°c)

Storage temperature : -40°F to + 185°F (-40°c - 85°c)

Relative humidity : 0 to 90% non-comdensing

1.Input signal: 4-20 mA

2.Output signal: 4-20 mA

3.Direction: standard: 4 mA------valve closed

20 mA-----valve opened

nverse direction: 4 mA------valve opened

                           20 mA-----valve closed

4. Dead zone: 0-3%

5. Operated automatically

6. Adjustment: 0% to receive 4mA signal

7. Adjustment: 100% to receive 20mA signal



Our company products three series of actuator control panels:

1. BERNARD electric actuator logic control panel/board CI2701, position control board GAMK, Transfomer EN, potentiometer board CIPOT1, etc.

2. China electric actuator accessories: Reducer, Motor, Control box, GAMX-T-2001, GAMX-D, GAMX-2004, GAMX-2005, GAMX-2006, GAMX-2007, GAMX-2K, GAMX-2KP, GAMX-2010N, GAMX-A, GAMX-B, GAMX-C series circuit board, braking board, output board, YF-220A, Power control module, ptentiometer, Cam, etc.

3. GAMX-D, GAMX-2K, GAMX-T-2001, GAMX-T-2004, GAMX-2003, GAMX-2003-T, GAMX-2005, GAMX-S518S, GAMX-D-2000, GAMX-2K, GAMX-2KP, GAMX-L1840, GAMX-2007, GAMX-2010, GAMX-2014, JDIDL-A, PM2, PM3.



Over-torque protection, broken signal protection, electrical machinery excessively hot protection, over-travel protection, scene operation function and unique cam mechanism.

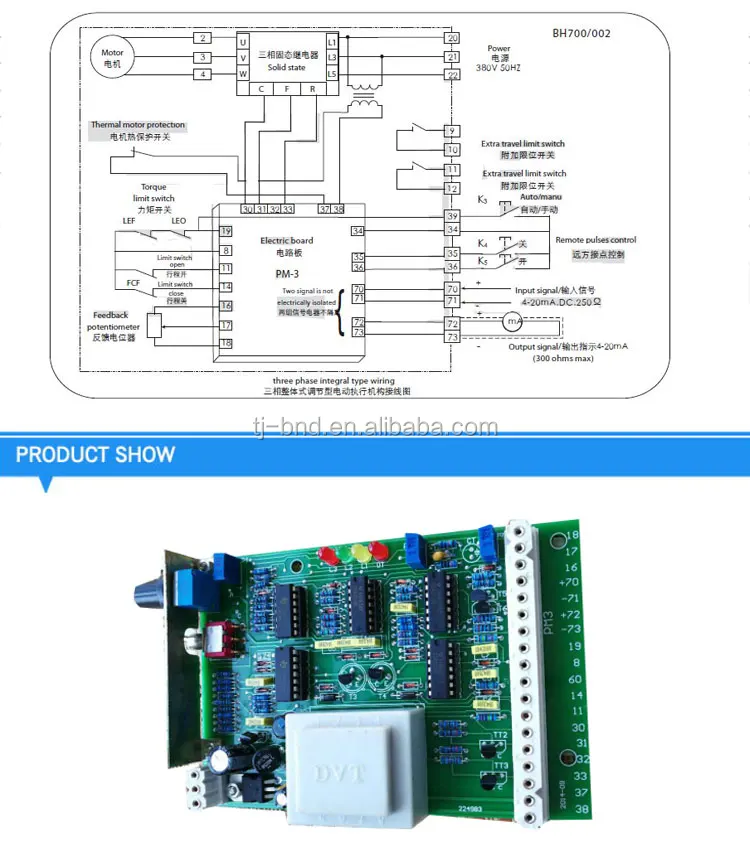

Wiring diagram

The product has many functions, such as:

High pointing accuracy integrated product

Bidirectional moment of force protection function

The over travel protection function

Break the signal protection function

The automatic cut over function

The electrical machinery electric brake function

The strong anti-jamming ability
