1.The central articulated frame features a smaller turning radius, flexible maneuverability and good lateral stability for easy loading in tight spaces.

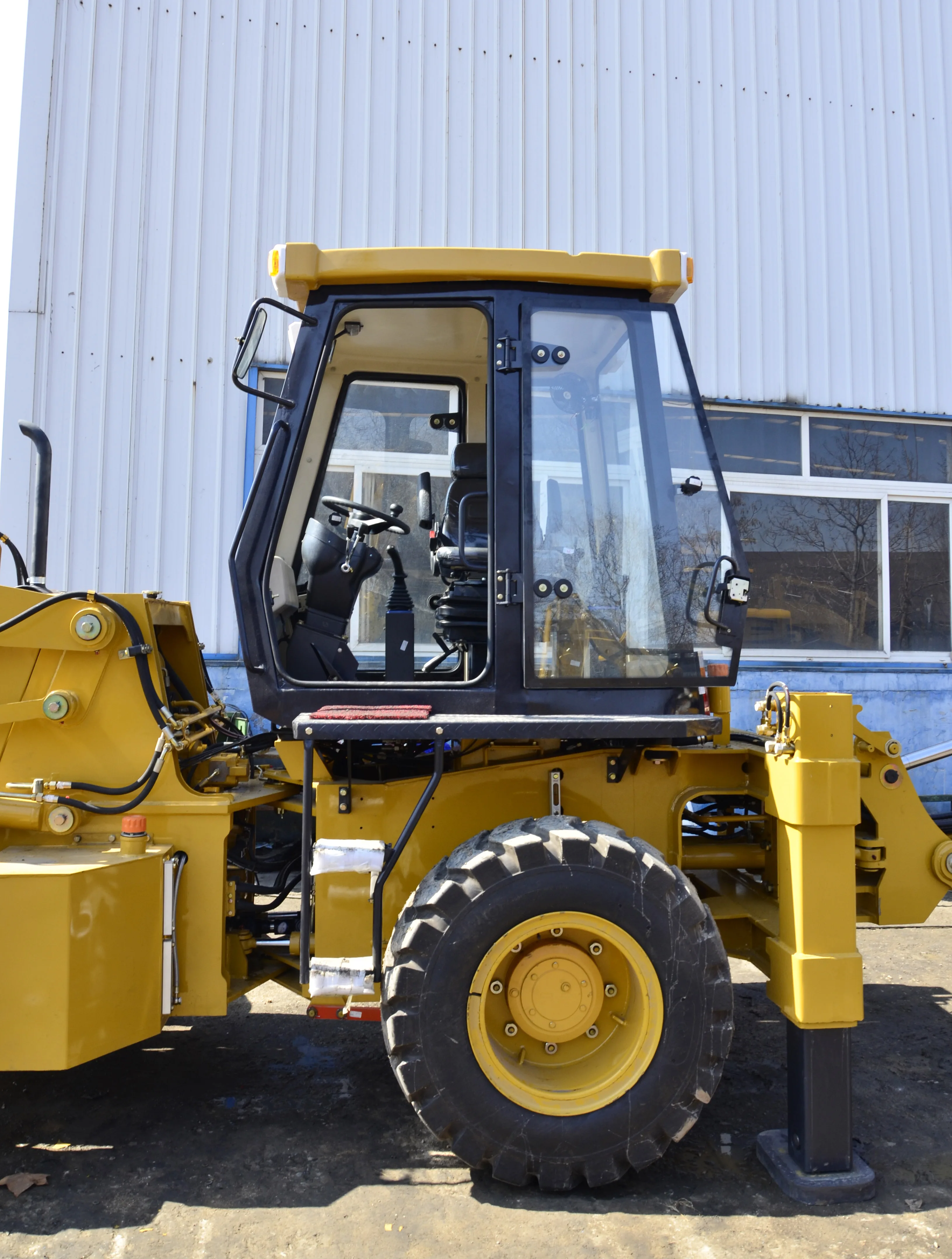

2.The appearance of the loading device refers to the 3CX structure of JCB Company of the world advanced level in the world. The excavating device has the beautiful appearance of John Deere's 310SE structure, the cab adopts large-area glass with good lighting and the field of vision is wide. The driver can operate more comfortably.
3.The air-top oil caliper disc foot brake system and the external beam drum type hand brake are used, safe and reliable.
4.The hydraulic transmission structure is adopted to improve the reliability of the transmission system.
5.Full hydraulic steering, power shifting, hydraulic operation of the working device. The whole machine is light and flexible, and the action is stable and reliable.
6.Low-pressure wide-base off-road tires, rear axle swings, good off-road performance and pass performance.

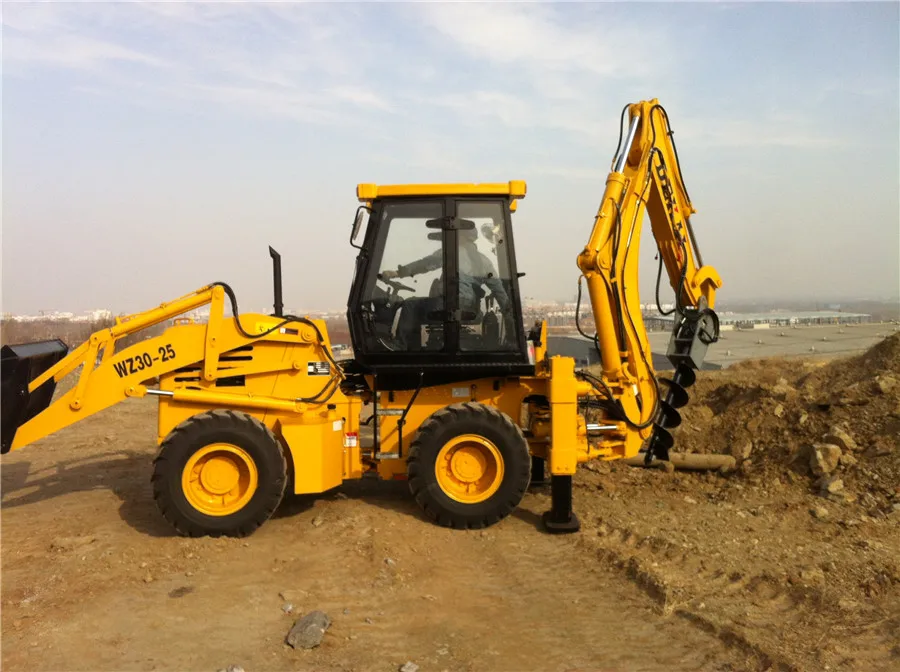

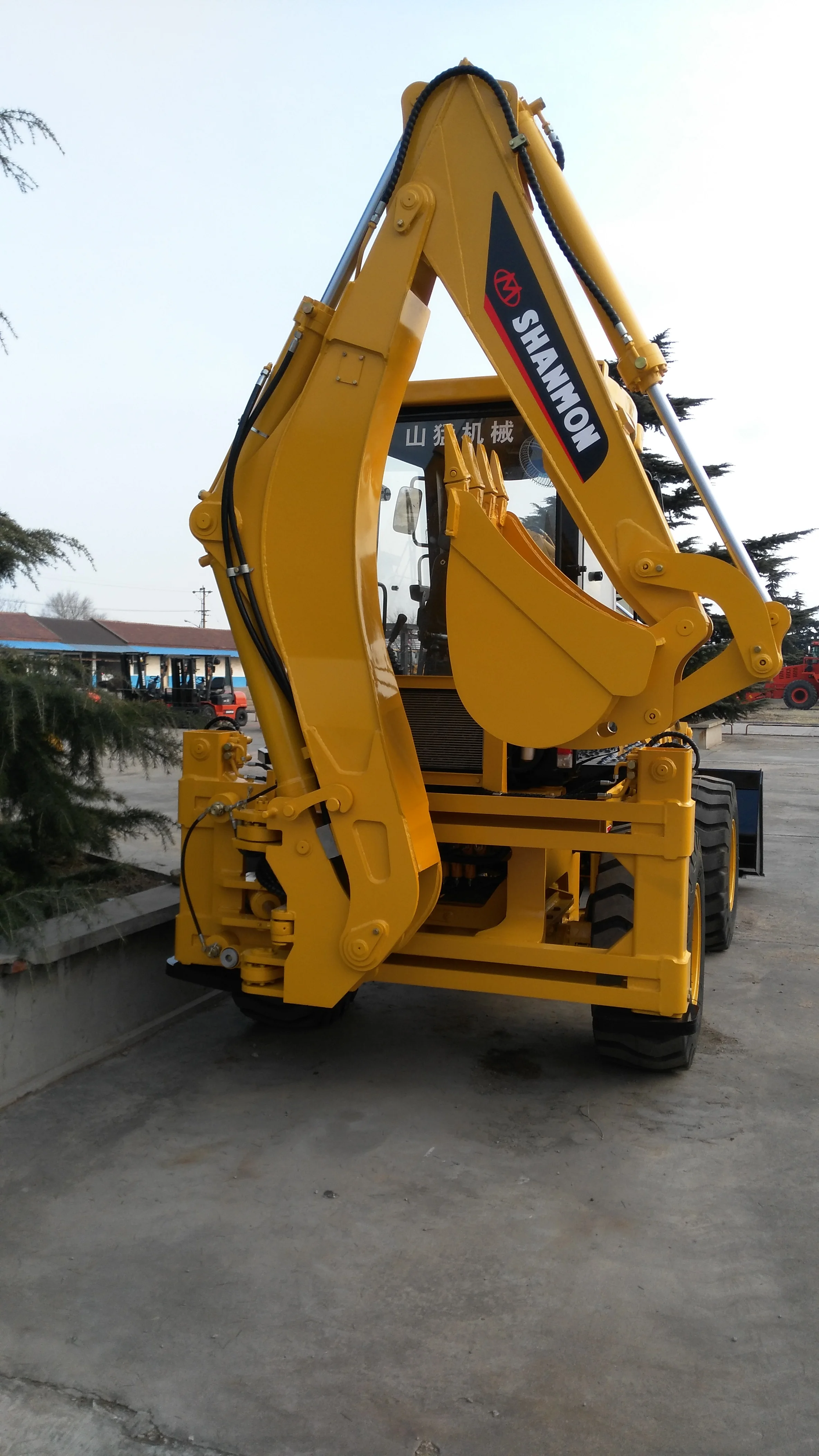

7.Excavation work device capable of lateral sliding, making the excavation range larger and wider.

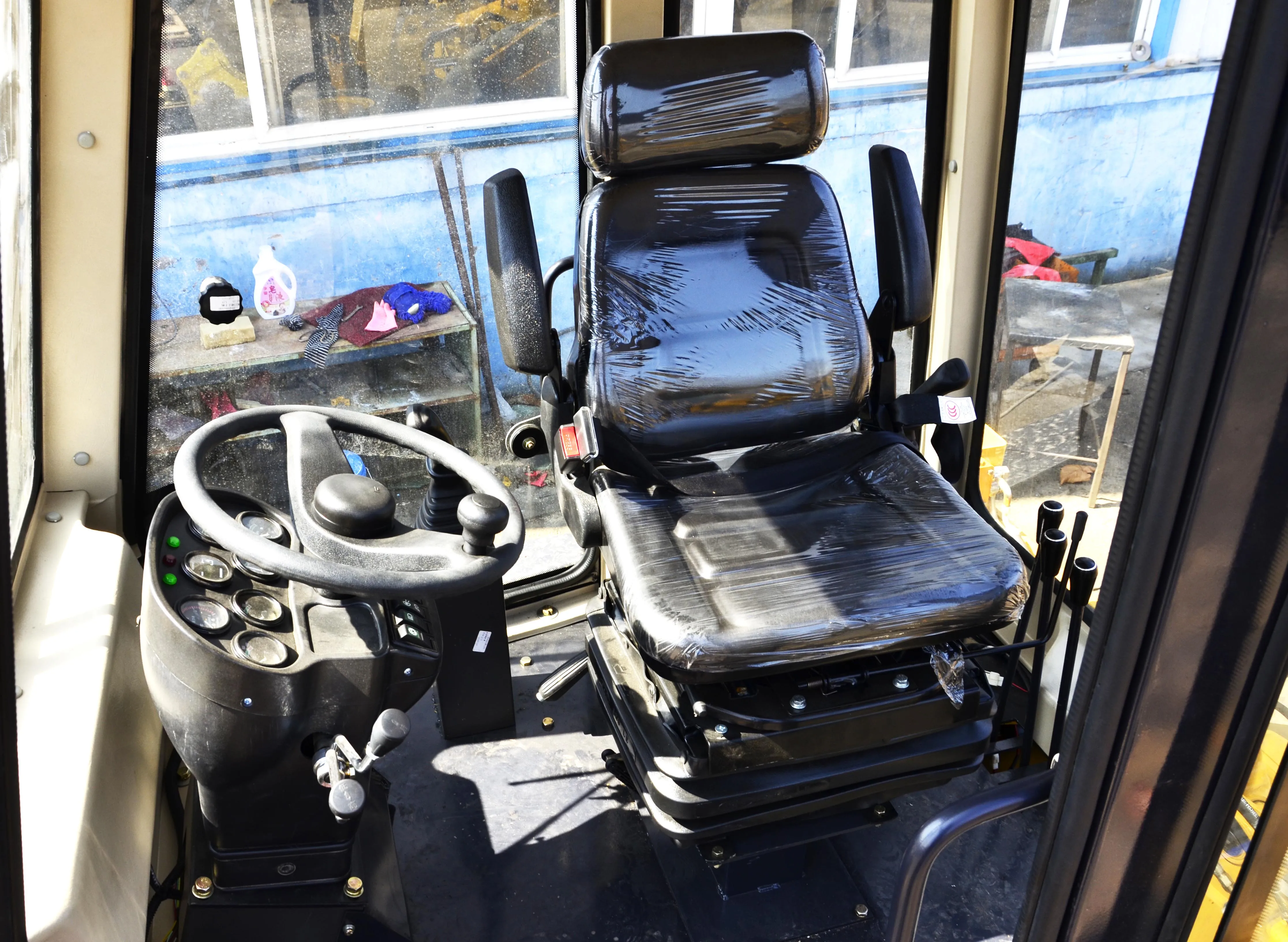

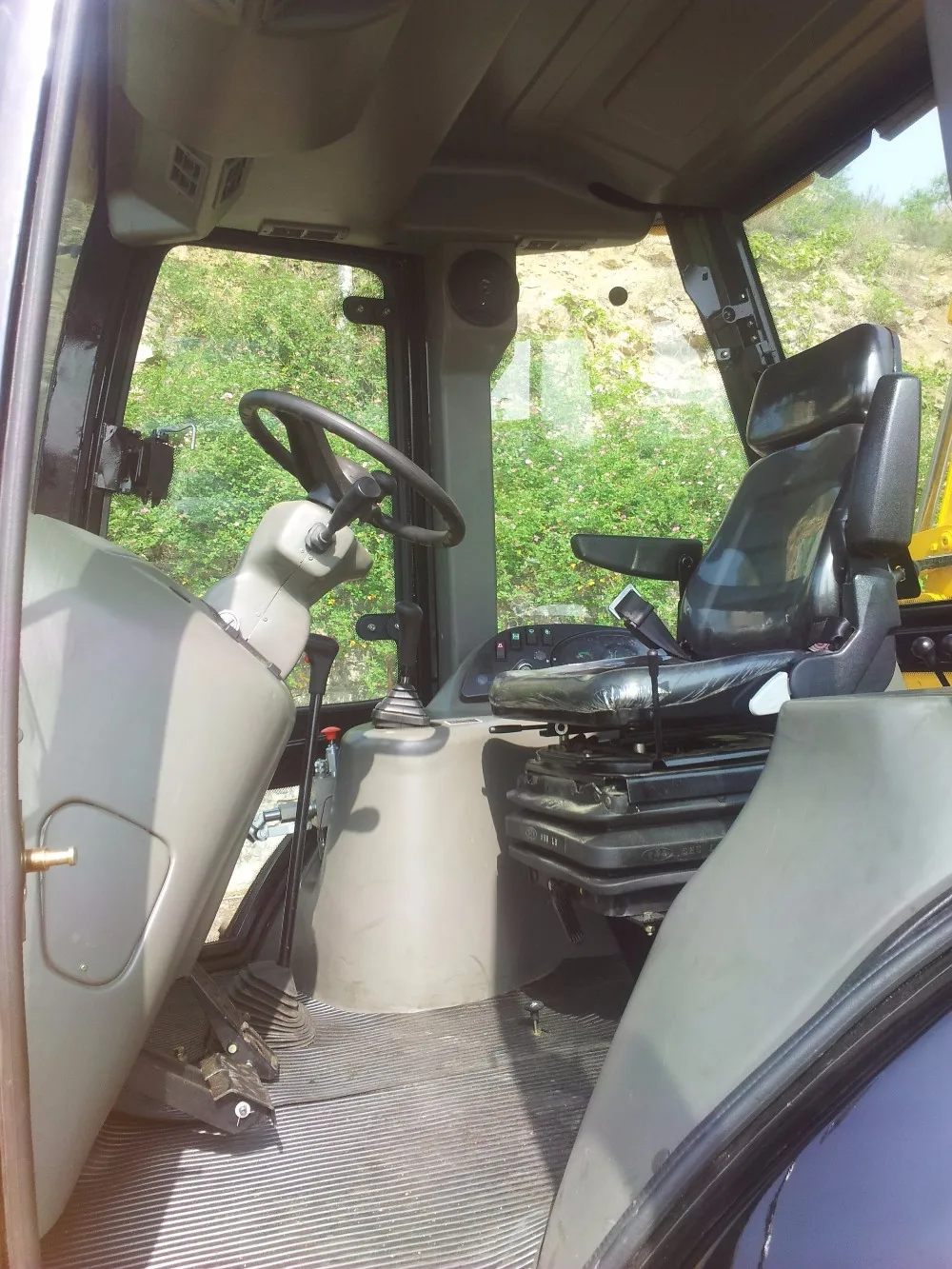

8.The suspension-damped 360-degree swivel seat with armrests and seat belts enhances driver comfort and safety.

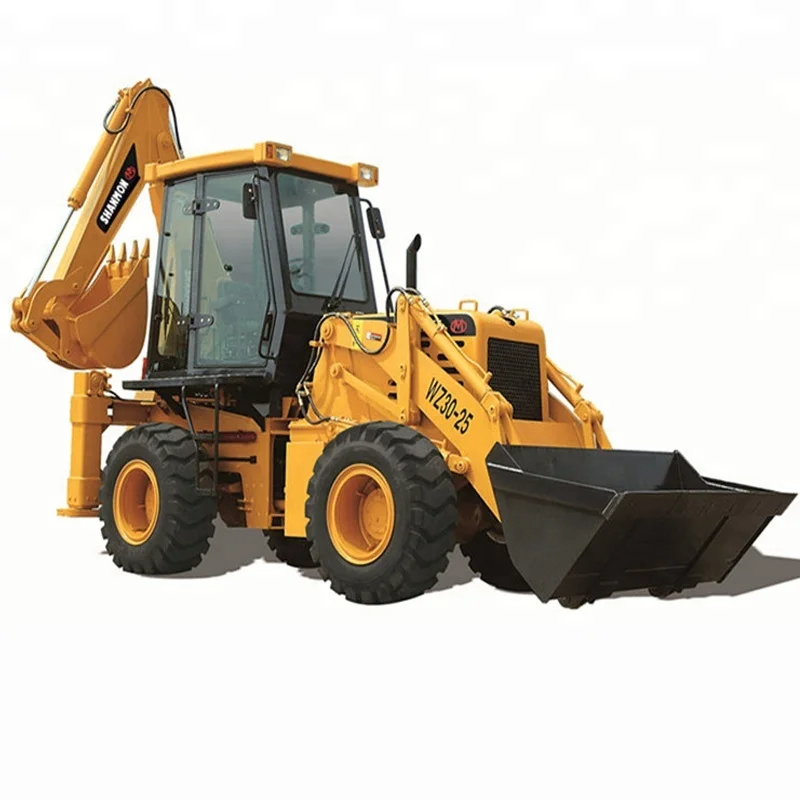

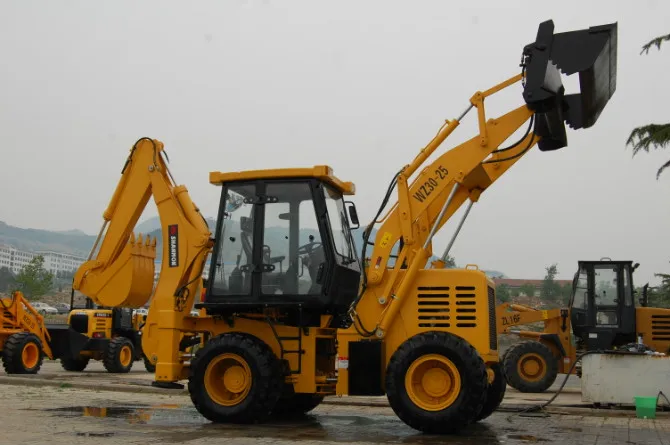

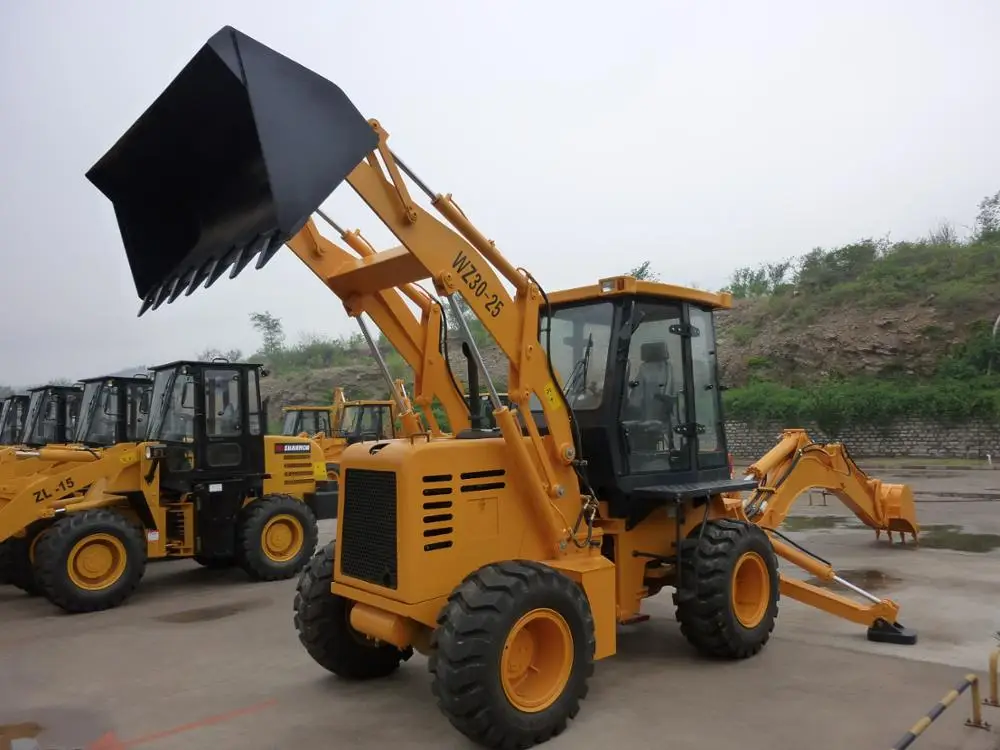

Technical Parameter of Backhoe Loader WZ30-25
Performance
Operating Weight
kg
7640
L*W*H
mm
5910×2268×3760
Wheel base
mm
2250
Min. Ground Clearance
mm
300
Bucket Capacity
m3
1.2
Breakout Force
KN
38
Loading Lifting Capacity
kg
2500
Bucket Dumping Height
mm
2742
Bucket Dumping Distance
mm
1062
Digging Depth
mm
52
Backhoe Capacity
m3
0.3
Max. Digging Depth
mm
4082
Swing Angle of Excavator
。
190
Max. Pulling Force
KN
39
Engine
Model
-
CYD YC4A105Z-T20
Type
-
In Line Direct injection Four-Stroke and Injection Combustion Chamber
