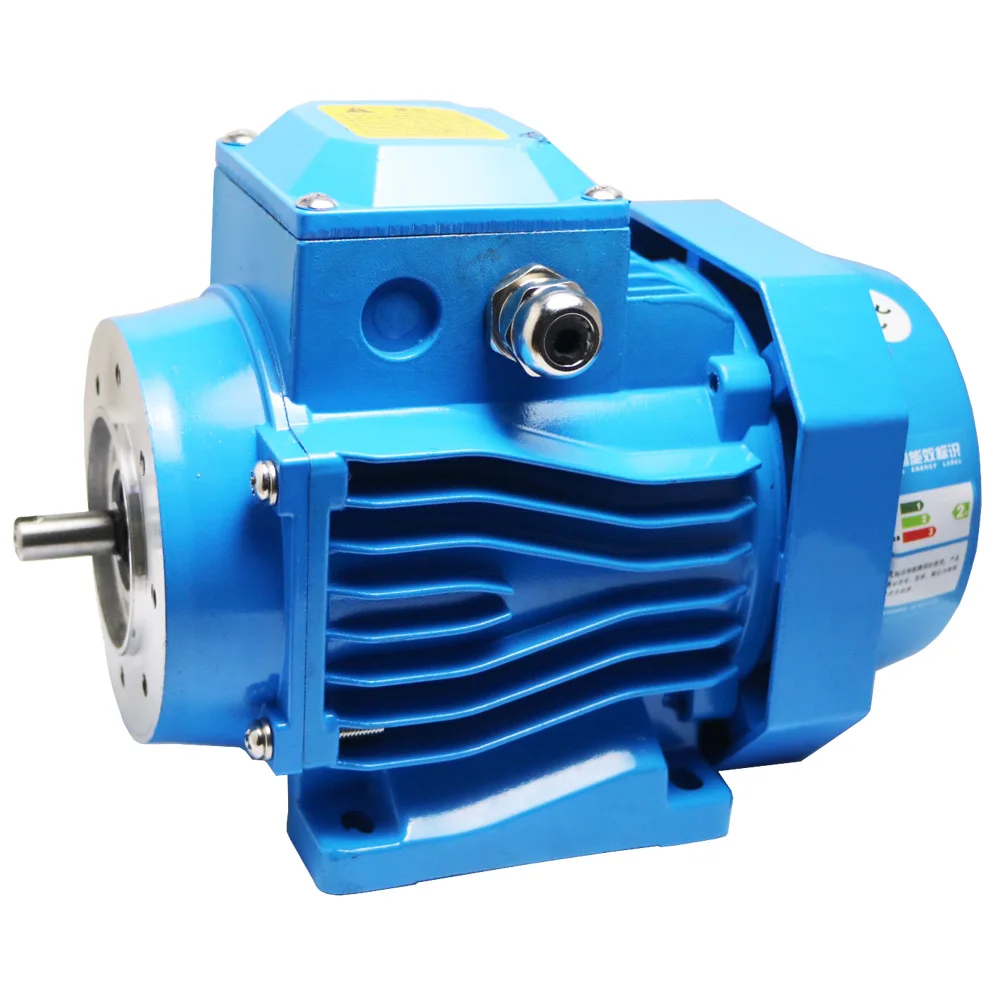

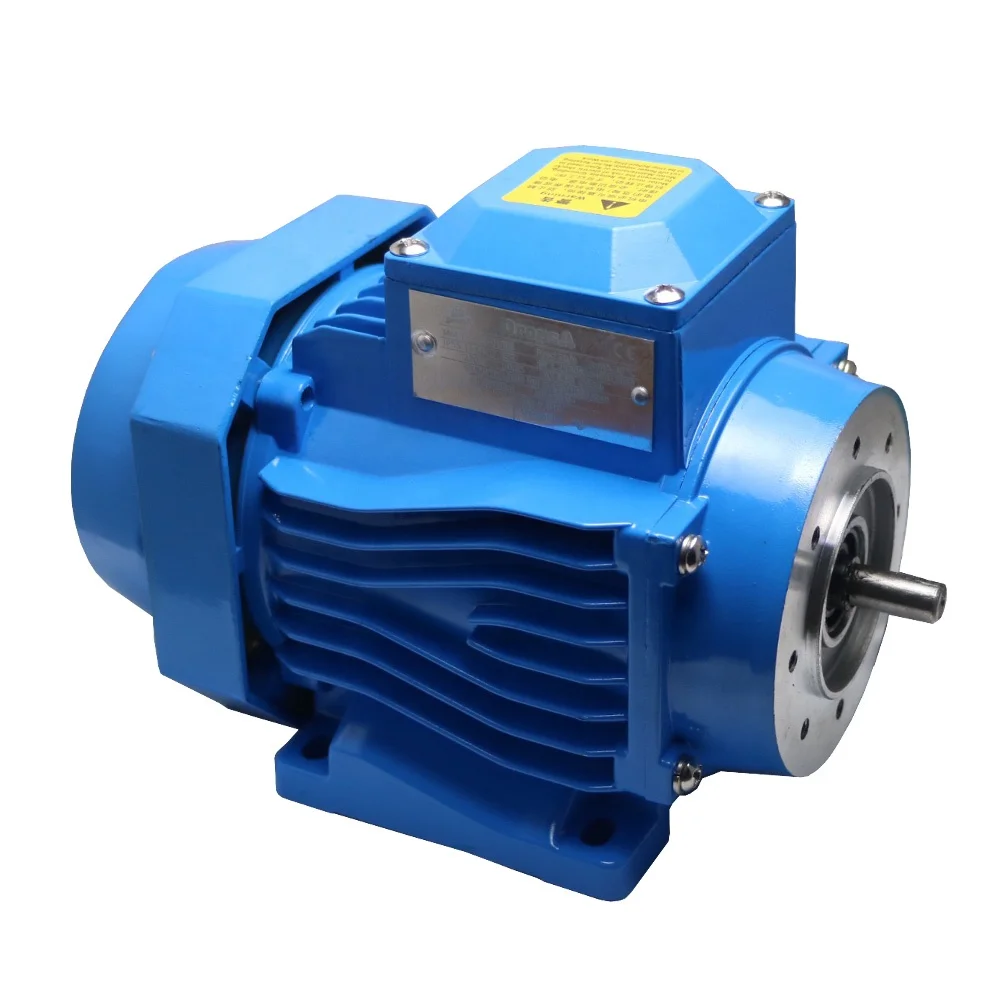

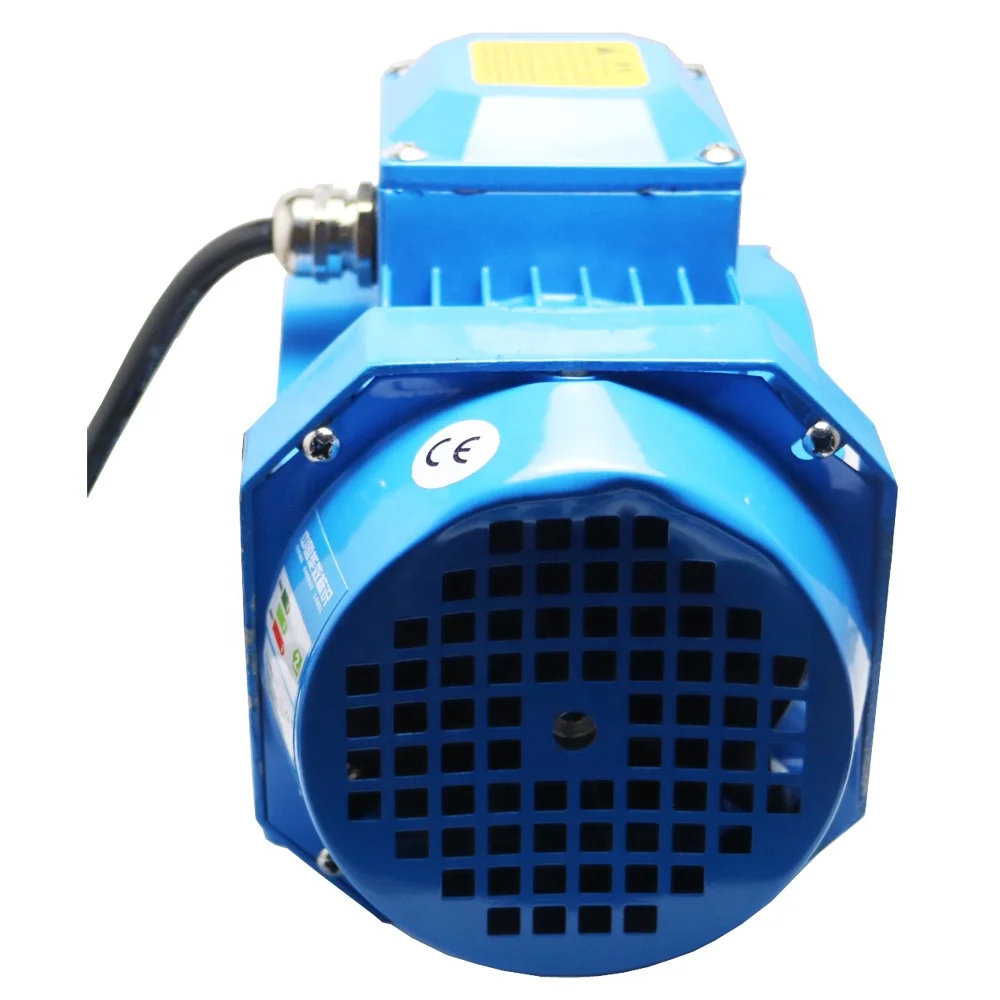

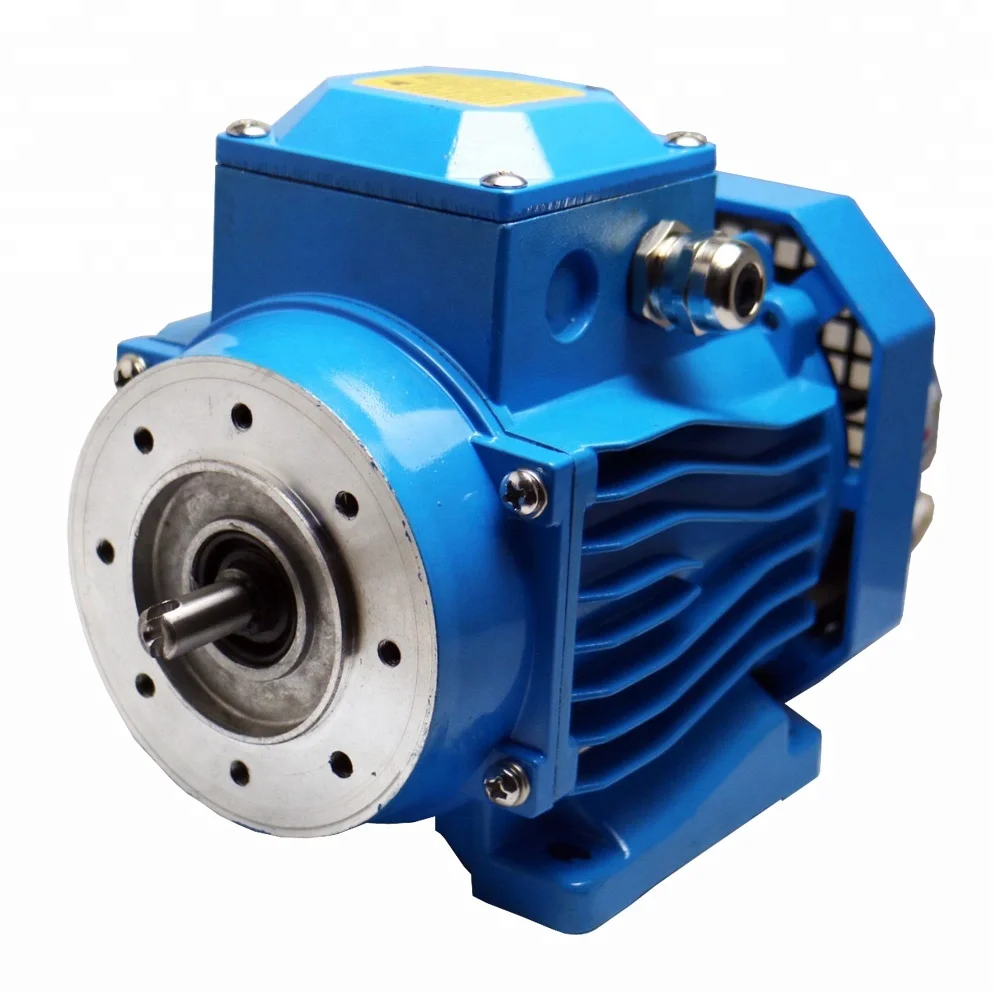

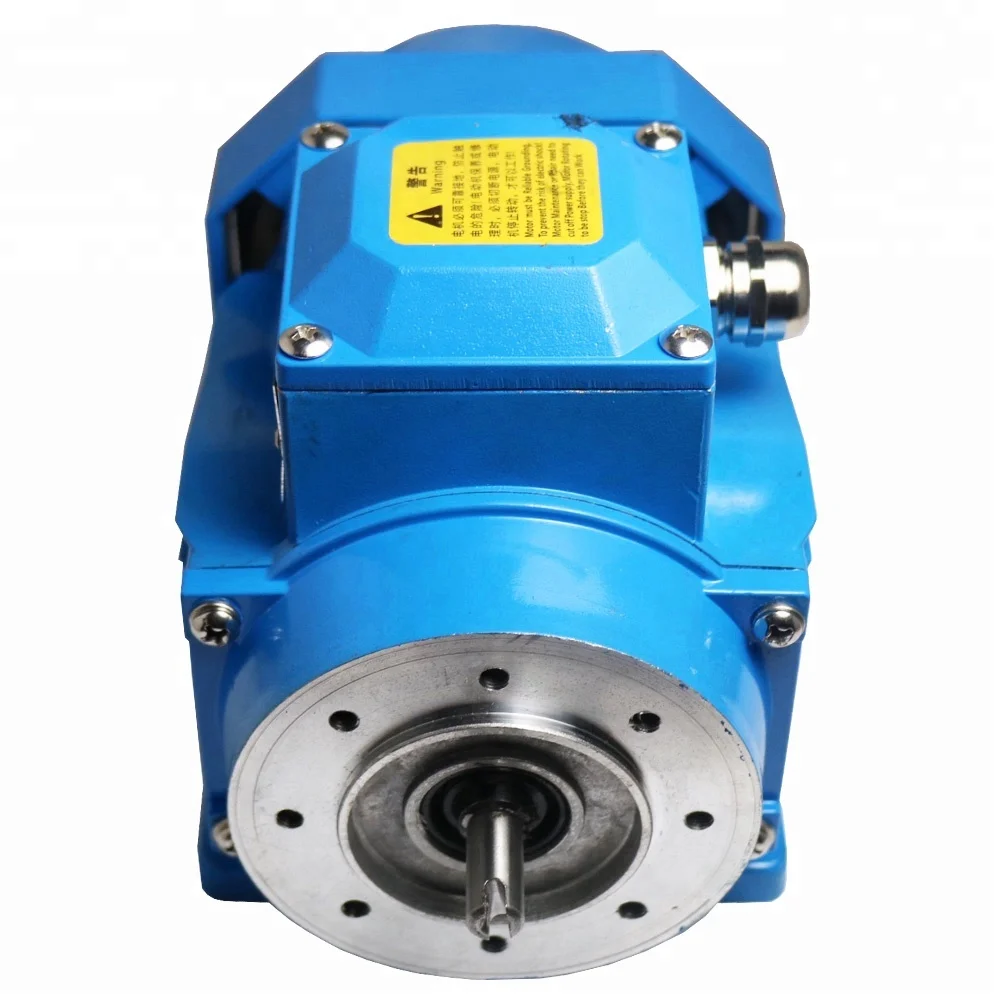

Single Phase Permanent Split Capacitor Ac Motor 220v Ac Motor
- Category: >>>
- Supplier: Ningbo Longkang Tech Limied
Share on (60804548497):
Product Overview
Description
Single Phase Permanent Split Capacitor Ac Motor 220v Ac Motor
Product Description
Type | Output power | Rated Volt | Rated Amps | RPM | Efficiency | Rated Torque |
| YY 4512 | 10 | 220 | 0.2 | 2800 | 28 | 1.8 |
| YY 4522 | 16 | 220 | 0.26 | 2800 | 35 | 1.8 |
| YY 5012 | 25 | 220 | 0.33 | 2800 | 40 | 1.8 |
| YY 5022 | 40 | 220 | 0.42 | 2800 | 42 | 1.8 |
| YY 5612 | 60 | 220 | 0.57 | 2800 | 56 | 1.8 |
| YY 5622 | 90 | 220 | 0.81 | 2800 | 63 | 1.8 |
| YY 6312 | 120 | 220 | 0.91 | 2800 | 63 | 1.8 |
| YY 6322 | 180 | 220 | 1.29 | 2800 | 67 | 1.8 |
| YY 7112 | 250 | 220 | 1.73 | 2800 | 69 | 1.8 |
| YY 4514 | 6 | 220 | 0.2 | 1400 | 17 | 1.8 |
| YY 4524 | 10 | 220 | 0.26 | 1400 | 24 | 1.8 |
| YY 5014 | 16 | 220 | 0.28 | 1400 | 33 | 1.8 |
| YY 5024 | 25 | 220 | 0.36 | 1400 | 38 | 1.8 |
| YY 5614 | 40 | 220 | 0.49 | 1400 | 45 | 1.8 |
| YY 5624 | 60 | 220 | 0.64 | 1400 | 50 | 1.8 |
| YY 6314 | 90 | 220 | 0.94 | 1400 | 55 | 1.8 |
| YY 6324 | 120 | 220 | 1.17 | 1400 | 55 | 1.8 |
| YY 7114 | 180 | 220 | 1.58 | 1400 | 59 | 1.8 |
| YY 7124 | 250 | 220 | 2.04 | 1400 | 62 | 1.8 |

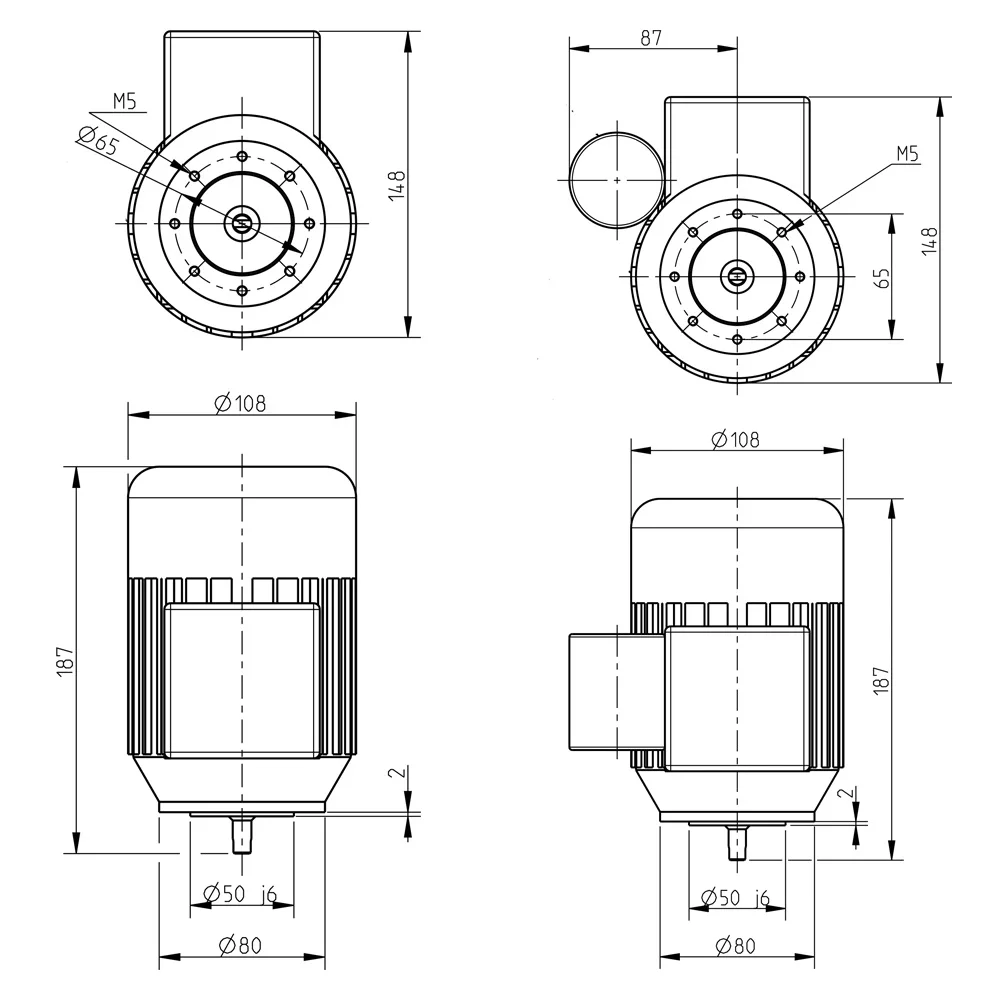

Technical Drawing
