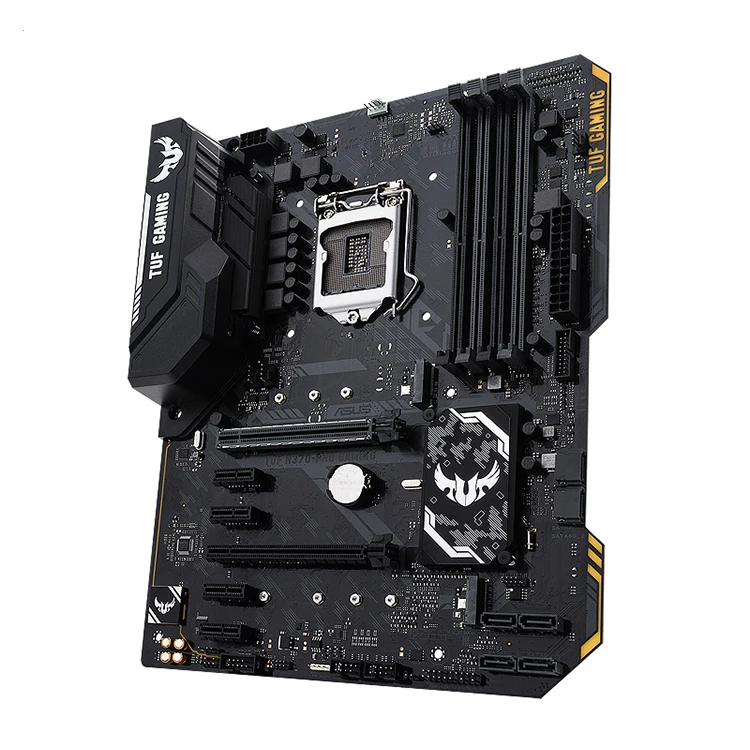

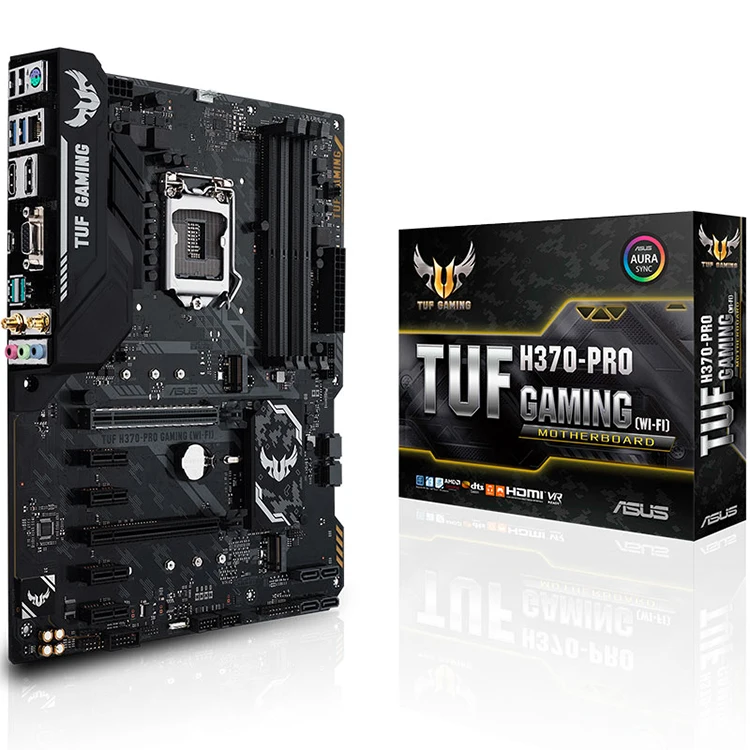

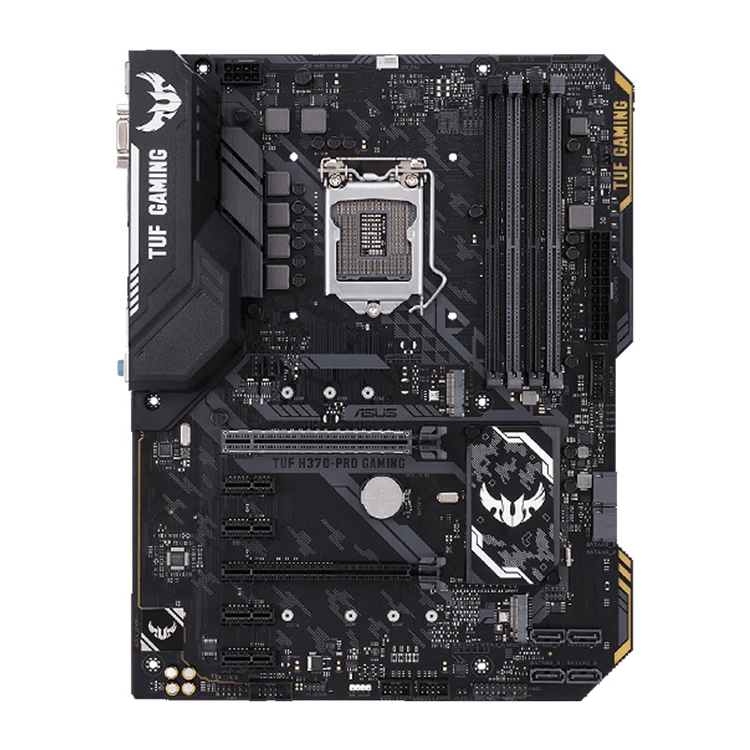

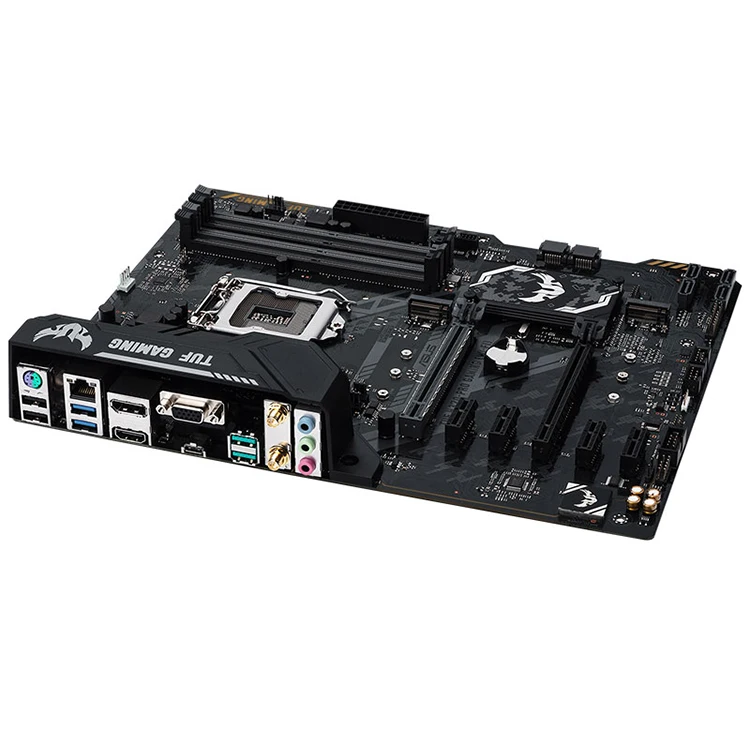

ASUS TUF H370 PRO GAMING Used Motherboard with Intel Socket 1151 for 9th / 8th Generation Pentium/Celeron Processors

Product Overview

Description

Intel H370 ATX gaming motherboard with Aura Sync RGB LED lighting, DDR4 2666MHz support, 32Gbps M.2, Intel Optane memory ready, and native USB 3.1 Gen 2.

GPU Temperature Sensing & Fan Xpert 4 Core: Ensures every fan achieves the best balance of cooling performance and acoustics

TUF Protection: SafeSlot, ESD Guards, DDR4 overvoltage protection, Digi+ VRM, and stainless-steel back I/O for long-term reliability

Military-grade TUF Components: TUF LANGuard, TUF Chokes, TUF Capacitors, and TUF MOSFETs for maximum durability

Exclusive DTS® Custom audio: Delivers positional cues to stereo headphones, helping you to pinpoint enemies and action

Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear

CPU

Intel® Socket 1151 for 8th Generation Core™ Pentium®/Celeron® Processors

Supports Intel® 14 nm CPU

Supports Intel® Turbo Boost Technology 2.0

* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.

Memory

4 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory *1

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

* Refer to www.A.SUS.com for the Memory QVL (Qualified Vendors Lists).

* The maximum memory frequency supported varies by processor.

Graphic

Integrated Graphics Processor- Intel® HD Graphics support

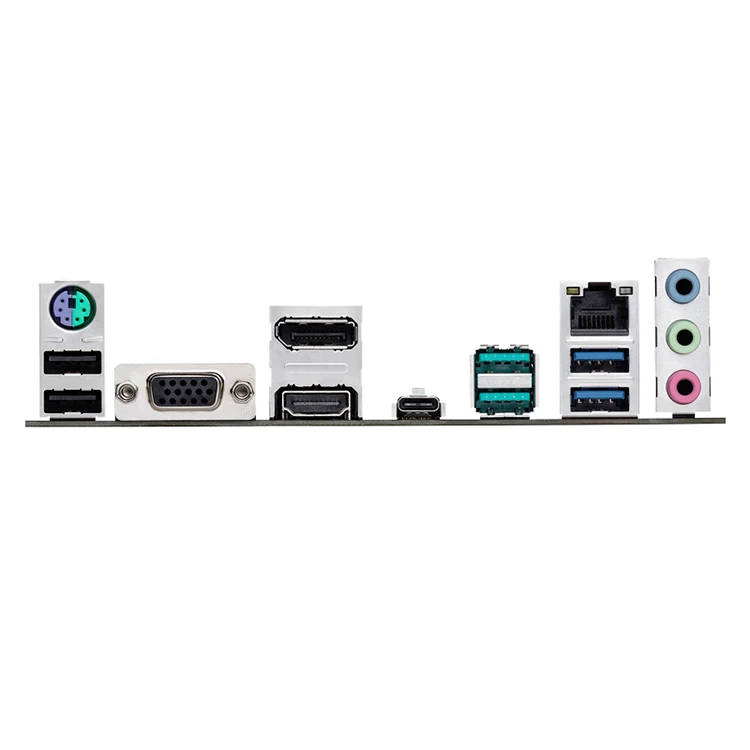

Multi-VGA output support : High Definition Multimedia Interface/DisplayPort /D-Sub ports

- Supports High Definition Multimedia Interface 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz

- Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz

- Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz

Maximum shared memory of 1024 MB (for iGPU exclusively)

Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™

Expansion Slots

1 x PCIe 3.0/2.0 x16 (x16 mode)

1 x PCIe 3.0/2.0 x16 (max at x4 mode)

4 x PCIe 3.0/2.0 x1

Storage

Intel® H370 Chipset :

1 x M.2 Socket 3*2, , with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 2 mode)

1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)

6 x SATA 6Gb/s port(s), gray

Support Raid 0, 1, 5, 10

Intel® Rapid Storage Technology supports

Intel® Optane™ Memory Ready

LAN

Intel® I219V, 1 x Gigabit LAN Controller(s)

A.SUS Turbo LAN Utility

TUF LANGuard

Audio

Realtek® ALC887 8-Channel High Definition Audio CODEC

- Supports : Jack-detection, Front Panel Jack-retasking

Audio Feature :

- Exclusive DTS Custom for GAMING Headsets.

- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference

- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals

- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity

- Audio Cover: Effective shielding preserves the integrity of audio signals to ensure best quality.

USB Ports

Intel® H370 Chipset :

2 x USB 3.1 Gen 2 port(s) (2 at back panel, )

Intel® H370 Chipset :

5 x USB 3.1 Gen 1 port(s) (3 at back panel, , Type-A + USB Type-CTM, 2 at mid-board)

Intel® H370 Chipset :

6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board)

Special Features

A.SUS TUF PROTECTION

- A.SUS SafeSlot: Protect your graphics card Investment

- A.SUS ESD Guard: Enhanced ESD protection

- A.SUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!

- A.SUS Overvoltage Protection: World-class circuit-protecting power design

- A.SUS DIGI + VRM: 4+2+1 Phase digital power design

A.SUS EPU :

- EPU

TUF ENGINE! Power Design :

- TUF Components (Choke, Cap. & MOSFET; certified by military-standard)

AURA :

- Aura Lighting Control

- Aura RGB Strip Headers

A.SUS Exclusive Features :

- AI Suite 3

- Ai Charger

A.SUS Quiet Thermal Solution :

- Stylish Fanless Design Heat-sink solution

- A.SUS Fan Xpert 4 Core

A.SUS EZ DIY :

- A.SUS CrashFree BIOS 3

- A.SUS EZ Flash 3

- A.SUS UEFI BIOS EZ Mode

CPU Installation Tool

- Three-step simplicity and safety

A.SUS Q-Design :

- A.SUS Q-LED (CPU, DRAM, VGA, Boot Device LED)

- A.SUS Q-Slot

- A.SUS Q-DIMM
