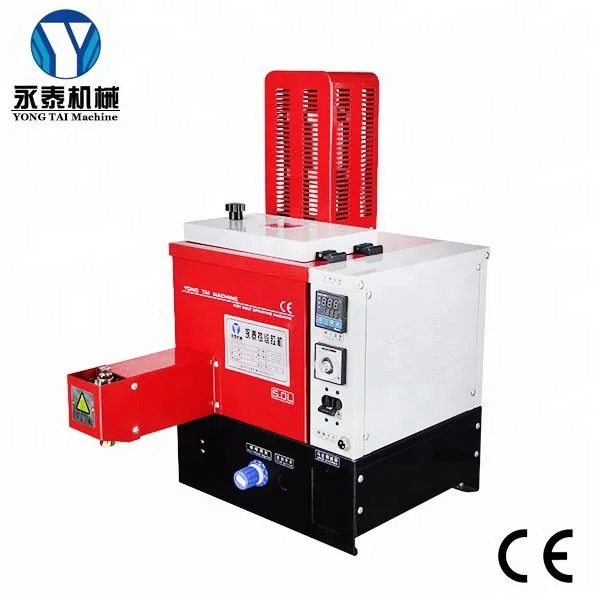

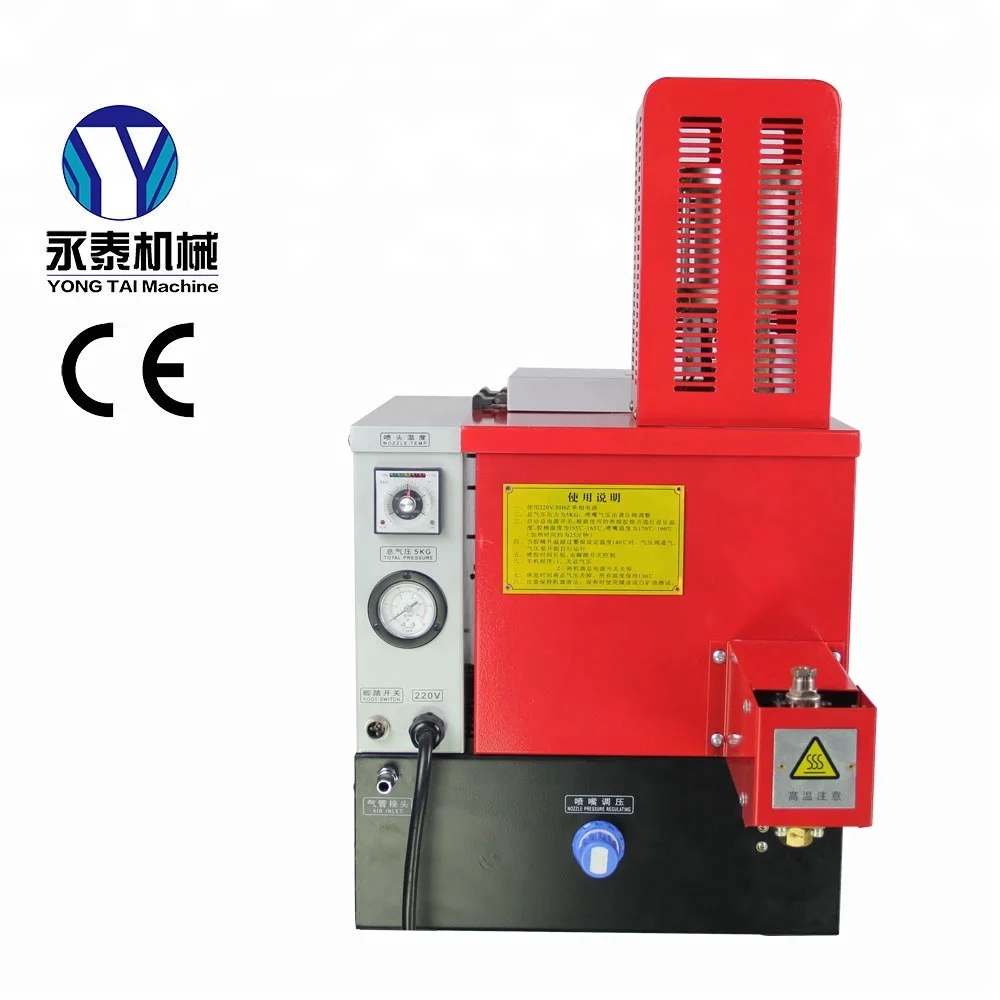

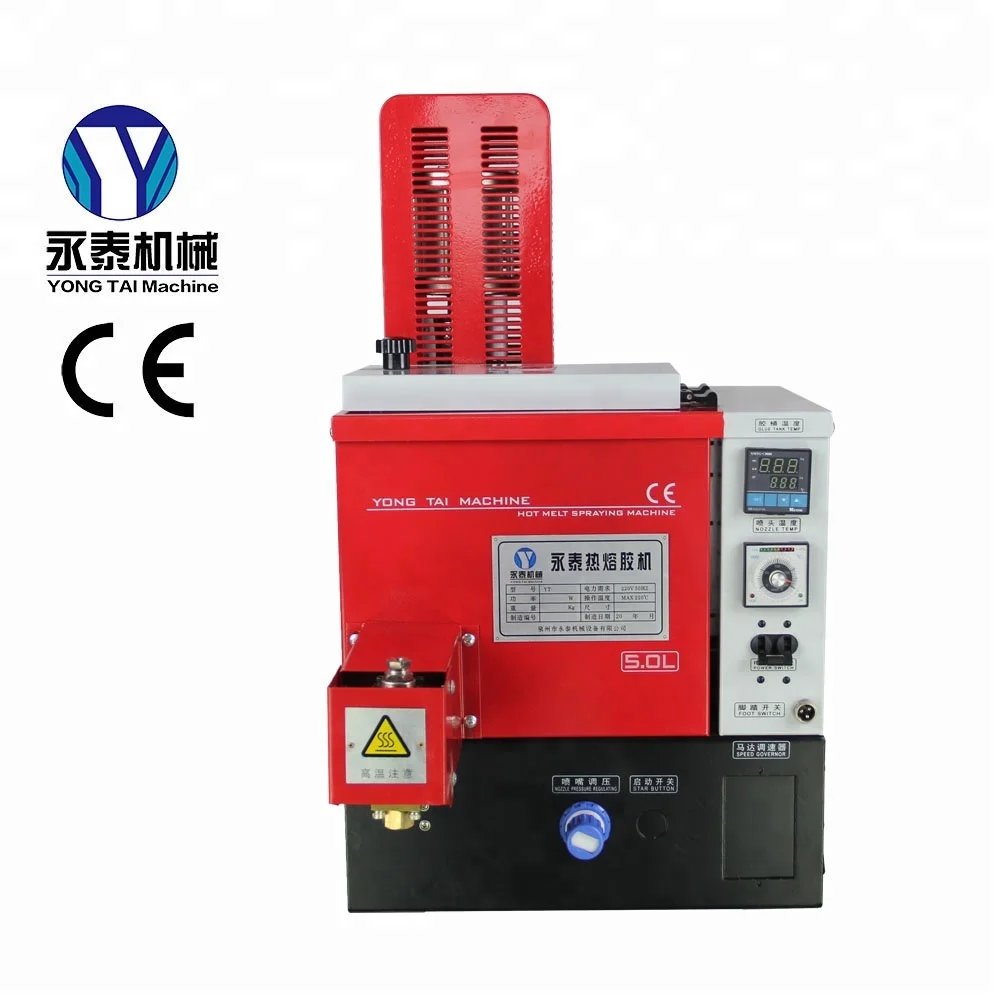

Portable hot melt spray machine for cosmetic packaging
- Category: >>>
- Supplier: Quanzhou Yongtai Machinery Co. Ltd.
Share on (60804569125):
Product Overview
Description
Product Description
Product Application
1.The melting tank. Applicator temperature is exactly controlled by electronic P.I.D numeric controller to avoid carbonization inside the tank.
2. 2-channel glue route. Small light,Multiple function.Apply to shoemaking,packing and electronic industry.
3. Open tank for easy hot melt compensation.
4. Individual tempterature controllers for tank/hose/nozzle.
5. Can choose the gear pump or piston pump.
6. Use high-density stainless steel filter device, the double period of filtering, effective filtering impurities, increase the service life of equipment
SPECIFICATIONS FOR HOT MELT GLUE MACHINE WITH FOOTPADEL | ||||||||||
ITEM | UNIT | YT-SP202 | YT-SP201 | YT-QB202 | YT-QB201 | |||||
Tank Capacity | KG | 3.0 | 3.0 | 5. 0 | 5.0 | |||||
Max. malting rate | KG\\HOUR | 5.0 | 5.0 | 7.0 | 7.0 | |||||
Max. Operation temp. | ℃ | 200 | 200 | 200 | 200 | |||||
Melt Power | Watt | 2060 | 1600 | 2160 | 2160 | |||||
Motor Power | Watt | 60 | 60 | |||||||
Air pressure | KG\\CM² | 4-6 | 4-6 | 4-6 | 4-6 | |||||
Demension(L*W*H) | MM | 420*380*640 | 420*380*640 | 575*740*640 | 575*535*640 | |||||
Weight | KG | 32 | 30 | 35 | 34 | |||||
Max. Viscosity | Cps | 100,000 | 100,000 | 120,000 | 120,000 | |||||
Gun Qty. | 2 | 1 | 2 | 1 | ||||||
Power Requirement | Single Phase (1Φ), 220 V | |||||||||
Pump Type | Gear pump | Gear pump | Piston pump | Piston pump | ||||||
Main Features
This machine is mainly used in: carton packaging, medical and health supplies, car lights, car interiors, filter, toys, arts and crafts. also the machine with the hot melt laminating machine and coating machine, is widely used in the diaper, sanitary towel, package, shoes, furniture , tapes, labels, stickers and the mattress production line etc.
Certifications
Detailed Images
Machine Parts
Name: YT-QB202
Brand:YONGTAI
Original:CHINA
Main Features
Name: 5KGS GLUE MACHINE WORK WITH FOOTPEDAL
Brand: YONGTAI
Original: CHINA
The machine is with two guns and two footpedals, two operator can work at the same time.It is out glue control by foot.
Machine Parts
Name: YT-DJ102
Brand:YONGTAI
Original:CHINA
Main Features
Name: 5KGS GLUE MACHINE WORK WITH FOOTPEDAL
Brand: YONGTAI
Original: CHINA
The machine is with one nozzle and one footpedals.It is out glue control by foot.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging | ||
Size | 79 (L) * 42 (W) * 78 (H) CM | |
Weight | 50KGS | |
Packaging Details | The normal package is wooden box. | |
