M12 Short Body NPN/PNP 4 Wires Inductive Proximity Sensor Switch 5V/12V/24Vdc/AC110V/220V Metal Detector Sensor IP67 (IBEST)

Product Overview

Description

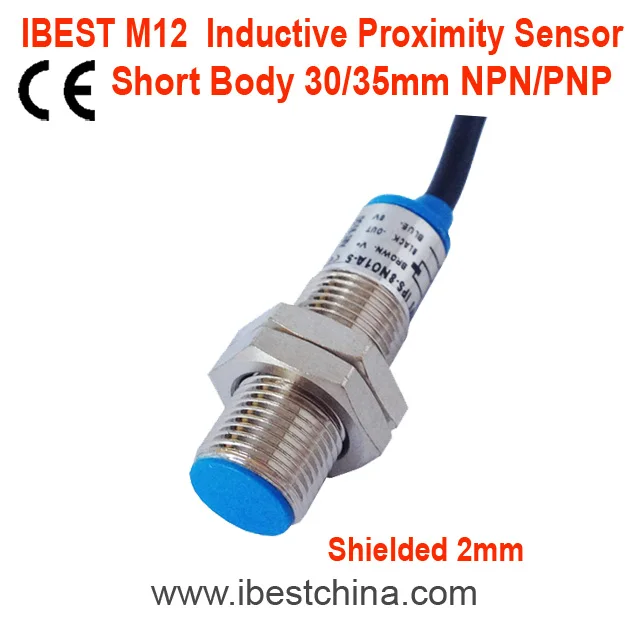

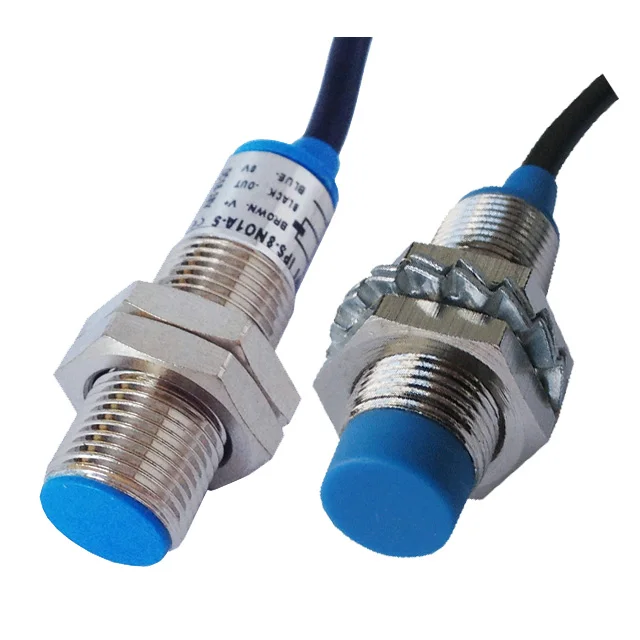

IBEST M12 Cable Type Inductive Proximity Sensor/Switch

Short Body 5mm NPN/PNP NO+NC Dual Output



1. Features of M12 Proximity Sensor  :

--     Inductive proximity sensor, style: cylinder, diameter: 12mm.

--     Short housing body type: shielded 35mm length, unshielded 40mm length.
--     Detect Distance: Unshielded 2mm or shielded 4mm type . (Extended distance is available, Flush 4mm or non-flush 6mm)
--     DC 4-wire(10-30V DC) type. (or DC 3-wire(10-30V DC)

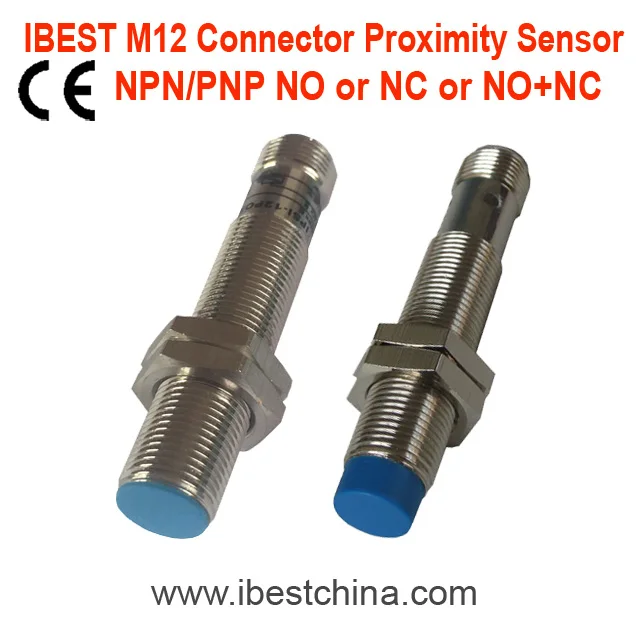

--     Connection mode: with 2 meter PVC cable. (M12 connector type is available also)

--     With LED operation indicate lamp, easily identifiable
--     Brass chrome plated, proof of oil, water acid, alkaline
--     Standard sensing object: iferrous metals;
--     Over load, short circuit protection , against polarity reversal
--      IP ratings: IP67

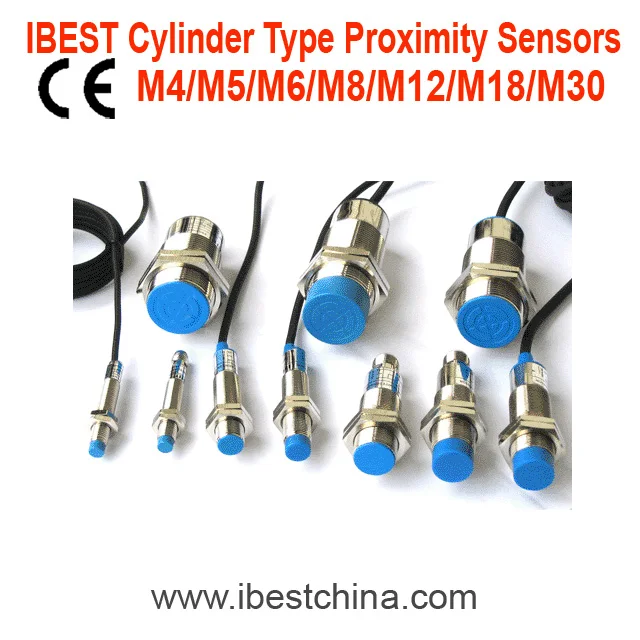

--      Various other shapes: M5/M6/M8/M18/M30, square types and pancake types.
--      Widely applied in measuring, Counting, Rpm measuring in mechanism, chemical, paper manufacture light industry, etc . --      Reliable quality to replace famous brands .

2.Ordering code:

Model and Type	Output type	Mounting distance	Cureent output	Power supply	Connector model	Buy
IPS-12PO4B-S	PNP NO	4mm,unshielded	≤200mA	DC 10~30V	DC 3 Wire
IPS-12PC4B-S	PNP NC	4mm,unshielded	≤200mA	DC 10~30V	DC 3 Wire
IPS-12POC4A-S	PNP NO+NC	4mm,unshielded	≤100mA	DC 10~30V	DC 4 Wire
IPS-12NO4B-S	NPN NO	4mm,unshielded	≤200mA	DC 10~30V	DC 3 Wire
IPS-12NC4B-S	NPN NC	4mm,unshielded	≤200mA	DC 10~30V	DC 3 Wire
IPS-12NOC4A-S	NPN NO+NC	4mm,unshielded	≤100mA	DC 10~30V	DC 4 Wire
IPS-12PO2B-S	PNP NO	2mm,shielded	≤200mA	DC 10~30V	DC 3 Wire
IPS-12PC2B-S	PNP NC	2mm,shielded	≤200mA	DC 10~30V	DC 3 Wire
IPS-12POC2A-S	PNP NO+NC	2mm,shielded	≤100mA	DC 10~30V	DC 4 Wire
IPS-12NO2B-S	NPN NO	2mm,shielded	≤200mA	DC 10~30V	DC 3 Wire
IPS-12NC2B-S	NPN NC	2mm,shielded	≤200mA	DC 10~30V	DC 3 Wire
IPS-12NOC2A-S	NPN NO+NC	2mm,shielded	≤100mA	DC 10~30V	DC 4 Wire
IPSI-12PO2B-S	PNP NO	2mm,shielded	≤200mA	DC 10~30V	M12 Connector
IPSI-12PC2B-S	PNP NC	2mm,shielded	≤200mA	DC 10~30V	M12 Connector
IPSI-12POC2A-S	PNP NO+NC	2mm,shielded	≤100mA	DC 10~30V	M12 Connector
IPSI-12NO2B-S	NPN NO	2mm,shielded	≤200mA	DC 10~30V	M12 Connector
IPSI-12NC2B-S	NPN NC	2mm,shielded	≤200mA	DC 10~30V	M12 Connector
IPSI-12NOC2A-S	NPN NO+NC	2mm,shielded	≤100mA	AC 10~30V	M12 Connector
IPSI-12PO4B-S	PNP NO	4mm,unshielded	≤200mA	DC 10~30V	M12 Connector
IPSI-12PC4B-S	PNP NC	4mm,unshielded	≤200mA	DC 10~30V	M12 Connector
IPSI-12POC4A-S	PNP NO+NC	4mm,unshielded	≤100mA	DC 10~30V	M12 Connector
IPSI-12NO4B-S	NPN NO	4mm,unshielded	≤200mA	DC 10~30V	M12 Connector
IPSI-12NC4B-S	NPN NC	4mm,unshielded	≤200mA	DC 10~30V	M12 Connector
IPSI-12NOC4A-S	NPN NO+NC	4mm,unshielded	≤100mA	DC 10~30V	M12 Connector

4. Dimensions:
