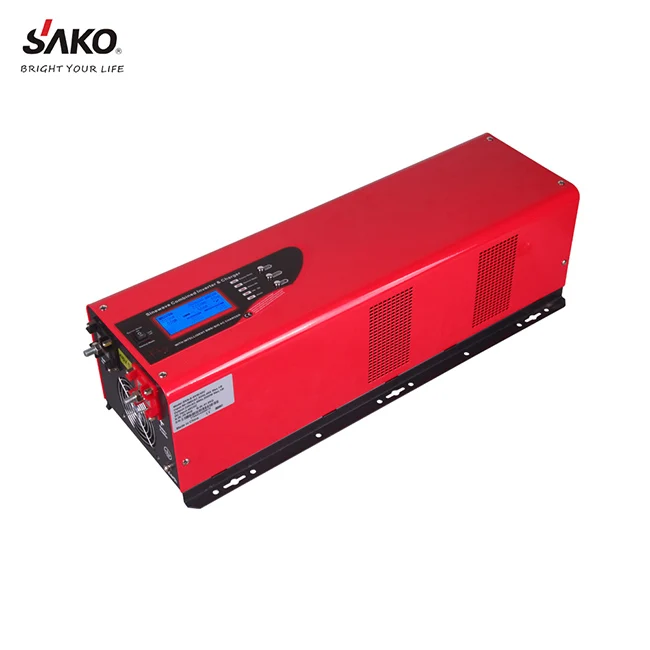

500w 1000w 2000w 2500w 3000w 4000w 5000w 6000w with AVR low frequency pure sine wave home power inverter home inverter
- Category: >>>
- Supplier: Shenzhen King Sako Electronics Co. Ltd.
Share on (60804648249):
Product Overview
Description
3000w 4000w 5000w 6000w with AVR low frequency pure sine wave home power inverter home inverter
Main Function
1.Automatic switch and unattended operation
2.Three stage Intelligent Automatic Charging Mode Technology 3.Remote control solution by RJ11 and remote panel
4.Automatic charge while AC recovery(off model charging) 5.High Efficient DC-to-AC conversion.minimizing energy loss 6. All around protection: Over load,short circuit protection Over charge , discharge protection,Low battery and high protection
7. 7 Battery types is selectable to get the best charge voltage and mode
8.Cool start
9.Isolated output
10.AC Input is 2 Phase 120Vac+120Vac
11.Full Multi-function LED Display with full meanings and buzzer alarms Design 12.Intelligent Variable speed fan operation
13.Applications: Home and office appliances such as light, computer, refrige, fans, TV, air conditioner, etc
Product Description
| SKN-S 1KW | SKN-S 2KW | SKN-S 3KW | SKN-S 4KW | SKN-S 5KW | SKN-S 6KW | ||||
| SPECIFICATION | |||||||||
| DC INPUT | |||||||||
| Input Voltage(Vdc) | 12V/24V | 24V/48V | 48V | ||||||
| Min DC start voltage(Vdc) | 10V/20V | 20V/40V | 40V | ||||||
| AC Bypass | |||||||||
| Nominal Input Voltage | 2 Phase L1:120Vac+L2:120Vac+N Line | ||||||||
| Input AC Range(Vac) | 90-265V | ||||||||
| Frequency Range(HZ) | 57Hz -65Hz for 60Hz | ||||||||
| Input Frequency(Hz) | 60Hz (Auto detection) | ||||||||
| Bypass Output Voltage(Vac) | same as input voltage | ||||||||
| Bypass Output Frequency(Hz) | same as input frequency | ||||||||
| Max Bypass Overload Current | 10A | 20A | 30A | 40A | 50A | 60A | |||
| AC Efficiency | > 95% | ||||||||
| Transfer Time(ms) | 20ms (typical) | ||||||||
| CHARGER | |||||||||
| Charge mode Input Voltage Range | 95~255Vac | ||||||||
| Automatic Charge mode | Three stage charge mode:Boost CC (constant current stage) → Boost CV (constant voltage stage) → Float (constant voltage stage) | ||||||||
| Nominal Charge Voltage | According to the battery type setup | ||||||||
| Charge Current(A) | 20A/27A/40A/55A | ||||||||
| Charge boost voltage(v) | According to the battery type setup( 12V BAT:14-15.5v 24V BAT: 28-31V 48V BAT:56-62V 96V BAT:112-124V) | ||||||||
| Charge Floating Voltage(V) | According to the battery type setup (12V BAT: 13.3-13.7, 24v BAT: 26.6-27.6, 48V BAT:53.2-55.2V 96V BAT:106.4-110.4V) | ||||||||
| Over Charge Protection | Bat. V ≥15.7Vdc, beeps 0.5s every 1s & fault after 60s (15.7 for 12v, 31.4V for 24V, 62.8V for 48V, 125.6V for 96V) | ||||||||
| Charger Short Circuit Protection | Circuit breaker | ||||||||
| (INVERTER) | |||||||||
| Capacity(VA) | 1000 | 2000 | 3000 | 4000 | 5000 | 6000 | |||
| Output Power(W) | 1000 | 2000 | 3000 | 4000 | 5000 | 6000 | |||
| Power Factor(PF) | 1 | ||||||||
| Output Voltage | Single phase:240Vac /2 phase:120Vac+120Vac (Sine wave) | ||||||||
| Output Frequency | 60 ± 0.3Hz(auto tracking main first power connection) | ||||||||
| Wave | pure sine wave | ||||||||
| Inversion Efficiency | >88% | ||||||||
| Over load capacity | (110%<load<125%) ±10%: Fault (shutdown output) after 15 minutes; (125%<load<150%) ±10%: Fault (shutdown output) after 60s; Load>150% ±10%: Fault (shutdown output) after 20s | ||||||||
| Low Battery Alarm | 10.5Vdc ± 0.3Vdc for 12V battery, 21.0Vdc ± 0.6Vdc for 24V battery, 42.0Vdc ± 1.2Vdc for 48V battery, 84.0Vdc ± 2.4Vdc for 96V battery | ||||||||
| Power saver | Load 25W (Enabled on “P/S auto” setting of Remote control) | ||||||||
| AMBIENT | |||||||||
| Noise(dB) | 60dB max. | ||||||||
| Temperature | 0°C to 40°C | ||||||||
| Humidity | 5% to 95% | ||||||||
| Sea Level(m) | ≤1500 | ||||||||
| DIMENSION | |||||||||
| Product size L×W×H(mm) | L438mm*W184mm*H181mm | L608mm*W184mm*H181mm | |||||||
| Packing size | L590mm*W312mm*H295mm | L808mm*W360mm*H352mm | |||||||
| Weight(Kg) | 16.5/17.5 | 19/20 | 24/25 | 34/37 | 39/42 | 42/45 | |||
new products
other Products
Company Information
Certifications
Packaging & Shipping
FAQ
Q1: How to choose a right inverter?
A1:Tell us your demand, then our sales will recommend a suitable inverter to you.
Q2: What's the different between inverter and solar inverter?
A2: Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.
Q3: How about the delivery time?
A3: 7 days for sample; 25 days for bulk order.
Q4: What is the warranty of inverter?
A4: One year warranty on SAKO-Solar product.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
