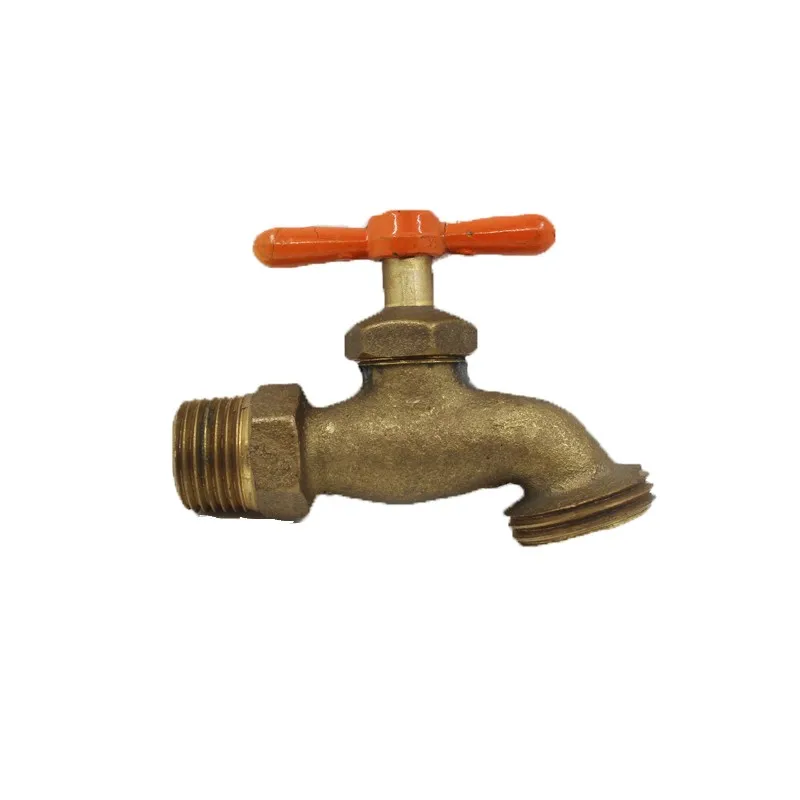

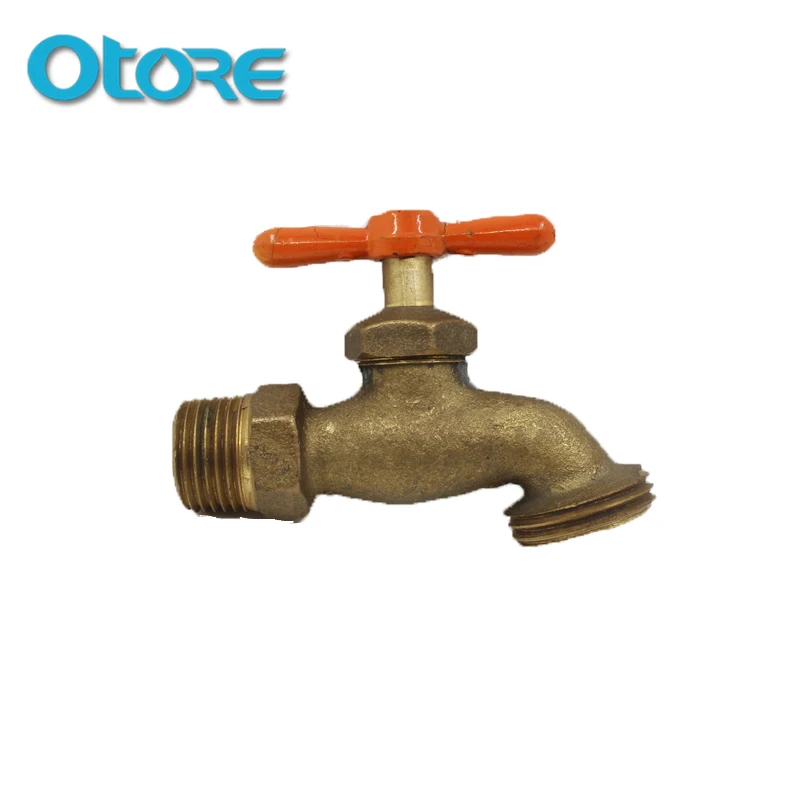

1.6MPA Brass bibcock with PTFE seal and NBR O RING
1.6MPA Brass bibcock with PTFE seal and NBR O-RING
1.6MPA Brass bibcock with PTFE seal and NBR O-RING

1.6MPA Brass bibcock with PTFE seal and NBR O RING

Share on (60804714250):


Price:$0.99 - $19.90

Quantity:


Product Overview

Description


Product Description
\t
Products Specification
\t
Part Number
\t
BB611
\t
Nominal Diameter
\t
1/2 inch to 2-1/2inch
\t
Brass Alloy Code
\t
CW602N
\t
Nominal Pressure
\t
1.0MPA-2.5MPA
\t
Working Temperature
\t
-10℃ to 120℃
\t
Working Medium
\t
Water,gas,oil
\t
Thread Standard
\t
55° British system
G Pipe thread

Size

1/2"    FI X 1/2"    FI

3/4"    FI X 3/4"    FI

1"       FI X 1"       FI

1-1/2" FI X 1-1/2" FI

1-1/4" FI X 1-1/4" FI

2"       FI X 2"       FI

2-1/2" FI X 2-1/2" FI

Alternatives

HPb59-2


HPb57-3


C48600


CW617N

Thread Standard

Parallel thread Ends manufactured to ISO228/1(DIN259, BS2779, JIS B0202)
G (PF) (BSPP)


Taper thread Ends manufactured to ISO7/1 (DIN2999, BS21, JIS B0203)
R, Rc (PT) (BSPT)

Taper thread to ANSI/ASME B1.20.1
NPT

Company Profile

CNC WORKSHOP

ASSEMBLY WORKSHOP

OFFICE

SAMPLE ROOM

COMPANY CULTURE WALL

Packing Details
PVC Bag

Corrugated Carton

Common Size:29Lx18Wx22H cm

Plywood Pallet with Stretch Film

Certifications

ISO9001

WORK SAFETY STANDARDIZATION CERTIFICATE

Issued by State of Administration of Work Safety

TAIZHOU MUNICIPAL HI-TECH ENTERPRISE CERTIFICATE

Issued by Taizhou Municipal Science and Technology Bureau

SMALL AND MEDIUM-SIZED TECHNOLOGY-BASED ENTERPRISE IN ZHEJIANG PROVINCE CERTIFICATE

Issued by Zhejiang Provincial Science and Technology Department

ACTIVITES
FAQ

1. Is your company a factory or trading company ?

Factory with over 10 years experience on brass valve and fittings manufacturing


2. What is your products warranty policy ?

There is 5-year products workmanship warranty


3. What is your advantage on OEM/ODM ?

We will assist you in providing free drawings design, free 3D modelling and sharing the mold charge


4. What Is DZR Brass ?
DZR (Dezincification Resistant) Brass is a type of brass resistant to dezincification corrosion


5. How to assure the DZR brass is qualified ?

DZR testing report will be provided to you before proceeding

you can also turn to third-party analytical laboratory and related testing charge will be on us if DZR testing failure


6. What is mold policy ?

 Mold charge will be on us until the sample pass qualified or refunding you the mold charge
