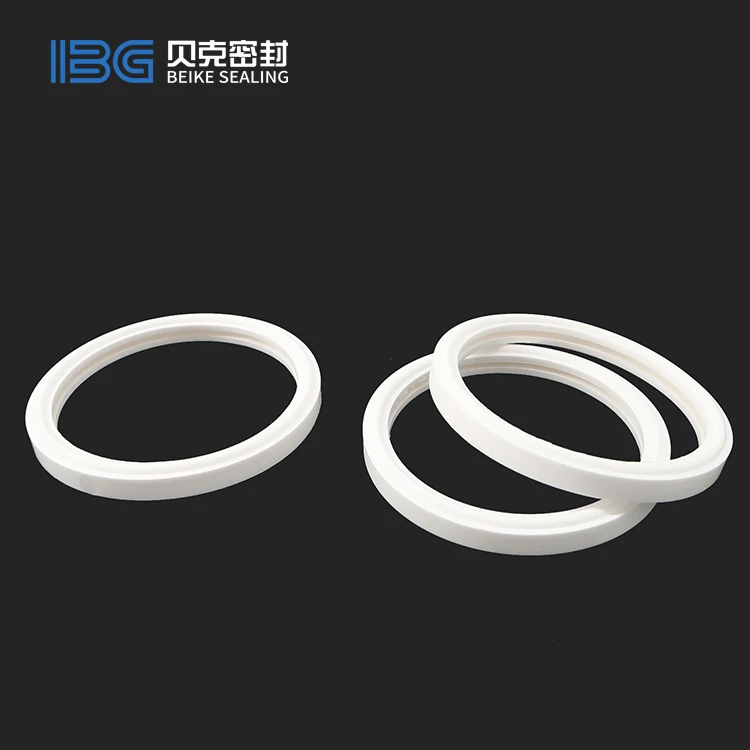

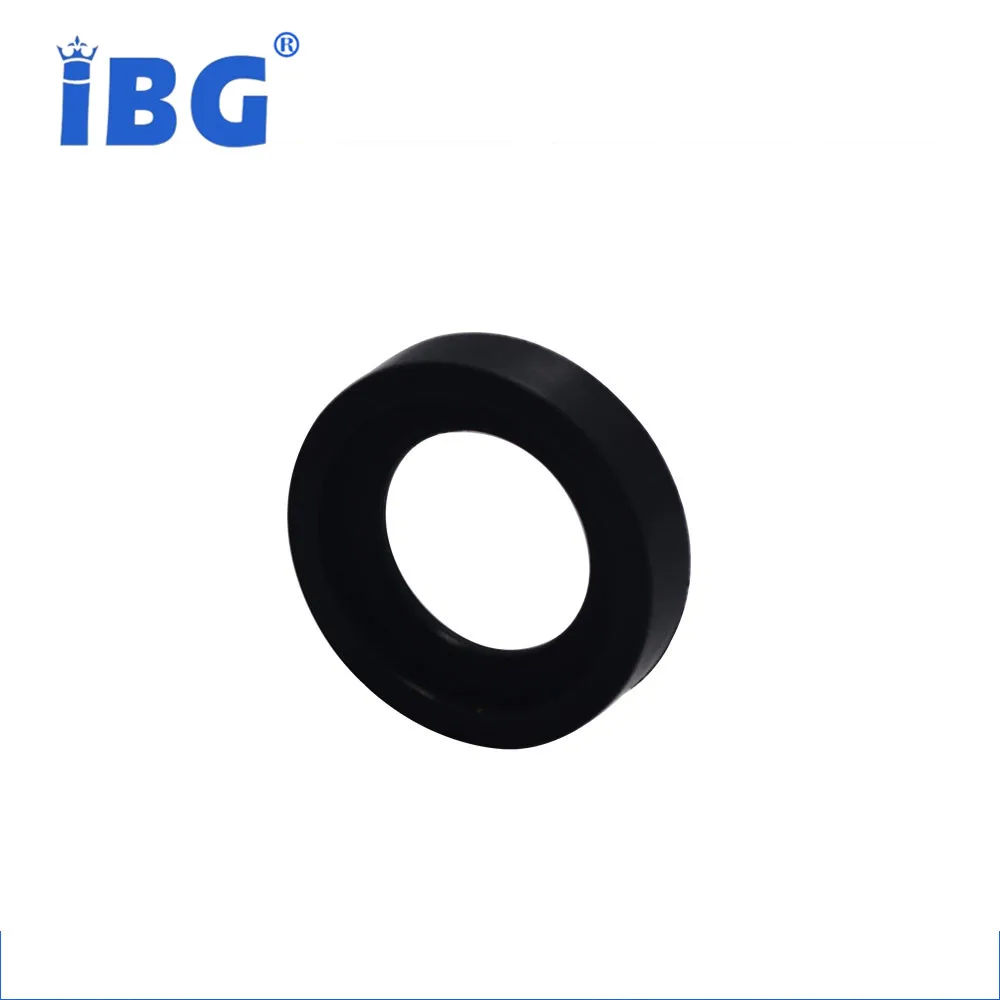

white black PTFE O Ring Flat Round Rubber Gasket
- Category: >>>
- Supplier: Shijiazhuang Beike Sealing Technology Co. Ltd.
Share on (60804765424):
Product Overview
Description
PTFE O Ring Flat Round Rubber Gasket
Product Description
IBG Main Products Including,

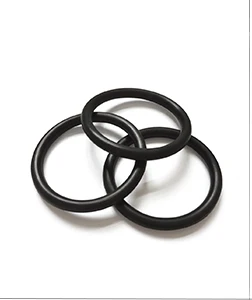

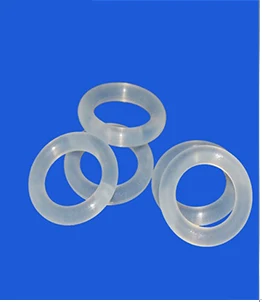

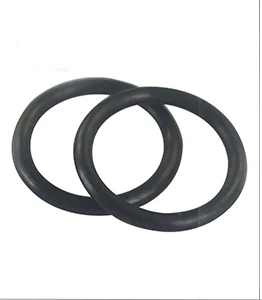

O-rings (Food grade,RoHS,USP Class VI Grade Rubber)
Quad Ring
Flat Gasket Ring

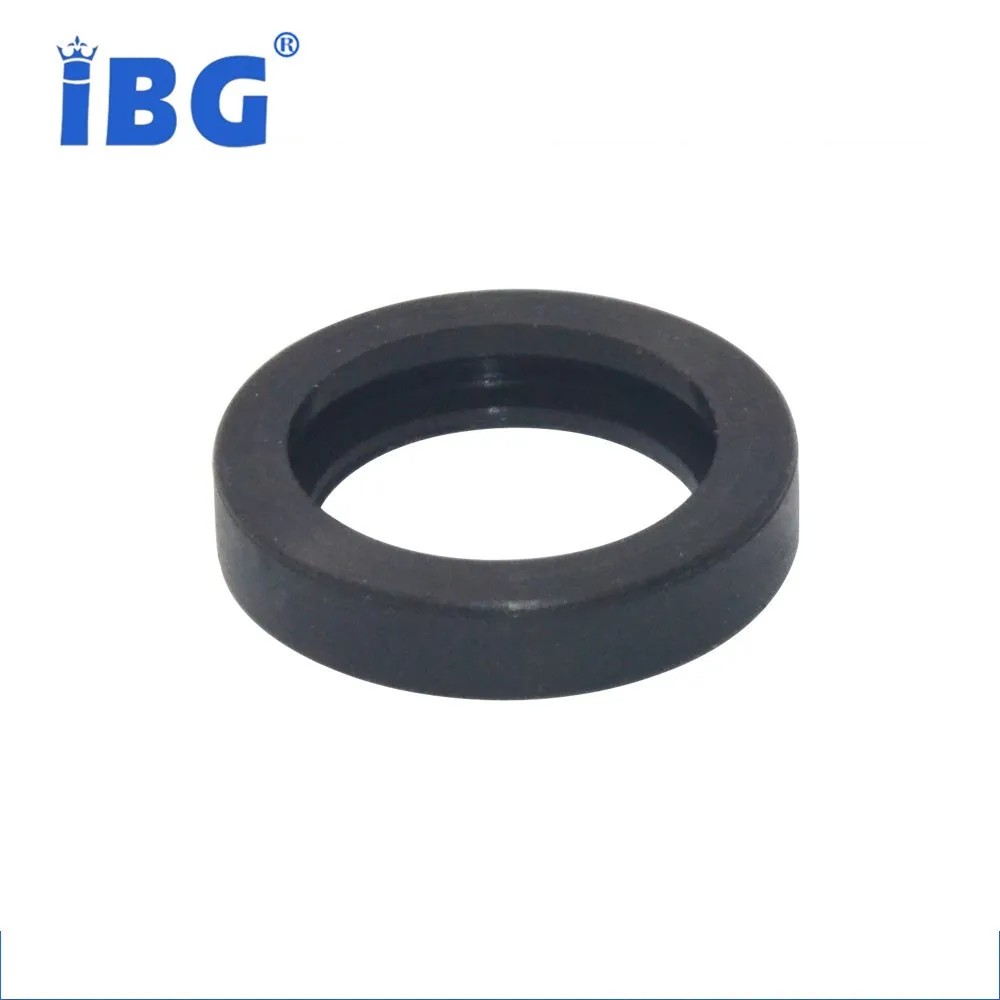

Rubber Gasket

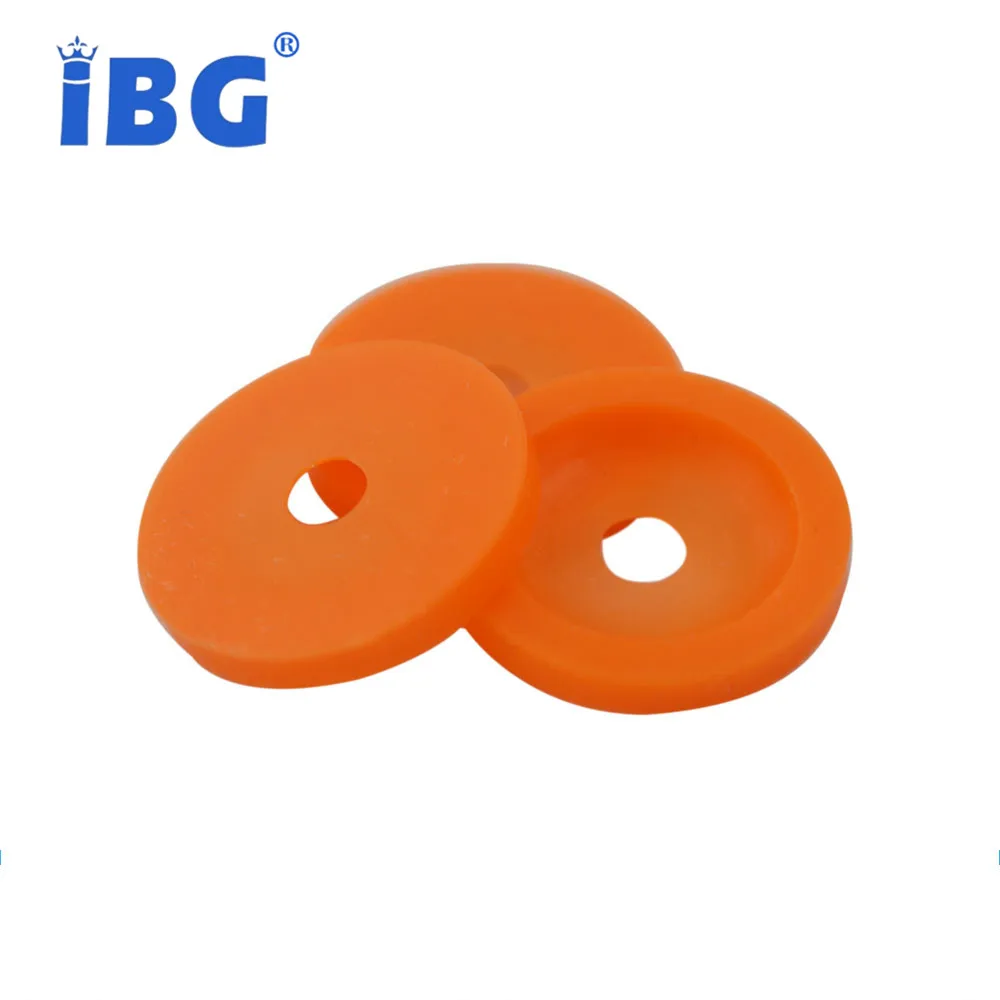

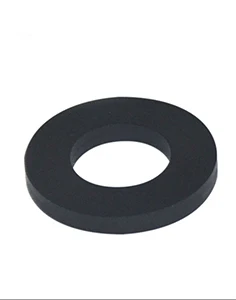

Rubber Washer
Rubber Stopper
Rubber Plug
Quad Ring
Flat Gasket Ring
Rubber Gasket
Rubber Washer
Rubber Stopper
Rubber Plug
Rubber Grommets for Cable,Car and Pipes
Specification of Round Flat PTFE O Ring Gasket
1.. Duro: 30-90 Shore A
2. Size: Standard,Customized or Samples OEM
3. Certification: ISO/TS16949, food grade ROHS
| Product Name | PTFE O Ring Flat Round Rubber Gasket |
| Material | PTFE |
| Hardness/Durometer | 30-90 Sha A |
| Certification | ISO9001:2008,TS16949,RoHS,Food grade,USP Class VI |
| Size | AS568,ISO3601,BS Standard |
| Color | Black,Yellow,Blue,White,Clear or as requested |
How to choose the material?
1. Custom materials are available.
2. Tell us the application,and we can recommend the appropriate material to you.
We have abou10 years’ experience in rubber manufacturing,and our factory has done ISO9001 ,TS16949 Certificate .

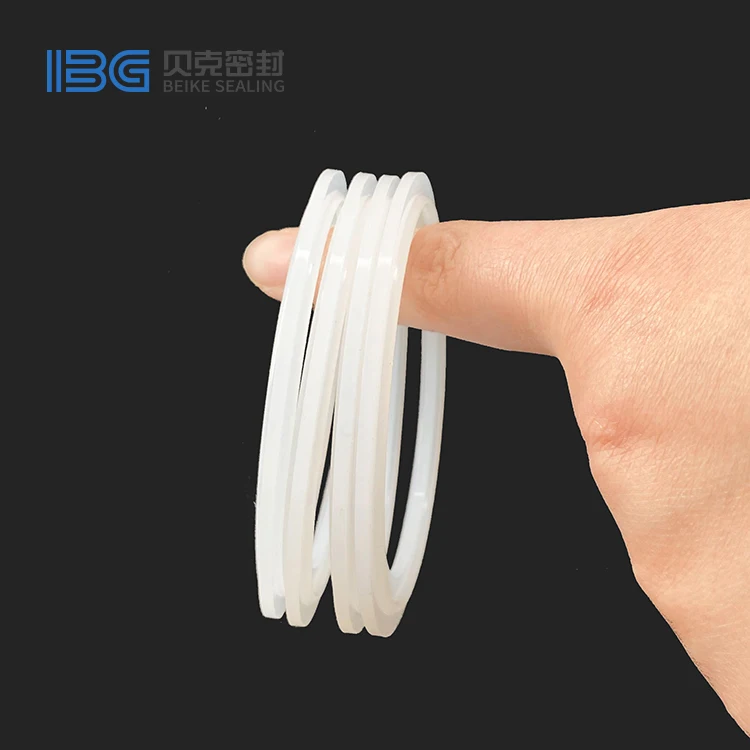

6 mm White PTFE O Ring Flat Round Rubber Gasket
PTFE is a completely fluorinated polymer that is the most chemically resistant polymer available.
PTFE can withstand a very wide temperature range from -300oF to +500oF.
It is inert to most chemicals and solvents with very few substances that degrade the material (notably fluorine, chlorine trifluoride, and molten alkali metal solutions).
PTFE is also very slippery and repels virtually everything making it perfect for applications that require a high coefficient of friction.
PTFE is not crossed-linked like a regular elastomer and therefore has poor elastic memory, can deform under constant compressive load and can be damaged during installation.
Temperature Range:
Up to 250℃ (Instantaneous)
Down to -200℃
Recommended temperature range -180℃ to +230℃
PTFE O-ring Chemical Resistance:
Excellent resistance to almost all chemicals
Not subject to aging, so a near infinite shelf / storage life
Can be use in food, chemical and medical industries
Low elasticity (memory)
Low coefficient of friction
Not Compatible with:
Low compression vacuum sealing flanges
High vacuum seals
High temperature steam
FKM is a registered trademark of Dupont
STADNARD | SECTION CROSS OF O RING(mm) | ||||
AS 568 |
1.78 |
2.62 |
3.53 |
5.33 |
6.99 |
BS 1516 | |||||
JIS B 2401 | 1.90 | 2.40 | 3.10 | 3.50 | 5.70 |
ISO 3601/1 |
1.80 |
2.65 |
3.55 |
5.30 |
7.00
|
DIN 3771/1 | |||||
GB 3452.1 | |||||
Metric | 1.0 | 1.5 | 2.0 | 2.5 | 3.0 |
3.5 | 4.0 | 4.5 | 5.0 | 5.5 | |
6.0 | 7.0 | 8.0 | 10.0 | 12.0 | |
| FAQ |
Shipping Terms?
1. By Express ; 2. By Air; 3. By Sea.
Payment Terms?
Pay by Cash, Credit Card, T/T, Paypal and Western Union, all is welcome.
Packaging Details?
PE bag inside, Carton outside, then Pallet. All packaging are signed our logo. If any customized request, welcome.
Our Sample Policy?
We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost(Maybe free) and the courier cost.
Our Test?
We have 100% test before delivery.
Delivery Time?
1. Products in stock, delivery time is 1 workday;
2. Products out of stock, and mold in stock, delivery time is 5~7 workdays;
3. Products out of stock, and mold out of stock, delivery time is 10~15 workdays.
Remark: Delivery time is also subject to quantity.
How to Select The Right Material?
It's important to select the right rubber material for the application and the environment. We can work with you to identify the best, most cost
effective material for your application.
1.What medium will contact when using, oil, chemicals...?
2.What is application temperature?
3.Dynamic seal or static seal?
4.Surface seal or shaft seal?
What Kind of Information We Need?
1. Material: "Common Material Performance List" could be sent for reference. If still not sure, suitable material could be suggested according
to WORKING CONDITION, for example: working temp. and working medium ( oil, seawater, solvent and so on)
2. SIZE: Drawing is better, if no, welcome to send SAMPLE to us, then we will measure it by professional equipment--Optical Projector, and
make 3D drawing for you.
3. Hardness & Color: Hardness could be suggested by your sample or working pressure, any color is welcome.
4. Qty: Any quantity is welcome, we like to along with you about the NEW PRODUCTS from DESIGN to FINISHED.
5. Other special request: Precision, compression set, elongation, and so on.
*Drawings, photos and samples are welcomed.
*We can produce the product according to your requirement or samples.
Welcome to your inquiry.
