Product Overview

Description

Product Description

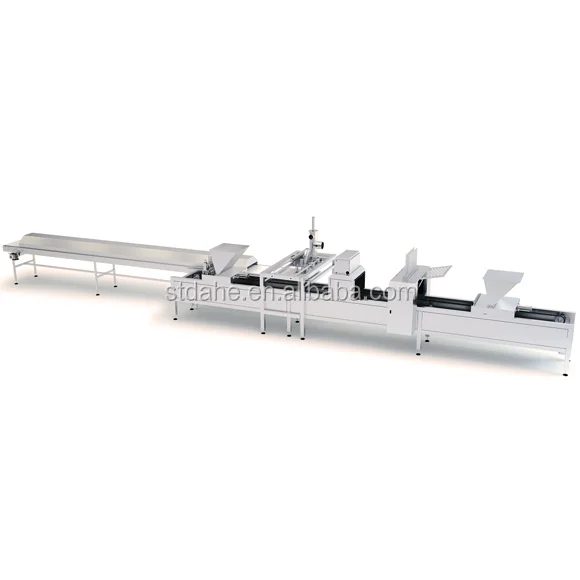

Oil Sprayer & Dispenser & Depositor & Injector & Depanner 5 IN 1 Machine

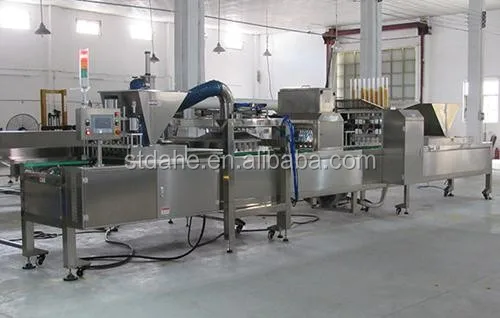

This machine is applied to the production of different cakes, such as cupcake and custard cake. Choose either oil sprayer or dispenser first, loading trays on the conveyor, they will automatically step-walks forward for oil spraying or paper cup loading, and then dough depositing. Then workers take the trays into rotary oven for baking. After baking, the workers load the trays with baked cakes on the machine for cream injection and depanning. After depanning, the empty trays move to oil sprayer for another circular production.

SPECIFICATION
Running Speed
15-20times/min
Oil Spraying Quantity(max)
0.2-6g/time, adjustable
Injecting Quantity
2-20g/times, adjustable
Dough Depositing Quantity
10-100g/time, adjustable
Depanning Speed
4-6 times/min9(1-2 trays/ time)
Voltage and Frequency
3ph,380V,50Hz
Power
16KW
Maximum Air Consumption
2m³/min(external gas source)
Air Pressure
0.6-0.8MPa
Dimension(L*W*H)
8000*2400*1800mm

Oil Sprayer

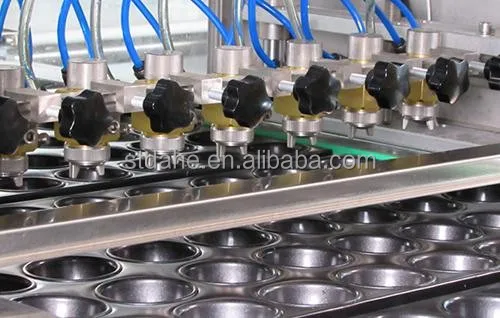

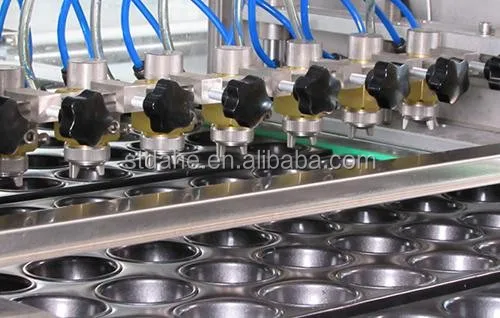

The oil sprayer model OIA is used to spray the right amount of oil in the moulds. It is the first step when making cakes without paper cups. It allows to easy depan the cakes from baking trays. The spraying nozzles are adjustable and can fit for different needs

Dispenser

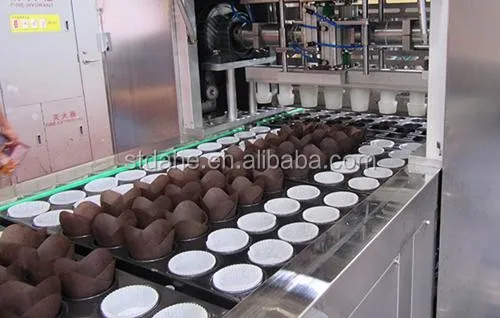

This dispenser model DIA is for placement soft paper cups. It is using air blow system to separate the cups inside the feeders and place them on the tray. The deposit heads are designed exactly according to the size and shape of the cups. They are interchangeable so that one machine can fits for different cups.

Depositor

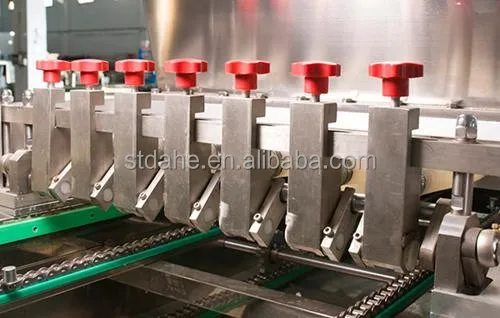

The depositor model DEA is piston depositors. It is mounted on an intermittent chain conveyor where baking trays travel on. As optional, it can be fixed depositing head, movable depositing head or 2 colors depositing. There is automatic C.I.P. washing system to clean the machine quickly and effectively.

Vertical Injector

The injector model INA-T is used to inject products on indented baking trays. When the products after baked, load them with trays on the conveyor, it will automatically injecting.

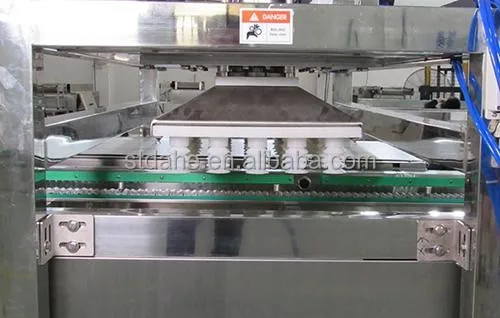

Depanner

The depanner model DEA equips with a motorized moving head slides. According to the products, it is possible to use heads with suction cups or needles. For different size products, the depanning plate is easily interchangeable. For high speed needs, the machine can be supplied with servo motors.

PRODUCTION SCOPE

Cake: custard cake, plum cake, choco coated cake, sponge cake, muffin cake, cup cake,twinkie cake and etc.
Cake weight: 20g to 80g
Capacity: 150kgs to 2000kgs, over 2000kgs

ADVANTAGE

a- PLC Control,Touch Screen Operate;
b- Fully automaic Step: Auto Paper cup loading;
c- Auto Dough Forming (Auto Cleaning system without disassembling);
d- Auto Cream/Jam/choco Injecting (Auto Cleaning system without disassembling);
e- Auto Cake Demolding Machine;
f- No manpower needed;
g- Stable working, not shaking like others;
h- High quality stainless steel as main framework;
i-  Main electric equipment using world renowned brands.
