High precision colorimeter NR60CP color meter to replace konica minolta cr 10 chroma meter
- Category: >>>
- Supplier: Shenzhen 3NH Technology Co. Ltd.
Share on (60804814109):
Product Overview
Description
High precision colorimeter NR60CP color meter to replace konica minolta cr-10 chroma meter
Product Overviews
Certificates: ISO9001:2008; CE; FCC; ROHS; TUV; SCM.
NR60CP colorimeter features the built-in white calibration parameter and a physical white plate, making it's very convenient to be calibrated, and also a simple interface making it's very easy to operate. It can get very similar test result with color reader cr10. Elegant appearance combines perfectly with the ergonomic design, which makes it a model of portable handheld colorimeter.
NR60CP colorimeter also features its two locating methods: illumination locating and cross locating, which can solve the problem of measuring small spots very well.
Repetitive error is less than 0.03ΔE*ab, inter-instrument error is less than 0.2ΔE*ab, which make its stability and reliability of measurement very superior.
NR60CP colorimeter is standardly configured with 2 kinds of measuring apertures, 8mm and 4mm, multiple light source modes, multiple color space systems, multiple chromaticity indexes conforming to different standards, all of which make NR60CP can excellently fulfill all kinds of requirements for color measurements in different industries.
NR60CP colorimeter also goes with a powerful PC software CQCS3 which includes more extended functions that can enormously facilitate your work.
Product Description
| Illuminating/Viewing Geometry: | 8°/ d |
| Light Source: | LED Light |
| Sensor: | silicon photodiode array |
| Measuring aperture: | Φ8mmflat aperture; Φ4mmtip aperture |
| Color Space: | CI E L AB,XYZ,LCh,CI E RGB,CI E LUV |
| Color Difference Formula: | ΔE* ab, ΔE( h) , ΔE* uv,ΔE* 94, ΔE*cmc ( 2: 1) , ΔE*cmc ( 1: 1) , ΔE* 00 |
| Other Chromaticity Data: | WI ( E313,CI E, AATCC,Hunt er ),YI ( D1925,313),Color Fastness, Staining Fastness, J PC79,BFD( 1. 5: 1),FMCI I |
| Observer: | CI E 10° |
| Illuminant: | D65,A,C,D50,F2,F6,F7,F8,F10,F11,F12 |
| Display Data: | Colorimetric Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset, |
| Measuring Time: | 0. 4s |
| Repeatability: | ΔE* ab 0. 03 (Average of 30 measurements of standard white plate within 5s) |
| Errors between each instrument: | within Delta E*ab 0.2 |
| Dimension: | 205*67*80mm |
| Weight: | 500g |
| Battery: | rechargeable lithium-ion battery 3. 7V @ 3200mAh |
| Lamp Life: | 5 years, more than 1.6 million measurements |
| Screen: | TFT 2.8 inch(16: 9) |
| Interface: | USB/ RS- 232 |
| Storage: | 100 Standards, 20000 Samples |
| Operating Temperature: | 0~40℃(32~104°F) |
| Storage temperature: | -20~50℃(-4~122°F) |
| PC software: | CQCS3 software |
| Optional accessory: | miniature thermal printer, powder test box |
Detailed Images
Warranty
All our products have one year warranty except consumables from the purchase date. If it has something wrong during warranty, you can send it back to us. The buyer pays for the returning shipping cost and we will pay for the sending shipping cost.
Product Uses
3nh colorimeter spectrophotometers are widely used to compare color difference in plastic, electronic, painting, coating, ink, texile, garment, printing, dyeing, food, medical, cosmetic industries and institutes, schools and laboratoris.
Technology
The lists of technological innovation of 3nh colorimeter have applied for national patent. Counterfeiting not allowed.

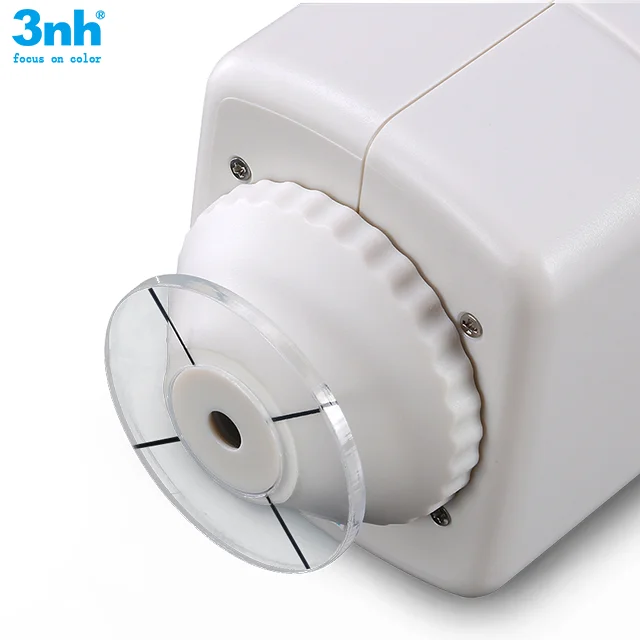

Extended Measuring Aperture
Extended measuring aperture can be used to not only measure the large surface, but also to perform color measurement on small surface, circular surface and concave surface.
Camera for Locating
Camera locating can accurately judge whether the tested part of an object is the target center. Through camera locating, you can operate the instrument easily. And also it will make the measurement more efficient and accurate.
Optical Path for Locating
This is an illumination locating technology which can perform locating on the tested object which don’t need to add mechanical observe aperture or monitoring element.
Auto White Calibration
It’s an easy, simple and fast auto white calibration technology at startup which can escape from the traditional complex manual white and black calibration.
Auto Switch SCE/SCI
It’s an auto switch SCE/SCI technology which controlled by software and electronics.
