Exterior Outdoor Sport Tennis Stadium Football Field Searchlight Projector LED Flood Light 200W 150W 100W
- Category: >>>
- Supplier: Dongguan Rongjia Energy-Saving And Environmental Protection Equipment Co. Ltd.Dongguan Ltd.
Share on (60804835741):
Product Overview
Description
Exterior Outdoor Sport Tennis Stadium Football Field Searchlight Projector LED Flood Light 200W 150W 100W
Product Description

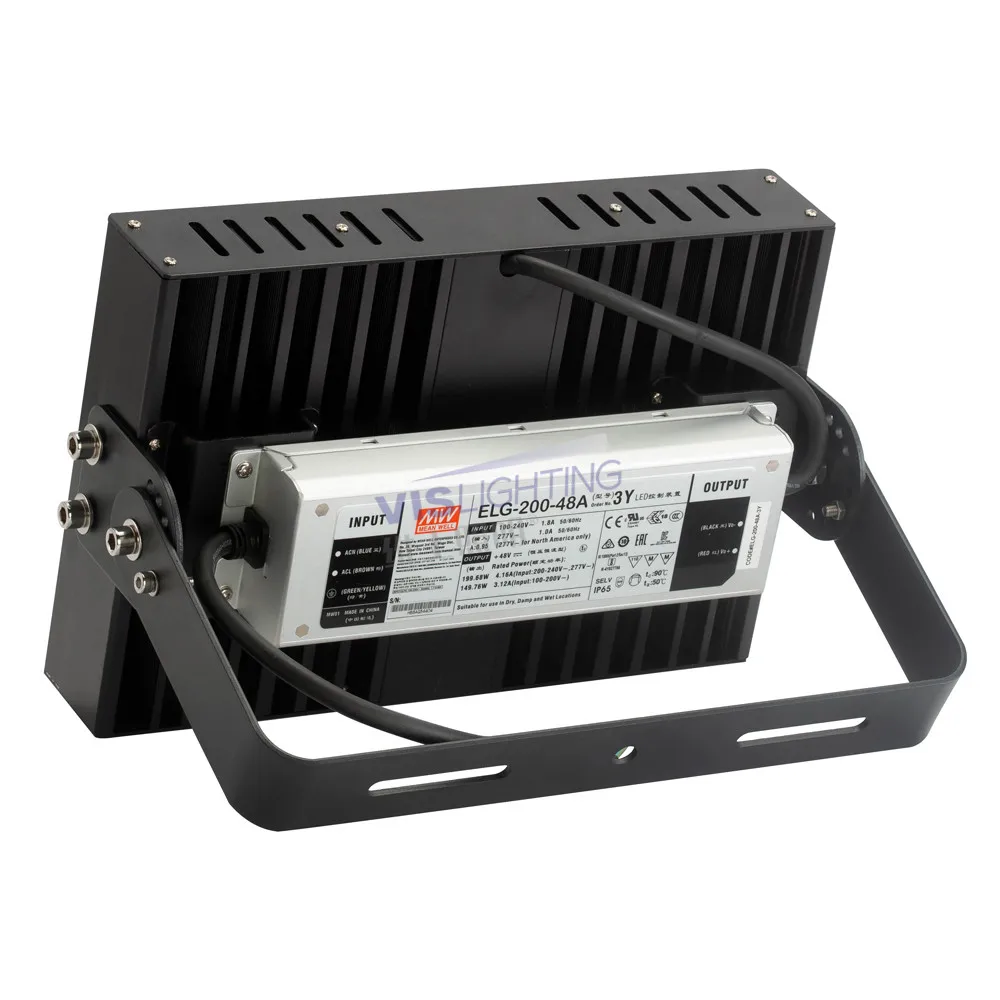

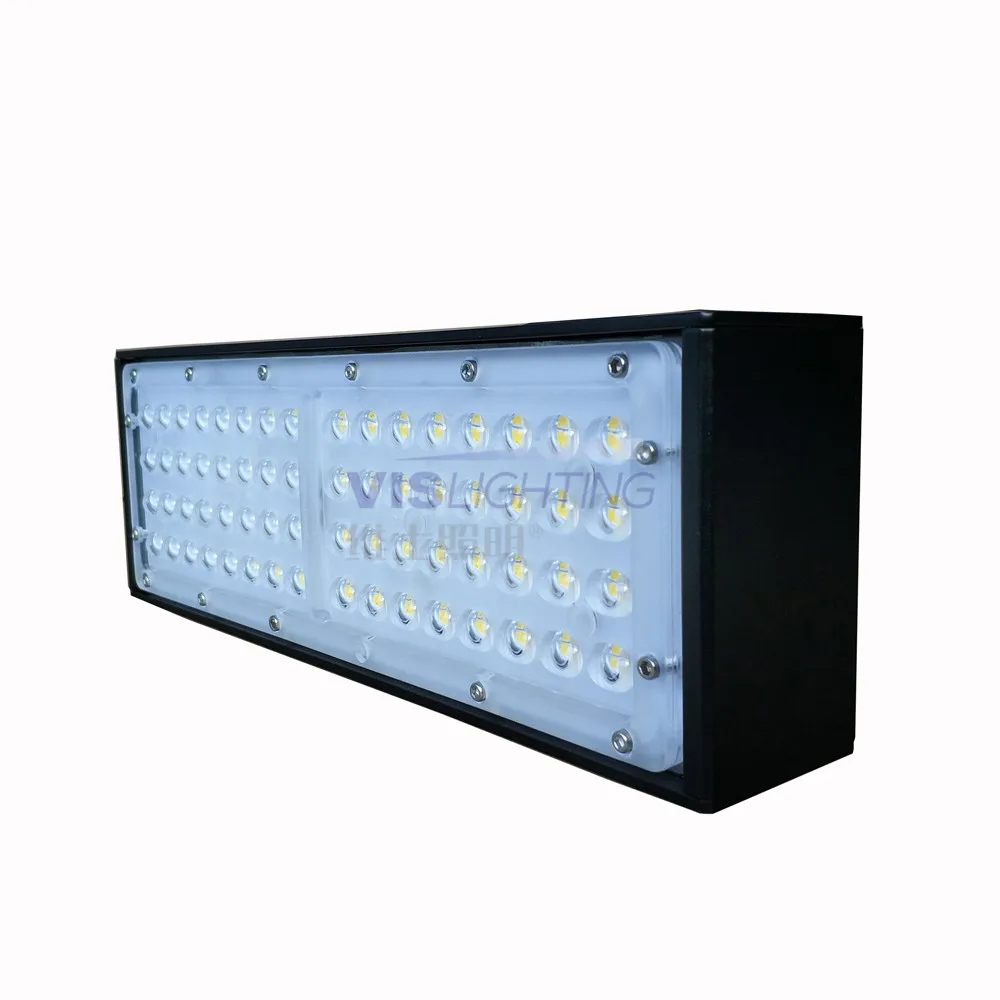

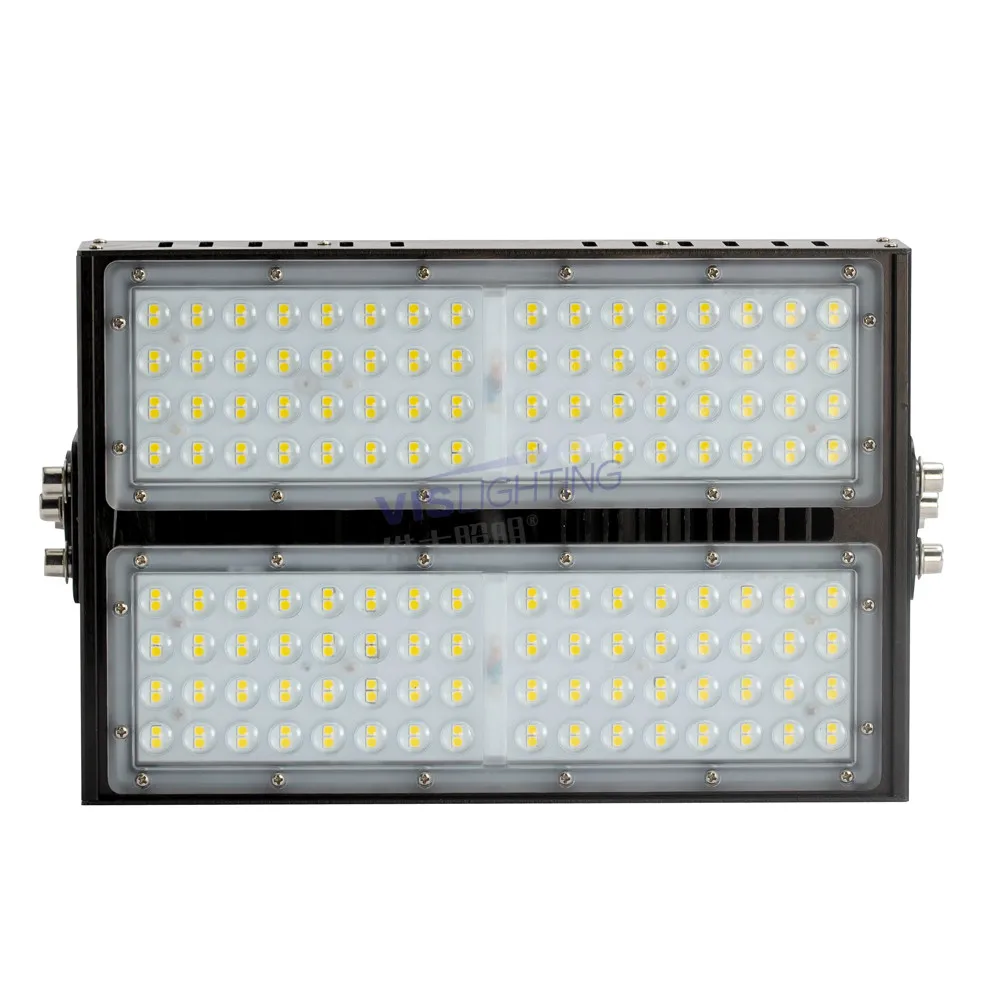

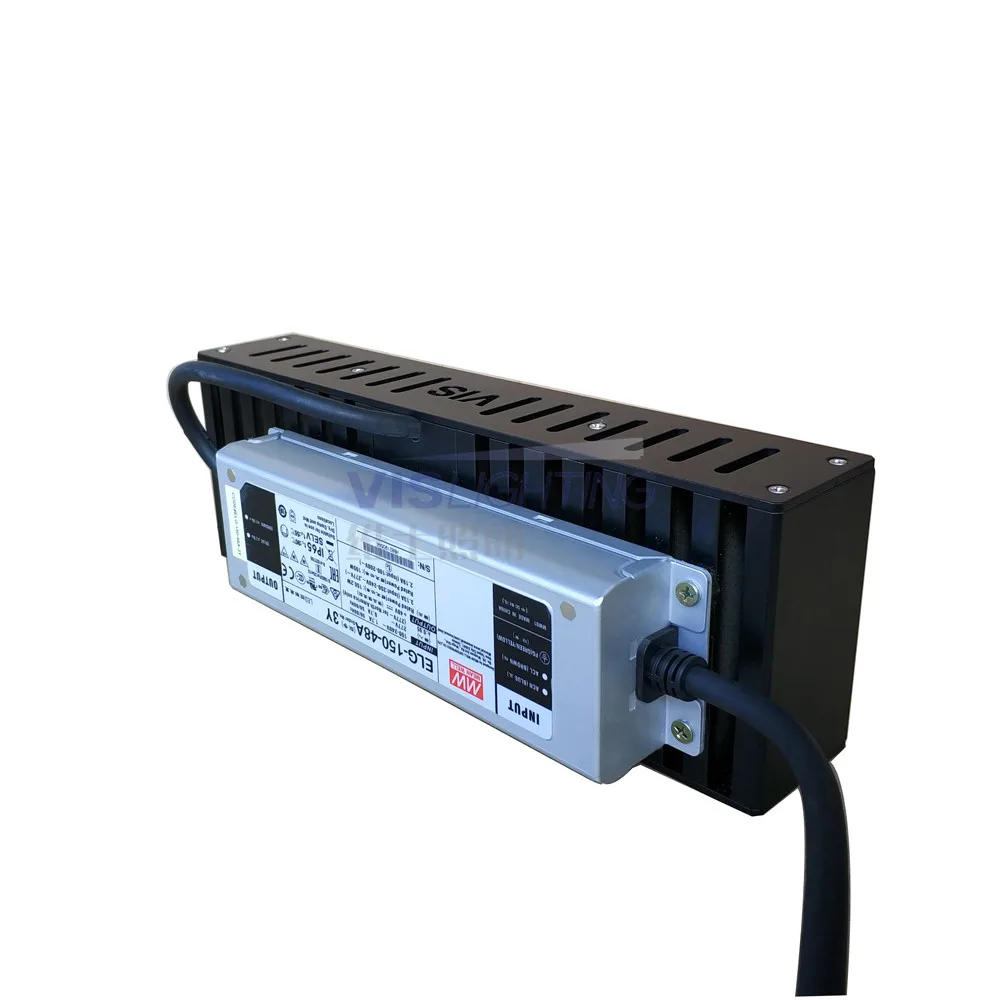

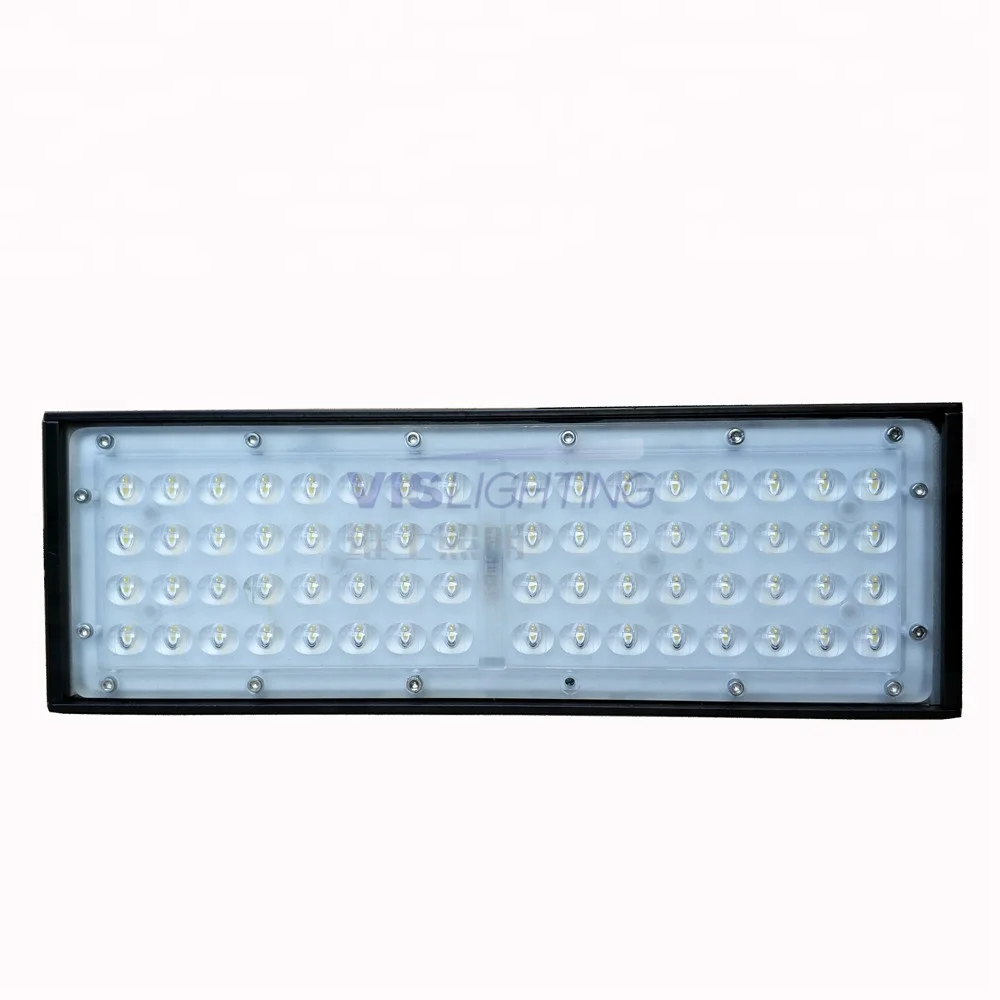

Pictures of Product
Product Parameter
| Led flood light Power Series | ||||||
| Model No | VIS-PFL-100W | VIS-PFL-200W | VIS-PFL-300W | VIS-PFL-400W | VIS-PFL-500W | VIS-PFL-600W |
| Power | 100W | 200W | 300W | 400W | 500W | 600W |
| Input Voltage | AC85V-265V | |||||
| Frequency Range | 50Hz-60Hz | |||||
| Total harmonic Distortion | ≤9% | |||||
| Power Factor | >0.95 | |||||
| Power Efficiency | >95% | |||||
| Beam angle | 156*70°/150*80°/153*95°/130*130°/90 ° | |||||
| Led Luminous Efficiency | 150LM/W | |||||
| Lumenious Flux | 15000LM | 30000LM | 45000LM | 60000LM | 75000LM | 90000LM |
| Lamp' Luminous Efficiency | >90% | |||||
| CCT | 2700-7000K | |||||
| CRI | Ra>80 | |||||
| Light Distribution | Symmetrical / round spot | |||||
| Light Design | LED+optical lens | |||||
| Junction Temperature | ≤80℃ | |||||
| Working Temperature | -40℃- +65℃ | |||||
| Storage Temperature | -25℃- +65℃(25℃is the best) | |||||
| Power Liner | 0.75mm2 three core line | |||||
| Connect wire | Brown -L / Blue -N / Yellow&Green -G | |||||
| IP Grade | IP67/IP66/IP65 | |||||
| Working Life-span | 50000H | |||||
| Color of lamp shell | Black | |||||
Product features
* SMD3030 LED,150lm/w, CRI Ra80-85. Junction temperature<80°C.
* TaiWan MeanWell LED Drivers, wide voltage AC90V~305V, PF>0.95.
* Ultra-low luminous decay <5% in 5 years. Design lifespan 50,000hrs .
* Private patent unitized module design, active good heat dissipation technology.
* Constant current and constant voltage design, much more reliable.
* Multi beam angles and excellent uniformity.
* High strength structure coated with corrosion resistant polyester powder, real anti-corrosion .
* No flickering.
* CE, RoHS and IP67 approved, 5 years warranty .
Installation way
This led flood light can be wall / ceiling / pole / tunnel mounted
Product Application
Led flood light is widely used in factory , warehouse , logistics center , exhibition hall, soccer field, stadium ,gymnasia ,highway toll station , gas station ,supermarket etc.
Package details
| Led flood light Power Lens/Reflector Series -----VIS LIGHTING | |||
| Power | 100W | 200W | 300W |
| Net Weight | 3.0KG | 4.6KG | 6.1KG |
| Product Size | 311x111x98mm | 311x113x201mm | 311x113x304mm |
| Gross Weight | 3.3KG | 5.1KG | 6.7KG |
| Package Size | 26x12x36CM | 28x37x17CM | 35x37x17CM |
| Led flood light Power Lens/Reflector Series -----VIS LIGHTING | |||
| Power | 400W | 500W | 600W |
| Net Weight | 8.2KG | 10.0KG | 11.5KG |
| Product Size | 311x115x407mm | 311x115x510mm | 311x115x613mm |
| Gross Weight | 9.0KG | 10.8KG | 12.2KG |
| Package Size | 45.5x37x17CM | 56x37x17CM | 66x37x17CM |
Packaging & Shipping
Trade process
Trade term: EXW, FOB, CIF
MOQ: 1pcs
Port: Shenzhen, Dongguan, Guangzhou
Sample availability: Yes
Supply capability: 1000 pcs/week
Payment: T/T, Western Union, L/C, Paypal.
Shipment: ocean or air transportation, international express
Normal lead time: 3-5days for sample order;15-20 days for production order
Payment condition: 30% before production, 70%before delivery
Packing: Netural carton box/ Customized packing are acceptable
Company Information
Company Information
Dongguan Rongjia Energy Saving Equipment Co., Ltd was established in 2009. “VIS Lighting” trademark holder. Production range including the LED high bay light, LED street light, LED flood light, LED explosion-proof light and LED fishing light etc.
We have
8 person R & D team, constantly cooperating with the top scientific research institution, Chinese Academy of Sciences, having the patent of the led fishing light.
more than 5000 square meters area
6 production lines
more than 100 employees
professional experimental testing equipments, such as Integrating Sphere and Goniophotometer
Very rich experience in conventional light replacement to led light projects
Here we can supply you the top quality products, looking forward to cooperation with you.
Certifications
CE RoHS ISO9001:2008 Conformity certificate of explosion-proof IP65
FAQ
FAQ
Q1: Can we make our own logo on the sample lights?
Sure, we can use the logo you offer, also can do OEM & ODM
Q2: Our project is on seaside, what if your lights be corrosion by sea water?
Metal has high corrosion resistance. Besides, we do best on light surface treatment, electrostatic spraying and electrophoresis can effectively protect our light from salt water corrosion.
Q3: I really would like to try a sample first, is that possible?
Sure, Our MOQ is only one pieces
Q4: We now have football stadium projects need to do the lighting design, can you help us?
Sure, we have a professional working team, can make design for and give the best solution, also can provide
IES file.
Q5: I have a football/tennis stadium project, what’s your suggestion?
Please give me the below information:
a. The size of the field
b. The location and the height of the lamp poles or tower
c. The requirements of the illumination
Q6: How to deal with the faulty?
Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
Our Services
Our services
1.For all your inquires about us or our products, we will reply you in detail within 24 hours.
2.We have experienced engineers to help you solve all the problems of technical.
3.We have experienced sales help you custom-made the sales solution.
4.Can print your own logo on product, can customize the retail box packing and other things.
5.3-7 years warranty
