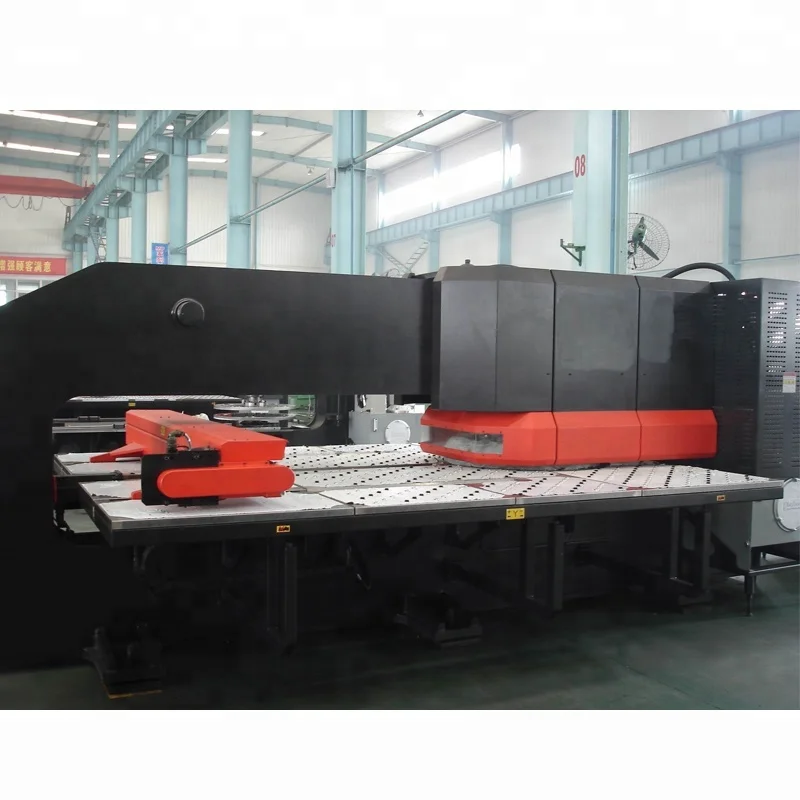

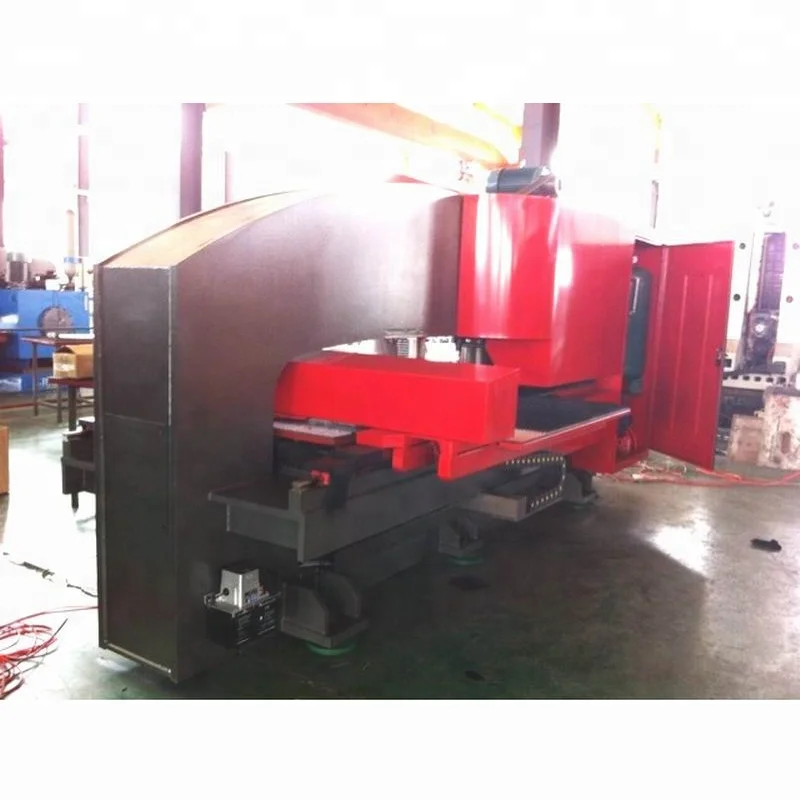

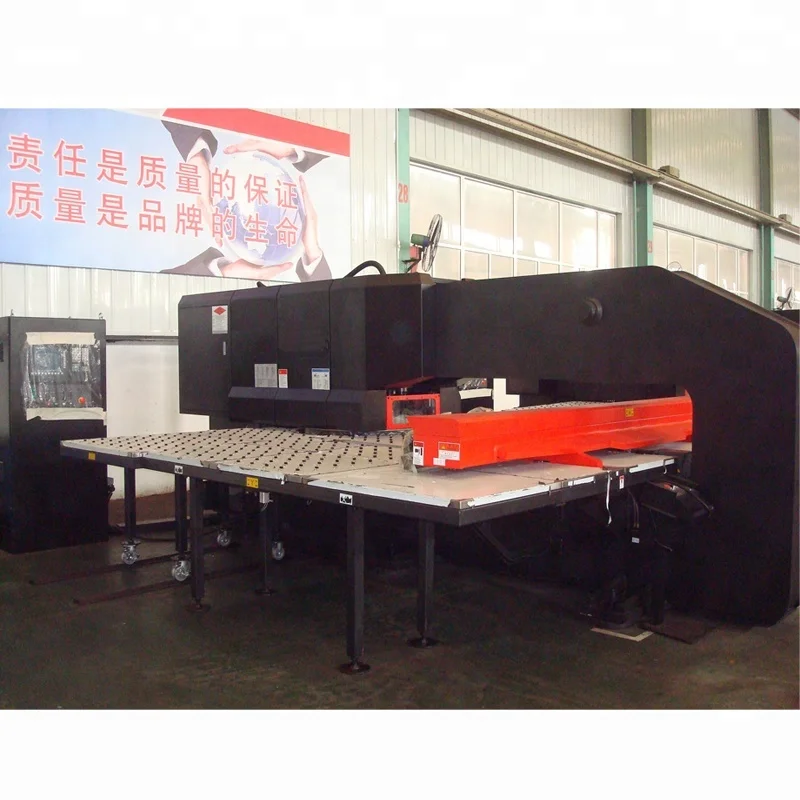

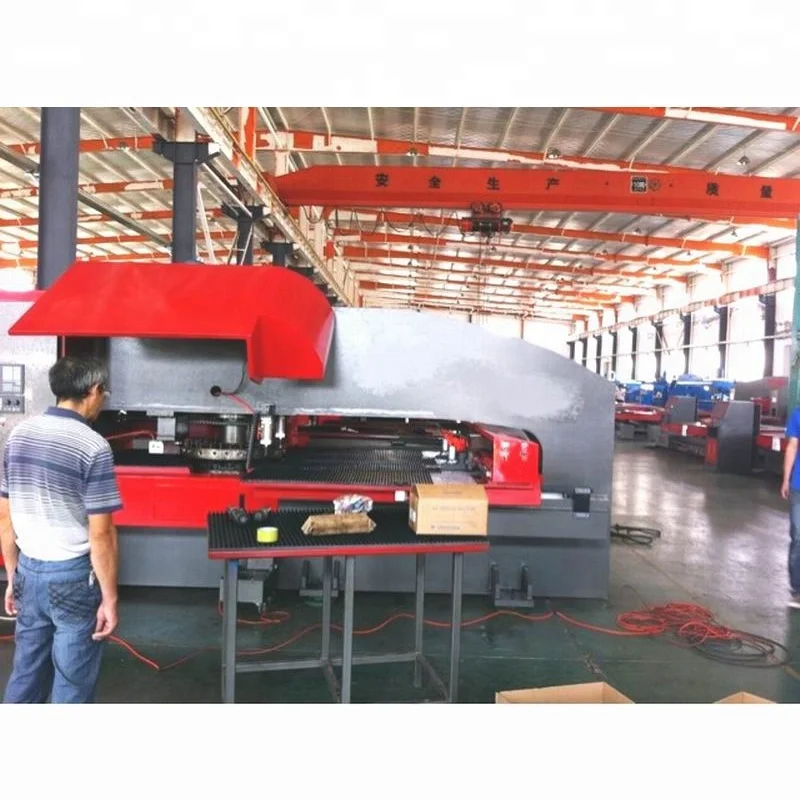

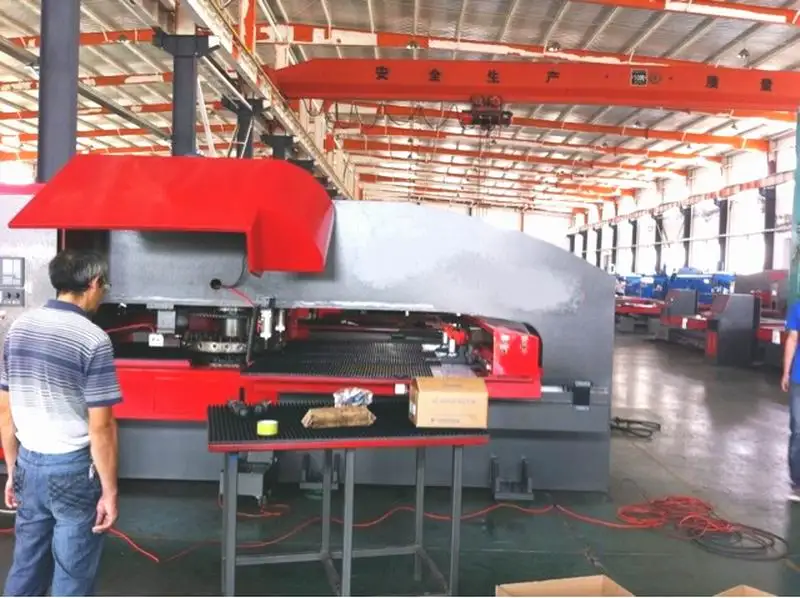

Hot sale low price Full Automatic CNC Hydraulic Turret Punching Machine cnc punch press machine

Product Overview

Description

Hot sale low price Full Automatic CNC Hydraulic Turret Punching Machine cnc punch press machine

Structural features

• Advanced and reliable hydraulic drive system can select stroke automatically corresponding to different thickness of metal sheet and is convenient to realize special process of louver, blanking, etc. The punch is equipped with auto hydraulic overload protection device, and guarantees consistent pressing force for quality products.


• The punch is of FANUC 0iP control system.


• Rotary tooling stations are of worm wheel structure with max. punching diameter of 50.8.


• Dual turret is of long insert structure ensuring coaxiality of the punch and die, which gives long life to the tool and turret.


• Imported pneumatic and hydraulic components guarantee reliability of the machine.


• Imported ballscrews with long travel, and linear guideways ensure transmission precision.


• The worktable with hard brush and steel ball reduces noise and shock of the machine, and protects surface of the work piece.


• The machine is straight-side frame, which is annealed for eliminating inner stress.


• The clamps with auto protection function, in the protective zone, only excise movement without punching action for continuous operation.


• Central lubrication device provides lubricant oil to the desired points to reduce friction of pairing elements for long machine life.


• Tool station layout consists of A,B,C,D, which is convenient for the customer and save the tool cost.


• Common requirement is for site foundation preparation and machine installation is simple.

 Technical parameter



Model	Pressure	Steel sheet			Moving	Punching	Station	Accuracy	Throat	Axis	Air	Machine size
		Size	Thick	Weight	speed	diameter			depth		pressure
MP	KN	mm	mm	kg	M/min	mm	No	mm	mm	No	Mpa	mm
MP7-30A	300	1250*2500	6.35	156	106	88.9	32	0.1	1275	4	0.55	5340*5200*2150
MP7-30B	300	1250*4000	6.35	156	106	88.9	32	0.1	1275	4	0.55	5340*5200*2150
MP7-30C	300	1250*5000	6.35	210	106	88.9	32	0.1	1275	4	0.55	5340*5200*2150
MP10-30A	300	1250*2500	6.35	156	106	88.9	32	0.1	1275	4	0.55	5400*2700*2200
MP10-30B	300	1250*4000	6.35	156	106	88.9	32	0.1	1275	4	0.55	5400*4200*2200
MP10-30C	300	1250*5000	6.35	210	106	88.9	32	0.1	1275	4	0.55	5400*5200*2200
MP10-30D	300	1500*4000	6.35	235	106	88.9	32	0.1	1520	4	0.55	6100*4200*2200
MP10-30E	300	1500*5000	6.35	235	106	88.9	32	0.1	1520	4	0.55	6100*5200*2200
MP10-40A	400	1250*2500	6.35	156	106	88.9	32	0.1	1275	4	0.55	5400*2700*2200
MP10-40B	400	1500*4000	6.35	156	106	88.9	32	0.1	1520	4	0.55	5400*4200*2200
MP10-40C	400	1500*4000	6.35	210	106	88.9	32	0.1	1520	4	0.55	6100*4200*2200
MP10-40D	400	1500*5000	6.35	235	106	88.9	32	0.1	1520	4	0.55	6100*5200*2200
MP10-50A	500	1250*2500	8	235	106	88.9	32	0.1	1275	4	0.55	5400*2700*2200
MP10-50B	500	1250*4000	8	235	106	88.9	32	0.1	1275	4	0.55	5400*4200*2200
MP10-50C	500	1500*4000	8	235	106	88.9	32	0.1	1520	4	0.55	6100*4200*2200
MP10-50D	500	1500*5000	8	350	106	88.9	32	0.1	1520	4	0.55	6100*5200*2200











Guarantee period:
Our product quality guarantee period is 12 months from B/L date. During guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by customers’ incorrect operations, we will provide customers spare parts at cost price. We also can offer flexible extended warranties according to the actual situation.
After-sales services:
Our engineer can go to your factory for installation and showing operation details on condition of you provide the round-trip air tickets, visa formalities, food and accommodation. In turn, your engineers can come to our factory for learning the installation, operation and maintenance for free.
Why Choose Us:
1. We will run the machine for a few days, and use your materials to do the test. Only guarantee the machine shows best performance, and then we will ship out.
2. Our elite teams can provide you professional, customized, and all-round services around the clock. If you need any help, contact us by WHATSAPP, Skype, Email or Telephone.
How can we provide you efficient services (metal processing solution):
There are Three Steps as following:
1. Gather your requirements based on your real working situation.
2. Analyze your information and provide our feedback.
3. Offer options based on your specific needs. For instance, reg. standard products, we can offer professional recommendations; reg. non-standard products, we can offer professional designing.
