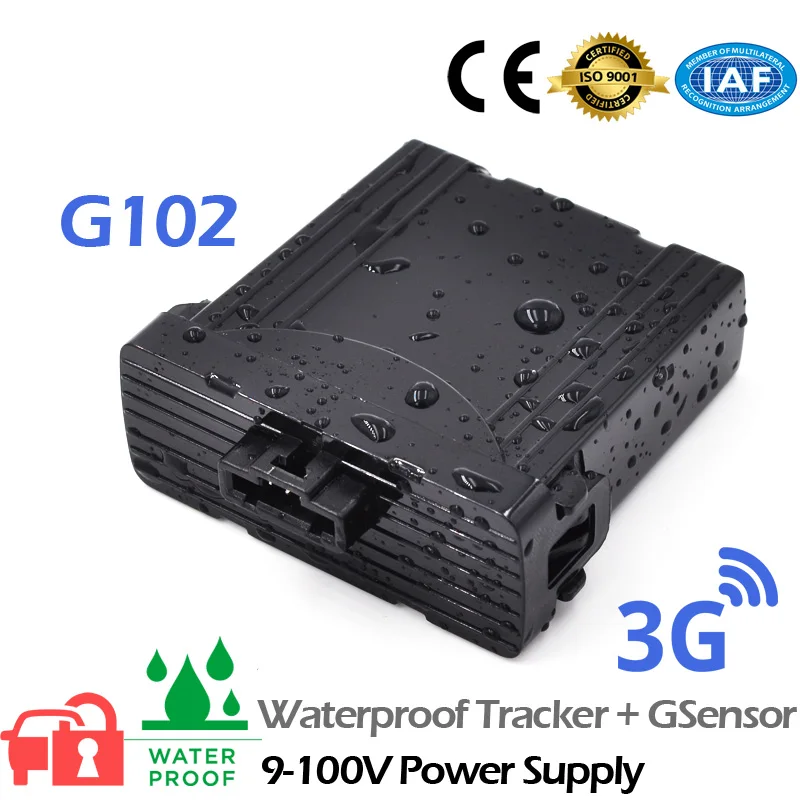

Устройство отслеживания GPS 4G G102 для транспортных средств

Product Overview

Description



 Technician parameter
Name Parameter
Gift Box Dimension 120*120*50mm
Tracker unit Color Black
Working voltage 9V -- 55V DC
Working current 40 mA(12V/DC)
Back-up battery Built-in

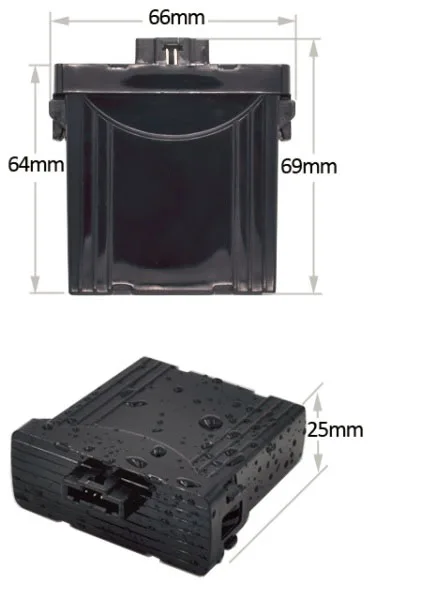

Tracker size 66*64*25 mm
Weight Tracker weight 0.1kg Total package 0.21kg
Working temperature -25℃ -- 75℃
Moisture 5% -- 95%(Non-water vapor condensation state)
GSM Frequency 850MHz/900MHz/1800MHz/1900 MHz Quad-band
WCDMA 2100MHz/1900Mhz/850MHZ/900Mhz.

GPS Module Gotop
GPS Sensitivity -159Db
GPS Frequency 1575.42 MHz
Receiving panel structure GPS module 66-channel
Locating accuracy < 5m (95%)
Cold start time < 45s(in average)
Heat start time < 2 s (in average)
LED indicator light usage of green / red dual-color LED indicator light shows the GPS / GSM status
GSM Chipset Mobiletek L306(Industry 3G M2M GSM modem)
