YZPOWER Portable Waterproof 33.6V 10A Lithium Electric Scooter Battery Charger

Share on (60804874824):


Price:$26.00 - $28.00

Quantity:


Product Overview

Description



Main information


 YZPOWER Portable Waterproof 33.6V 10A Lithium Electric Scooter Battery Charger





1.pngElectric Scooter Battery ChargerElectric Scooter Battery Charger









































Input Voltage100-240Vac 47-63HzCase Material Aluminum
Charge Voltage and Current33.6V 10ACharge Method CC/CV
 Size 163X95X56mm      Weight<1KG
Operating Temperature-20℃ ~ +50℃Storage Temperature-40~ +80
Warranty1 YearCertificate CE/ROHS/FCC/SAA
The inditorr of LED: "RED" Means Charging   "Green" Means Full of Electricity




Dear Customer,Please select the Input and Output plug in the following pictures.


Such as Input(AC) plug:NO.5  Output(DC)Plug:NO.M


output+input





2.pngElectric Scooter Battery ChargerElectric Scooter Battery Charger





ProtectionElectric Scooter Battery ChargerElectric Scooter Battery Charger

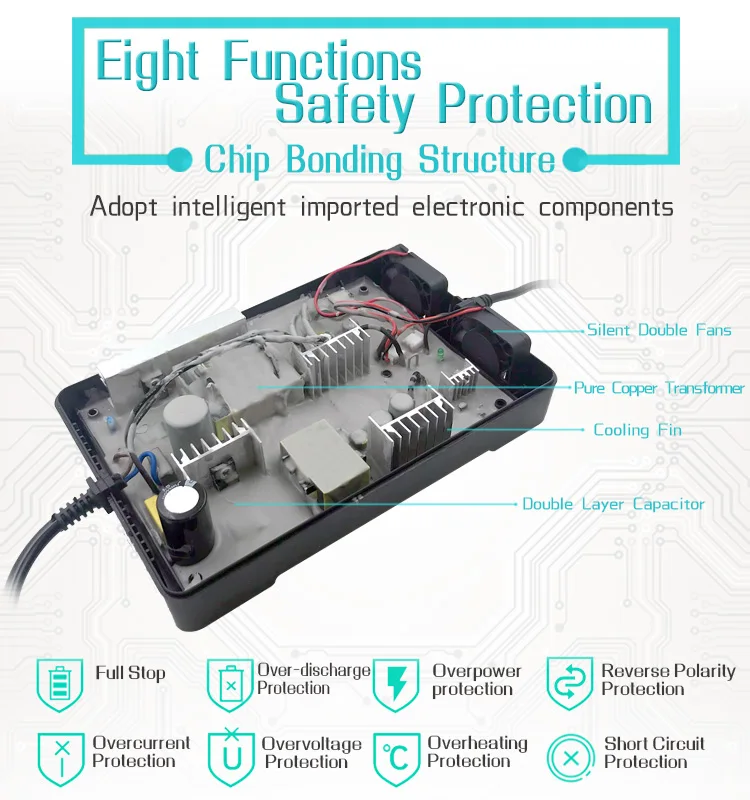

Over current protection / Over voltage protection / Short Circuit Protection / Reverse Connection Protection








330


Product AdvantageElectric Scooter Battery ChargerElectric Scooter Battery Charger




1)Dual color LED indicator:Red means Charing,Green means full charged.With 3 years warranty.


2)Constant current, constant pressure dual scheme design, perfectly conform to the lithium battery charging characteristics.Electric Scooter Battery ChargerElectric Scooter Battery Charger
3)The two way average flow scheme is used, when one of them is damaged, only the charging current is reduced by half, and it can be used.Electric Scooter Battery Charger


4)The charging time is adjustable, with LED indication, precision voltage and current detection, effectively preventing overcharge and completely eliminating charge of discontent and so on.Electric Scooter Battery Charger


5)The input and output lines use high quality wires, corrosion resistance, and no cracking.
6)The shell is PC industrial raw material, fire retardant and flame retardant, temperature resistance 75 C.
7)With output short circuit protection, even if the output short circuit will not damage the power supply, when the output short circuit release, the power supply is still normal output. Electric Scooter Battery Charger
8)It has the function of soft start, can withstand frequent switch start, will not cause damage to the power supply.
9)The enclosure with a fixed installation hole, with a terminal, the input and output connection is extremely simple, no need to use a soldering iron. Electric Scooter Battery Charger Electric Scooter Battery Charger
10)The DC current is precise IC control, non single triode constant current. Each cycle is monitored and the current limiting circuit is designed to prevent charge current from being too high, protect battery and extend battery life. Electric Scooter Battery Charger Electric Scooter Battery Charger
11)Built-in EMI filter device, anti lightning, surge voltage design. Electric Scooter Battery Charger
12)Capacitance: capacitance is -40 C-105 C and C long life. The main products of international Dachang are ruby, black diamond, TOCON, YALECON and so on.Transistor: mainly used Silan, SILAN, ST, Fairchild.

  Electric Scooter Battery Charger Electric Scooter Battery Charger Electric Scooter Battery Charger

Electric Scooter Battery Charger Electric Scooter Battery Charger Electric Scooter Battery Charger

Accept to adjust the current and voltage according to your needs








Electric Scooter Battery ChargerFAQElectric Scooter Battery Charger

1. Q:May I take some samples to test before placing the order ?Electric Scooter Battery Charger
     A:Customers need to pay for the sample and express fees, it will be returned when next order is confirmed.
2. Q:How long can you offer the samples?Electric Scooter Battery Charger
     A: 1~5 days after the deposit payment is confirmed.Electric Scooter Battery Charger
3. Q:What's your payment terms for sample?Electric Scooter Battery Charger
     A: You can pay via T/T, Paypal, Western Union.Electric Scooter Battery Charger

4.Q:What about the warranty and certificate?Electric Scooter Battery Charger

    A:We prodvide 2 years warranty and we have CE,ROHS,FCC,SAA.Electric Scooter Battery Charger

5.Q:How many checks are there before shipment?Electric Scooter Battery Charger

   A:We will have a quality testing including prepare order, production and quality inspection before packing.

6.Q:Will you take photos and send me tracking number before shipment?Electric Scooter Battery Charger

   A:Sure,Before shipment,We will take pictures according to your request and send you tracking number.

  Electric Scooter Battery Charger Electric Scooter Battery Charger Electric Scooter Battery Charger Electric Scooter Battery Charger Electric Scooter Battery Charger
