Online buy wholesale best quality SUNTA luhoovision AHD H.264 256G Storage Hisilicon Chipsets 8 Channel Mobile Car DVR Recorder,best quality,best service,welcome to order online or contact us by email .
Product Description
AHD H.264 256G Storage Hisilicon Chipsets 8 Channel Mobile Car DVR Recorder
Cheap SUNTA Luhoovision AHD H.264 256G Storage Hisilicon Chipsets 8 Channel Mobile Car DVR Recorder FEATURES:
Ÿ Built-in high performance Hisilicon chipsets, coded with H.264 standard, high compression rate and image qulity
Ÿ 8CH AV Inputs with AHD 1080N/720P/960H/D1/CIF optional, 1CH synchronized AV output, 1CH VGA output
Ÿ 8CH local recording with 1080N resolution in real time
Power:
Ÿ Professional In-Vehicle power design,8-32V DC Wide Voltage Range
Ÿ Multi protection circuits like under-voltage, short, reversed plug-in
Ÿ Smart power management system, shutdown under low voltage, low consumption
Data Storage:
Ÿ Special file management system to encrypt and protect the data
Ÿ Proprietary technology to detect the bad track of the hard drive which can make sure the continuity of video and long service life of the hard drive
Ÿ Built-in ultracapacitor, avoid data loss and sd card damage caused by sudden outage
Ÿ Support 2.5 inch HDD/SSD, maximum 2TB
Ÿ Support SD card storage, maximum 256GB
Ÿ Support hard disk heating
Transmission Interface:
Ÿ Support GPS/BD optional, high sensitivity, fast positioning
AHD H.264 256G Storage Hisilicon Chipsets 8 Channel Mobile Car DVR Recorder Technical Parameter:
Item
Device parameter
Performance
System
Main processor
Hi3520DV300
Operating system
Embedded Linux OS
Operating language
Chinese/English
Operating interface
GUI, support mouse
Password security
User password/Admin password
Audio
&
Video
Video standard
PAL/NTSC
Video compression
H.264
Image resolution
1080N/720P/960H/D1/CIF
Playback quality
1080N/720P/960H/D1/CIF
Compound mode
A variety of ways
Decoding ability
1ch 1080N real time
Recording quality
Class 1-6 optional
Image display
Single/QUAD display optional
Audio Compression
G.726
Audio recording
Audio & Video synchronized recording
Recording & Playback
Recording mode
Manual/Alarm
Video bit rate
Full frame 4096Mbps,6 classes image quality optional
Audio bit rate
8KB/s
Storage media
SD card + HDD/SSD storage
Video inquiry
Inquiry by channel/Recording type
Local playback
Playback by file
Firmware upgrading
Upgrading mode
Manual/Automatical/Remote/Emergency Recovery
Upgrading method
USB disk/Wireless network/SD card
Interface
AV input
8ch aviation interface
AV output
1ch VGA video output, 1ch aviation AV output
Alarm input
4 digital inputs (4 Positive/Negative trigger)
HDD/SSD
1 HDD/SSD (up to 2TB, support hot plug/unplug)
SD card
1 SDXC High speed card (up to 256GB)
USB interface
1 USB 2.0 (support U disk/mouse)
Ignition input
1 ACC signal
UART
1 LVTTL Level
LED Indication
PWR/RUN
Disk lock
1
Debug port
1
Function extention
GPS/BD
Support detecting antenna Plug in/Unplug/Short circuit
Others
Power input
8~32V DC
Power output
5V 300mA
Power consumption
Standby 3mA
Maximum consumption 30W @12V 2.5A @24V 1.25A
Working temperature
-20 --- 70℃
Storage
1080N 1.2G/h/channel
720P 1G/h/channel
960H 750M/h/channel
Dimension
162mm*180mm*50.5mm

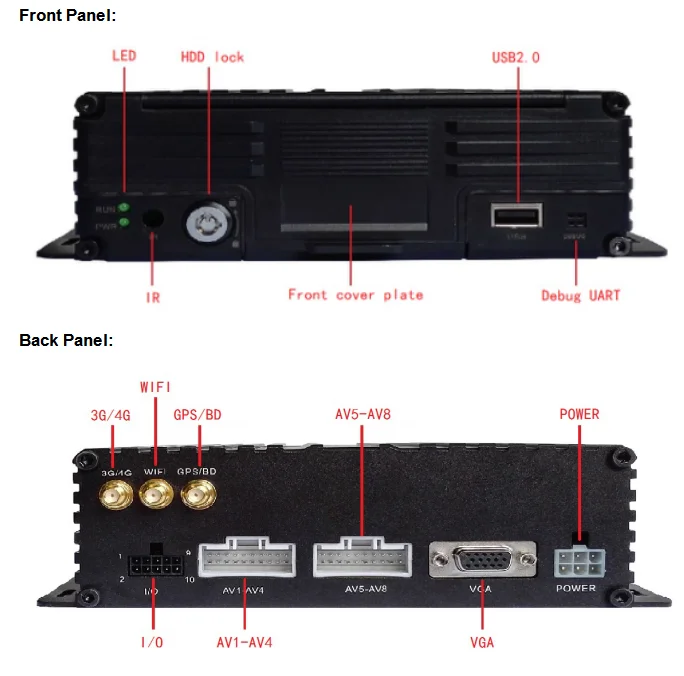

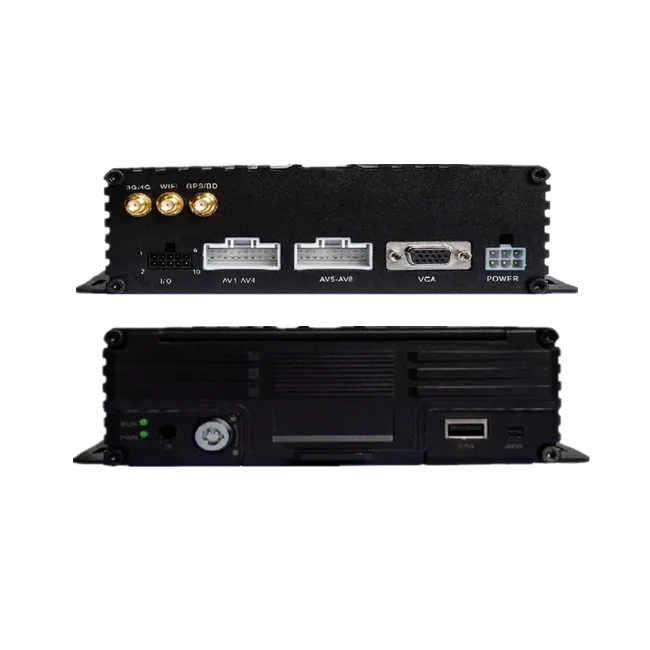

SUNTAAHD H.264 256G Storage Hisilicon Chipsets 8 Channel Mobile Car DVR Recorder Front and back Panel photo:
Packaging & Shipping
Package: 1pcs / Paper box.
Delivery Time: 3 working days after receiving your payment for your trial order. Bulk order depending on your order quantity.
