Factory supply Electrical Tire Dismounting and Carrier Machine

Product Overview

Description

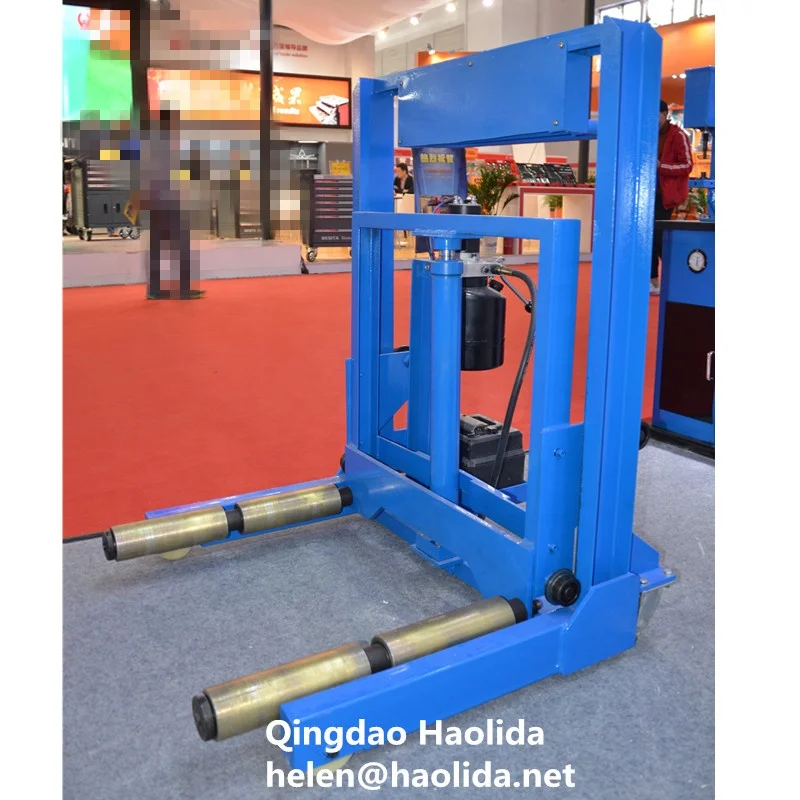

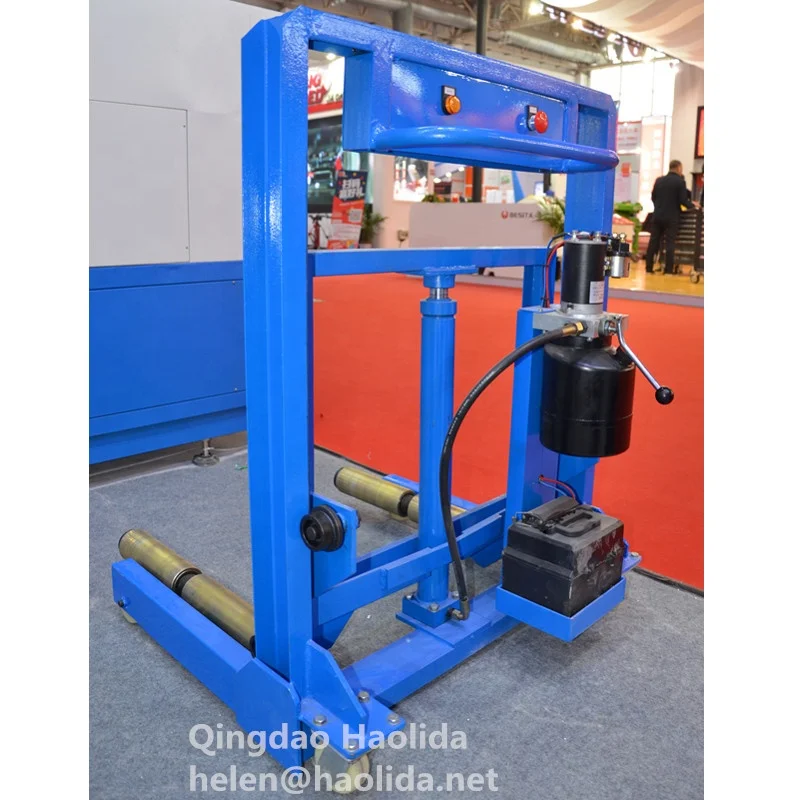

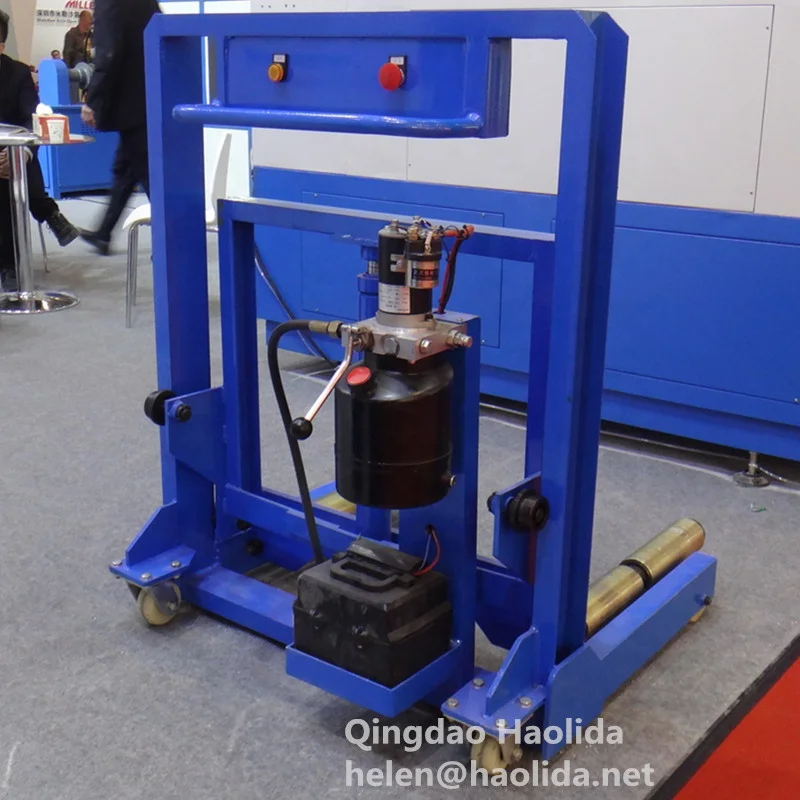

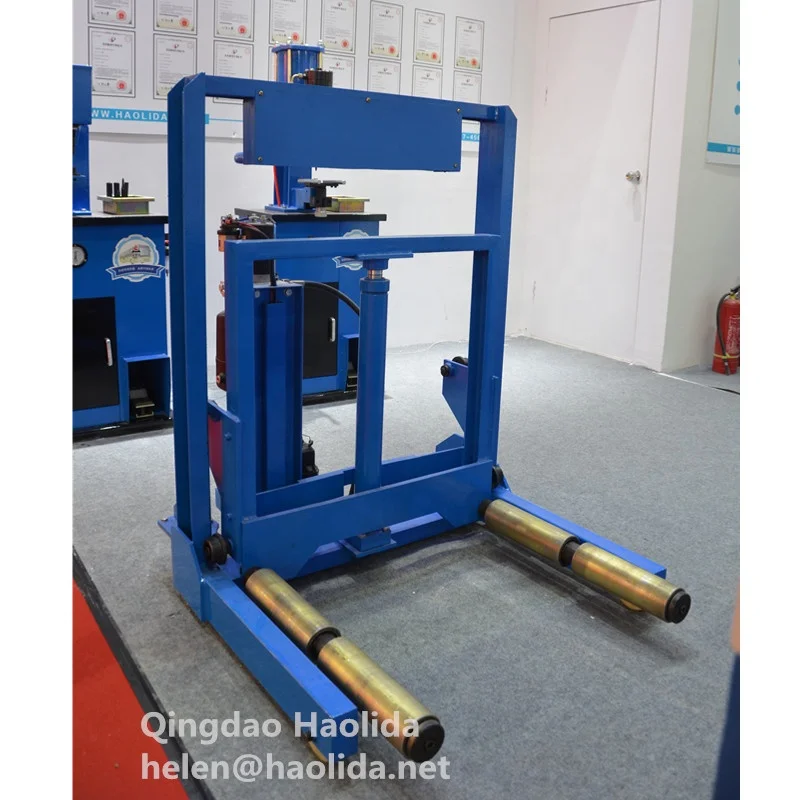

HLD-DLT-2 model Electrical Tire Dismounting and Carrier Machine



General introduction

1.      it has the functions of tire lifting and site transfer

2.      with two tires respectively rotating function

3.      It has the auxiliary function when the tire is installed and disassembled on the vehicle

4.      This equipment is equipped with DC electro-hydraulic power system



Technical parameter:

1.      voltage:24V DC

2.      motor power: 0.8KW

3.      maximum tire diameter: 1200mm

4.      maximum lift capacity: 800kg

5.      carrier roller maximum stroke:460mm

6.      carrier roller length: 620mm

7.      fork minimum height:120mm

8.      fork maximum lift height: 650mm

9.      overall size:1040x920x1160mm



Accessories:
Accessory wires, belt, blank plates for starters, fuses, etc.
Others you may want to know:
MOQ	1set
Warranty period	12 months
Payment term	T/T 50% in advance, the balance should be paid before delivery  (negotiable)
Delivery time	35 days after receiving down payment
HS code	90312000.90



Why Choose us:

1.      32 years’ design, development and produce experience

2.      Professional R&D team

3.      Strict QC

4.      A good pre-sale and after-sale service

5.      Can design and make according to customer’s requests
