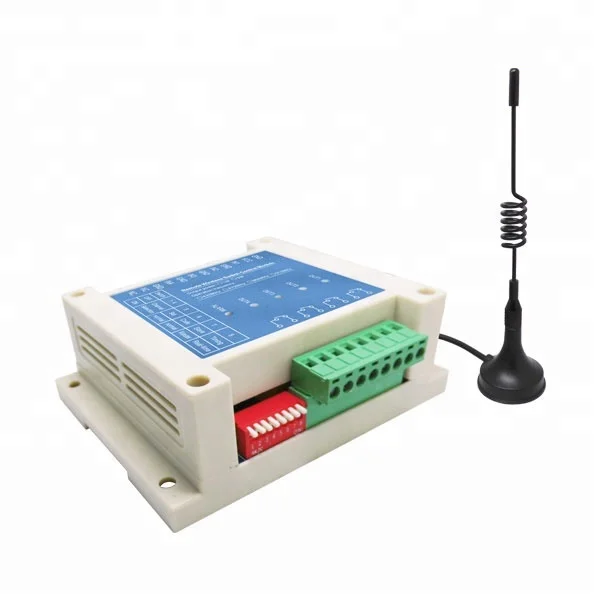

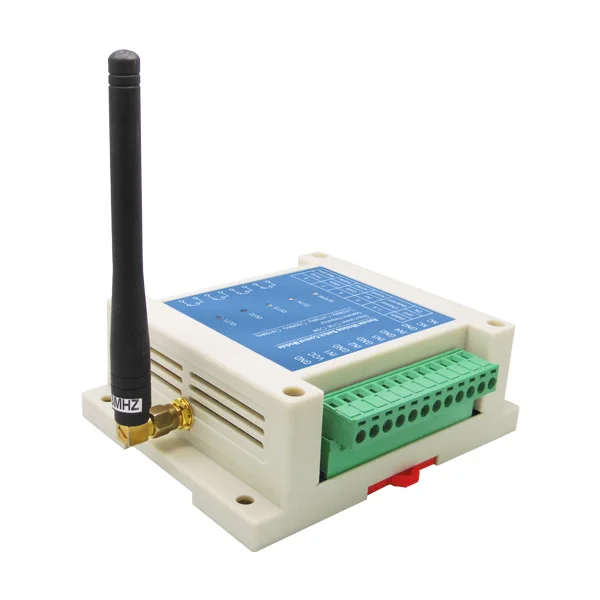

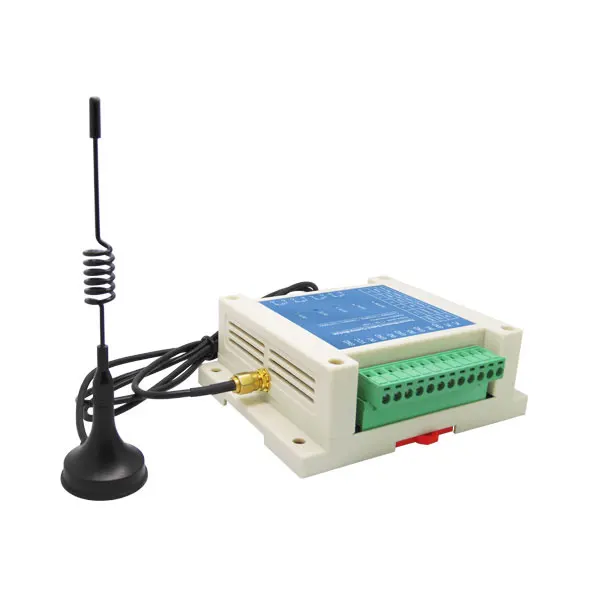

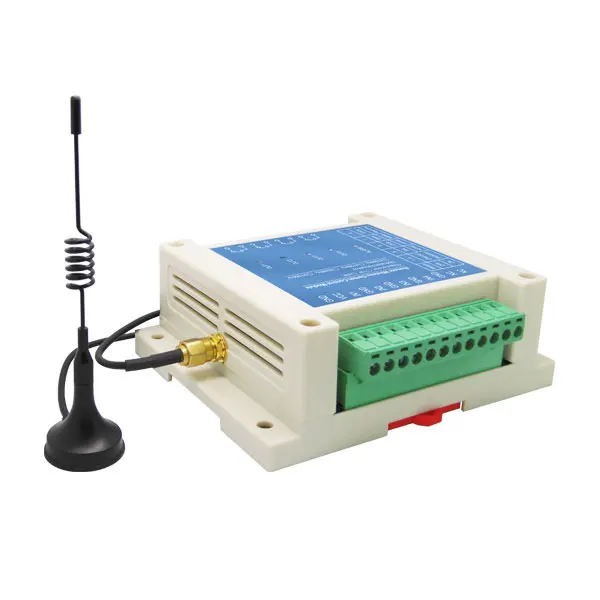

SK509 New type smart 5W industrial 4 channels wireless remote control 8Km rf switch
- Category: >>>
- Supplier: NiceRF Wireless Technology Co. Limited
Share on (60804980666):
Product Overview
Description

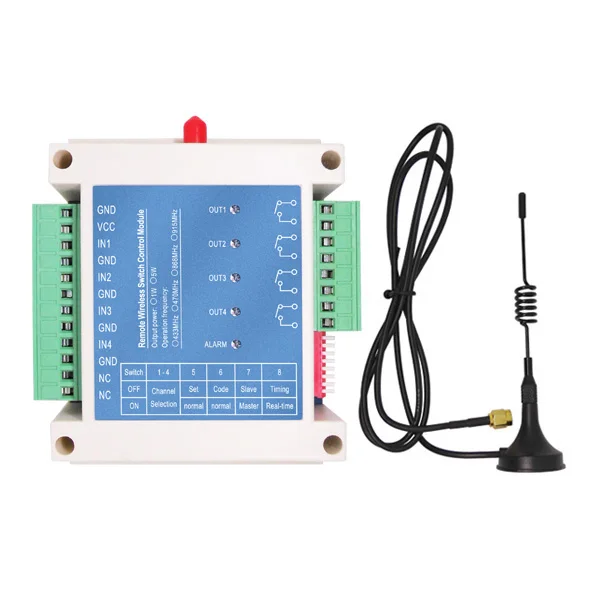

Include in the package:
1pcs SK509 remote control switch rf module
1pcs SW433-XP1M Sucker antennas (cable length:1 meter)
Pls leave a message confirming which frequency band you need when you place order! Our defuat shipping frequency is433MHz
Description

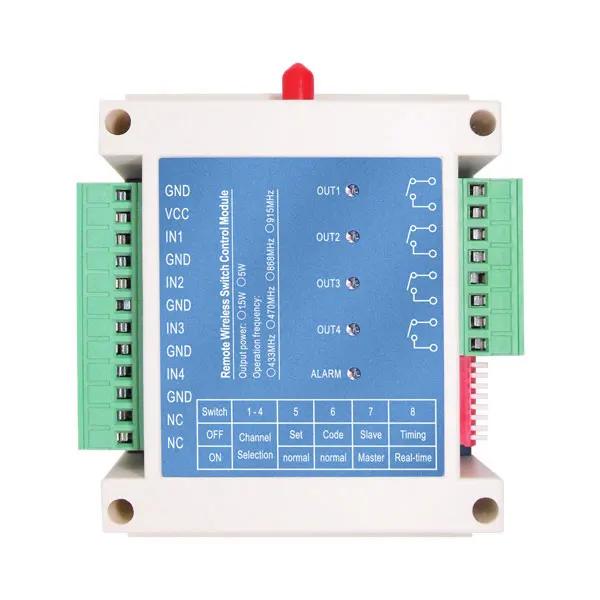

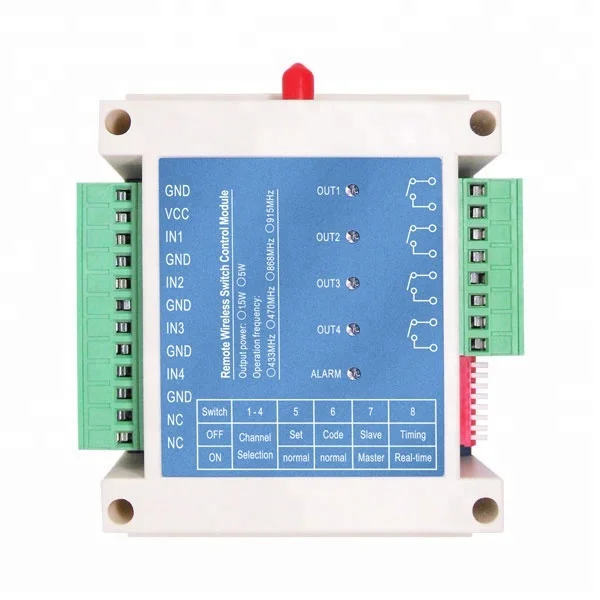

SK509 is an industrial four channels wireless switch control module with pairing function, it provides maximum four channel signalinput and maximum four channel control output. It features in simple interface and reliable performance. The parameters can bemodified by PC software / UART command / remote controller (SK509-S). DIP switch on the module can used to change operating frequency (maximum 16 group),operation mode etc. Using this module, user canreplace wired device with the wireless connection, which significantly reducethe cost and save much time.
Features
Distanceup to 8Km in open area
16 channels to choose
Parameters set wirelessly by PC
Real time / Timing mode
GFSKmodulation
Antennamatches automatically
Bi-directionalswitch control
Sensitivityup to -121 dBm
Max.output power:5 W
Workingvoltage: 9~30 V
Workingtemperature:-40 ~ +85 °C
Weight:180g
Applications
Remote control switch control
Security system
Home automation remote sensing
Wireless remote telemetry
Building automation and security
Access control system

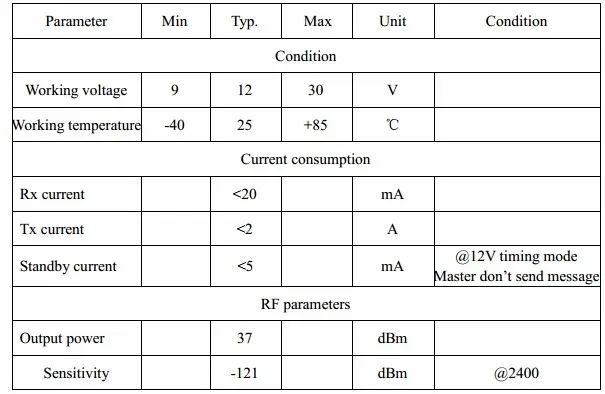

Electrical Specification
Note: Below parameters base on 12V power supply/ 25℃ testing environment.
Distanceup to 8Km in open area
16 channels to choose
Parameters set wirelessly by PC
Real time / Timing mode
GFSKmodulation
Antennamatches automatically
Bi-directionalswitch control
Sensitivityup to -121 dBm
Max.output power:5 W
Workingvoltage: 9~30 V
Workingtemperature:-40 ~ +85 °C
Weight:180g
Applications
Remote control switch control
Security system
Home automation remote sensing
Wireless remote telemetry
Building automation and security
Access control system
Electrical Specification
Note: Below parameters base on 12V power supply/ 25℃ testing environment.
