Indoor P2.5 small flexible smd 2121 led screen module
- Category: >>>
- Supplier: Shenzhen Allenson Photoelectric Co. Ltd.
Share on (60804985220):
Product Overview
Description

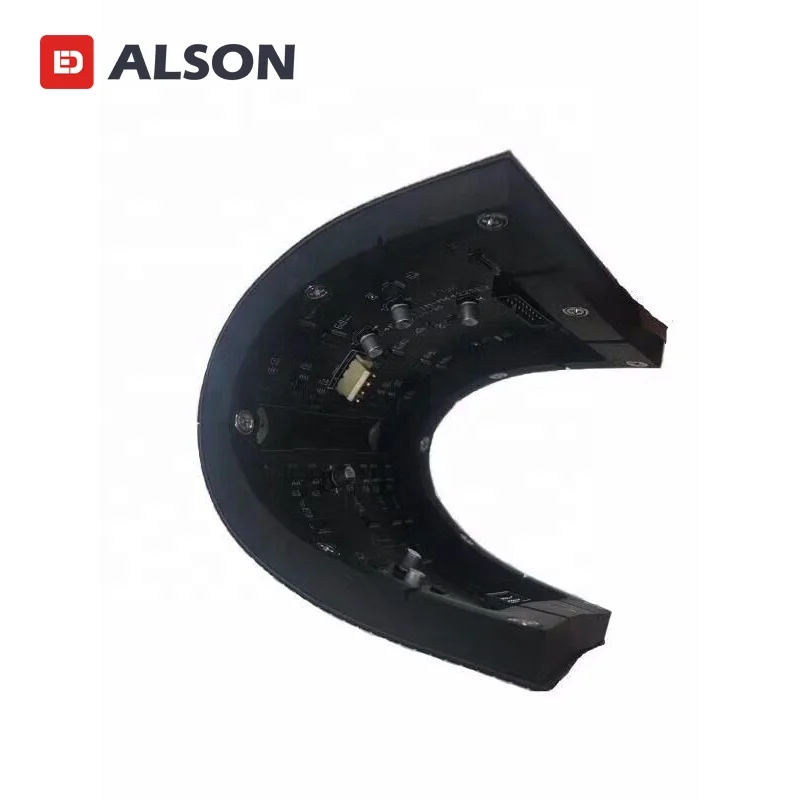

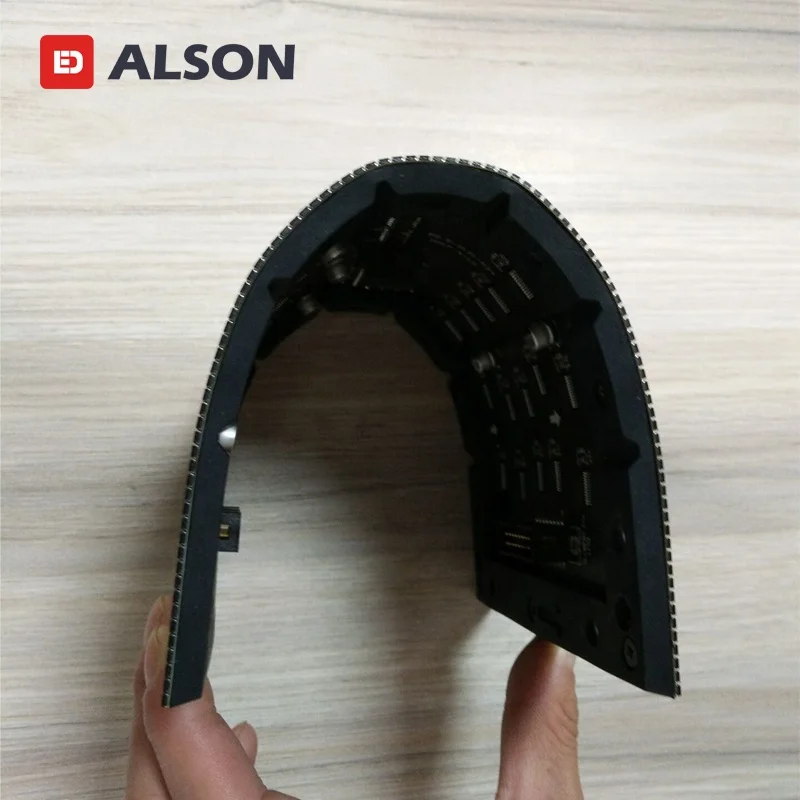

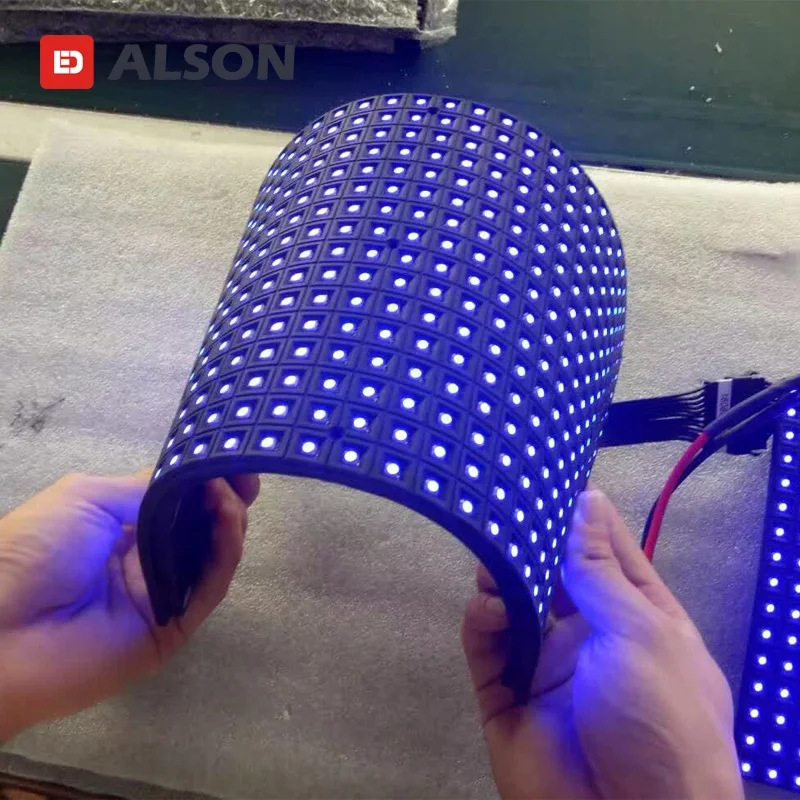

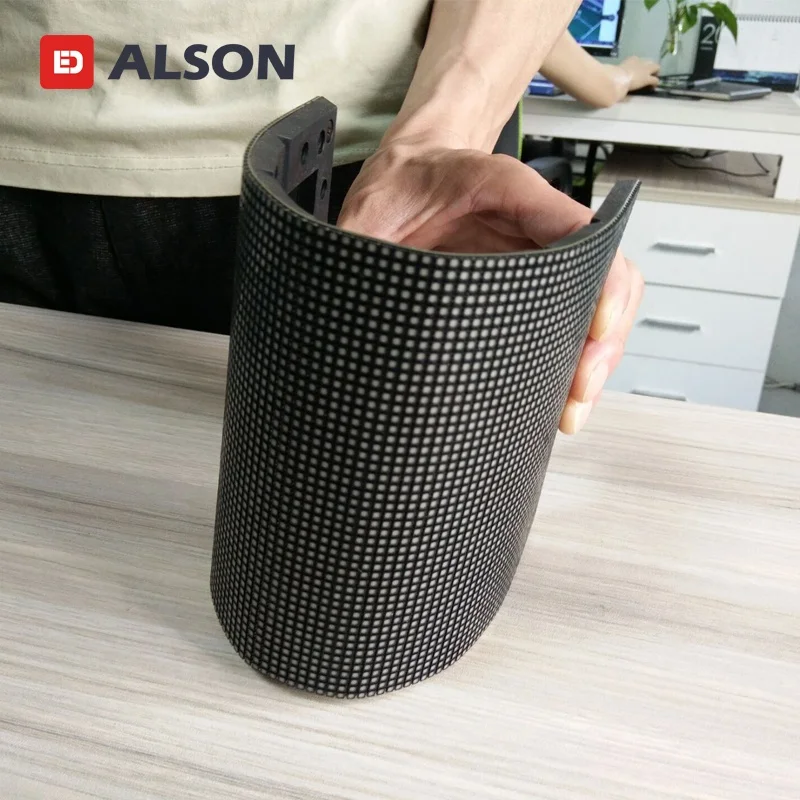

Indoor P2.5 small flexible smd 2121 led screen module
Product Description
Product feature
1) Module size: 240x120mm;
2) MBI5124 Driving IC for 1920Hz high refresh,1/24 scan;
3) Assembling the module to structure design directly with magnet;
4) 3pcs module can make a circle, it can do any flexible shape design as your requests.
P2/P2.5/P3/P4/P5 Flexible/ soft led modules are available now!
Specification
Indoor p2.5 small flexible smd 2121 led screen module
Pixel pitch | P2.5 soft led screen module |
Modules type | Led soft modules |
Module size | 240*120mm |
Display resolution/module | 96*48 dots |
Density | 160,000 dots /sqm |
1Pixel composition | 1R1G1B |
LED type | SMD2121 |
Viewing angle | 160(H)/120(V) degree |
Brightness | ≥1000cd/sqm |
Scanning duty | 1/24 duty |
Grey level | 65536 |
Refresh rate | ≥1920HZ |
Brightness control | Manual/auto/software |
Weight of module | 0.17KG |
Working voltage | AC220V |
Aver. power consumption | 320w/sqm |
Max. power consumption | 780w/sqm |
Maintenance way | front & rear maintenance |
Power switch | IP31 Rating |
Working temperature | -15~+45 degree |
Storage temperature | -25~+70 degree |
Lifespan | 50,000H |
Guarantee | 1 years |

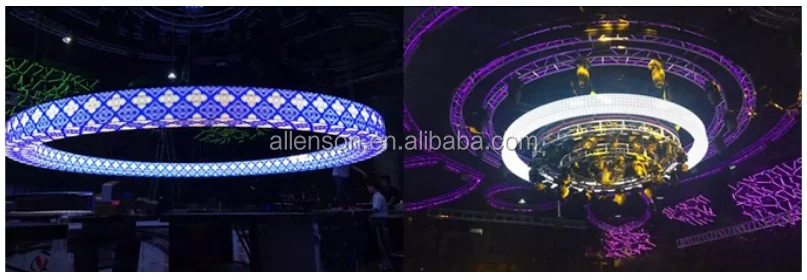

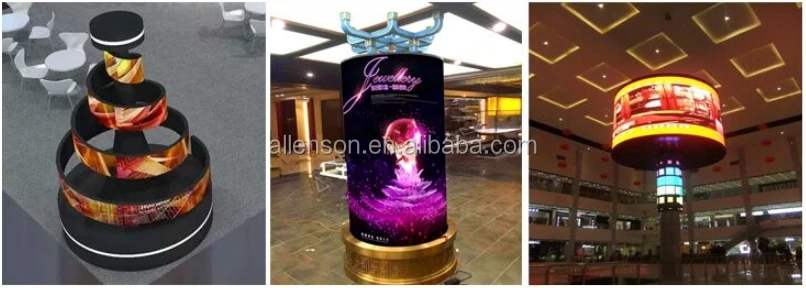

Project Cases
Suitable for enterprise reception ,appliances stores, sports stores, exhibition hall of fairs , cosmetics counters , shopping mall. banking, financial securities, post office, ferry, shopping malls, railway stations, telecommunications, government, offices, restaurants, hotels, etc.
Our Services
Pre-sale service:
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Other services, such as special packing design, factory visiting and so on.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
4. Free spare parts.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
Guarantee:
*2 years quality guarantee, and we will provide free parts for it if any problem due to the LED panel or part quality under normal use in this period.
*we should to charge for the parts at a productive cost when the warranty expires.
Packaging & Shipping
Packaging:
1.The led display modules are packed in cartons.
2.The cabinets of fixed led screen packed in wooden case.
3.The cabinets of rental led screen packed in flight case.
The inner packing: Bubble wrap used to prevent product scratches and pressure damage.
Shipping:
We have three modes of transport:
1. Express:The most popular mode of transport,space and time of full freedom,flexible,adaptable.
2. Sea transportation:Large transportation capacity,high transport freedom.
3. Air transportation:Fast transport speed,smooth operation,less damage to goods.
Company Information
FAQ
Q1.Can I have a sample order for led display product?
A:Yes, we welcome sample order to test and check quality. Both for LED module and whole screen.
Q2.What about the lead time?
A: Order less than 100 square meter led time take 15 working days.
Q3.Do you have any MOQ limit for led display order?
A:Low MOQ, 1 square meter or a module checking is available.
Q4.How do you ship the goods and how long does it take to arrive?
A:We mostly accept EXW term, but we can help you order and arrange shipping agent. It usually take 30 days on by sea and a few days for customer clearance. 6-7days by Air,4-5days by express.
Q5.How to proceed an order for led display?
A: First, let us know your requirements or applications.
Then, we quote according to your requirements or applications.
Third, customer confirms the design document and places deposit for formal order.
Last, we arrange the production.
Q6.Is it OK to print my LOGO on the led display product?
A:Yes, and please inform us formally before our production and confirm the design firstly based on our sample.
Q7.Do you offer guarantee for the products?
A:Yes, we offer 2year warranty to our product.
Indoor small flexible smd 2121 led screen module
