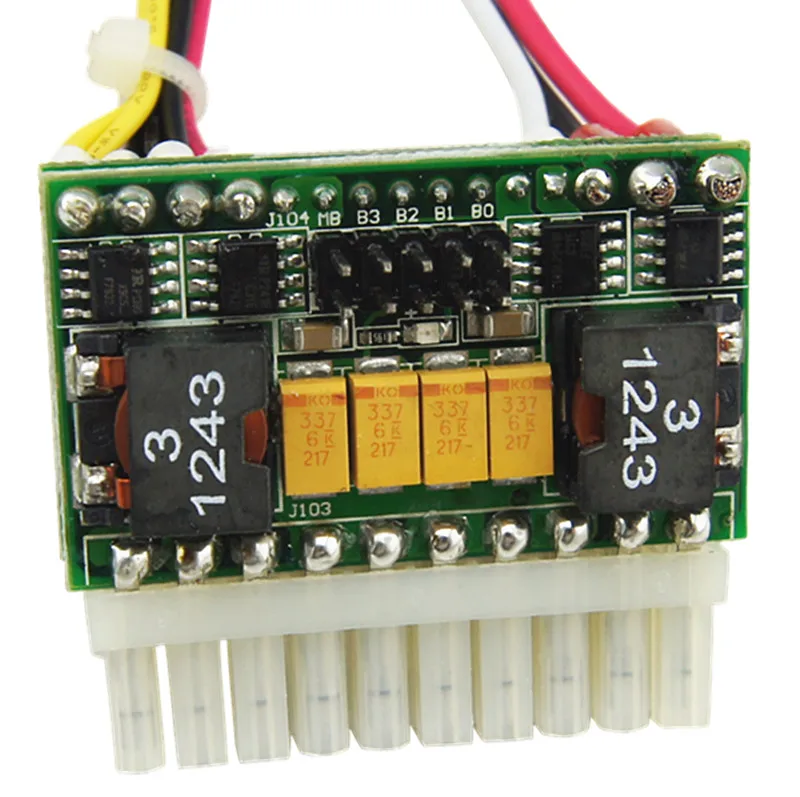

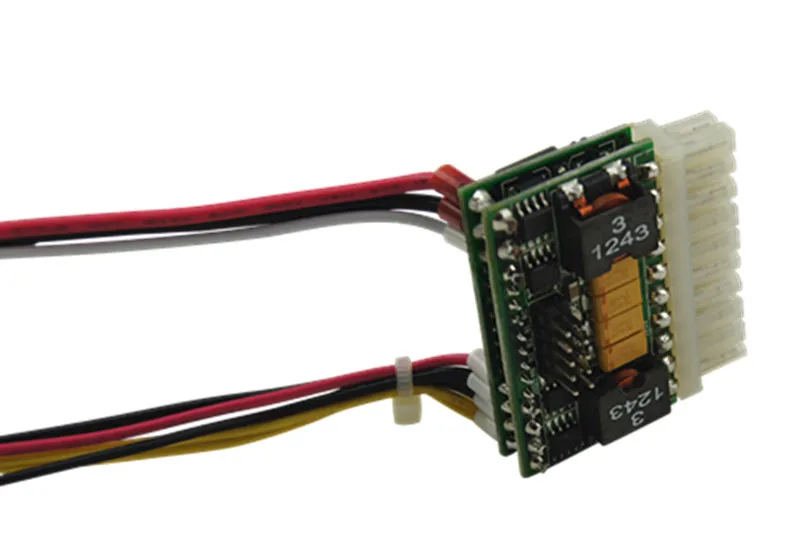

120w 12v dc dc mini itx atx power supply

Product Overview

Description

120w 12v dc-dc mini-itx atx power supply



Specification:

•









  Model Number:

  RYT-120D





•









  Rated Power:

  120W





•









  Application:

  Fiscal machine, Industrial PC, All-in one machine ,etc.





•









  Fan Type:

  Natural cooling





•









  Interface Type:

  20 Pin





•









  Input Voltage:

  12VDC





•









  High efficiency:

  94%





•









  Dimention:

  54x35x17mm





•









  Packaging Details:

  50pcs/ctn




Feature:

* Rated output power:120W (120W Max)
* High efficiency & thin Size
*100% burin-in test & hi-pot test
*Efficiency: 94% (min) at full load
*Over-voltage, over-current and over-power protection
*Output voltage with short circuit current protection
*Application for 1U size
*Open frame design
*Life Cycle:≥80K hours
*Support remote control function
*Connectors: 20Pin for M/B,4pin for 12VCPU,SATA*1,4Pin for HDD*1,FDD*1

Parameter:

• PFC type:No


• Protection function: OVP, OPP, SCP


• Cooling system:Natural cooling


• P.G signal: 100-500ms


• Keep time: 2ms(min)


• Conversion efficiency:94%


• MTBF:100000 hours


• Working temperature:-10℃ to +50℃


• Storage temperature:-40℃ to +85℃


• Relative humidity:5% to 95% RH


• Vibration standard:5-500 Hz,2.4G rms

Package&Shipment:
