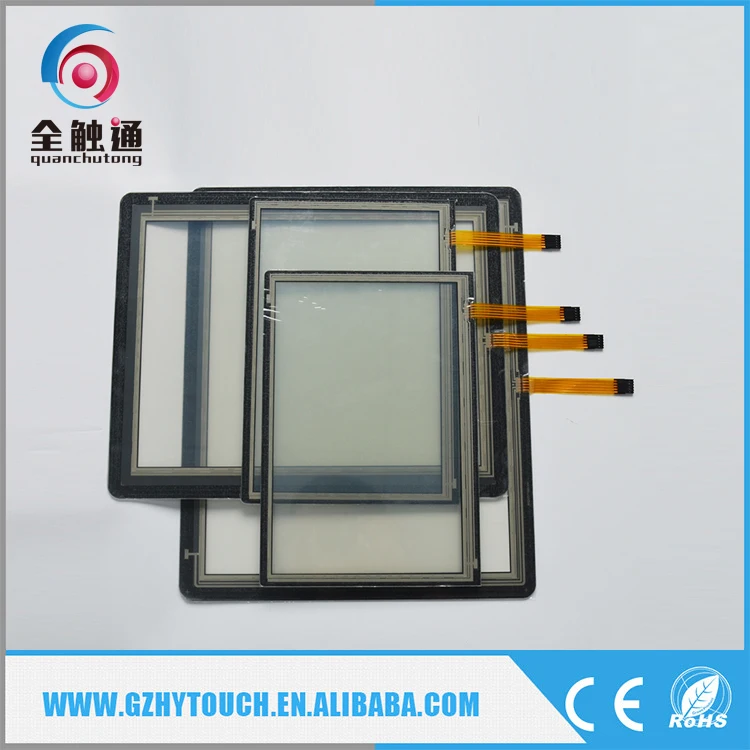

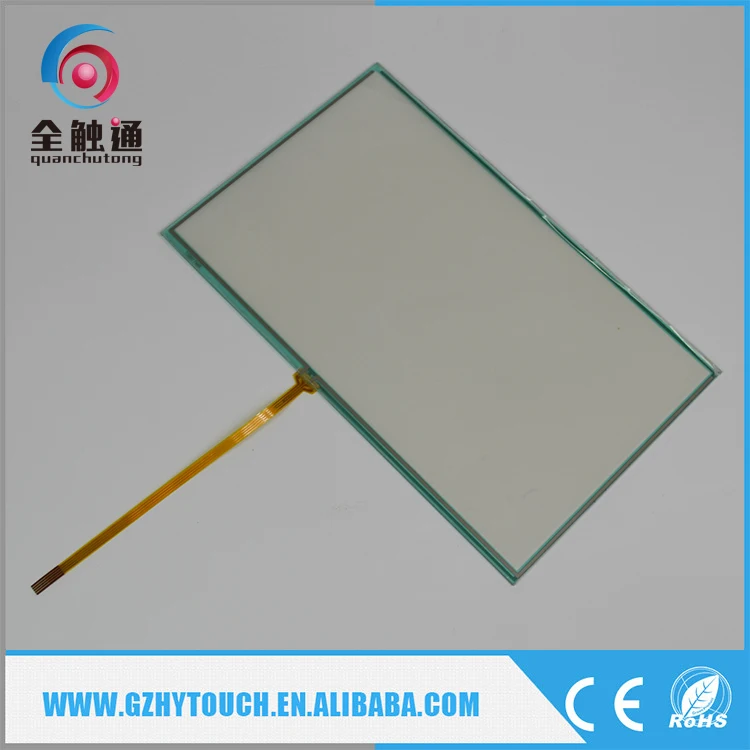

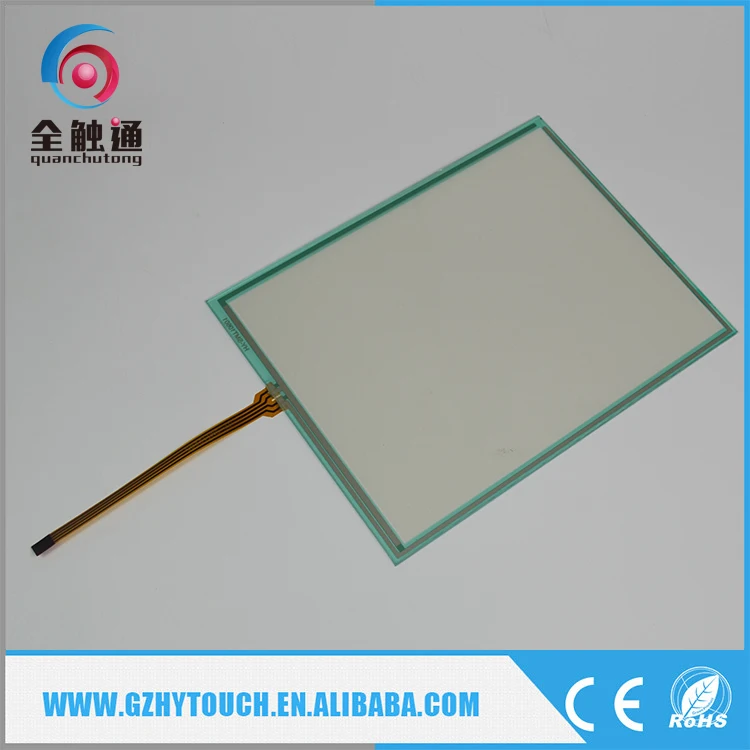

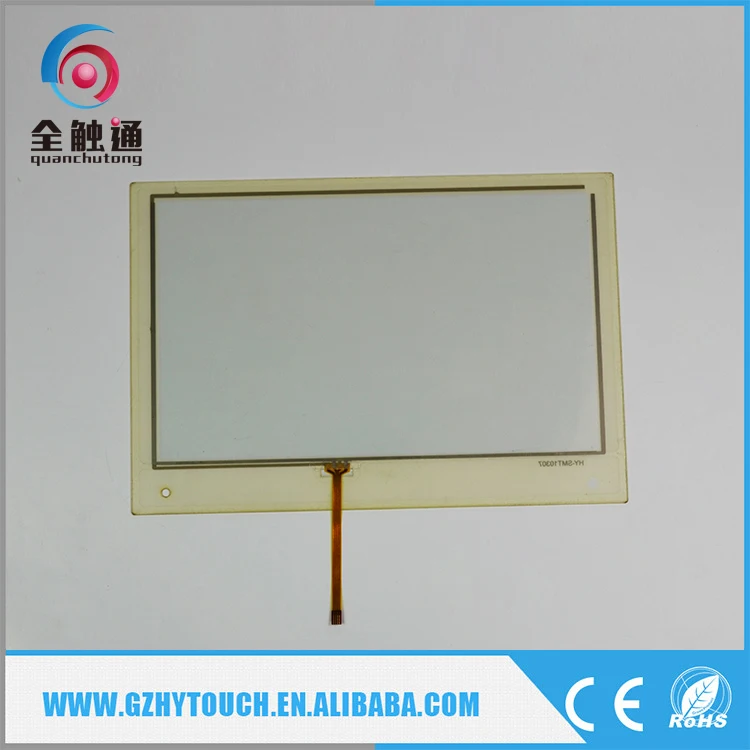

Resistive touch screen for Industrial Application TP170A /TP170B/TP177A/TP270 10/TP270 16/MP370 12/MP370 15 /1000/700

Product Overview

Description

Product Name:  resistive touch screen for industrial apllication TP170A /TP170B/TP177A/TP270-10/TP270-16/MP370-12/MP370-15 /1000/700

  Brand:HYTOUCH











Specifications :



 4 / 5 wire resistive touch screen

Functions :
Input method	Pen or finger
Structure:	Conductive Film—glossy or matte finish anti scratch and anti-Newton epoxy conductive films of ITO
Conductive	Films of ITO
	Conductive Glass	ITO Glass, 1.8mm thickness
	Key sheet or glue	0.1mm thickness
	Nulation Distance	4.5mm*4.5mm
Connector	FPC— flexible printed circuit







Main Specifications:
Items	Spec	Units
Screen size	Multiple	Inch
Outside size	Multiple	mm
View area	Multiple	mm
Active area	Multiple	mm
Conductive glass	1.8±2	mm
Conductive film	188	μm
Connector	flexible printed circuit,4Pin
Mechanical Behavior:
Input method	pen or finger
Operation force	OD 2mm pen within 60g~150g pressure
Surface hardness	3H
Transparency	80±3% @550nm wave length.
Life time :
Writing life	More than 1000,000times
Stamping life	More than 1000,000times
Circuit Grade :
Operation Temp	-10~60℃
Storage Temp	-20~70℃





Other informations :

resistive writing life	1000,000times
capacitive writing life	35,000,000times
Circuit Grade:
Maximum operation voltage	5V(DC),1mA
Operation Temp	-10~60°C
Storage Temp	-20~70°C

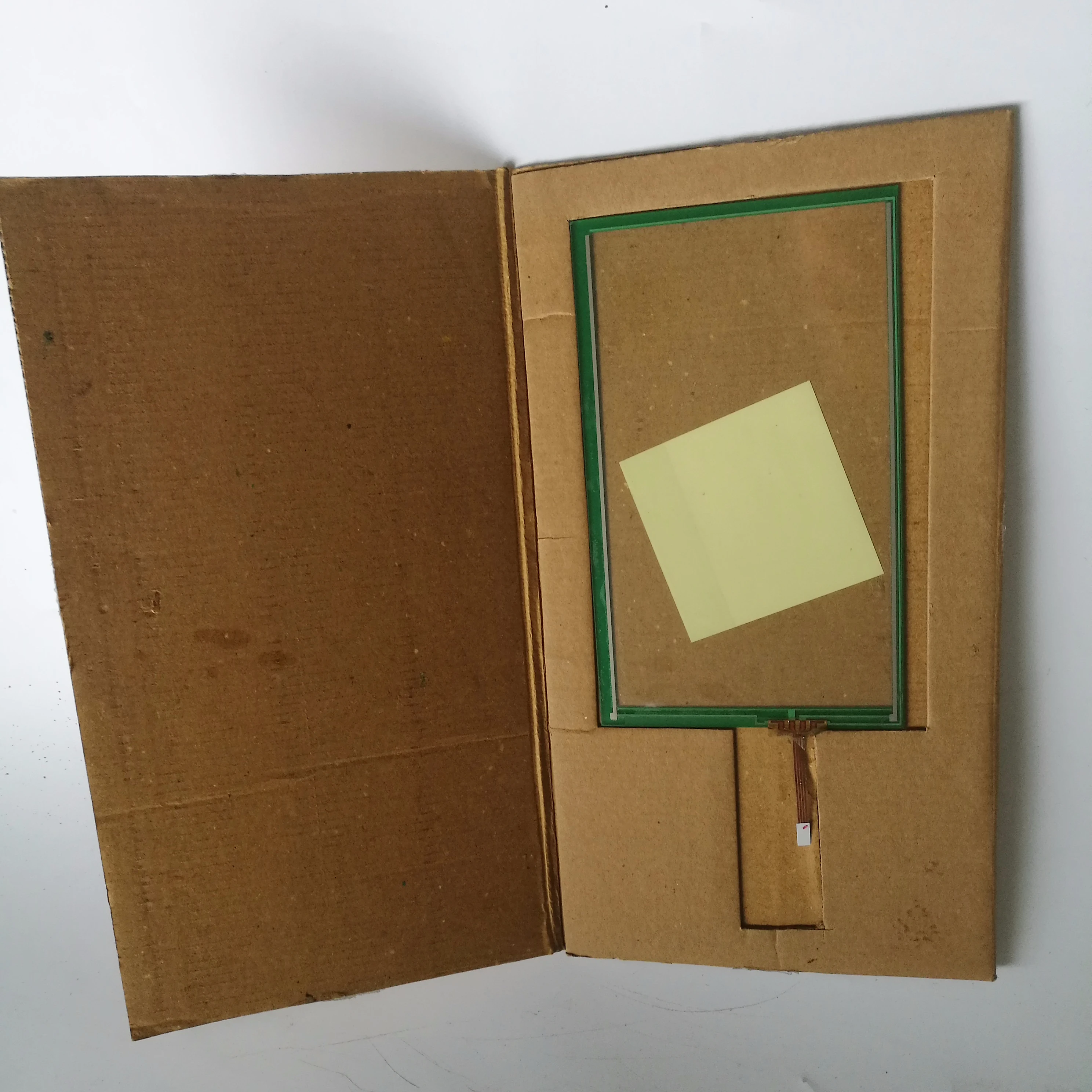

Packing & shipping



 Pack in standard ,10 pcs in a box ,EPE Foam+fixed bubble chamber+carton according to the different size and the weight to pack.Or according to your requirements packaging.







Our services,



Normally,

In the packaging, we will adopt import and export packing (EPE foam + fixed bubble

 chamber + carton), if you have requirement for packing, we will pack the goods

 according to your requirements. Under normal circumstances , Insurance against

FPA and breakage risk, we will according to trade terms against insurance, . The

 insured amount is 110% of the invoice, beyond the amount should be paid by you.

All of our service is with preferential treatment.





About us ,







The Guangzhou Huanyuan Technology Co., Ltd. is founded in 2003, the company mainly produces resistive touch screens, touch panels, and it is a high-technology and environmental friendly enterprises.

The company has passed ISO9001 and ISO1400 Certification with its great capital foundation and its advantage in research and development ability.





Q&A :



Q: What is your MOQ?

A: The MOQ is 100pcs, we will send samples before the order.

Q: How long time for 5000pcs ?

A: 4-7 Days is okay with laser Logo.

Q:How about shipping?

A: DHL, UPS, TNT, FEDEX, EMS are okay. Which shiping cost is cheaper and speed is faster,

    i will suggest to you. 3-4 days can arrive UK. We usually send the items via DHL, if wi large

    quantity, we will send by sea.

Q: How long is your quality guarantee period?

A: 1 year
