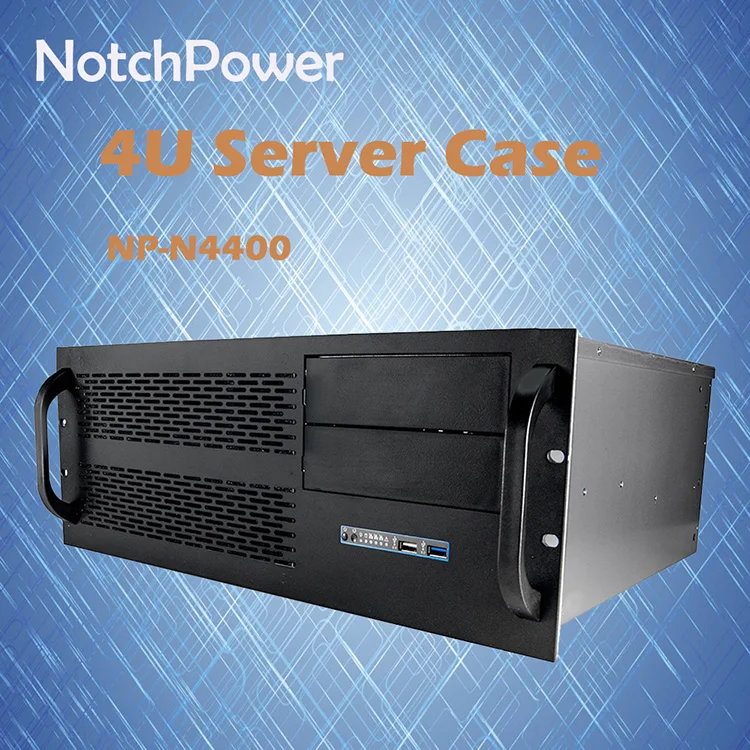

PC Computer Industrial Rack Mount Server Chassis Case 4U

Product Overview

Description

Product Description

Model	NP-N4400
Form Factor	4U Rackmount Server case
Material	Metal material	SGCC
	Metal thickness	1.2mm
	Panel material	Metal
	Handle material	Metal
M/B support	microATX (9.6″ x 9.6″), CEB (12″ x 10.5″), ATX (12″ x 9.6″), Mini-ITX (6.7″ x 6.7″)
CPU support	DP Xeon(Intel)/DP Opteron(AMD)/Core(Intel)

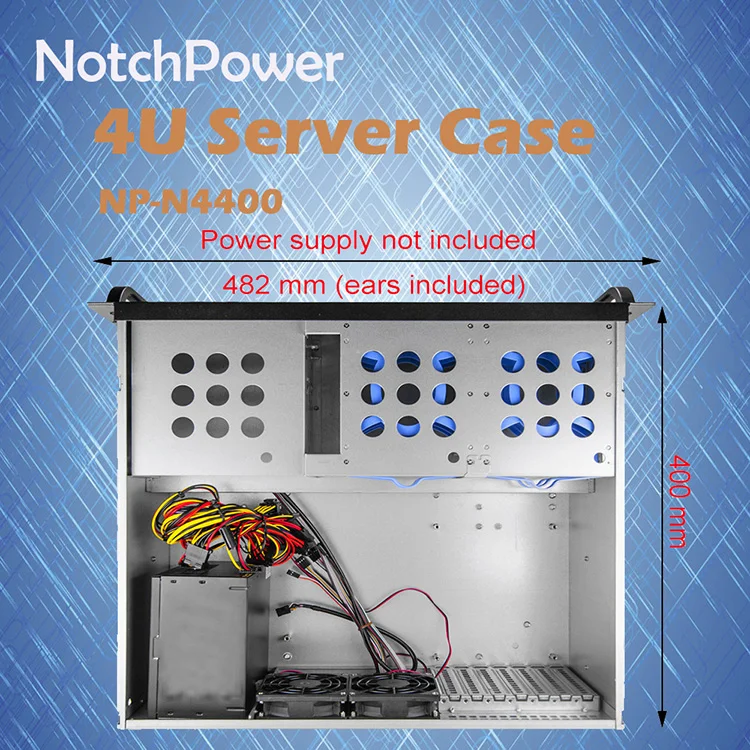

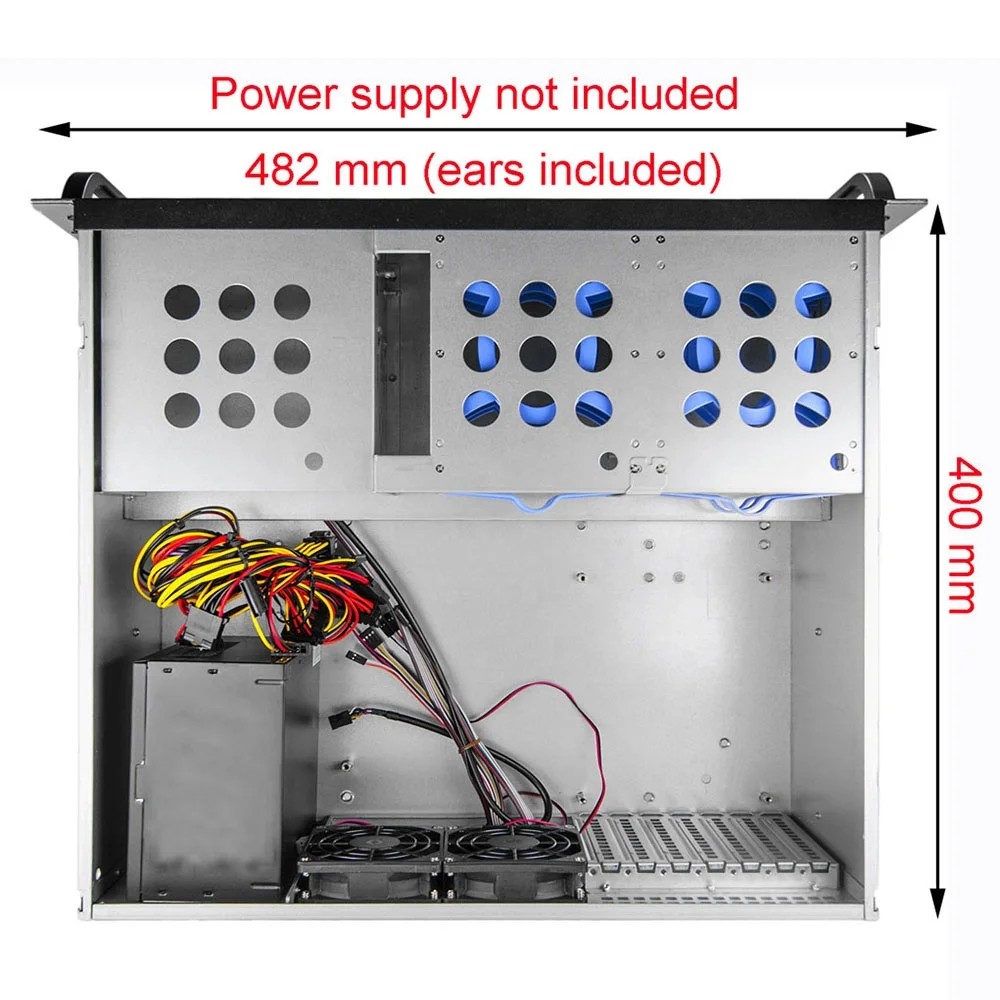

Size	D*W*H(mm)	400 x 482 x 176
	D*W*H(inch)	15.7x 19 x 7
Drive Bay	External 5.25"  bays	2

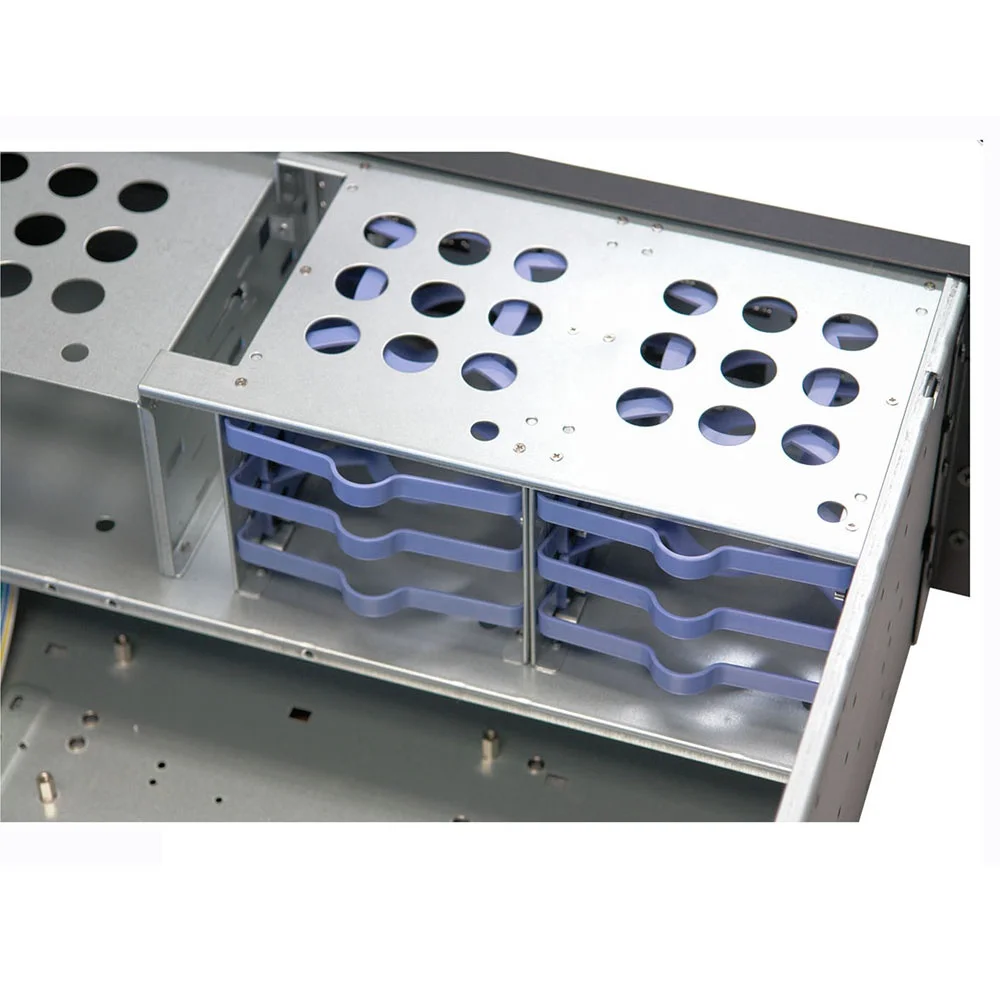

	Internal 3.5" bays	6

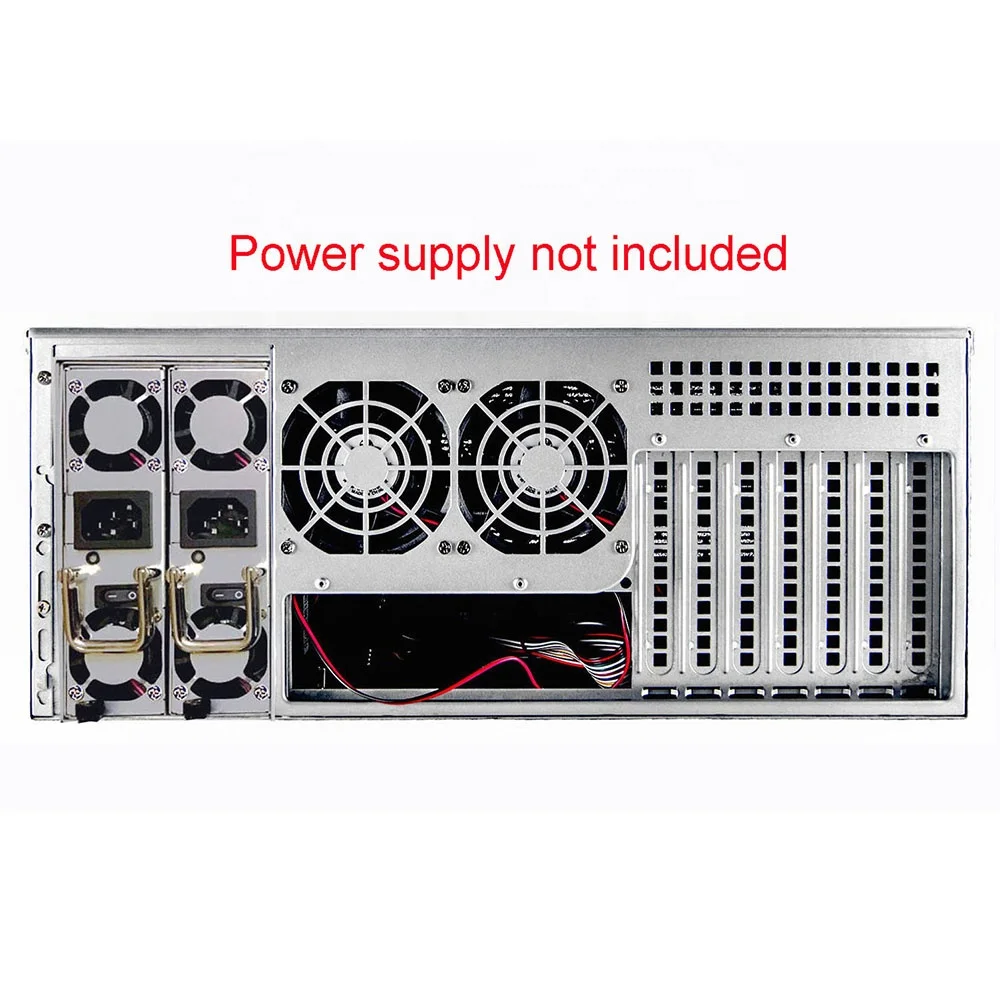

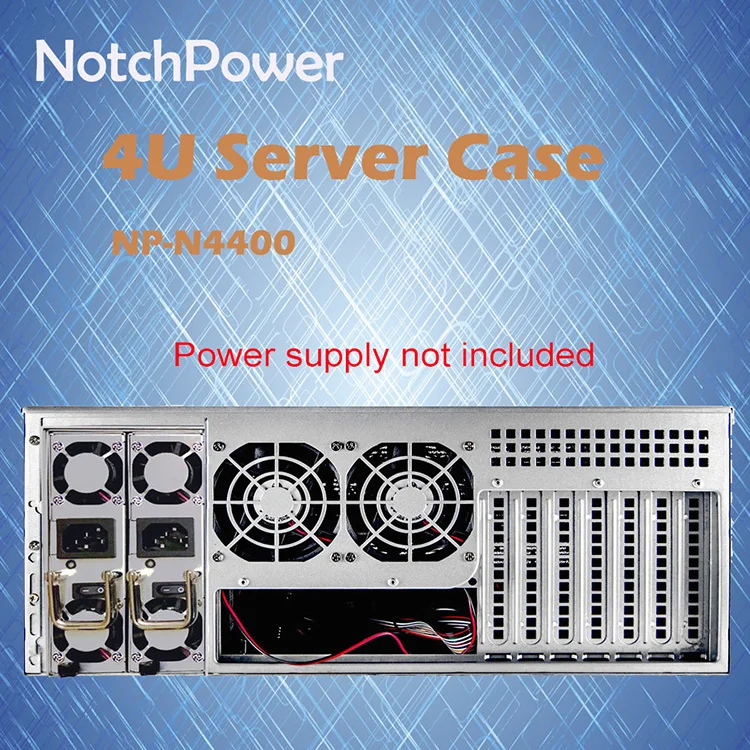

Power Supply support	ATX power supply,Mini-redundant power supply
Front panel	Control button	Power ON/OFF x 1, system reset x 1
	Indicator	Power ON/OFF x 1, HDD x 1, NETWORK x 3, Alarm x 1
	Ports	USB 2.0 x 1 , USB3.0 x 1
Expansion	Riser Slot	7
Hot-swap Backplane	Mini SAS 6.0GB/s	NO
	SATA	NO
System cooling(optional)	Front	NO
	Middel	NO
	Rear	2x 80mm (standard)
Net weight	6.8kg
Gross weight	9.5kg
Packing size	D*W*H(mm)	540*555*240
	D*W*H(inch)	21.2*21.8*9.4
Packing Material	Polyfoam with carton box
Environment Temperature	0/55 °C, 32/131 °F (Operating) -20/60 °C, -4/140 °F (Non-Operating)
Relative Humidity	5% to 95%,non-condensing
Vibration ( 5-500 Hz )	1 Grms (Operating), 2 G (Non-Operating)
Shock	10 G(with 11ms duration, half sine wave) (Operating), 30 G (Non-Operating)

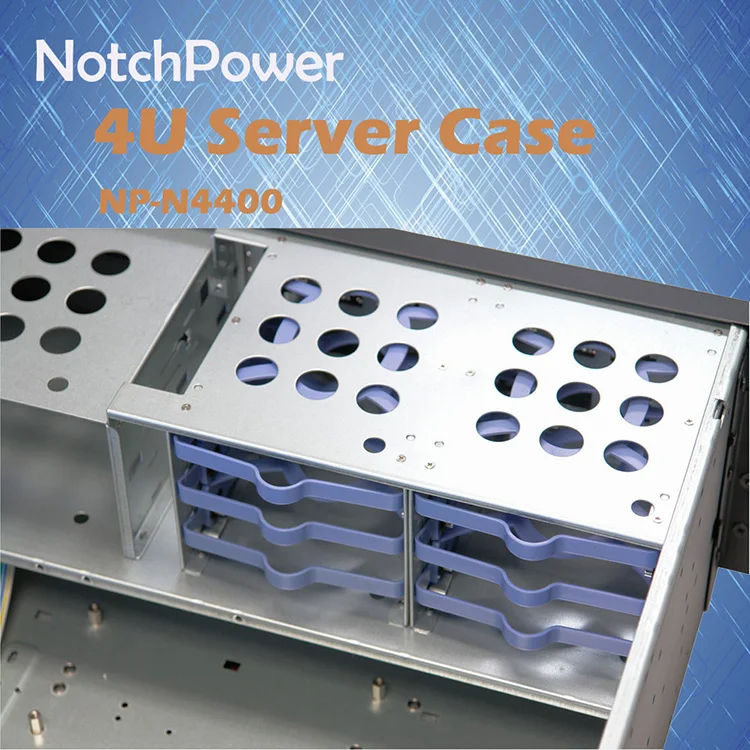

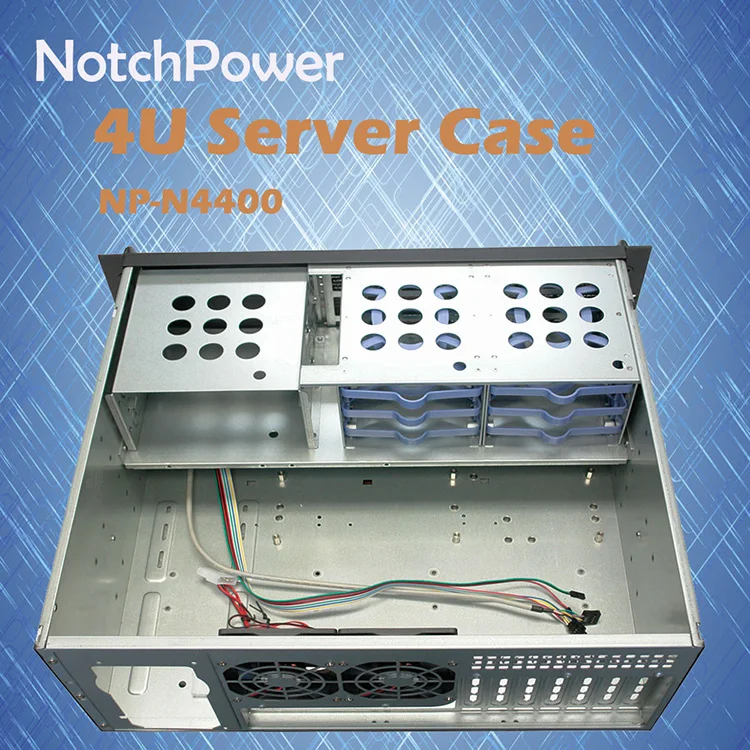

Detailed Images
