4K2K@60Hz 4:4:4, 18Gbps, HDCP 2.2 HDMI HDBaseT 8x8 Matrix Switcher with Audio Matrix with RS232 support IR
1. Introduction
The HDBaseT™ 8x8 matrix switcher supports the transmission of video (up to 4K2K@60Hz 4:4:4, 18Gbps, HDCP 2.2) and multi-channel digital audio from 8 HDMI 2.0 sources to 6 HDBaseT™ outputs and 2 independent HDMI 2.0 outputs. The HDBaseT™ outputs allow transmission via a single CAT5e/6/7 cable up to 330 feet/100 meters and the independent HDMI outputs support cable lengths of up to 33 feet/10 meters. The matrix switcher built-in an independent audio matrix switching with 16 audio outputs (8 audio break outs, 6 HDBaseT™ outputs and 2 HDMI outputs) and 22 audio inputs (8 HDMI inputs, 8 ARC audio inputs and 6 external audio sources) with volume/mute/delay adjustment. It supports flexible control through on-panel buttons, IR remote control, RS-232 or Web GUI.
2. Features
1)HDMI 2.0b, HDCP 2.2 and HDCP 1.4 compliant
2)8 HDMI inputs, 6 HDBaseT™ outputs and 2 independent HDMI outputs
3)Video resolutions up to 4K@60Hz (4:4:4)
4)Supports automatic 4K@60Hz (4:4:4) to YUV (4:2:0) conversion for HDBaseT™ outputs
5)Supports pass-through audio up to 7.1 channels of High Definition audio (LPCM, Dolby TrueHD, and DTS-HD Master Audio)
6)Built-in independent audio matrix with Volume, Mute, and Audio delay for lip-sync adjustment (LPCM only)
7)HDR, ARC, CEC and smart EDID management supported
Control is via on-panel Button, IR, RS-232, LAN and Web UI
8)24V POC on all HDBaseT™ ports (48V POE is optional)
9)2U rack mounted design with aluminum front panel housing
3. Package Contents

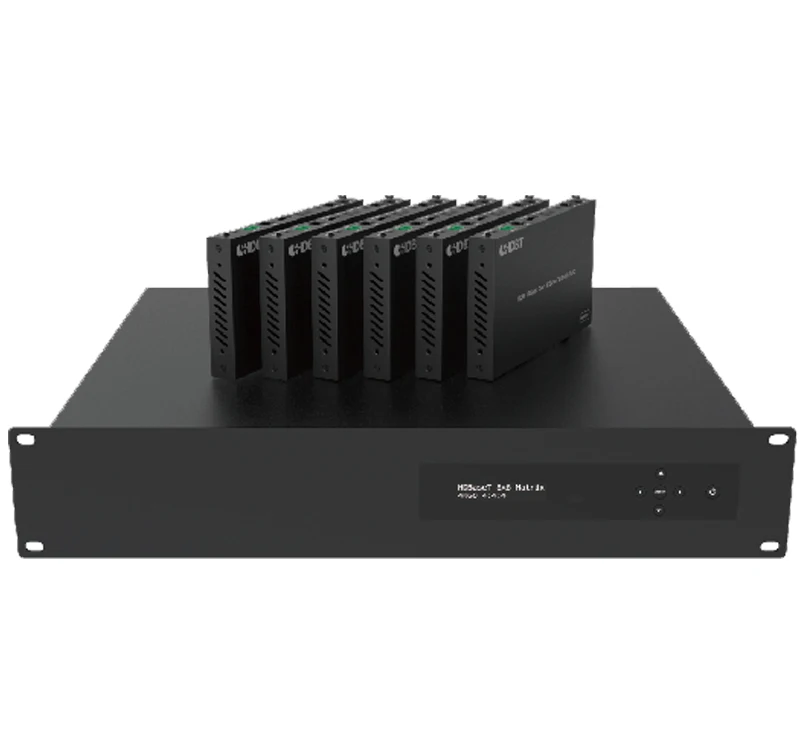

1 x HDBaseT™ 8x8 Matrix Switcher
6 x HDBaseT™ 100M Receiver
9 x Wideband IR Blaster cable
10 x Wideband IR Receiver cable
1 x Matrix Remote Controller
1 x AC Power cable
1 x RS-232 cable
1 x Operation Manual
4. Specifications

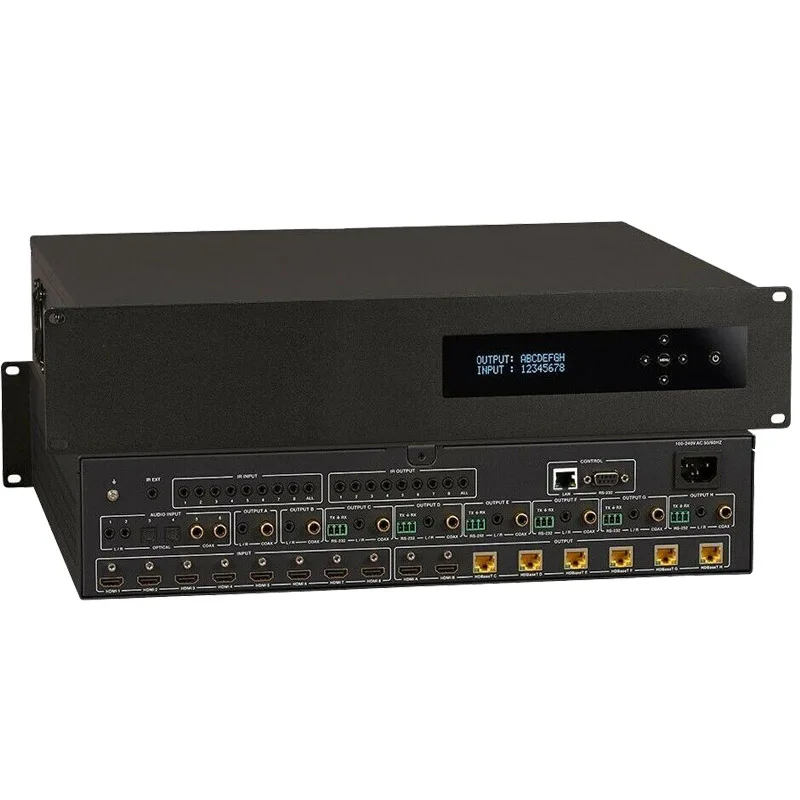

Technical | |
HDMI Compliance | HDMI 2.0b |
HDCP Compliance | HDCP 2.2 and HDCP 1.4 |
Video Bandwidth | 18 Gbps |
Video Resolutions | up to 4K2K@50/60Hz(YUV4:4:4),4K2K@30Hz,1080P@120Hz, and 1080P 3D@60Hz |
Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2, |
Color Depth | 8-bit,10-bit,12-bit |
HDMI Audio Formats (Pass-through) | LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X |
Audio Formats (Audio Matrix) | PCM2.0, 32K/44.1K/48K/88.2K/96K/192K,16/20/24bit |
Audio Volume (Audio Matrix) | -20dB ~ 0dB |
L/R Audio Formats | Analog Stereo 2CH |
Infrared | 20KHz ~ 60KHz |
ESD Protection | Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge) |
Connections | |
Matrix Switcher | |

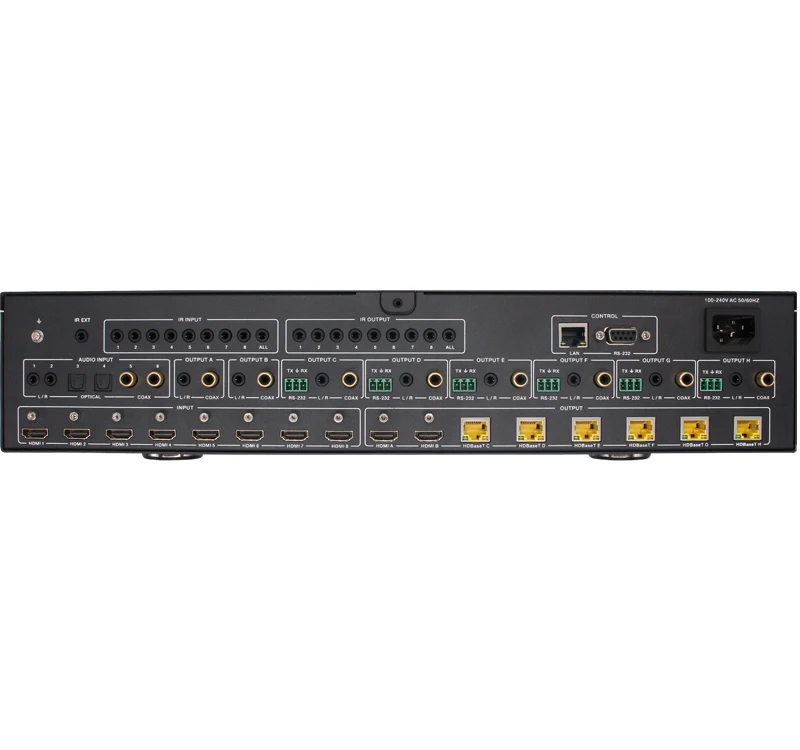

Inputs | 8x HDMI Type A [19-pin female] 10x IR In [3.5mm Stereo Mini-jack] 6x RS-232 [Phoenix jack] 1x Ethernet [RJ45] 1x RS-232 [DB9] 2x L/R Audio In [3.5mm Stereo Mini-jack] 2x Optical Audio In [Toslink] 2x Coaxial Audio In [RCA] |
Outputs | 2x HDMI Type A [19-pin female] 9x IR Out [3.5mm Stereo Mini-jack] 8x L/R Audio Out [3.5mm Stereo Mini-jack] 8x Coaxial Audio Out [RCA] 6x HDBaseT Out [RJ45] |

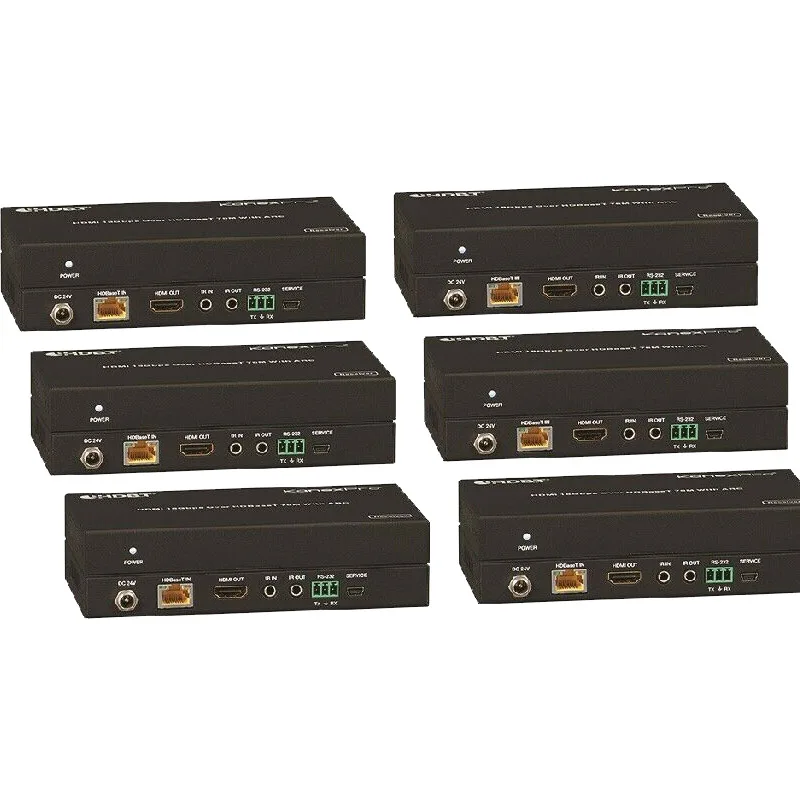

HDBT Receiver | |
Inputs | 1x HDBaseT In [RJ45] 1x IR In [3.5mm Stereo Mini-jack] 1x Optical In [Toslink] |
Outputs | 1x HDMI Type A [19-pin female] 1x IR Out [3.5mm Stereo Mini-jack] 1x LAN [RJ45] |
Mechanical | |
Housing | Metal Enclosure |
Color | Black |
Dimensions | 483mm [W] x 373mm [D] x 88.6mm [H] |
Weight | 6.7Kg |
Power Supply | Input:AC100~240V 50/60Hz |
Power Consumption | 85W (Max) |
Operation Temperature | 32 - 104°F / 0 - 40°C |
Storage temperature | -4 - 140°F / -20 - 60°C |
Relative Humidity | 20 - 90% RH (no condensation) |
6. Connection Diagram
Detailed Images
Packaging & Shipping
Packing List:
1 x HDBaseT™ 8x8 Matrix Switcher
6 x HDBaseT™ 100M Receiver
9 x Wideband IR Blaster cable
10 x Wideband IR Receiver cable
1 x Matrix Remote Controller
1 x AC Power cable
1 x RS-232 cable
1 x Operation Manual
