Large type PVD coating equipment / machine
- Category: Metal Coating Machinery >>>
- Supplier: Qingdao Ubu Vacuum Equipments Corp. Ltd.
Share on (60805036409):
Product Overview
Description

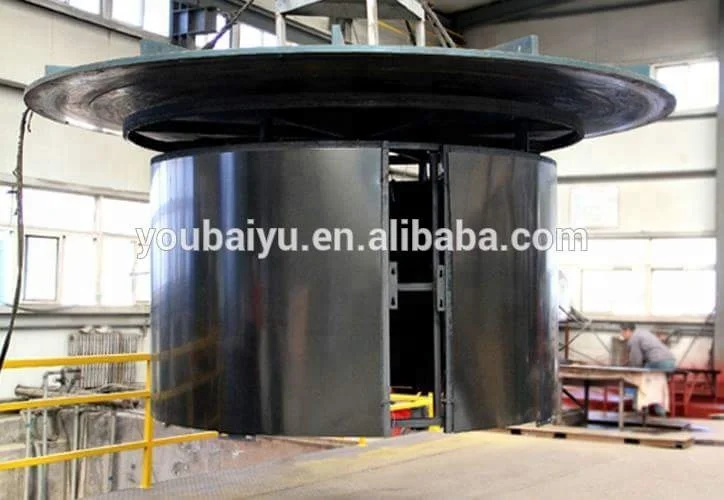

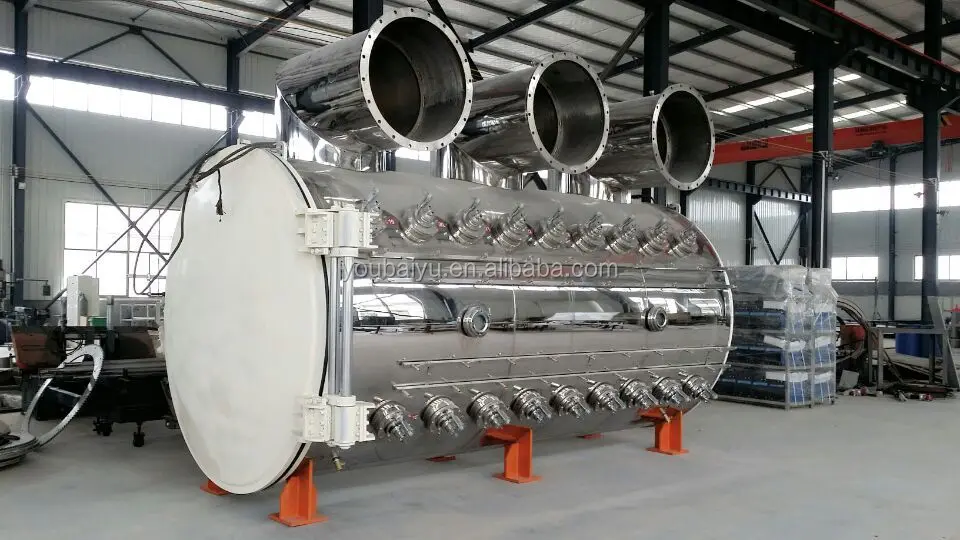

Large type PVD coating equipment / machine
Large type PVD coating equipment which is applied to coating large size products like Elevator plate, stainless steel pipe, stair railing etc. By using the PVD technology ,the stainless steel plate and pipe can be coated on many beautiful colors like gold, rose gold, blue, black, rainbow color etc. The coating film can increase the products' surface wear-resistance, corrosion resistance and aesthetic property.
Coating: TiN,CrN,ZrN,TiCN,TiCrN,TiNC,TiALN
Color: gold, rose gold, black gold, silver, champagne gold,sapphire blue, black, etc.
Product Description
Model | LZ-1500 | LZ-1800 | LZ-2000 | LZ-2200 | LZ-3200 | ||||||
Vacuum chamber size | D1500×H 3500mm | D1800×H 3500mm | D2000×H 4000mm | D2200×H 4500mm | D3200×H 2100mm | ||||||
Power supply | Pulse bias power supply; arc power supply (can be equipped with different power supply according to customer requirements) | ||||||||||
Vacuum chamber structure | Vertical / Horizontal, back vacuum acquisition system | ||||||||||
Vacuum chamber material | SS304 superior stainless steel | ||||||||||
Ultimate vacuum | 6.7×10-3Pa | 6.7×10-3Pa | 6.7×10-3Pa | 6.7×10-3Pa | 6.7×10-3Pa | ||||||
Pumping speed | From atmosphere to 6.7×10-3Pa spend 8~15min (no-load) | ||||||||||
Vacuum system | Diffusion pump + roots pump + rotary vane pump + holding pump (can be adjusted) | ||||||||||
Number of arc source | 24 | 26 | 30 | 36 | 30 | ||||||
Rotating system |
6~8 axis | Size 2440 3 plates
| |||||||||
Process gas | Mass flow controller (3-4 road), manual or automatic filling system | ||||||||||
Cooling system | Water-cooling circulatory system,cooling water tower or industrial cooling water machine is also needed (supplied by customer) | ||||||||||
Control mode | Manual or PLC + touch screen | ||||||||||
Alarm and protection | Water pressure alarm, atmosphere pressure alarm, over current protection, related protective measures and electrical interlock functions. | ||||||||||
Cover area | W3m× L3.5m | W3.5m× L5m | W3.5m× L5m | W4.5m× L5.5m | W5m× L12m | ||||||
Other data | Water pressure≥0.2MPa, water temperature≤25℃, atmosphere pressure 0.5-0.8MPa | ||||||||||
Remark | Specific configuration size can be designed according to customer requirements. Another power supply can be equipped such as DC magnetron power supply and IF power supply to meet the different requirements. Customizable vacuum chamber size range is D 500-3500mm, H: 500-7000mm. | ||||||||||
Technology
PVD coating technology
PVD coating is a plasma coating deposition technology which the materials are vaporized under vacuum conditions ,so as to avoid the reaction between the vaporized material and air. PVD coating is used to add new features as improve the workpieces' hardness,wear resisitance,corrosion resisitance ect..
coating thickness 0.5-10μm
hardness 1000-4000 HV
temperature resisitance 300-1150°c
deposition temperature 200-600°c

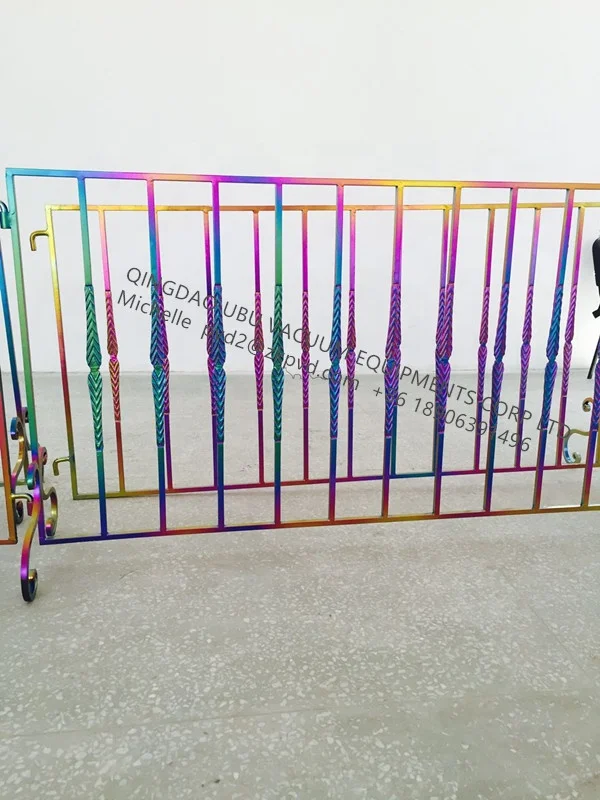

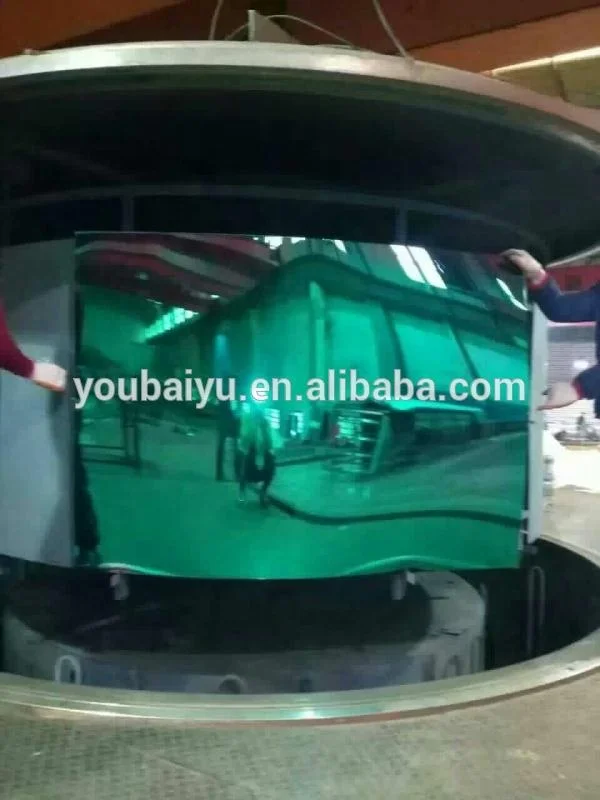

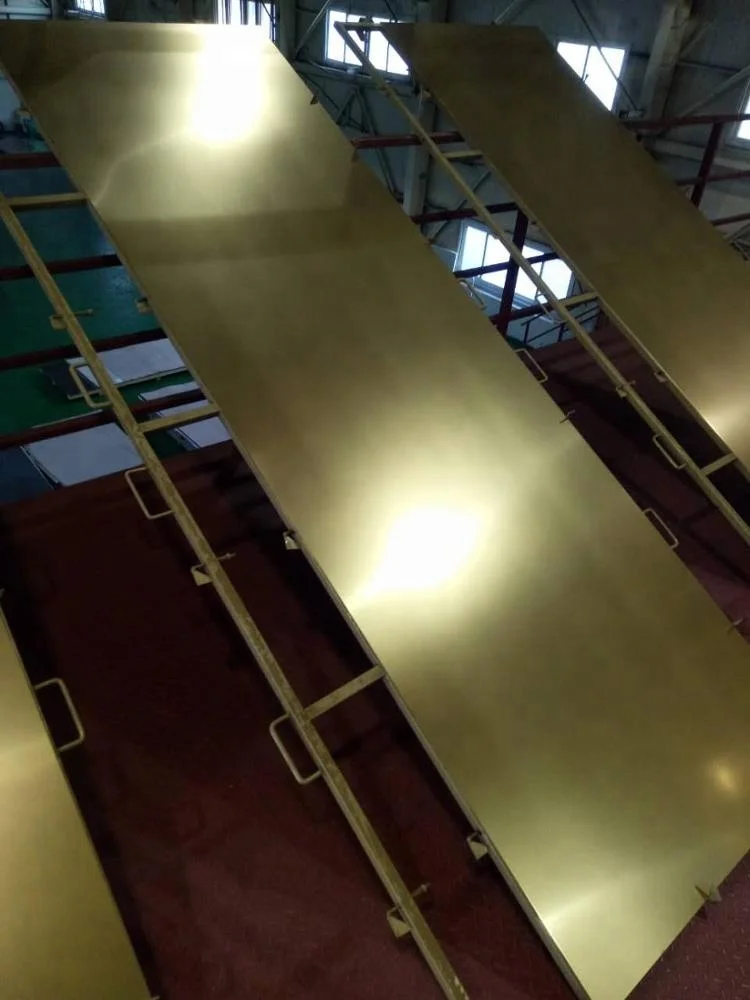

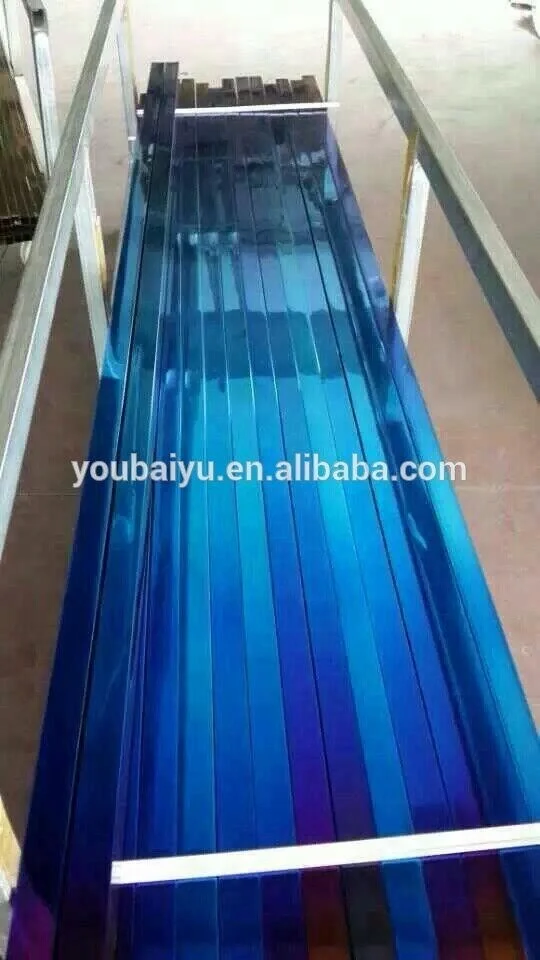

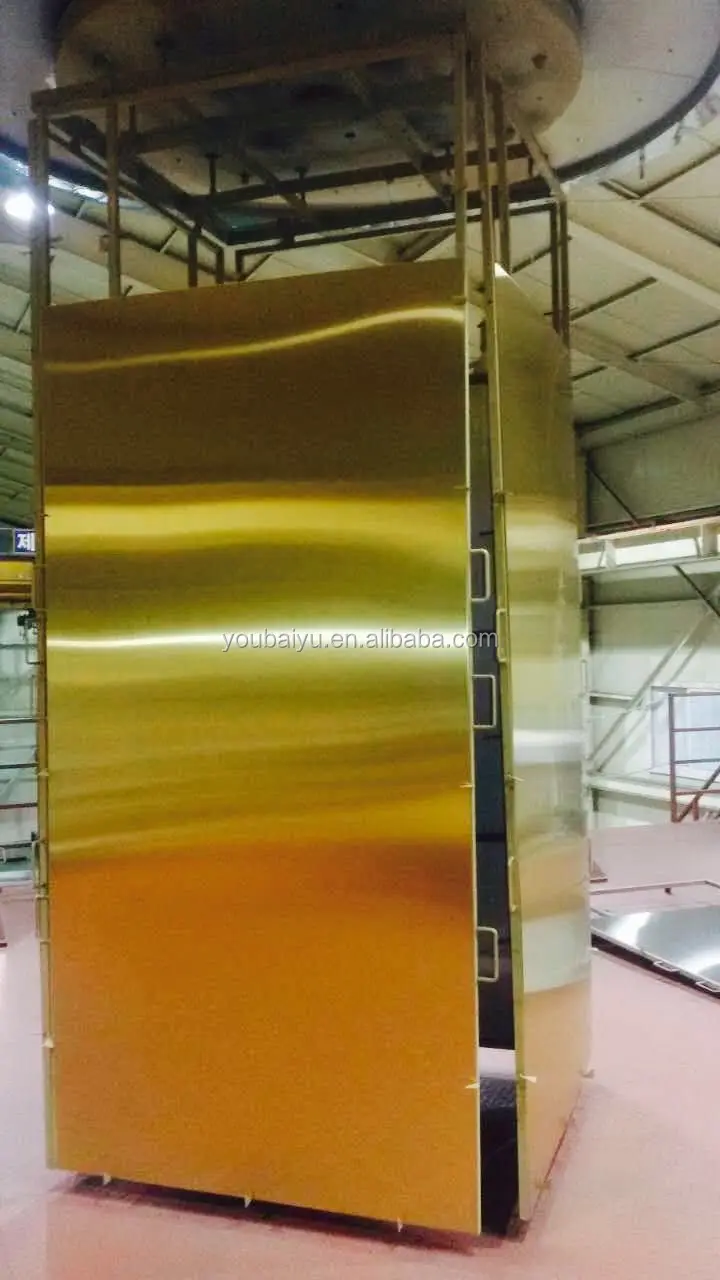

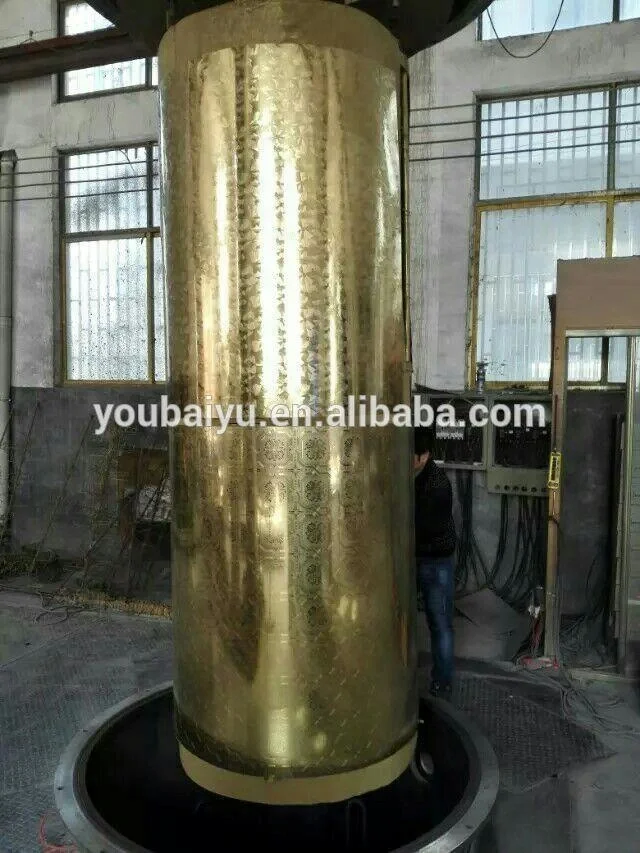

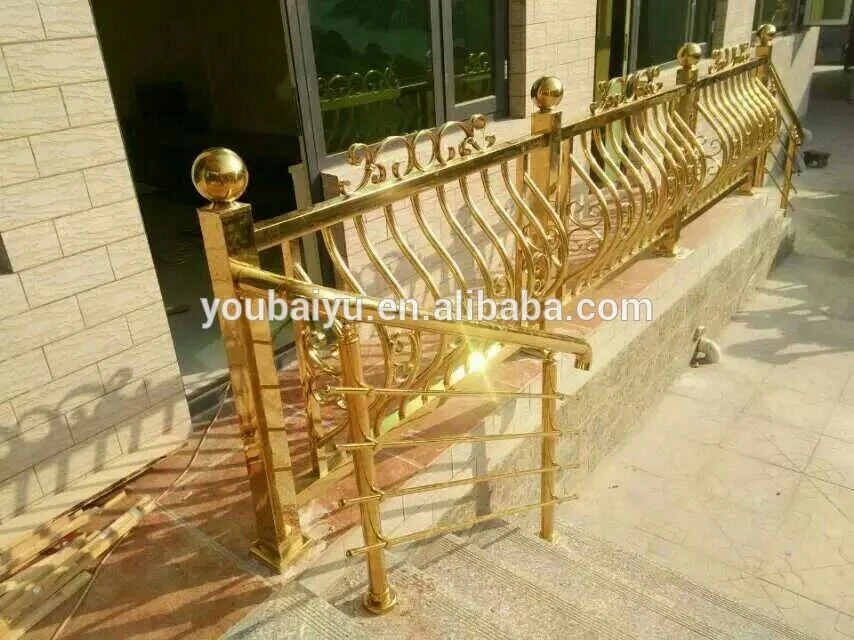

Samples
Packaging & Shipping
1 common package : standard wooden case
2 under customer's request
Our Services
Warranty: 1 year
Engineers available to service machinery overseas

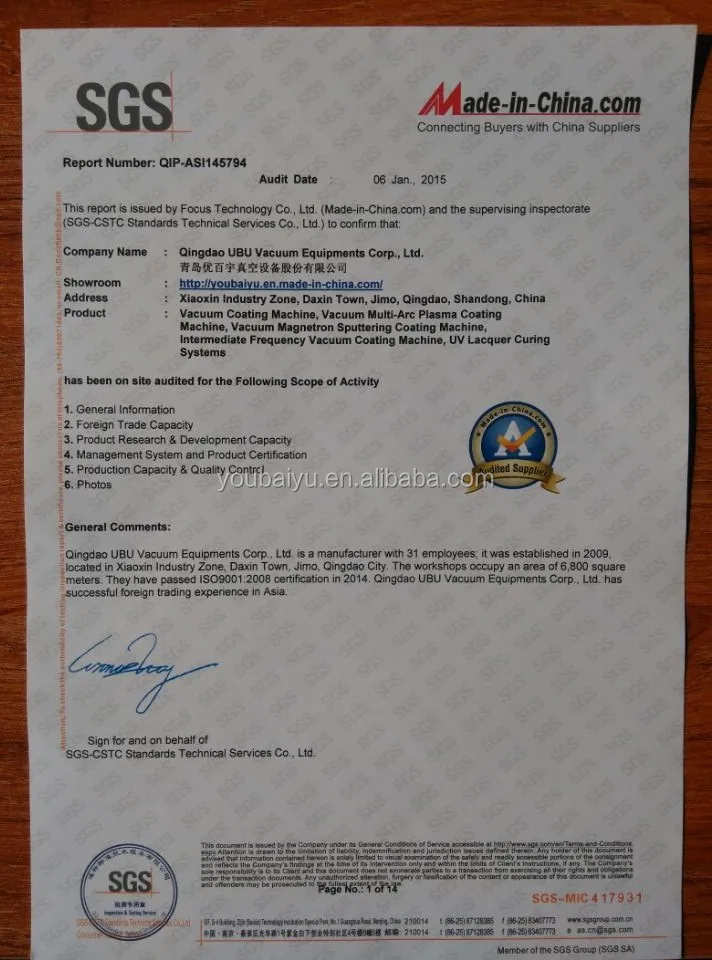

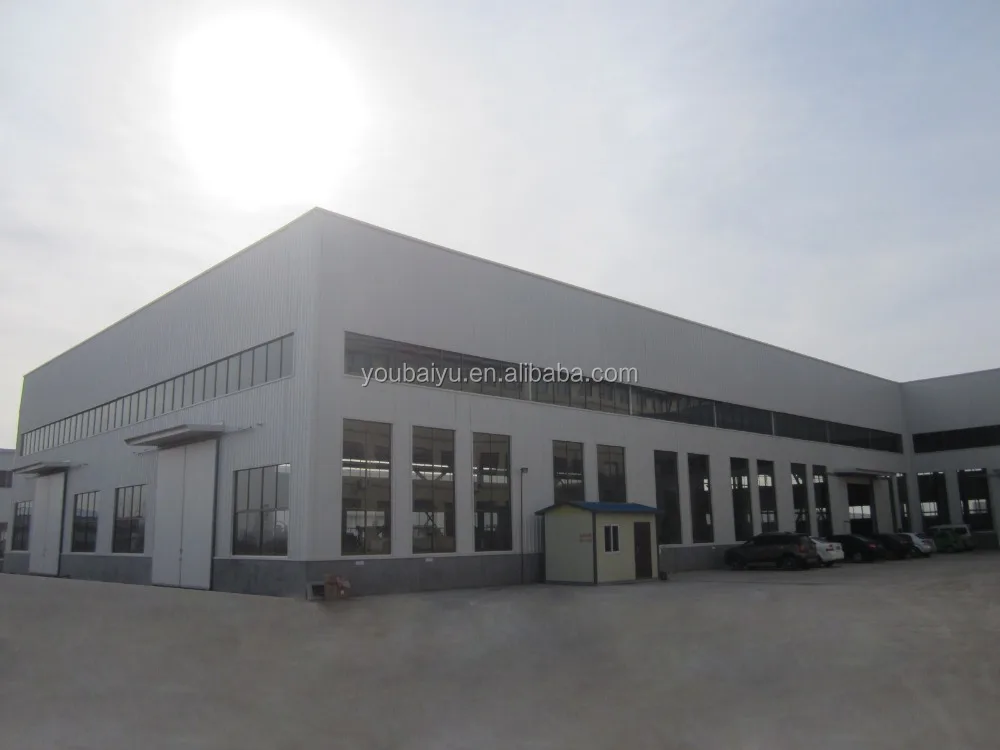

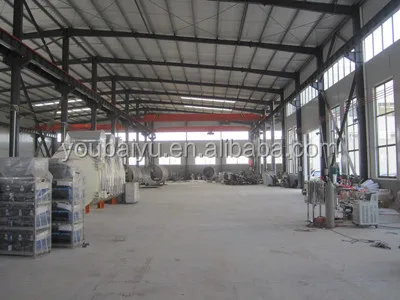

Company Information
Qingdao UBU Vacuum Equipments Co.,Ltd. is a high-tech enterprise which is specialized in engaging in
researching, manufacturing and marketing various kinds of vacuum coating equipment, and these vacuum
application equipments provide a powerful technical support and after-sales service for all kinds of famous
enterprises both at home and abroad. At present, the company headquarters is located in an important
international port city - Qingdao, with convenient sea transportation and talent pool, which has offices and
agents in Shenzhen and abroad, exporting the equipments to Asia, North America, Europe and other places.
Our company has had 9 main coating equipments up to now, including Multiple arc plasma vacuum coating
machine, Magnetic sputtering vacuum coating machine, Multifunctional intermediate frequency vacuum coat
ing machine, Evaporation vacuum coating machine, Automatic optical coating equipment, Vacuum roll coat
ing machine, DLC vacuum coating machine, UV lacquer curing system and Continuous magnetic sputtering
vacuum coating line. In addition, we also provide services of professional PVD coating services according to
customer’s different requirements, supplying related accessories and old machine’s updating, helping solv
ing customer’s various questions and making all the customers satisfied.
Our company is founded on the idea of "The user is supreme, strives for perfection" , adhering to the "high
quality, high efficiency, low energy consumption" development strategy. No matter the turn-key project, or
one-to one professional service policy will provide the omnibearing, multilevel and high field for the general
customers high quality service. Our company will continue to make contributions to advancing the world
standard of vacuum application equipment, hoping to cooperate with all customers to create new brilliant future.

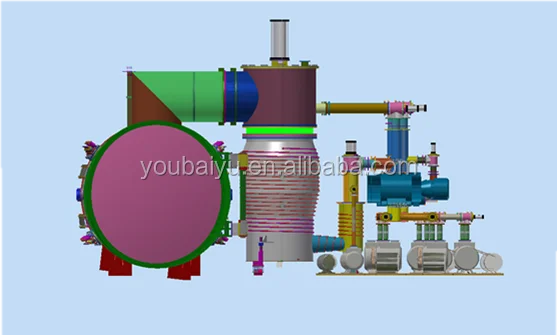

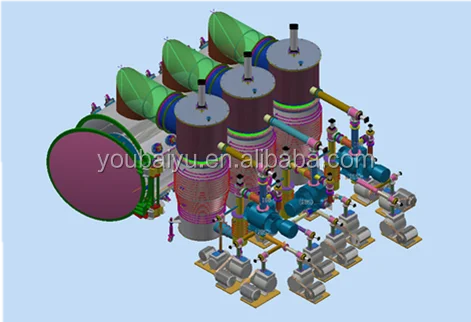

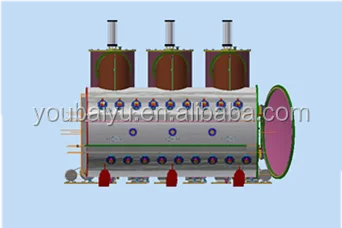

3D image

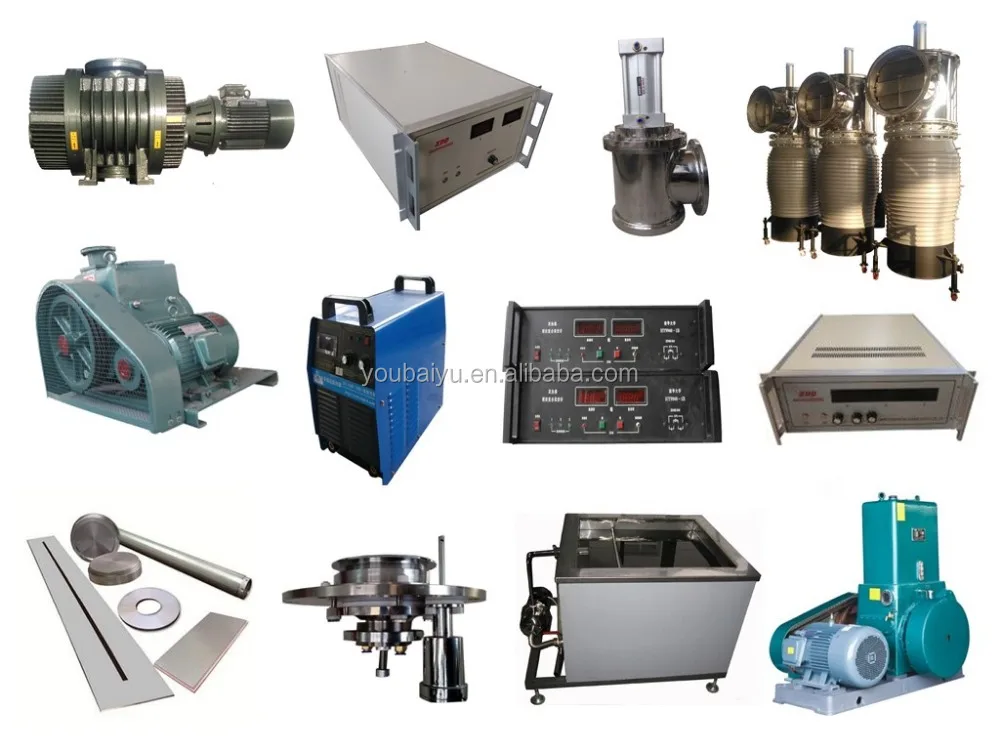

Accessories
Our company also provide related accessories like Diffusion pump, Rotary vane pump,
Roots pump, Direct connected pump, Pulse bias power supply, DC magnetron sputtering power supply, Multi arc invert DC power supply, Drying plant, Cooling water tower, Ultrasonic cleaning system,Vacuum gauge, Valves, Different kinds of targets, Flange etc.
REMARK
In order to provide you suitable machine ,pls tell us some information ,thank you
1, What is your products ? size ? material ?
2, How many products do you need to coating per day ?
3, Do you have some color requirements ?
CONTACT INFORMATION
Michelle Qiu
QQ: 2728620437
SKYPE: Michelle.y Qiu
Whatsapp: 0086 18906391496
