Omron NB7W TW01B HMI 7 Inch TFT LCD Display 800*480 NB7WTW01B Touch Panel NB7W Applicable Controllers
- Category: Other Electrical Equipment >>>
- Supplier: Changsha,Zhinian,Automation,Equipment,Co.,Ltd.,[Hunan,China]Changsha
Share on:
Product Overview
Description

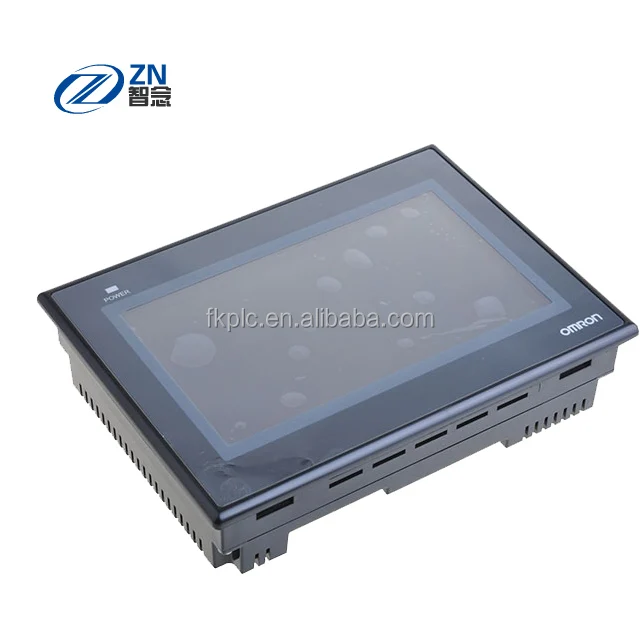

Omron NB7W-TW01B HMI 7 Inch TFT LCD Display 800*480 NB7WTW01B Touch Panel NB7W
Feature
The feature-rich, cost-effective HMI
The combination of high quality and rich features add up to give outstanding value for an HMI in the economy class. The NB-Designer software to create your HMI application is free of charge and can be downloaded from our website.
- More than 65,000 display colors TFT touch screen
- Available in sizes ranging from 3.5 to 10 inches
- Long-life LED backlight
- Serial, USB or Ethernet communication
- USB memory stick support (TW01 model only)
- 128 MB internal memory
- Vector and bitmap graphics
Best-in-class display
As the display is one of the most important components for an HMI we only settle with the best LCDs for our products and so also for the NB HMI. The complete family therefor is equipped with LED backlighted TFT LCDs that have a good viewing angle and brightness. Together with a large memory your HMI application can contain many images to create a very good looking application.
- LED backlighted TFT LCD
- Wide viewing angle
- More than 65,000 display colours
- 128 MB of internal memory
Smart design
When developing the NB series, we considered every aspect of the design to give you maximum flexibility. Where possible we use new technology and proven standards. Some examples are the portrait or landscape display mode and PictBridge printer connection.
- Portrait or landscape display mode
- Connection to Omron and non-Omron devices, e.g. PLCs/inverters
- Serial, USB or Ethernet connectivity
- PictBridge printer connection
Easy to use
The NB series has many useful features that will make it easy to create and maintain your projects, such as the USB memory stick support or On/off-line simulation of the HMI program.
- USB memory stick support
- Animations and easy-to-use functions
- Multi-language support and tool
- On/off -line simulation
Feature-rich
The free of charge NB-Designer software gives you all the features and functionality to easily create intuitive operator screens really quickly. Below a list of the most interesting features to create an HMI application:
- Alarm/Event displays
- Bit state switches/lamps
- Multiple state switches/lamps
- List and dropdown list
- Animation and moving components
- Recipe data display/controls
- Number and Text input/displays
- Trend curve and plotting charts
- Chart and bar graphs
- Meter, scales and sliders
- Grid and historical data displays
- Function keys
- Timer function
- Vector and bitmap graphics
- Data copy function
- Text library
- Macro functions
- Multiple security options
The perfect partner for CP1
With its large range of screen sizes, ample specifications, rich functionality and proven Omron high quality, the new NB series has everything you need in a compact HMI to accompany Omron’s popular CP1 Compact Machine Controller range. The CP1 offers increasing degrees of sophistication to perfectly match your specific automation requirement and connection to the NB series is possible via Serial or Ethernet. Many features of the NB HMI can directly interface with the CP1 PLC memory, like recipe, alarms and switching windows. Also we have created some special screens for CP1 to read PLC statuses, configured settings and error information.
Specification
HMI
Specifications | NB3Q | NB5Q | NB7W | NB10W | |||
|---|---|---|---|---|---|---|---|
TW00B | TW01B | TW00B | TW01B | TW00B | TW01B | TW01B | |
Display type | 3.5 inch TFT LCD | 5.6 inch TFT LCD | 7 inch TFT LCD | 10.1 inch TFT LCD | |||
Display resolution (H×V) | 320×240 | 320×234 | 800×480 | 800×480 | |||
Number of colors | 65,536 | ||||||
Backlight | LED | ||||||
Backlight lifetime | 50,000 hours of operating time at the normal temperature (25 ° C) | ||||||
Touch panel | Analog resistive membrane, resolution 1024×1024, life: 1 million touch operations | ||||||
Dimensions in mm (H×W×D) | 103.8×129.8×52.8 | 142×184×46 | 148×202×46 | 210.8×268.8×54.0 | |||
Weight | 310 g max. | 315 g max. | 620 g max. | 625 g max. | 710 g max. | 715 g max. | 1,545 g max. |
Functionality
Specifications | NB3Q | NB5Q | NB7W | NB10W | |||
|---|---|---|---|---|---|---|---|
TW00B | TW01B | TW00B | TW01B | TW00B | TW01B | TW01B | |
Internal memory | 128MB (including system area) | ||||||
Memory interface | − | USB | − | USB | − | USB | USB |
Serial (COM1) | RS-232C/422A/485 (not isolated), | RS-232C, | |||||
Serial (COM2) | − | RS-232C/422A/485 (not isolated), 500m Max. (RS-422A/485), Connector: D-Sub 9-pin | |||||
USB Host | Equivalent to USB 2.0 full speed, type A, Output power 5V, 150mA | ||||||
USB Slave | Equivalent to USB 2.0 full speed, type B, Transmission distance: 5m | ||||||
Printer connection | PictBridge support | ||||||
Ethernet | − | 10/100 base-T | − | 10/100 base-T | − | 10/100 base-T | 10/100 base-T |
General
Specifications | NB3Q | NB5Q | NB7W | NB10W | |||
|---|---|---|---|---|---|---|---|
TW00B | TW01B | TW00B | TW01B | TW00B | TW01B | TW01B | |
Line voltage | 20.4 to 27.6 VDC (24 VDC −15 to 15%) | ||||||
Power consumption | 5 W | 9 W | 6 W | 10 W | 7 W | 11 W | 14 W |
Battery lifetime | 5 years (at 25 ° C) | ||||||
Enclosure rating (front side) | Front operation part: IP65 (Dust proof and drip proof only from the front of the panel) | ||||||
Obtained standards | EC Directives, KC, cUL508 | ||||||
Operating environment | No corrosive gases. | ||||||
Noise immunity | Compliant with IEC61000-4-4, 2KV (Power cable) | ||||||
Ambient operating temperature | 0 to 50 ° C | ||||||
Ambient operating humidity | 10% to 90% RH (without condensation) | ||||||
Applicable Controllers
Brand | Series |
|---|---|
OMRON | Omron C Series Host Link |
Omron CJ/CS Series Host Link | |
Omron CP Series | |
Mitsubishi | Mitsubishi Q_QnA (Link Port) |
Mitsubishi FX-485ADP/485BD/422BD (Multi-station) | |
Mitsubishi FX0N/1N/2N/3G | |
Mitsubishi FX1S | |
Mitsubishi FX2N-10GM/20GM | |
Mitsubishi FX3U | |
Mitsubishi Q series (CPU Port) | |
Mitsubishi Q00J (CPU Port) | |
Mitsubishi Q06H | |
Panasonic | FP series |
Siemens | Siemens S7-200 |
Siemens S7-300/400 (PC Adapter Direct) | |
Allen-Bradley | AB DF1 AB CompactLogix/ControlLogix |
Brand | Series |
|---|---|
Schneider | Schneider Modicon Uni-TelWay |
Schneider Twido Modbus RTU | |
Delta | Delta DVP |
LG (LS) | LS Master-K Cnet |
LS Master-K CPU Direct | |
LS Master-K Modbus RTU | |
LS XGT CPU Direct | |
LS XGT Cnet | |
GE Fanuc Automation | GE Fanuc Series SNP GE SNP-X |
Modbus | Modbus ASCII |
Modbus RTU | |
Modbus RTU Slave | |
Modbus RTU Extend | |
Modbus TCP |
