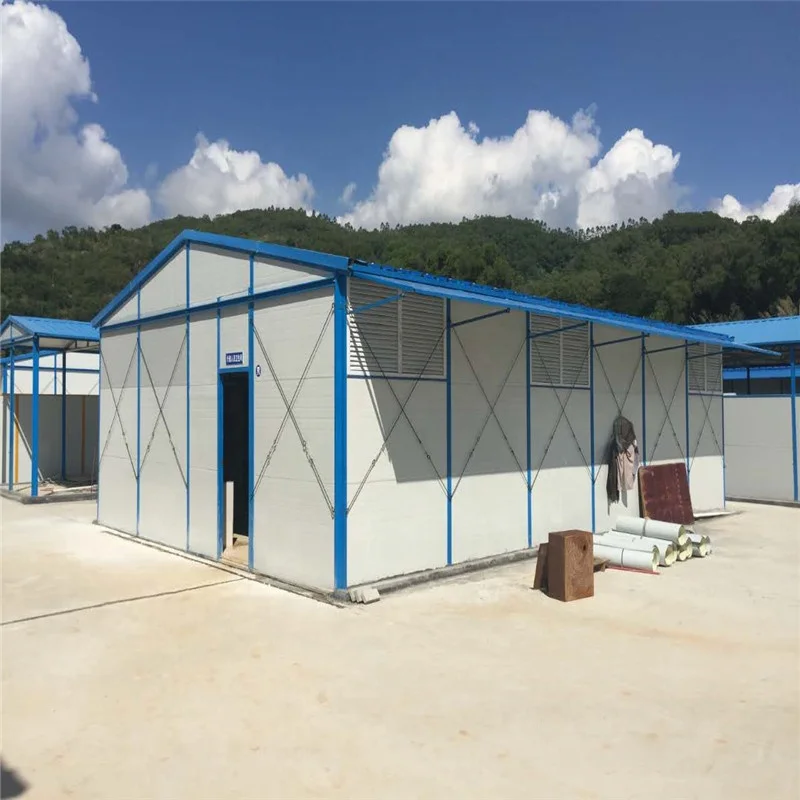

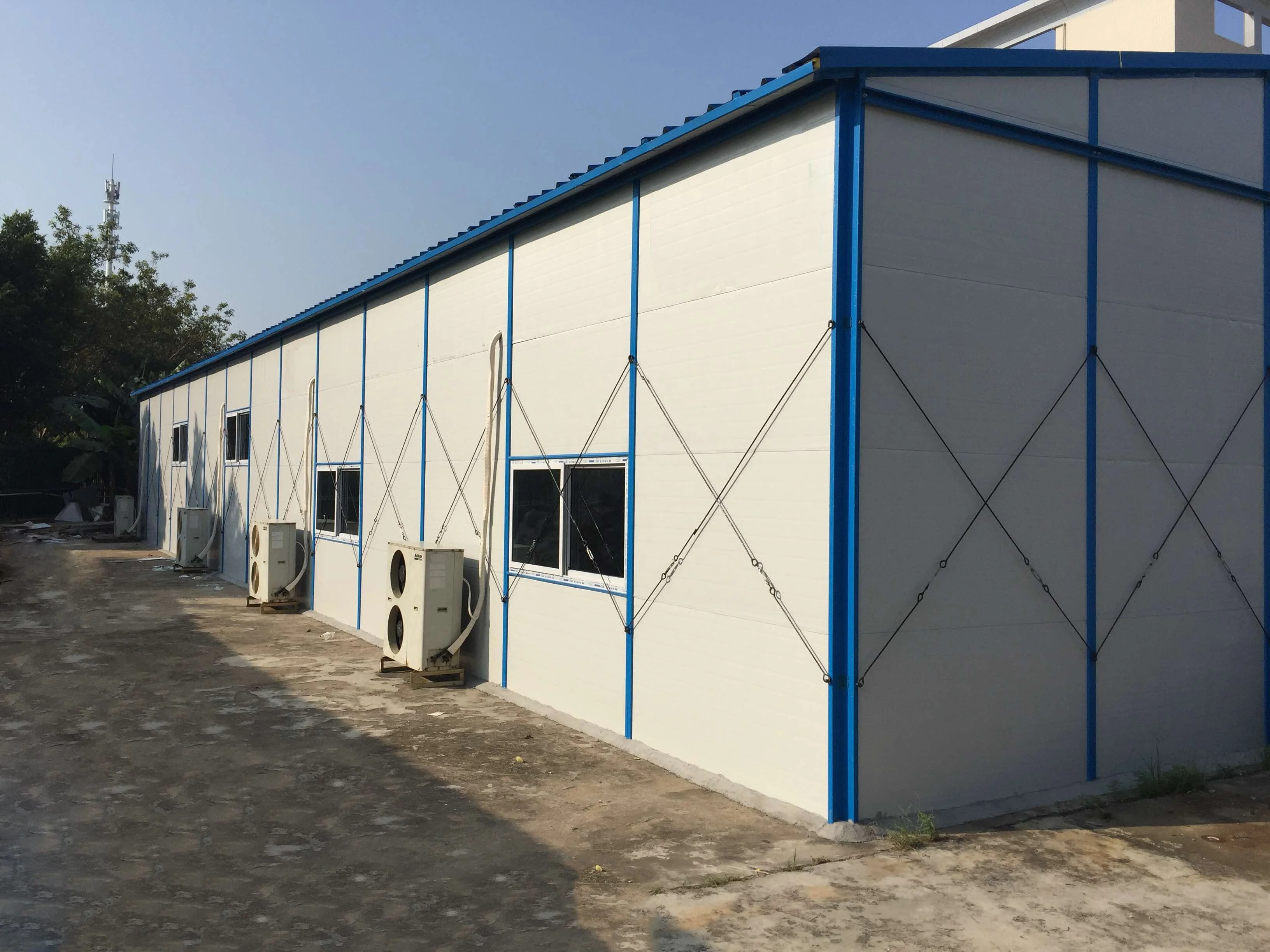

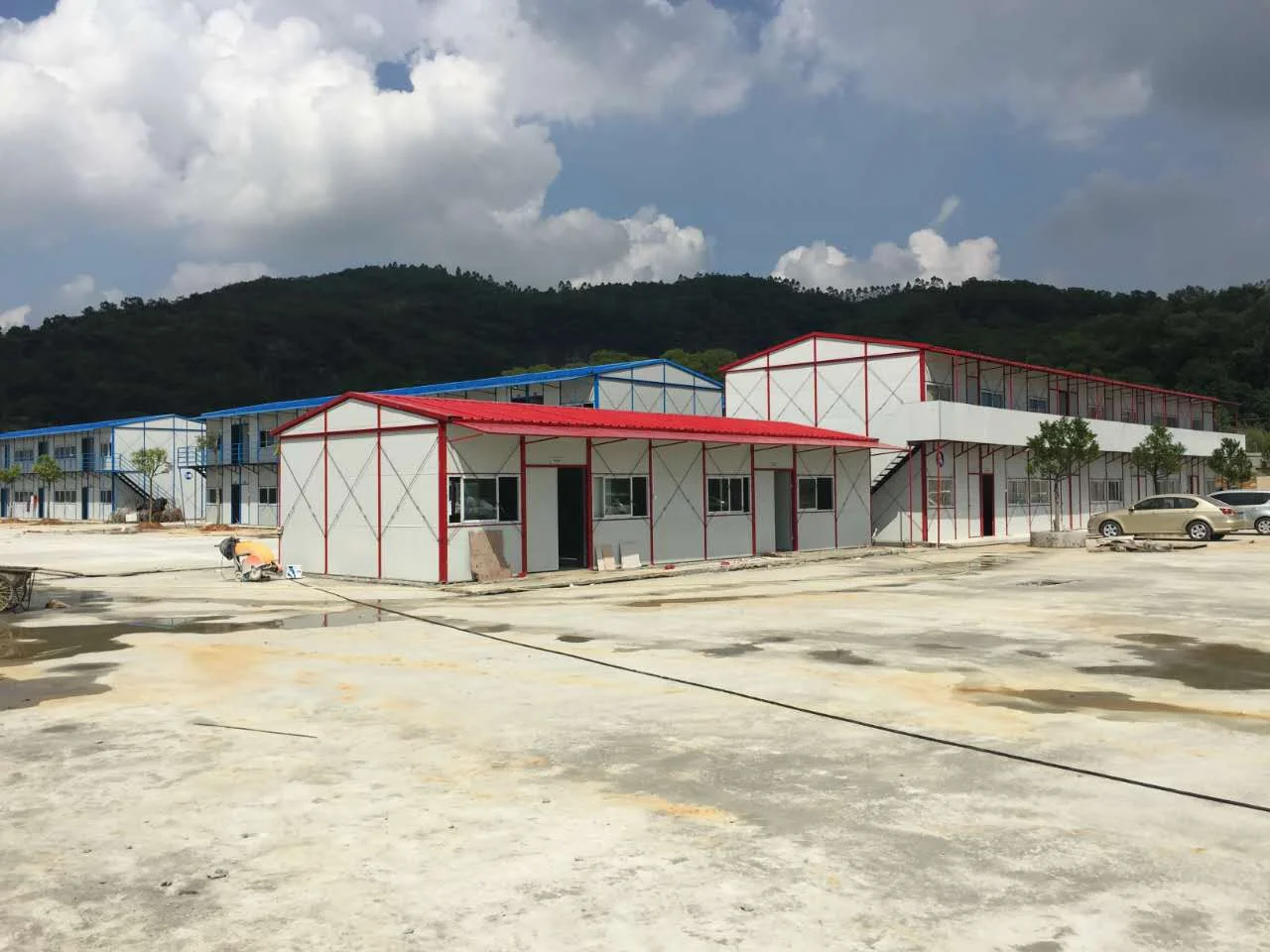

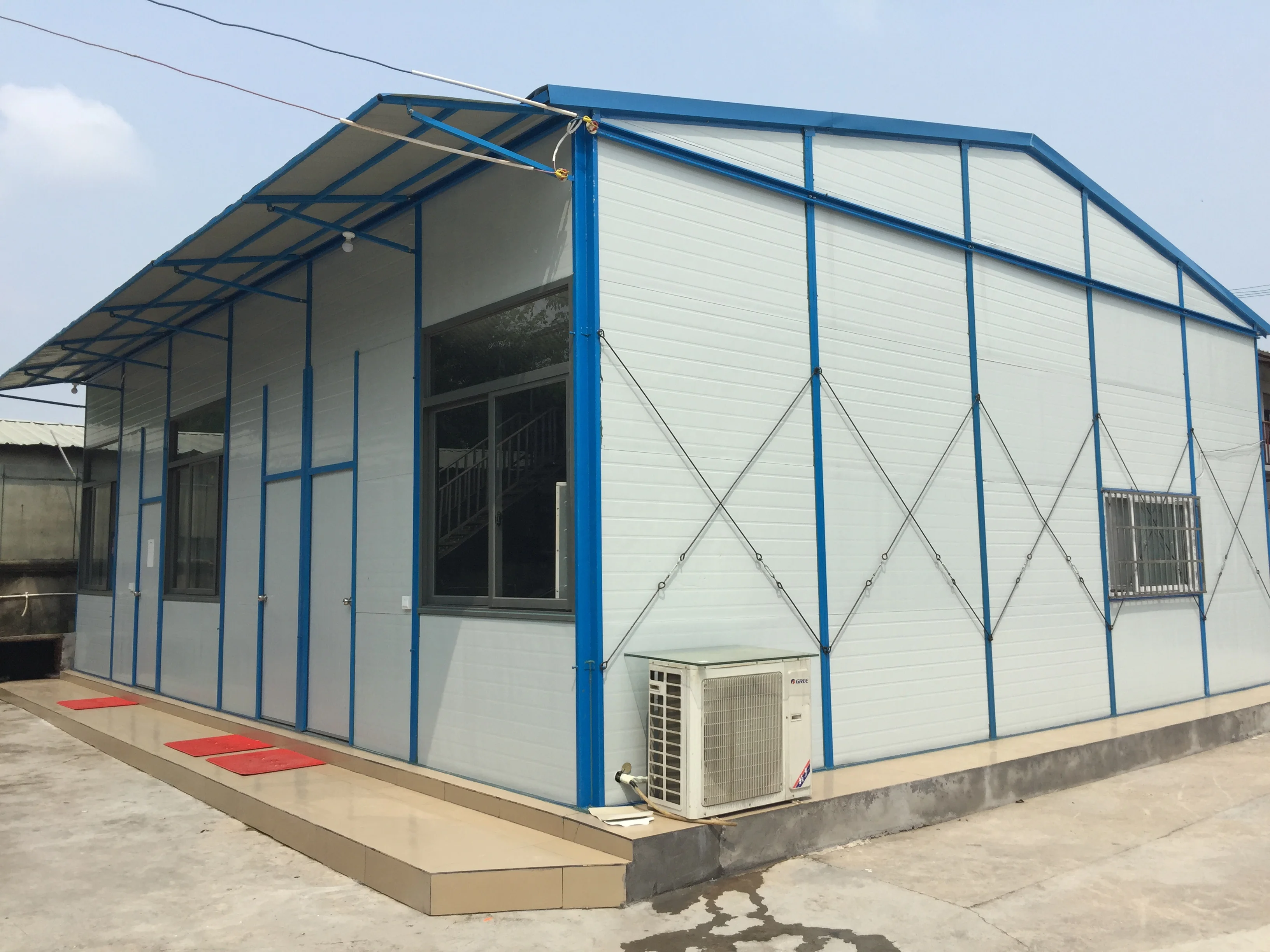

China Low cost Construction real estate Light Steel frame building Prefabricated house

Product Overview

Description

 China Low cost Construction real estate Light Steel frame building Prefabricated house



Prefabricated house K shaped house is named as top-prefabricated mobile house, it includes EPS sandwich mobile house, Rock wool mobile house and glass wool sandwich mobile house in the current market. We could make house according to customers’ requirement upon space combination in standard modulus.



Prefabricated K house is widely used as temporary construction house about road, railway, building works, civil construction, commercial and other temporary house, for example, temporary office, meeting room, direction room, dormitory and temporary shop, temporary school, hospital, temporary parking lot, temporary exhibition hall, temporary repair room and temporary fueling station etc.





Characteristics:

·No base work involved

·Environment protective, no garbage caused

·Doors, windows, and interior partitions can be flexibly fixed

·Fast assemble and disassemble

·Anti-rust and long life span, normally it can be used for more than 10 years

·Seismic intensity is 8 grade



Specification:

No.	Items	Description	Specification
1	Steel structure	“A ” shape beam of roof	Galvanized 8#C steel + 5#C steel
2		Roof purlin	L40 angle iron
3		Column	Galvanized double 8#C steel
4		Floor beam	Galvanized  8#C steel
5		Ring beam	Galvanized 8#C steel
6		Canopy frame	Galvanized square tube
7		Second Floor purlin	Galvanized 8#C steel
8		Triangle bracket	Galvanized 8#C steel
9		Walkway board	Anti-skitting corrugated steel plate
10		Stair	Steel staircase
11		Handrail	Galvanized square tube
12		Staircase railing	Galvanized square tube
13		Platform column	Galvanized square tube
14		Horizontal support	L40 angle iron
15		Adjustable drawbar	Φ8 steel
16	Wall part	Roof tile	50MM Glass wool color steel tile (double steel sheet thickness 0.326mm)
17		Partitial wall board	50MM Glass wool color steel sandwich panel(double steel sheet thickness 0.326mm)
18		External wall board	50MM Glass wool color steel sandwich panel(double steel sheet thickness 0.326mm)
19		Second Floor board	18mm plywood board
20	Accessories	Door	Stoving varnish door, Size:860 x 2000mm
21		Window	PVC sliding window, Size: 1740 x 925 mm
22		Ceiling	PVC gypsum ceiling board 600mm*600mm*1.2mm
23		Expansion bolts and screws, glass glue	Full set
24	Optional	Washing room	Full set (Including 1 pcs wash basin, 5 sets squatting toilet with tank, 5 sets shower equipment, cleaning water jet, plumbling etc)

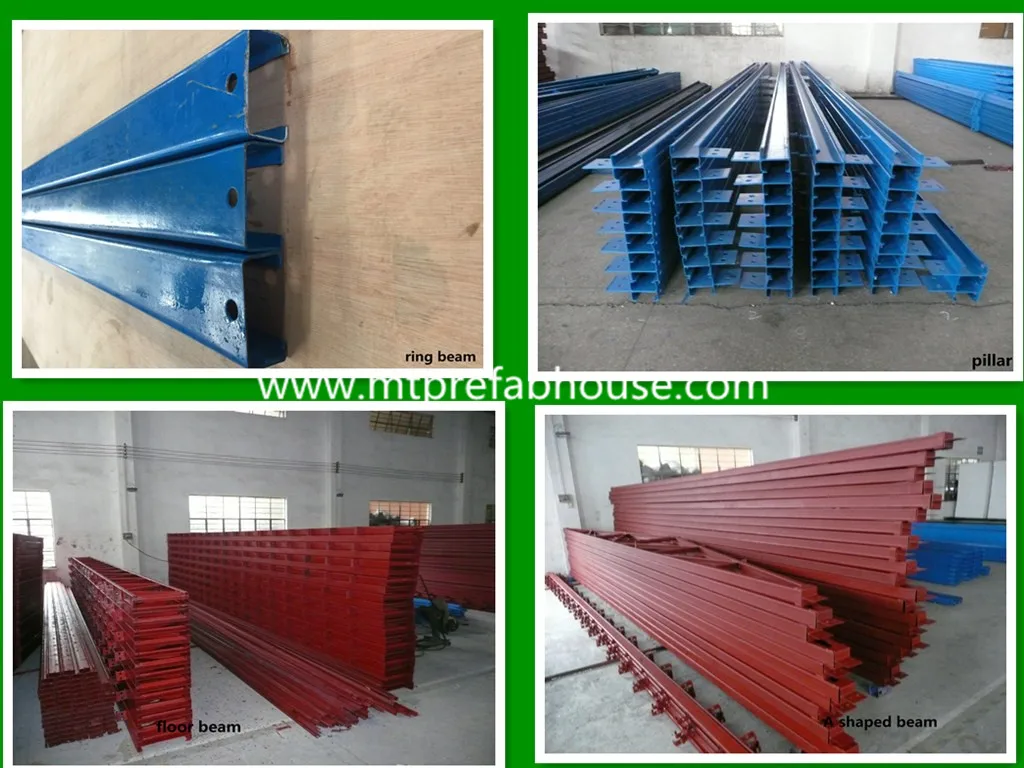

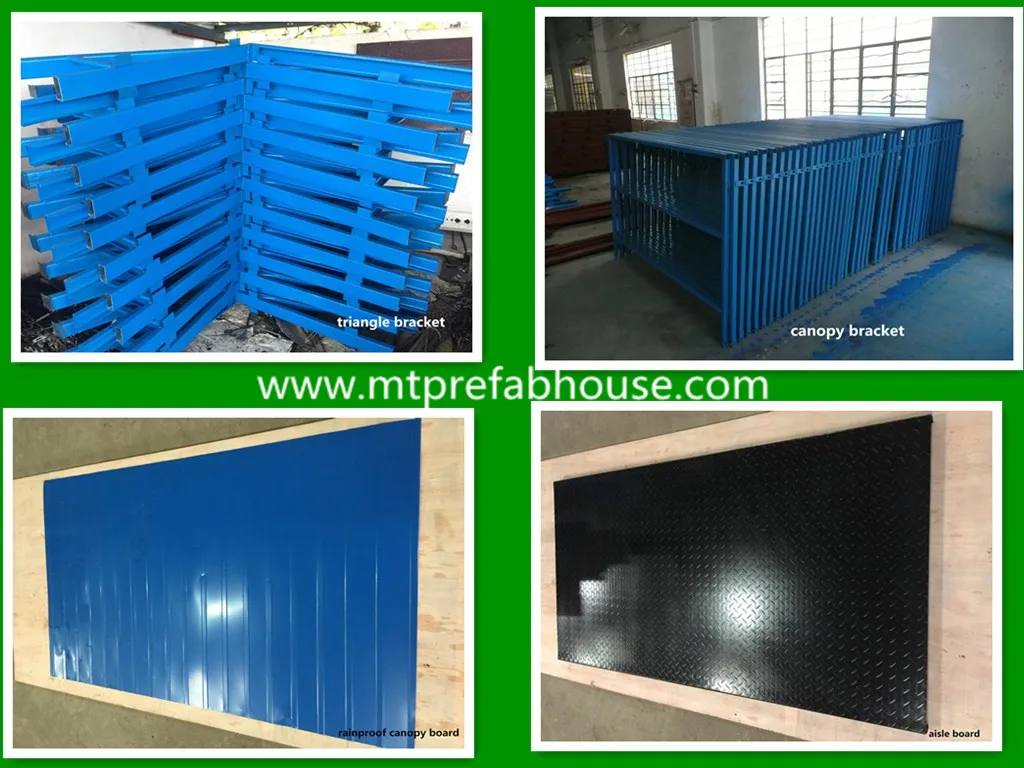

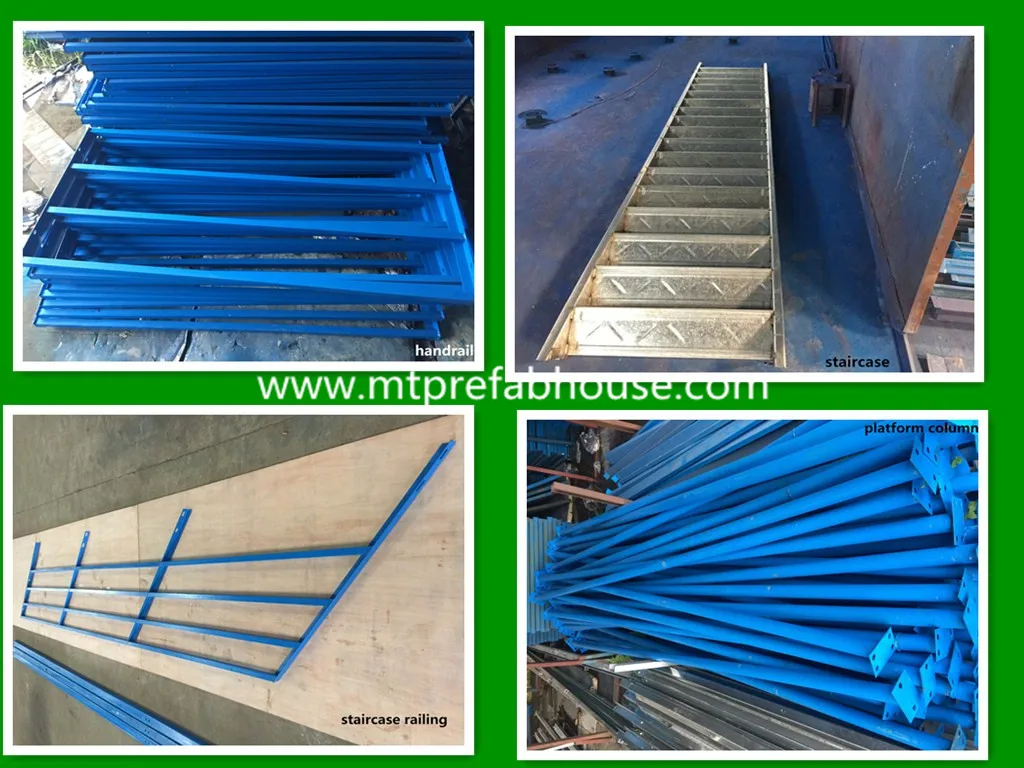

Main components:

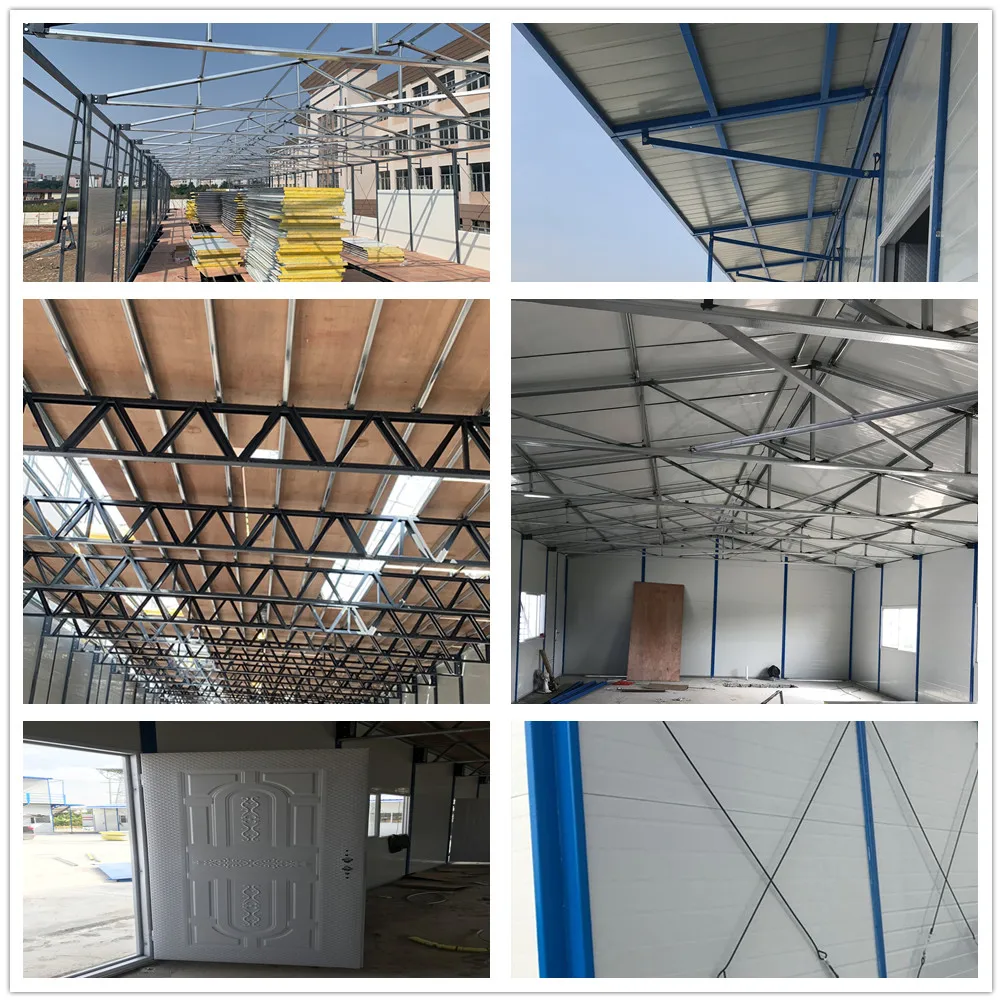

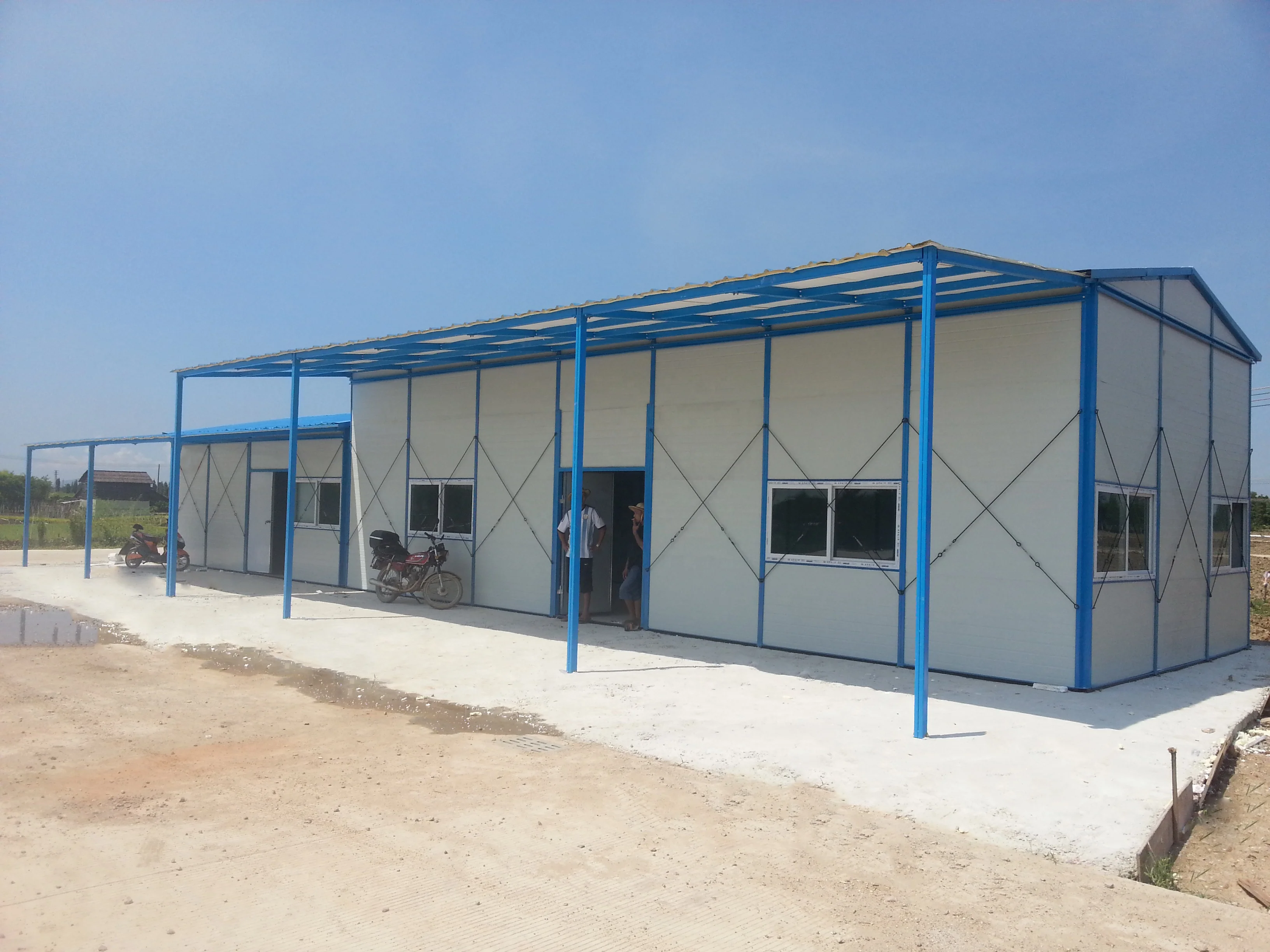

Construction site details

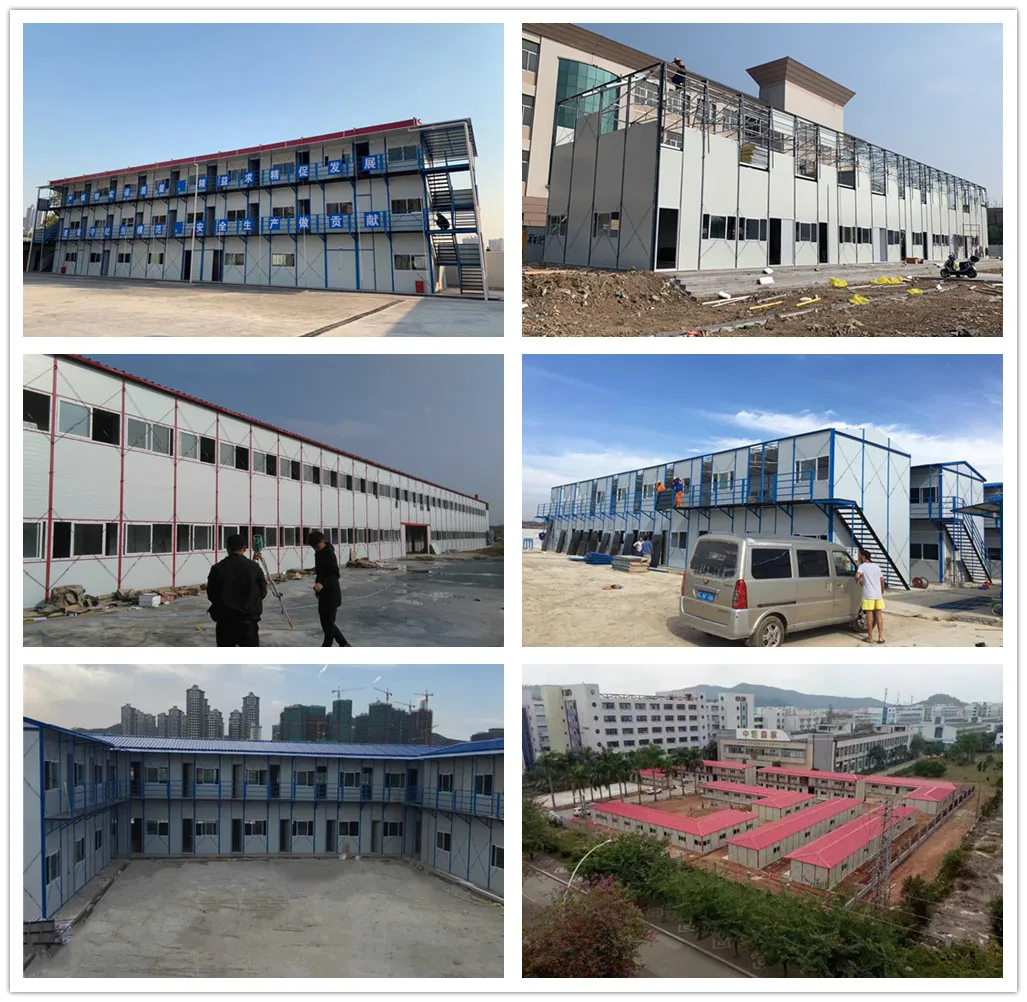

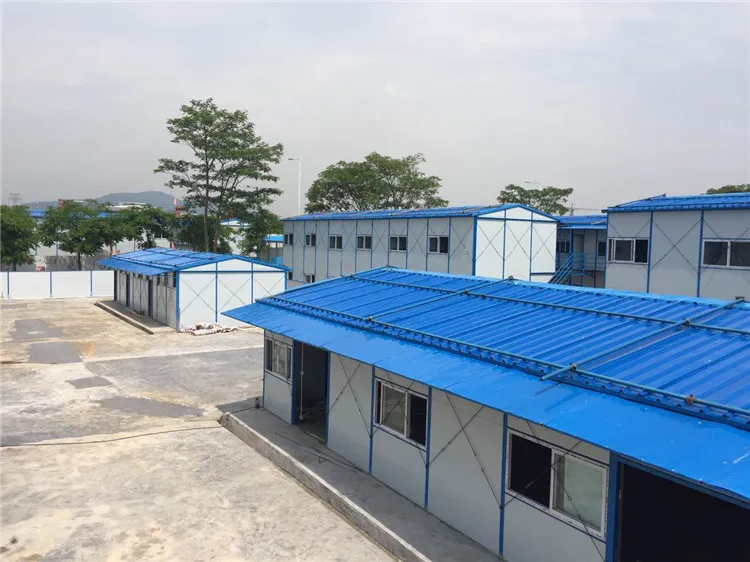

 Projects show

Our Service:



Miteng recommend suitable prefabricated house based on customer’s drawing; or Customer give a general idea for the project, then MiTeng offer unique design and drawing.



For installation, MiTeng could provide video and installation instruction. If necessary, MiTeng could arrange the technical person to go aboard to guide.



MiTeng is professional in accurate hole position and the bolts connection.



Trust First, Quality First, One-step service.



Company information:



 MiTeng is located in Zhongshan city, Guangdong provice, and we specialize in prefabricated house, container house, light steel building(such as workshop, warehouse and construction temporary fence wall etc), Light steel villa, Security box & Mobile toilet and various kinds of color steel sandwich panel etc.



We have rich experience in designing, producing and installation, and our main market is domestic, in recent years,we are keeping enlarging our business for aboard. The prefabricated house is fireproof, warer proof, sound-insulating, earthquake resistant, corrosion resistant etc. It's large used in the field of temporary building, warehouse, stadium, exhibition etc.



Due to our good quality and excellect service, our products are get good reputation by our customers in regions inside and overseas. MiTeng expect to work with you together in future to create a better tomorrow.

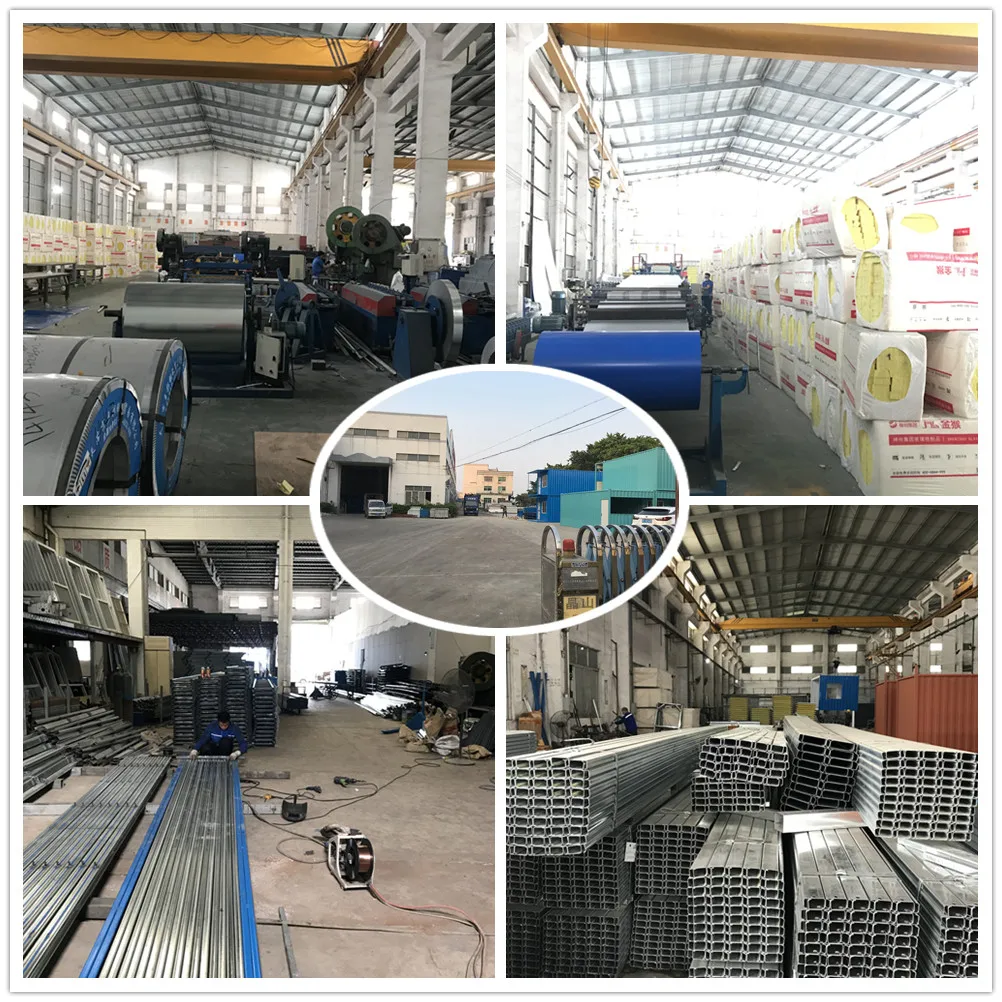

Factory show



 FAQ:

Q: Are you a factory or trading Company?

A: We are manufacturer with 15 years experience in prefab house industry. Our office is located in Torch High-Tech Industrial Development Zone, Zhongshan City for sales and export, and our factory is in Dongfeng Town, Zhongshan city, Guangdong. You are welcome to visit our factory any time.



Q: How about your delivery time?

A: The delivery time for Prefabricated house K system need around 10-15 days; For special prefabricated T house and Container house, it need around 25 days; For unique light steel villa, it need around 25-30 days.



Q: What’s the minimum order?

A: Prefab house: 100 m2, Container house: 3unites, Steel structure: 200 m2; Villa house: 100m2



Q: What’s your package?

A: They will be loaded into shipping containers in bulk with suitable safety package.



Q: How we assemble the house?

A: We will provide customers installation video or installation instruction. We also can arrange technicians to help customers if necessary.
