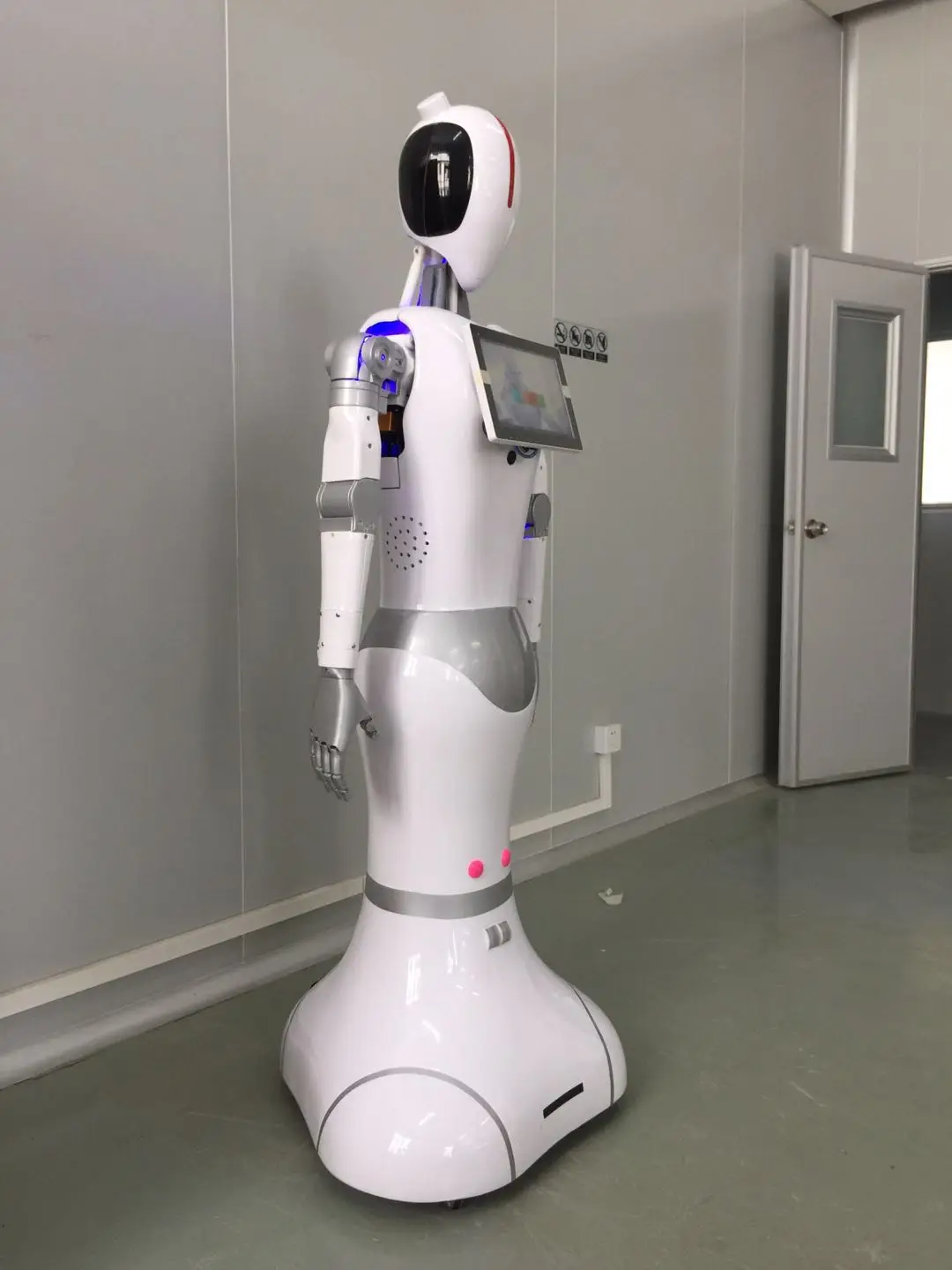

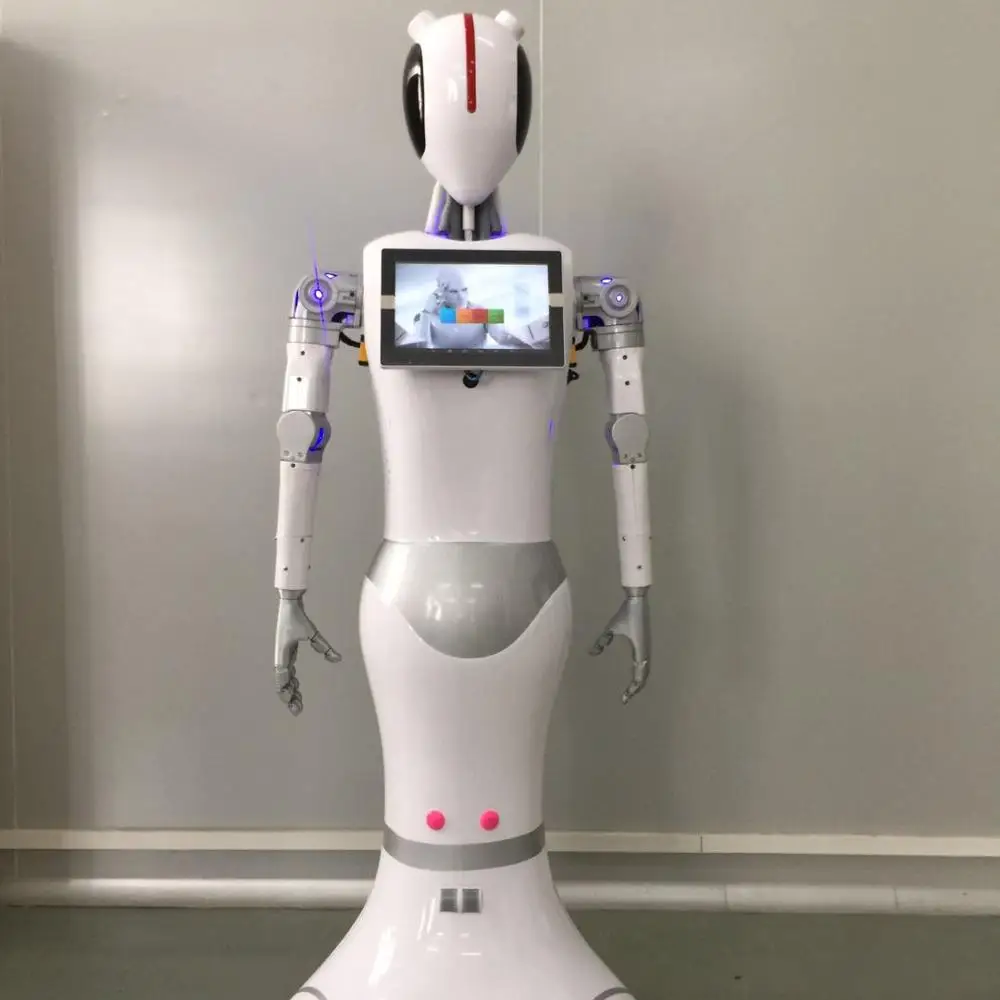

Model of robot

XiaoXing

Base parameters

Height

160cm

Weight

45kg

Screen

10.1 inch,Hd color LCD screen

Screen type

10 touch screen, capacitance

Batteries and specifications

Polymer lithium battery 24V12AH

Camera

Two million pixels

Internet Connections

WiFi

Support bluetooth

Yes

Charging time (h)

≤8h(normal 6h)

Working Time (h)

≥8h

Rated input voltage (V)

220VAC

Rated output voltage (V)

24VDC

The distance of the human sensor to the guest

4~5m

Ultrasonic distance

1~2m

Rated output current (A)

2A

Rated power (W)

48W

Control parameter

Remote control walking

Control the walking of the robot from front to back through mobile APP and remote control;Response time is less than 100ms

Lidar navigation walks

Robots scan indoor lidar to build flat maps

Multipoint navigation

The robot can go to different points to explain, then go to the next point to explain different content

Voice control (optional)

The robot responds to voice commands and completes the requirements of moving around, playing songs and so on

Dialog system activation mode

Human sensor + ultrasonic sensor

Dialog system sleep time

The sensor was not responsive for 5min

Encounter obstacles

The robot will bypass obstacles and continue walking

Control mode

APP control, remote control, voice control

Safety function

Emergency cut-off

To press the key to stop the working robot immediately

Detection of obstacle avoidance

Real-time monitoring of obstacles in front of the robot, measuring distance of 80 cm

Pedestrian detection

Real-time monitoring of no one passing by, someone coming to say hello

Balance protection

Body weight can be balanced and the waist won't fall

Convenience function

Remote voice play

Remote control robot plays audio file, audio file can be edited through text to audio software, easy to play the client propaganda voice

Remote operation mode switch

Robot remote control or tracking mode can be selected through mobile APP and remote control

Remote control adjustment parameters

APP control design sensor distance and walking speed

Set the node number

APP control to set the node number

Remote software upgrade

When the software is upgraded, the system automatically downloads the upgrade package, prompting the user to upgrade

Ultrasonic parameter

Forward two, left and right two, adjust and control respectively

Attachments

The standard of service

Instruction, warranty card, prompt label, daily maintenance

The standard packing

Pearl cotton, wooden case

The standard accessories

1 remote controller, 1 charger

The standard tool

1 set of inner hexagon tool wrench and 1 set of outer hexagon tool wrench
