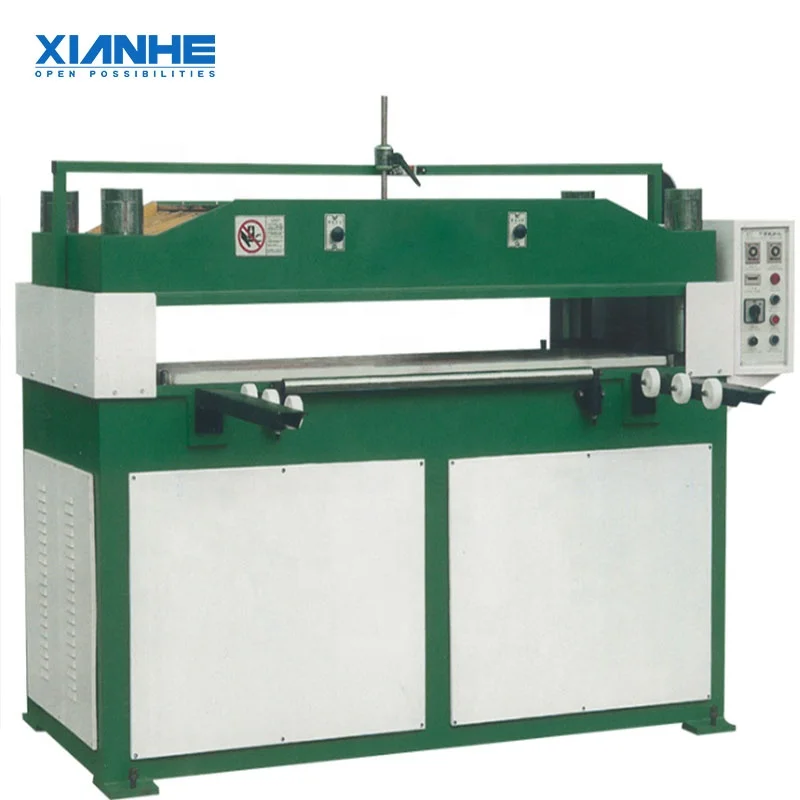

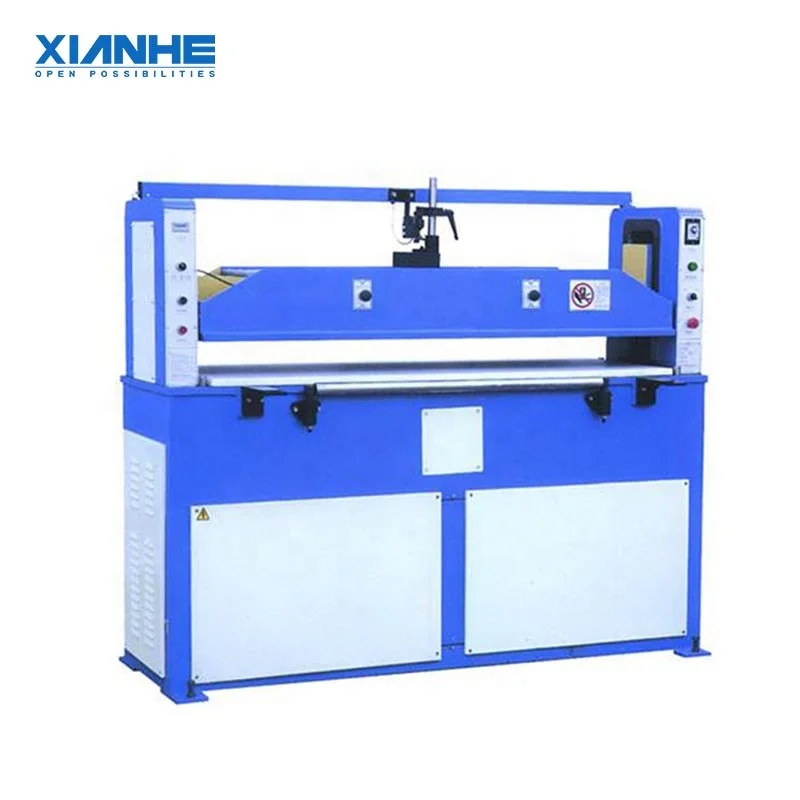

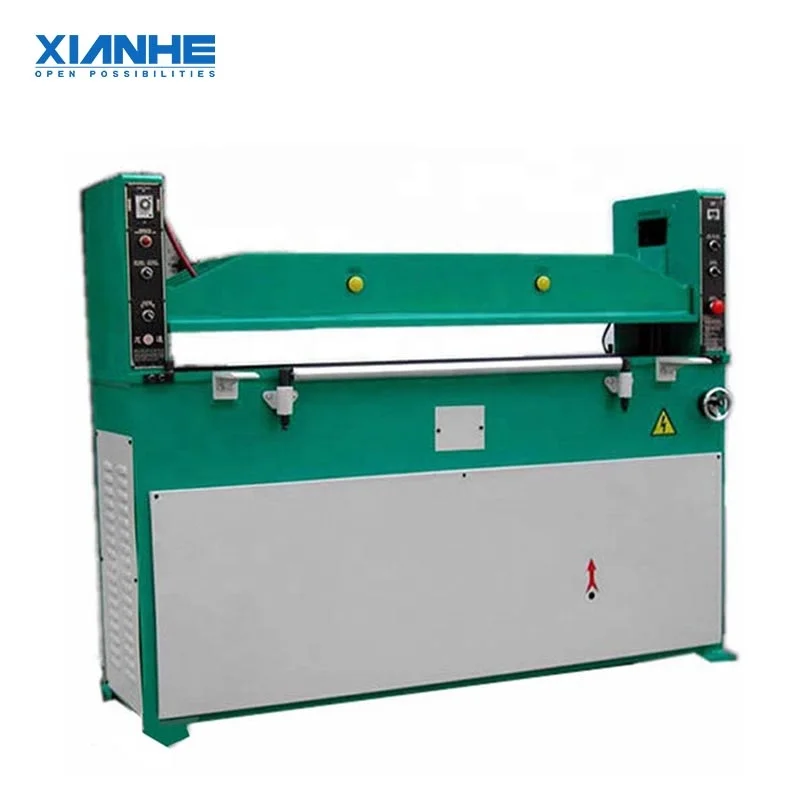

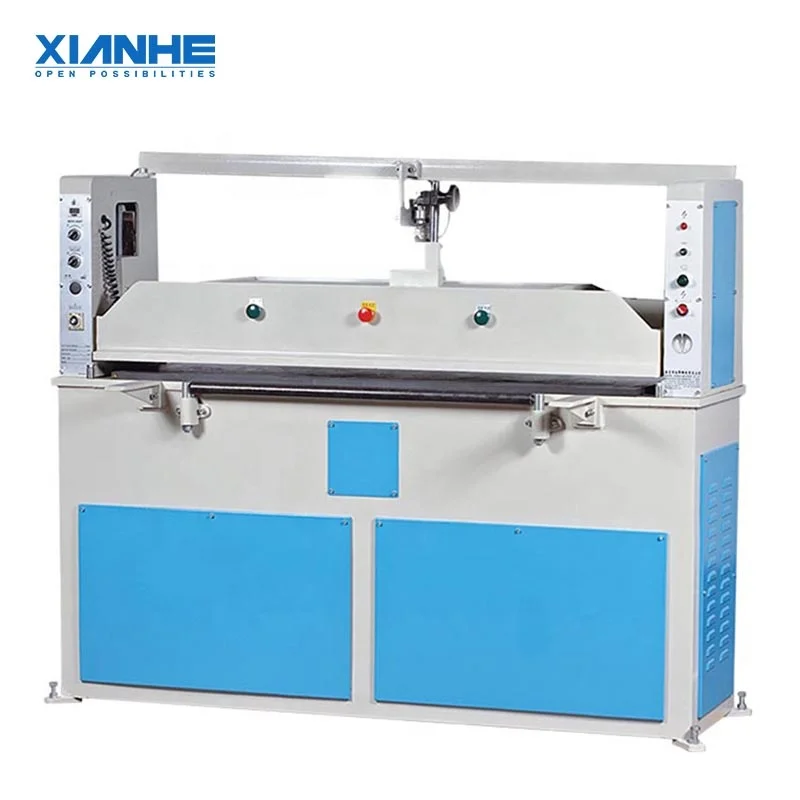

Hydraulic double column plate die cutting machine for flip flop making
- Category: Other Shoemaking Machines >>>
- Supplier: Jiangsu Xianhe Machinery Manufacturing Co. Ltd.
Share on (60805155492):
Product Overview
Description
Product Description
1. The cutting press is suitable for cutting various nonmetal materials, such as leather, EVA, Foam, Rubber, Pu Clothing Material,Tumbling Pu Clothing Leather and so on.
2. Adopt double oil cylinder, precise double crank connecting rod mechanism, which can guarantee that the cutting depth at every cutting position is same.
3. It can support single-side or double-side automatic feed attachment and raise the working efficient of the whole machine by two or three time.
4. When the cutting board of die cutting machine contacts the die cutter, it will carry out slow cutting, so that ensure there is no size error between the uppermost layer and lowermost layer of cut materials.
5. The materials are driven by the servo motor and input from one side of machine, and after die cutting, output from the other side, which can guarantee accurate feeding and stable operation.
6. With special setting of mechanism, and in conjunction with die cutter and cutting depth setting,the travel adjustment is simple and accurate.
7. Center automatic lubrication system can guarantee the precision and can raise abrasive resistance.
8. We will meet the customers’ needs, making the Bag hydraulic precision four-column die cutting machine on request.
2. Adopt double oil cylinder, precise double crank connecting rod mechanism, which can guarantee that the cutting depth at every cutting position is same.
3. It can support single-side or double-side automatic feed attachment and raise the working efficient of the whole machine by two or three time.
4. When the cutting board of die cutting machine contacts the die cutter, it will carry out slow cutting, so that ensure there is no size error between the uppermost layer and lowermost layer of cut materials.
5. The materials are driven by the servo motor and input from one side of machine, and after die cutting, output from the other side, which can guarantee accurate feeding and stable operation.
6. With special setting of mechanism, and in conjunction with die cutter and cutting depth setting,the travel adjustment is simple and accurate.
7. Center automatic lubrication system can guarantee the precision and can raise abrasive resistance.
8. We will meet the customers’ needs, making the Bag hydraulic precision four-column die cutting machine on request.
Features and Advantages
1.Operation is labor-saving, simple, low failure rate, strong cutting power, and fast cutting speed
2.The spindle is equipped with a self-lubricating bearing that reduces wear and extends service life.
3.The die setting is simple, and the height of the die is easy to adjust, accurate and fast.
4.Special specifications of products can be customized.

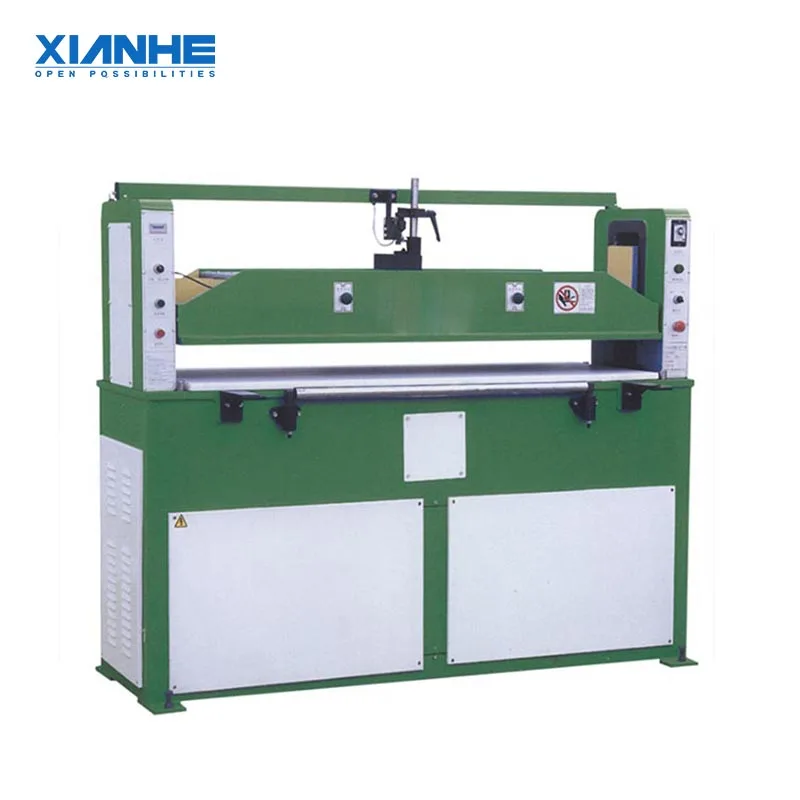

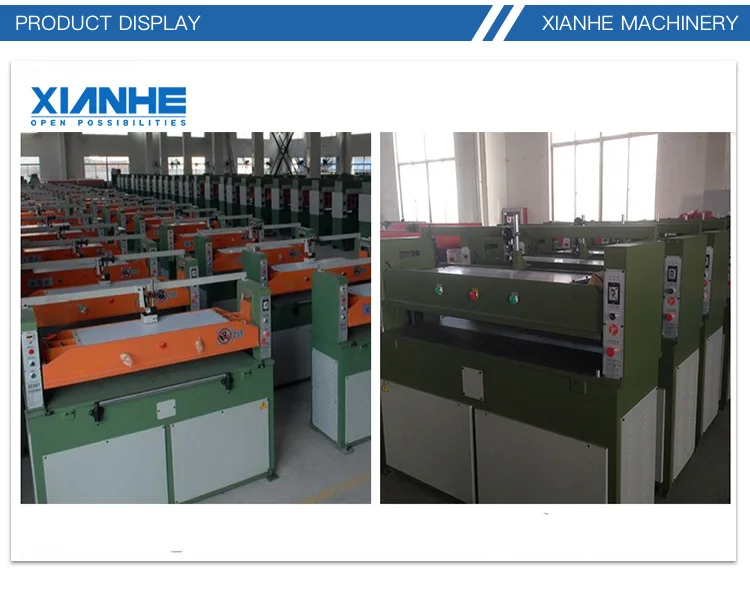

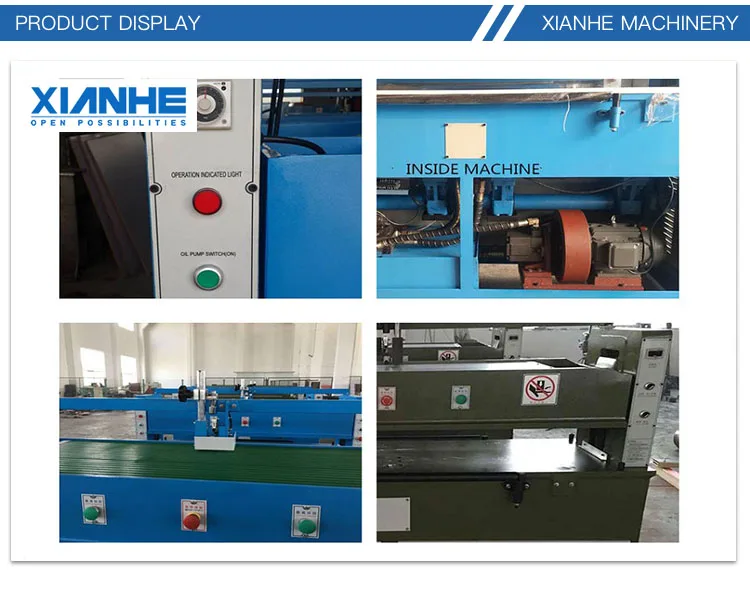

Detailed Images
Size Information
Model # | XCLP3-25 | XCLP3-30 |
Cutting Force | 25T | 30T |
Dimension (L*W*H) | 1850*600*1600mm | 1850*600*1600mm |
Effective area of work table | 1600*550mm | 1600*550mm |
Pressing Plate Size | 1600*520mm | 1600*520mm |
Main Motor Power | 2.2kw | 2.2kw |
Stroke Control Range | 10-100mm | 10-100mm |
Net Weight | 1400kg | 1450kg |
