energy saving series inverter 400KWH 1T induction aluminium melting furnace induction oven
- Category: >>>
- Supplier: Luoyang Wanle Electrical Equipment Co. Ltd.
Share on (60805170138):
Product Overview
Description
\t\t\t\t\t\t\t\t\tProduct Description \t\t\t\t\t\t\t
Our factory also have less cost aluminium shell induction furnace, this type furnace with aluminium shell have same melting speed compared to steel shell furnace.
FEATURES:
1.High quality aluminium shell cover, looks magnificent and beautiful, the aluminium shell cover has small weight and can be easily installation and operate, maintenance.
2. easy installation and maintenance for aluminium shell induction furnace set. Even though simple weld steel structure can
support the aluminium shell furnace body for melting.
support the aluminium shell furnace body for melting.
3. less cost and same efficiency than steel shell induction furnace.
4.reducer control automated pouring furnace body.

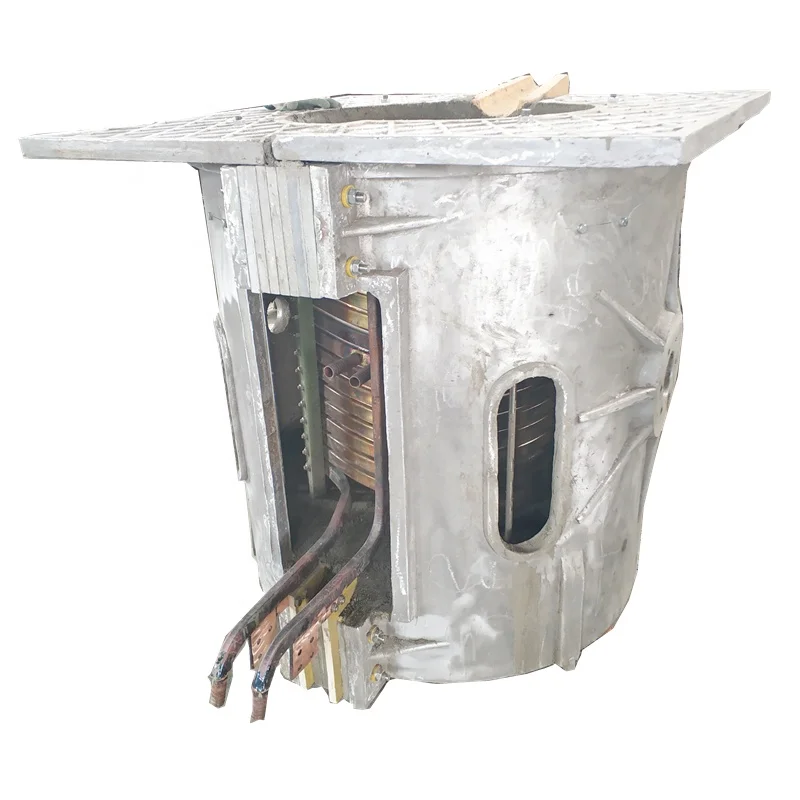

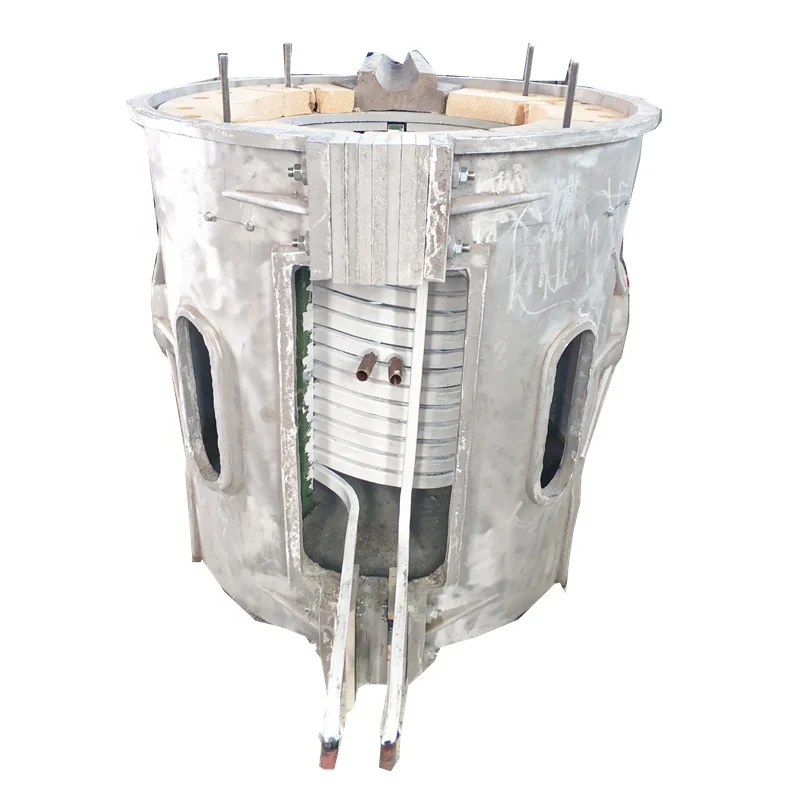

5. Induction copper coil:
Designed after scientific calculated, the coil assembled from a solid, durable and highly conductive T2 copper tube. The copper tube from Chinalco Luoyang Copper Co., Ltd brand. The water-cooled coil and the effective coil are integrally formed by a copper tube without segmentation. The two adjacent copper tubes of the induction coil are strictly insulated and adopt advanced segmentation technology. An insulating sheet is implanted between adjacent induction coils. After the insulating varnish sprayed, it becomes a complete structure, and is pressed by the upper and lower steel structures in the furnace body, and the overall structure is firm and has no deformation problem. The coil turns are appropriate to achieve maximum electrical efficiency.
The coil is supplied with cooling water from a plurality of water paths and evenly distributed. The outside of the coil is tightly wound with an insulating material. The inter-turn arc-shaped insulating spacers ensure uniform coil spacing and facilitate moisture removal.
The coil is supplied with cooling water from a plurality of water paths and evenly distributed. The outside of the coil is tightly wound with an insulating material. The inter-turn arc-shaped insulating spacers ensure uniform coil spacing and facilitate moisture removal.
\t\t\t\t\t\t\t\t\tDetailed Images \t\t\t\t\t\t\t
Product Parameters
NO. | Quantity | ITEM |

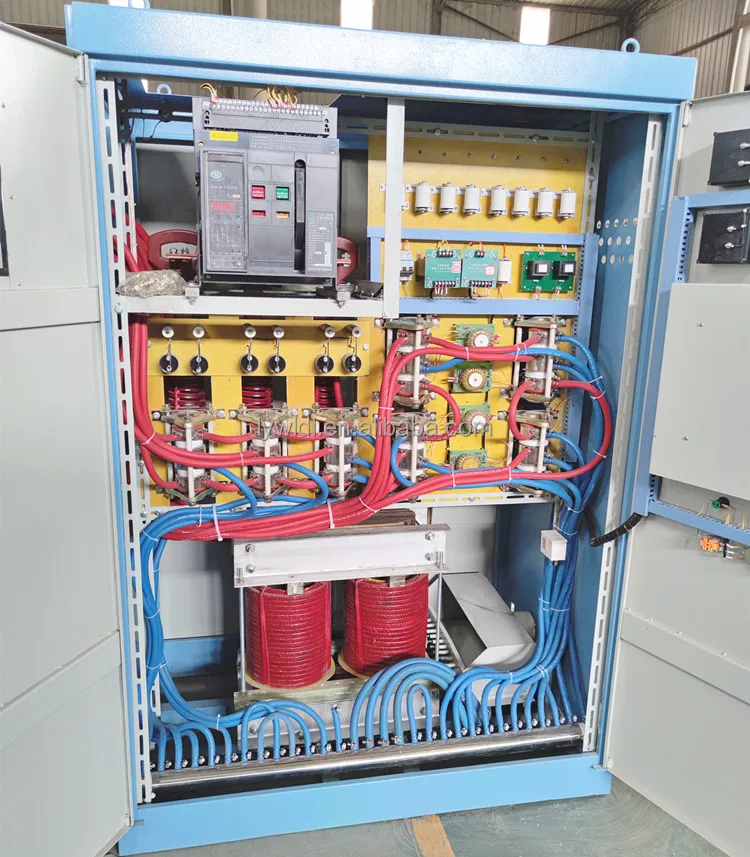

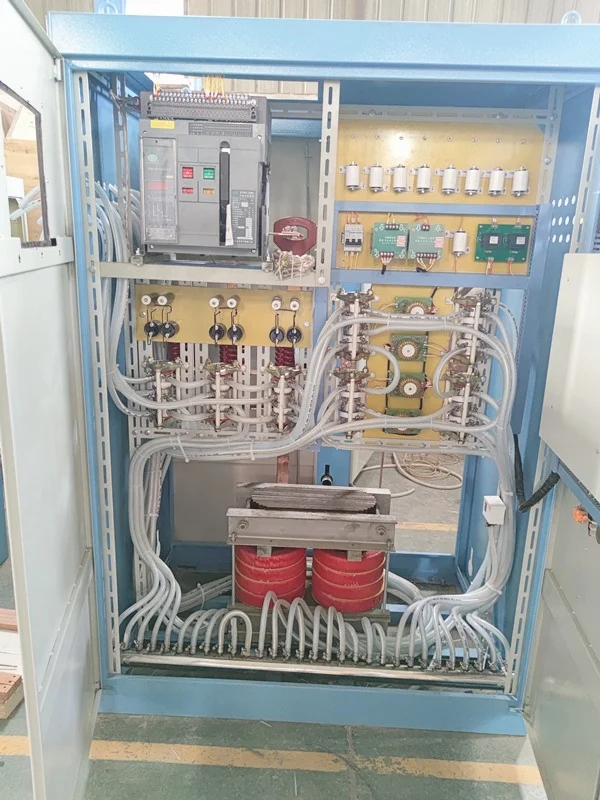

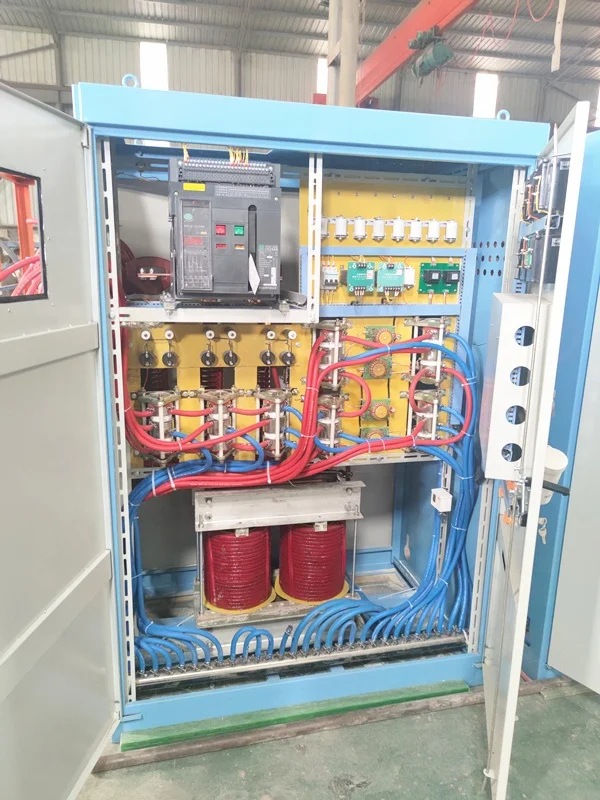

1 | one set | 500KW(One set), 100HZ output power supply cabinet |
2 | Two | Induction melting Furnace body with reducers |
3 | one set | Capacitor Assembly bank(Water cooling) |
4 | Two | Water cooled cables |
5 | one set | Technical documents, drawings and operation manuals |
6 | one set | Necessary spare parts for power supply cabinet |
Product Advantage
NO. | ITEM | SUPPLIERS AND MANUFACTURERS |
1 | Silicon controlled thyristor | TECH SEMICONDUCTORS |
2 | capacitors | Xinanjiang power capacitor limited WEIWEI Brand |
3 | Coil tube T2 | Chinalco Luoyang Copper Co., Ltd |
4 | Copper bar T2 | Chinalco Luoyang Copper Co., Ltd |
5 | Power cabinet air circuit breaker | Zhejiang Zhaoyu |
6 | water tubes | Super air water hose Korea Hantouch |
7 | Main Circuit board | Self made |
8 | Pulse board | Self made |
1.Advanced electronic circuit control, with over-voltage, over-current, limiting pressure, current limiting, lack of phase, undervoltage, underwater pressure, phase sequence automatic identification, cooling water temperature alarm protection and many
other protection features. Power factor automatic adjustment function. From the cold charge to the heating during the entire cycle
regardless of how the furnace conditions change can be achieved, automatically maintain the power to the furnace, so that the
maximum amount of molten metal per kilowatt, shorter same power heating time, increasing profits of manufacturers,increased labor productivity.
other protection features. Power factor automatic adjustment function. From the cold charge to the heating during the entire cycle
regardless of how the furnace conditions change can be achieved, automatically maintain the power to the furnace, so that the
maximum amount of molten metal per kilowatt, shorter same power heating time, increasing profits of manufacturers,increased labor productivity.
2. Control line dedicated integrated box and high pressure area are fully isolated, keep the control room clean and cool. Greatly
improve the control circuit board life and system reliability.
improve the control circuit board life and system reliability.
3.High-power converter devices preferred from international and domestic well-known manufacturers, let them run at 50% of the rated capacity, so with 100% design safety factor, increasing the overall system reliability.
4.The equipment uses large air cooling copper, compared with the water-cooled copper, more energy for heating, increased efficiency, don't need maintenance. 5.Power start using zero voltage sweep start, no impact, in the state of no-load, heavy load,
cold steel and other states can be reliable from the dynamic, stable and reliable, trouble-free for a long time and facilitate to
maintenance.
cold steel and other states can be reliable from the dynamic, stable and reliable, trouble-free for a long time and facilitate to
maintenance.
Product packaging
The whole equipment finished full and completely covered by container to delivery. The equipment will fixed by our factory in container to prevent damaged by crash in the delivery process. Small capacity furnace packaged by Plywood Case or as customers' request.
\t\t\t\t\t\t\t\t\tCertifications \t\t\t\t\t\t\t
After Sale Service
Installation and commissioning
The user should first according to our foundation and plane layout to layout the foundation for the building, in accordance with
the drawings and use the instructions to install the furnace and the power supply in place, water, circuit materials prepared
completely. We dispatch engineers to guide equipment installation,and responsible for Commissioning, When training and
installation need pay wage to engineers.
the drawings and use the instructions to install the furnace and the power supply in place, water, circuit materials prepared
completely. We dispatch engineers to guide equipment installation,and responsible for Commissioning, When training and
installation need pay wage to engineers.

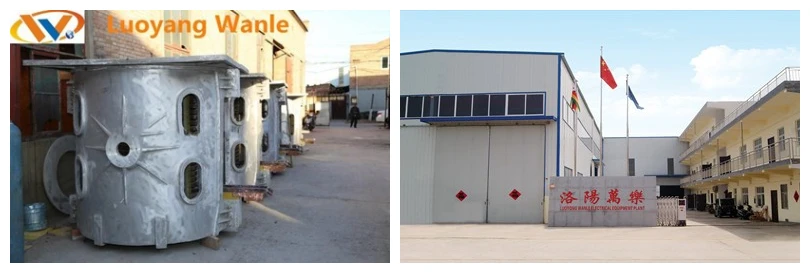

Company Profile
Our factory mainly products Intermediate frequency electric furnace(heating equipment and smelting equipment).Capacity ranges from 0.15 ton to 50 ton. The company established in 1992 year, as a manufacturer in Luoyang City Of China,has more than thirty years experience of producing electrical equipment. Luoyang Wanle keep up with latest electric induction furnace technologies all the time, twin furnace body working simultaneously 20 minutes once molten with our highest efficiency and have the patent of Mixed Hertz three rectifier inverter induction stirring melting furnace for alloy casting. Series inverter steel melting 550KWH per ton. New design billet induction heating equipment can be less than 300KWH per ton. Graphene new materials manufacturing furnace with technology also can be supplied.
Luoyang Wanle Electrical Equipment Plant is an economic entity registered and established by Luoyang Industry and Commerce Bureau in 1992 with the approval of Luoyang High-tech Industrial Development Zone Administrative Committee. In 1993, it was approved by Luoyang science and Technology Commission as a high-tech enterprise. After thirty years development, our factory also upgraded to Henan Rongke Electrical Manufacturing CO., LTD with new factory more than 7000 square meters.
Luoyang Wanle Electrical Equipment Plant is an economic entity registered and established by Luoyang Industry and Commerce Bureau in 1992 with the approval of Luoyang High-tech Industrial Development Zone Administrative Committee. In 1993, it was approved by Luoyang science and Technology Commission as a high-tech enterprise. After thirty years development, our factory also upgraded to Henan Rongke Electrical Manufacturing CO., LTD with new factory more than 7000 square meters.
