Automatic 5 gallon mineral water filling line
- Category: >>>
- Supplier: Zhangjiagang Fill-Leader Machinery Co. Ltd.
Share on (60805184525):
Product Overview
Description

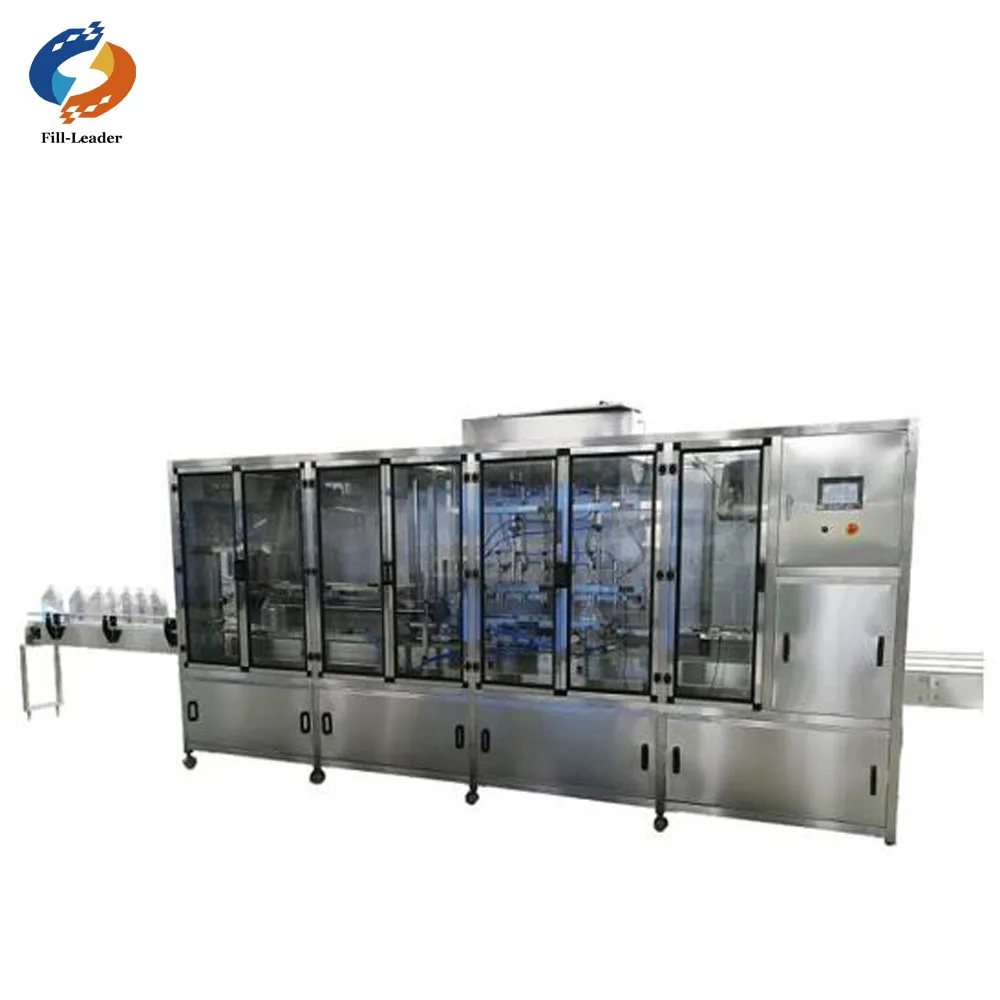

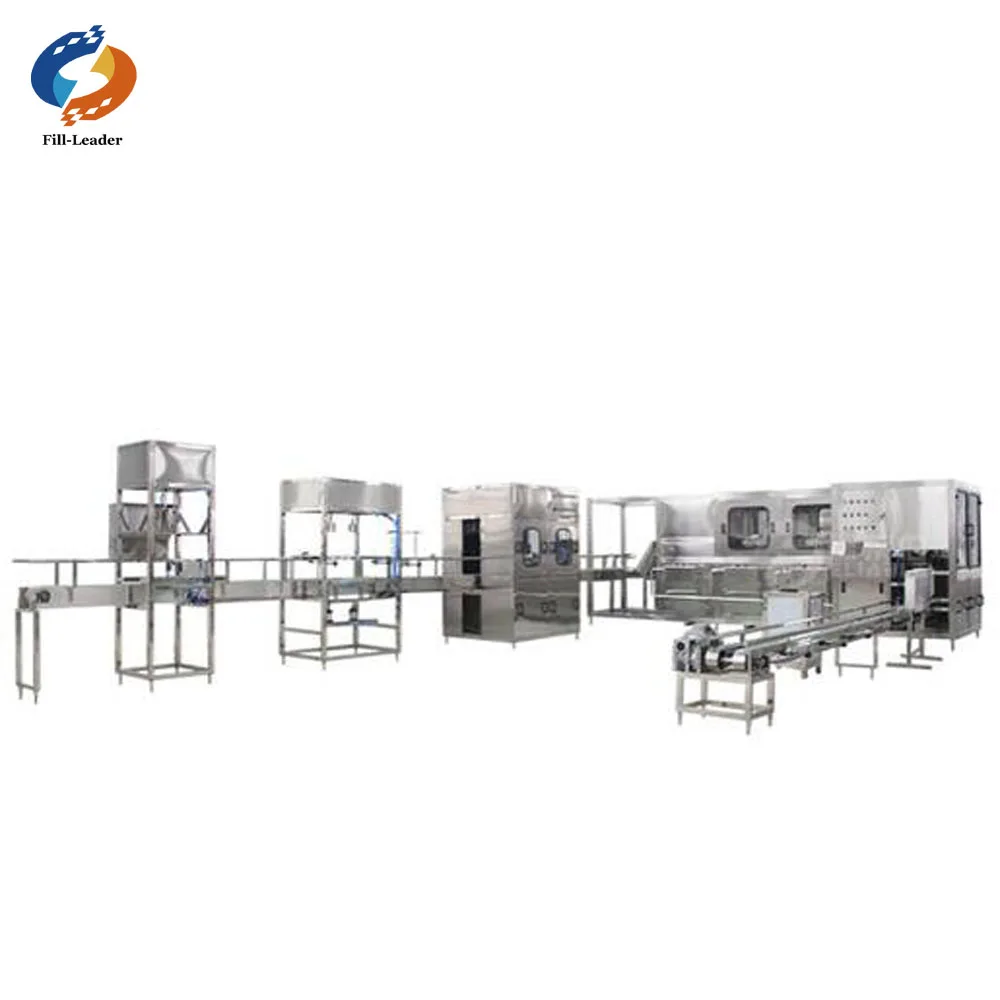

Automatic 5 gallon mineral water filling line
Product Description

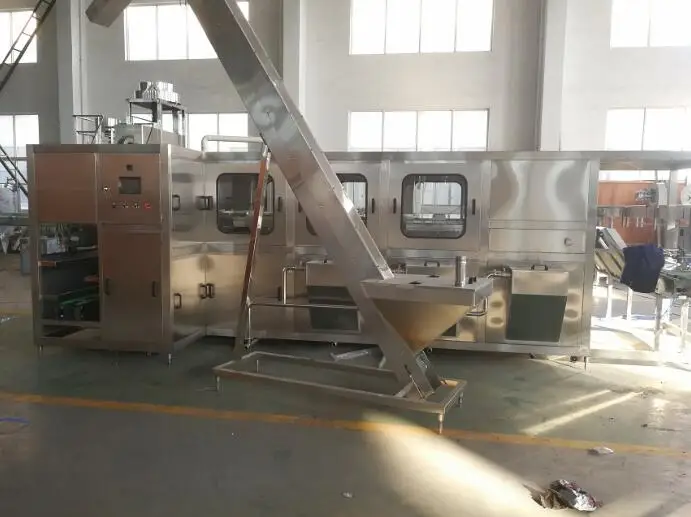

5 gallon water filling line is the core equipment in the 5 Gallon barreled drinking water producing line. It is the ideal equipment for mineral water, distilled water and purified water producing process. The machine is made of excellent stainless steel with the advantage of easily-rinsing and corruption-resistance. The main electrical parts adopt products with brand of SIEMENS and OMRON. Pneumatic parts adopt products with brand of AIRTAC. Both the inner and outer shower nozzle for washing barrel adopt the special technology equipment from American sprayer company. The machine works reliably and efficiently based on the compact structure and high automatic technology. It is the fully automatic barreled water producing equipment combined with machine, electronic and pneumatic components.
Technical Parameter
Detailed Images

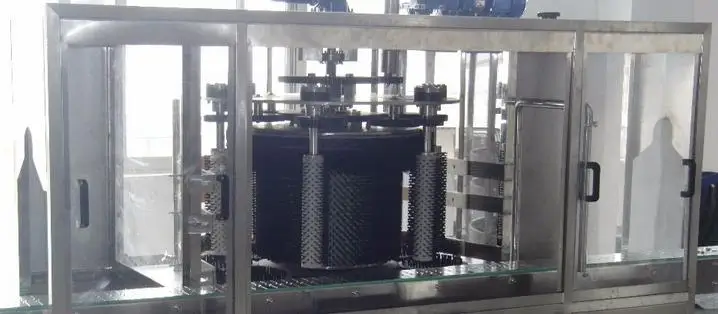

Automatic barrel outer brushing machine specially work with 5 Gallon barreled water producing line. It is used for reducing the settling caused by the mineral water itself and some algae substances in the process of mineral water producing. The machine is made of excellent stainless steel with the advantage of easily-rinsing and corruption-resistance. The main electrical elements adopt the products with brands of SIEMENS and OMRON. Pneumatic elements adopt the products with brand of AIRTAC.
1/Shape structure adopted concave and convex shape,
perfect appearance also reduces the leakage.
2/The thickness of the stainless steel plate which used for 600bph is 3mm.
3/Tank and the heating pipe in tank are removable which become more clean sanitation.
perfect appearance also reduces the leakage.
2/The thickness of the stainless steel plate which used for 600bph is 3mm.
3/Tank and the heating pipe in tank are removable which become more clean sanitation.
1/Uploading and dropping barrels changed from 45 degree to translatory which is more stable.

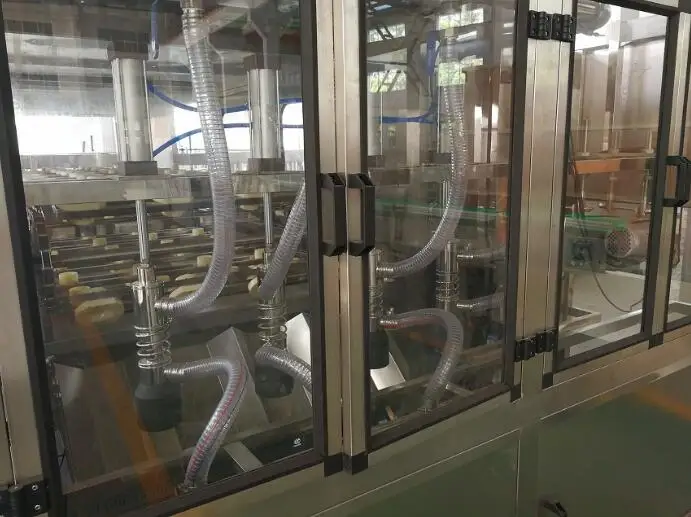

2/Nozzle can insert into 10-15cm of the barrel in order to rinse little impurities down. Rinsing pump is separately controlled by different magnetic valves. Pump only work when there is barrel on that. It can avoid the mixture of different cleaning fluid.
2/Nozzle can insert into 10-15cm of the barrel in order to rinse little impurities down. Rinsing pump is separately controlled by different magnetic valves. Pump only work when there is barrel on that. It can avoid the mixture of different cleaning fluid.
1/Liquid level difference is controlled in 1cm.
2/Machine is equipped with Cap Sterilization system, which is 1.2m. The system make products more clean and safe by using sterilization and finished water.
3/Customers can choose to equip ABB/SEW motor, GRUNDFOS water pump, FESTO pneumatic component.
2/Machine is equipped with Cap Sterilization system, which is 1.2m. The system make products more clean and safe by using sterilization and finished water.
3/Customers can choose to equip ABB/SEW motor, GRUNDFOS water pump, FESTO pneumatic component.
