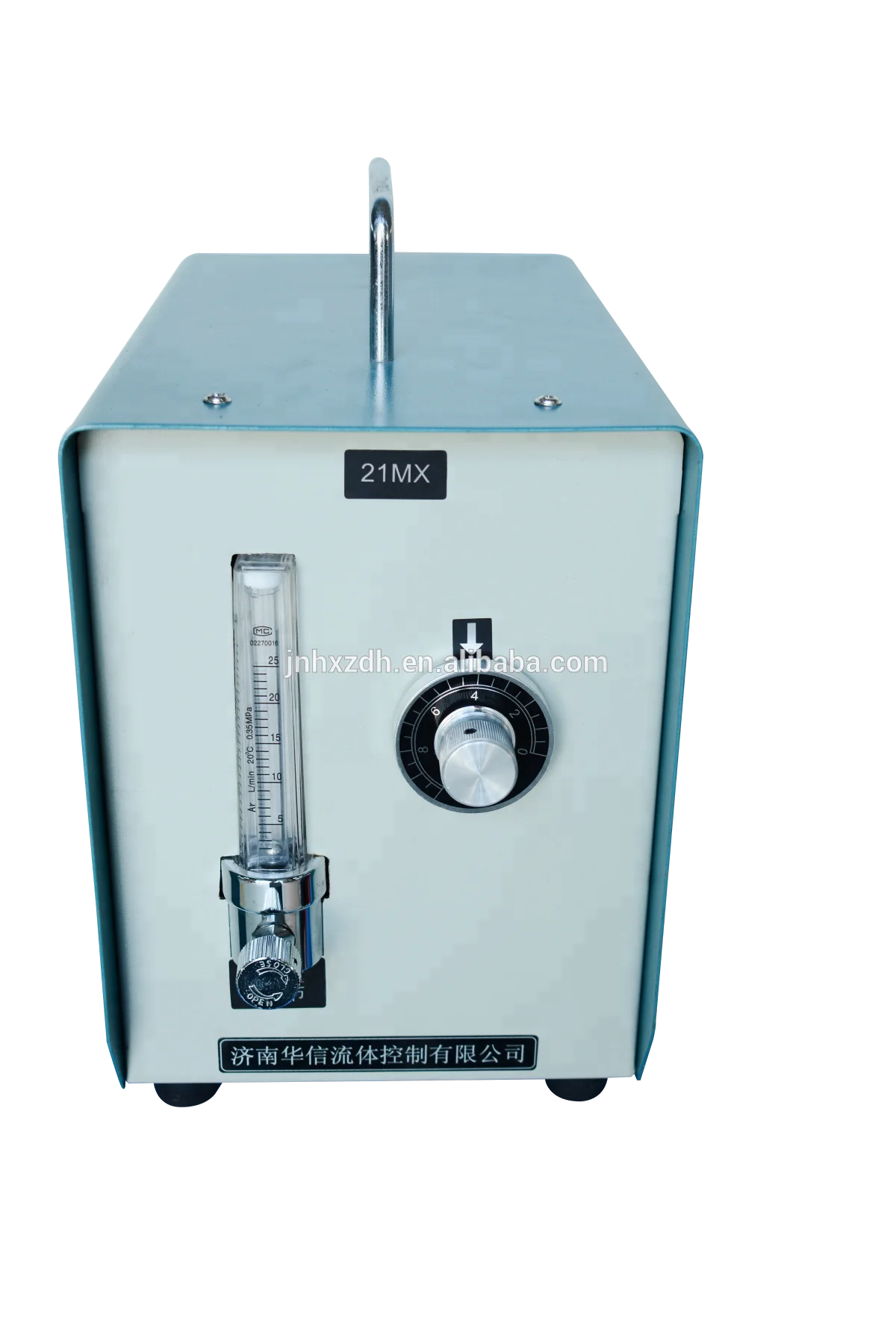

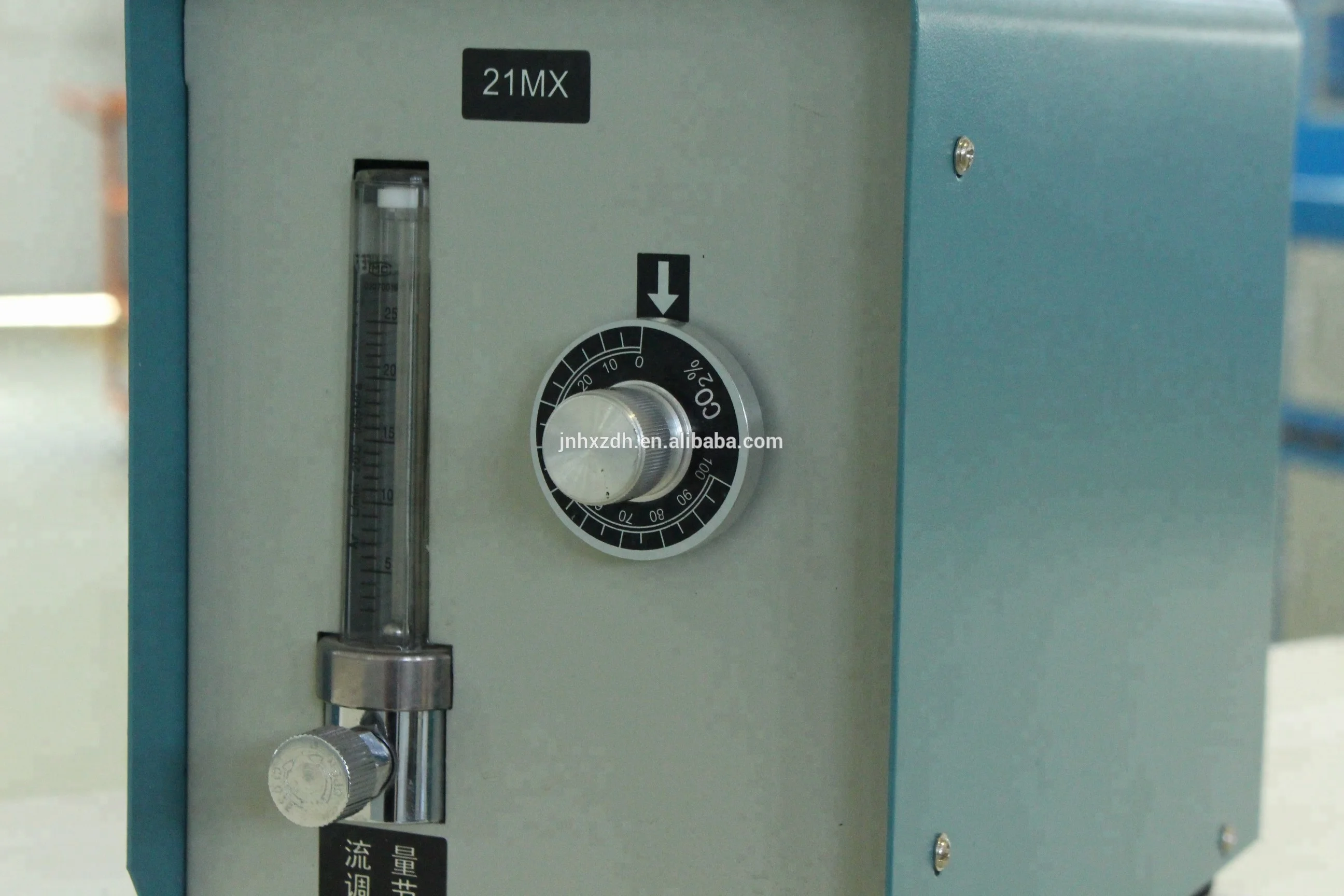

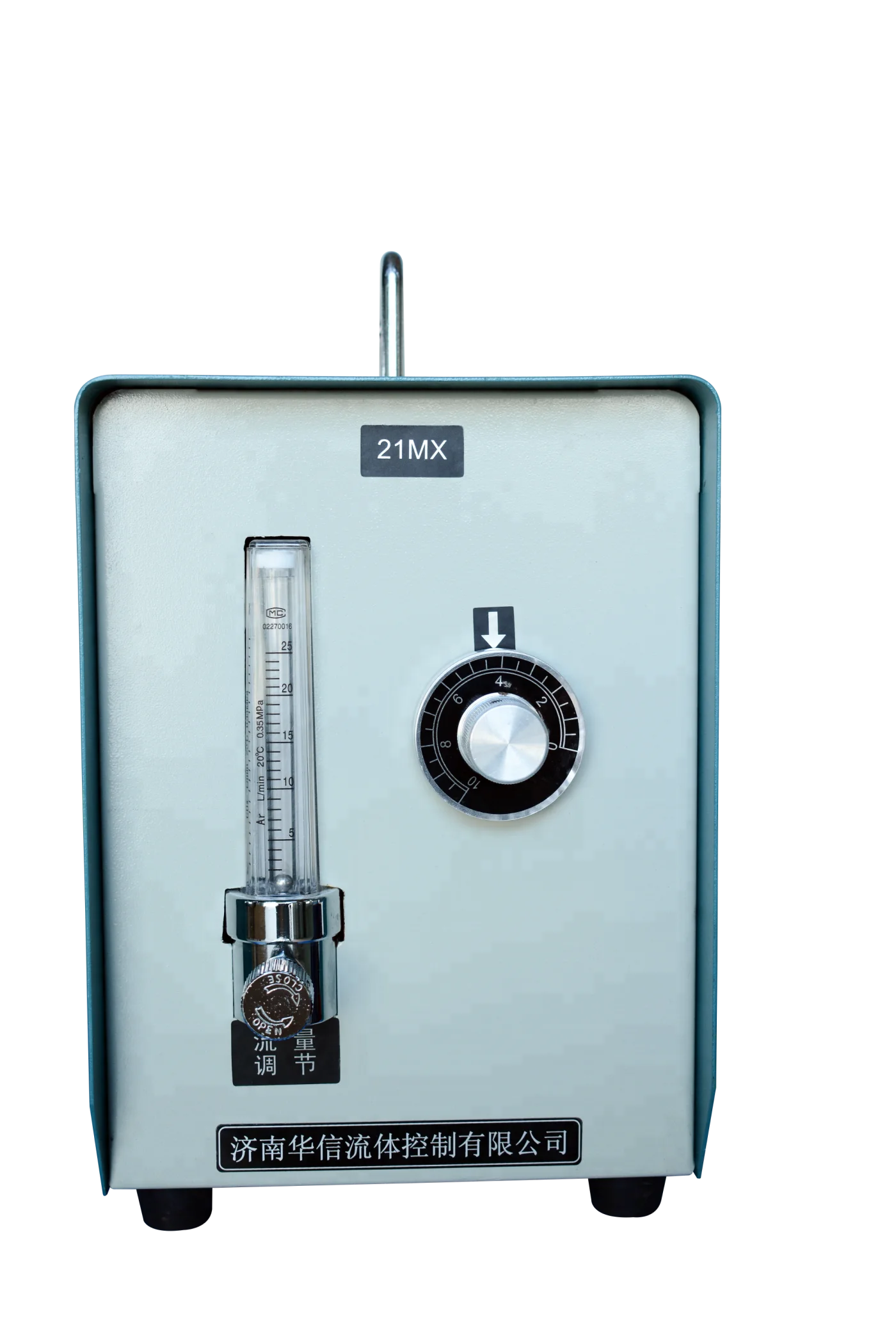

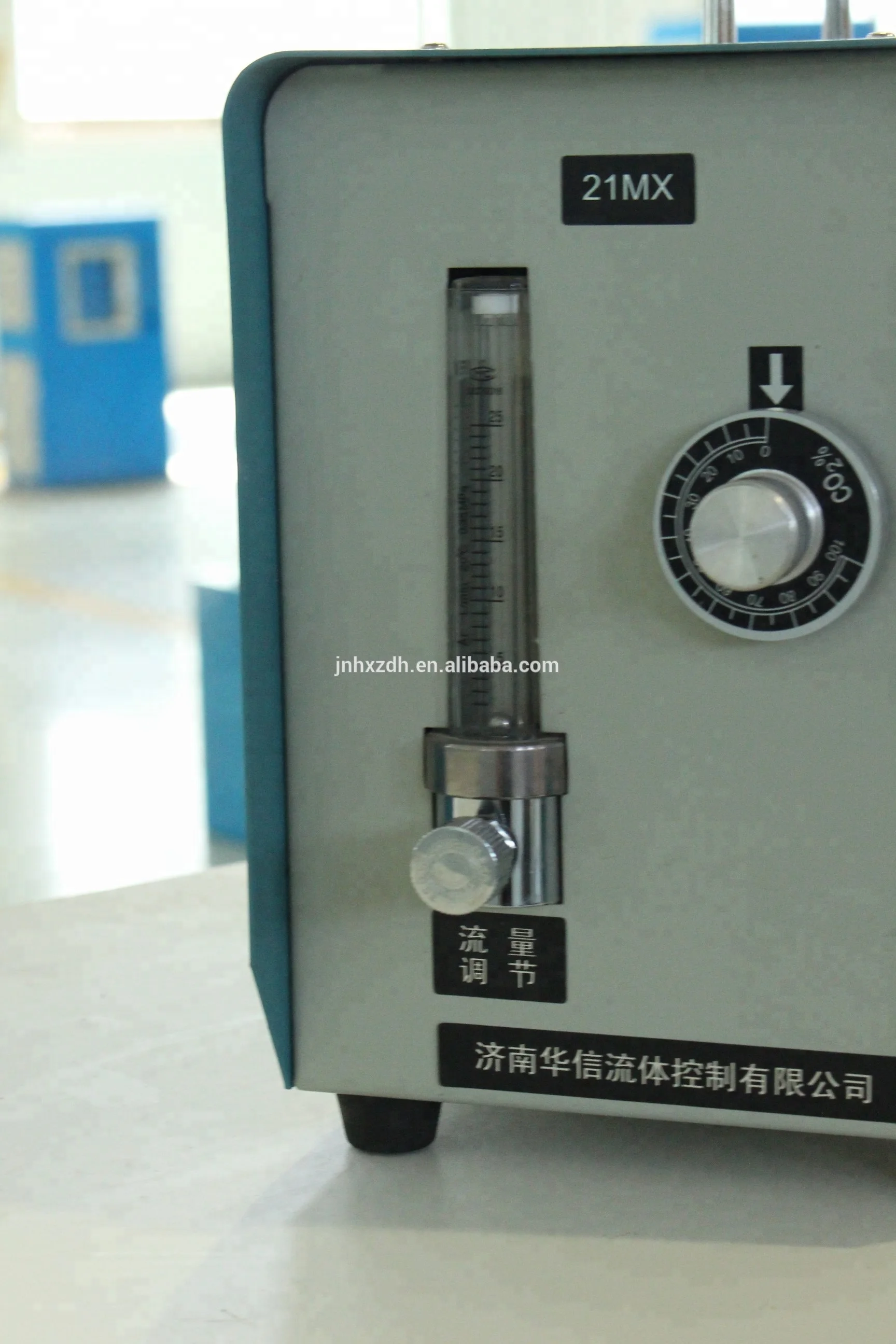

21MX series Gas Mixer/Gas Mixed Proporation Cabinet/Gas Analyzer from Factory

Product Overview

Description

21MX Series Gas Mixer
Models	Applicable Gas	Range of Ratio %	Precision %	Inlet Pressure MPa	Outlet Pressure  MPa	Outlet Flow L/Min	Method of Ratio
21MX-1	Ar+CO2	0-100	±1.0	0.4-0.8	0.3	25	Rotary Knob
21MX-2	Ar+O2	0-10	±0.5	0.4-0.8	0.3	25	Rotary Knob
21MX-3	Ar+He	0-30	±0.5	0.4-0.8	0.3	25	Rotary Knob
21MX-4	Ar+H2	0-10	±0.5	0.4-0.8	0.3	25	Rotary Knob
21MX-5	N2+H2	0-10	±0.5	0.4-0.8	0.3	25	Rotary Knob
21MX-6	N2+Ar	0-50	±1.0	0.4-0.8	0.3	25	Rotary Knob
21MX-7	N2+O2	0-10	±0.5	0.4-0.8	0.3	25	Rotary Knob
21MX-8	N2+CO2	0-50	±1.0	0.4-0.8	0.3	25	Rotary Knob
21MX-9	Air+CO2	0-100	±1.0	0.4-0.8	0.3	25	Rotary Knob



1. Basic Info

Model NO.: 21MX
Condition: New
Customized: Customized
Material: Carbon Steel
Color: Green+Gray
Trademark: Huaxin
Transport Package: Standard Export Packing
Origin: China
HS Code: 8481100001

2. Product Description

2.1 Design Features:

        - Self-developed
       - High-precision
       - Pressure could be adjustable
       - Safe and stable
       - Visualized and High-precision

2.2 Technical parameters:



Model No.:21MX Series



Output Flow	50L/Min
Inlet Pressure	0.4-0.8 MPa
Outlet Pressure	0.3 MPa
Suitable Gas	Ar+CO2/Ar+He /Ar+O2/Ar+H2/N2+CO2 /N2+O2 /N2+Ar /N2+H2and other Two-Element   gases Mixing
Proportioning Range	0-10, 0-30, 0-50, 0-100
Proportioning Precision	±0.5-1.0% (Designing according to constituents of gas and technological requirements)
Connection Type	Stainless Steel Flange
Boundary Dimension	Design according to gas flow
Display	Dial
