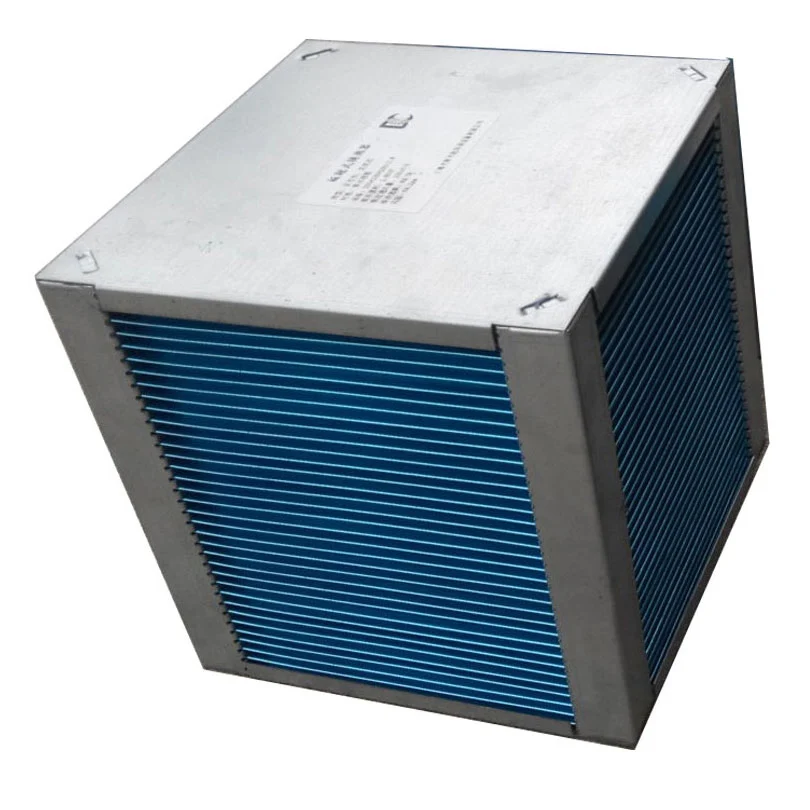

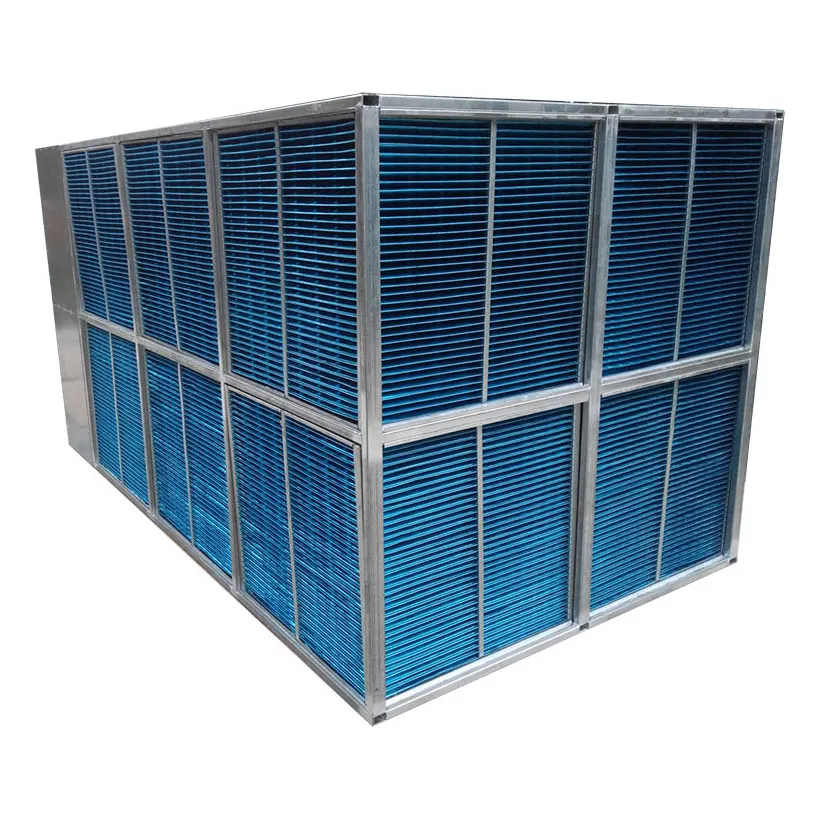

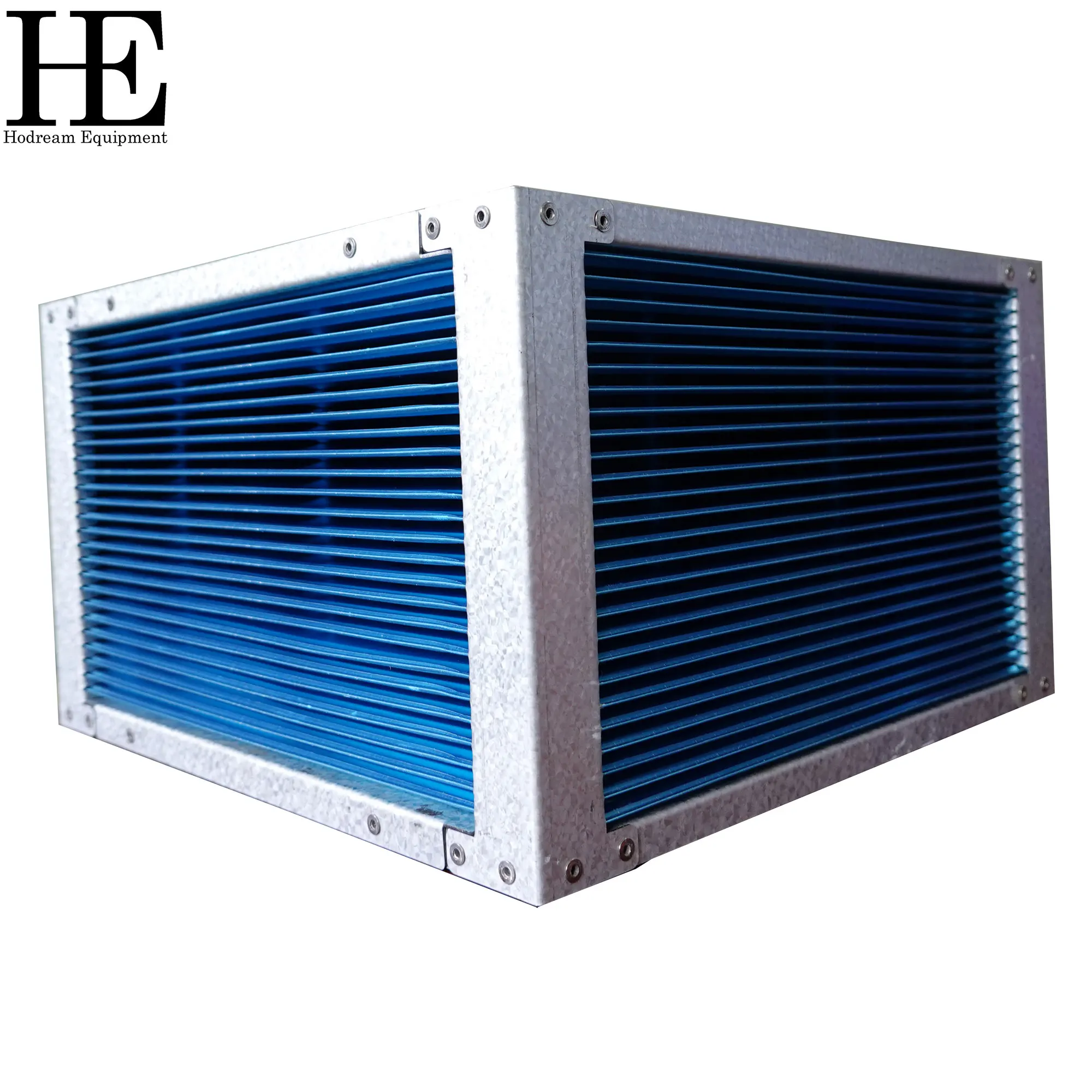

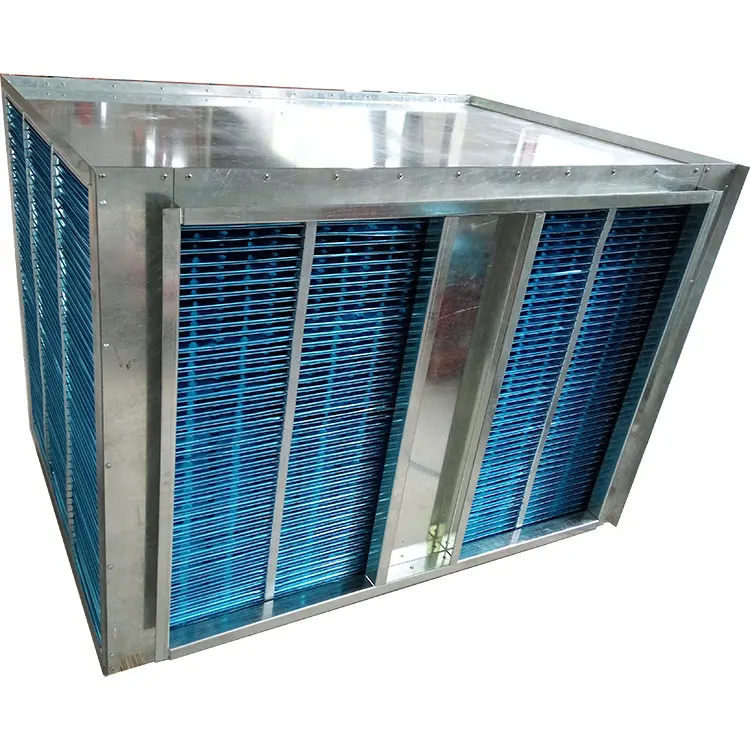

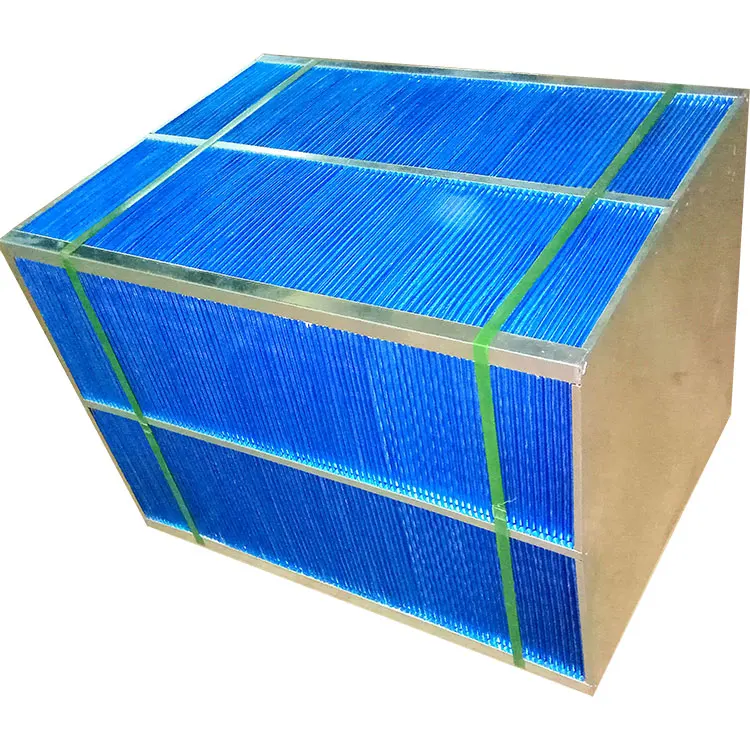

ventilation system crossflow 0.13mm thick aluminum foils sensible heat exchanger

Product Overview

Description

ventilation system crossflow 0.13mm thick aluminum foils sensible heat exchanger

Sensible heat recovery air to air heat exchanger is used in comfortable air conditioning ventilation system and technical air conditioning ventilation system. Supplying air and exhaust air totally separated, heat recovery in winter and cold recovery in Summer. Two neighbor aluminum foils form a channel for fresh or exhaust air stream. Heat is transferred when the air streams flow crossly through the channels, and fresh air and exhaust air is totally separated.



Sensible Heat Exchanger Main Features

1. aluminum foils cross flow sensible heat exchanger

2. anticorrosion hydrophilic coating foil

3. heat recovery efficiency up to 65%

4. 2-side press shaping, double folded edge.

5. resistance of pressure difference up to 1300Pa

6. under pressure of 700Pa, air leakage less than 0.6%

7. Made by flat aluminum foils of 0.11-0.2mm thickness

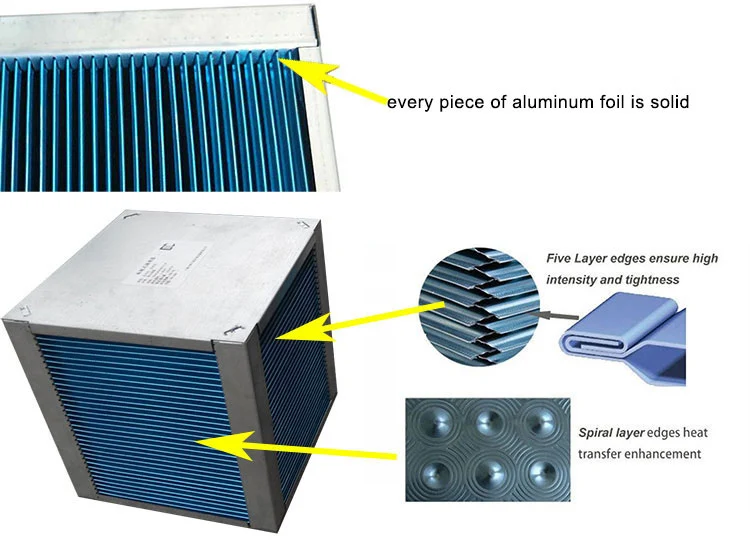

Sensible Heat Exchanger Details



Sensible Heat Exchanger Material Type



standard type

Heat exchanger is made of pure aluminum foils, with galvanized end cover and aluminium alloy wrap angle. Max. air temperature 100°C, it is suitable for most of the occasion.



Anti-corrosion type

Heat exchanger is made of pure aluminum foils cover by special anti-corrosion material, with galvanized end cover and aluminium alloy wrap angle. it is suitable for the corrosive gas occasion.



high temperature type

Heat exchanger is made of pure aluminum foils, with galvanized end cover and aluminium alloy wrap angle. Sealing material is special and allow the Max. air temperature to be 200°C, it is suitable for special high temperature occasion.

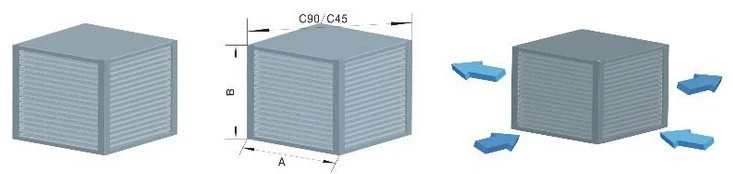

Sizes of Sensible Heat Exchanger

Dimension(mm)			Plate distance
A	B	C90°/C45°	(mm)
according to clients' request	according to clients' request	according to clients' request C90°/C45°	2.0-8.0



Installation of Sensible Heat Exchanger

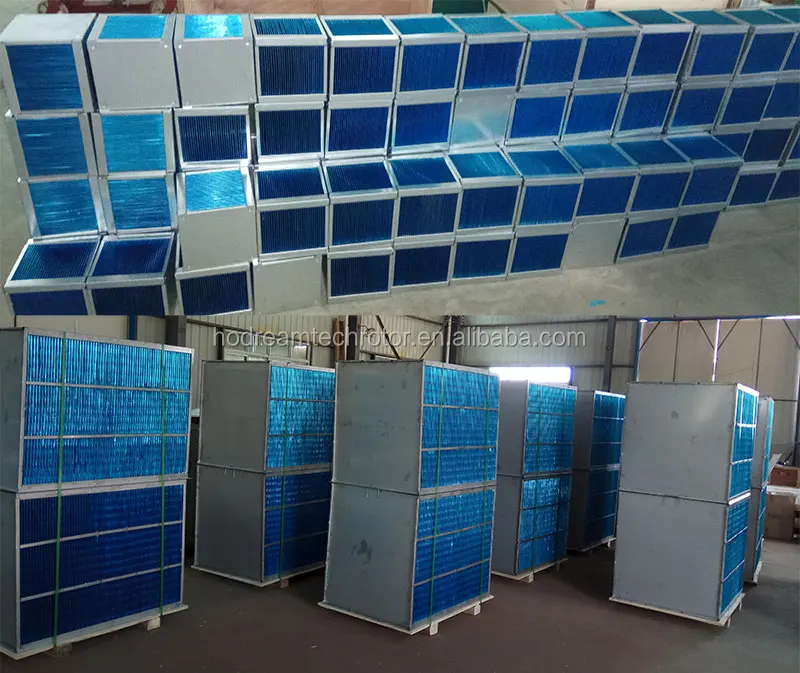

Sensible Heat Exchanger Workshop

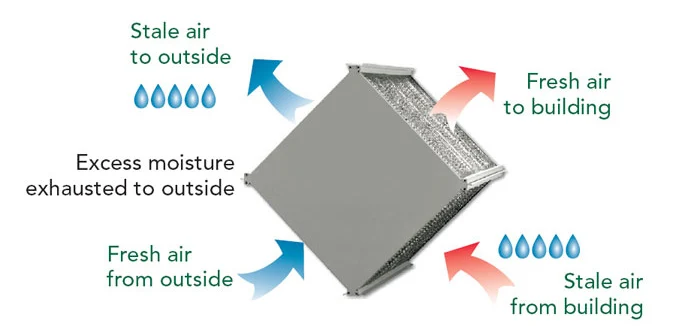

Application of Sensible Heat Exchanger



heat ventilation core is the major part of energy recovery ventilator(KRV), for air volumes up to 30,000 m3/h, include the household and commercial ventilations. The heat exchanger controlled the ventilation, recover the heat energy and moisture in winter, the cold energy and moisture in summer, not only save the energy but also give room for fresh air.



Package & Shipping of Sensible Heat Exchanger





FAQ

1. Q : What are your main products ?

    A : Our mainly produce heat recovery core, heat recovery wheel, energy wheel heat recovery  unit, desiccant rotor, dehumidifer,  etc.



2 .Q: May I get free sample?

    A:Normally, our samples for charger are not free. However, the sample fee will be refunded        when customer place bulk orders for that item.

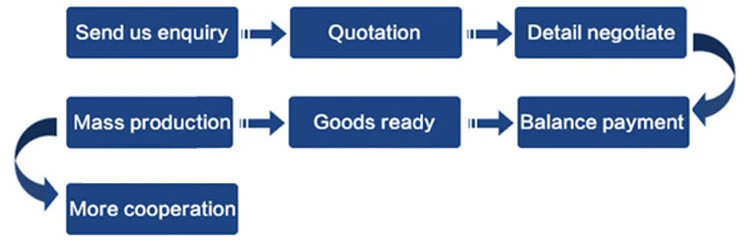

3 .How to got the order?

4. Q: Can you supply OEM or ODM service?

     A:We can supply OEM/ODM service of any charger !



 5. Q: Which shipment available?

    A:Normally, we ship goods by sea, air and express. Special requirement also acceptable.

       By sea to your nearest sea port

       By air to your nearest air port

       By express(UPS,DHL.FEDEX,TNT...) to your door



6. Q : How to guarantee after sale ?

    A : We supply 1 year products warranty. If the item is found to be defective in warranty,please

          contact us as soon sa possible, so that we can help to solve the problem at fastest rate;

          send back to our factory for repairing, or we send new one for you.



Contact Information

E-mail: sales @ hodream.co

            hodream @ vip.163.com

QQ: 2412108818

Skype: beisudakeling

WeChat: hodreamgroup

WhatsApp: +86-13423889933

Tel: +86-755-29985896

MP: +86-13423889933

Please do not hesitate to contact us if you need any heat recovery core heat exchanger
