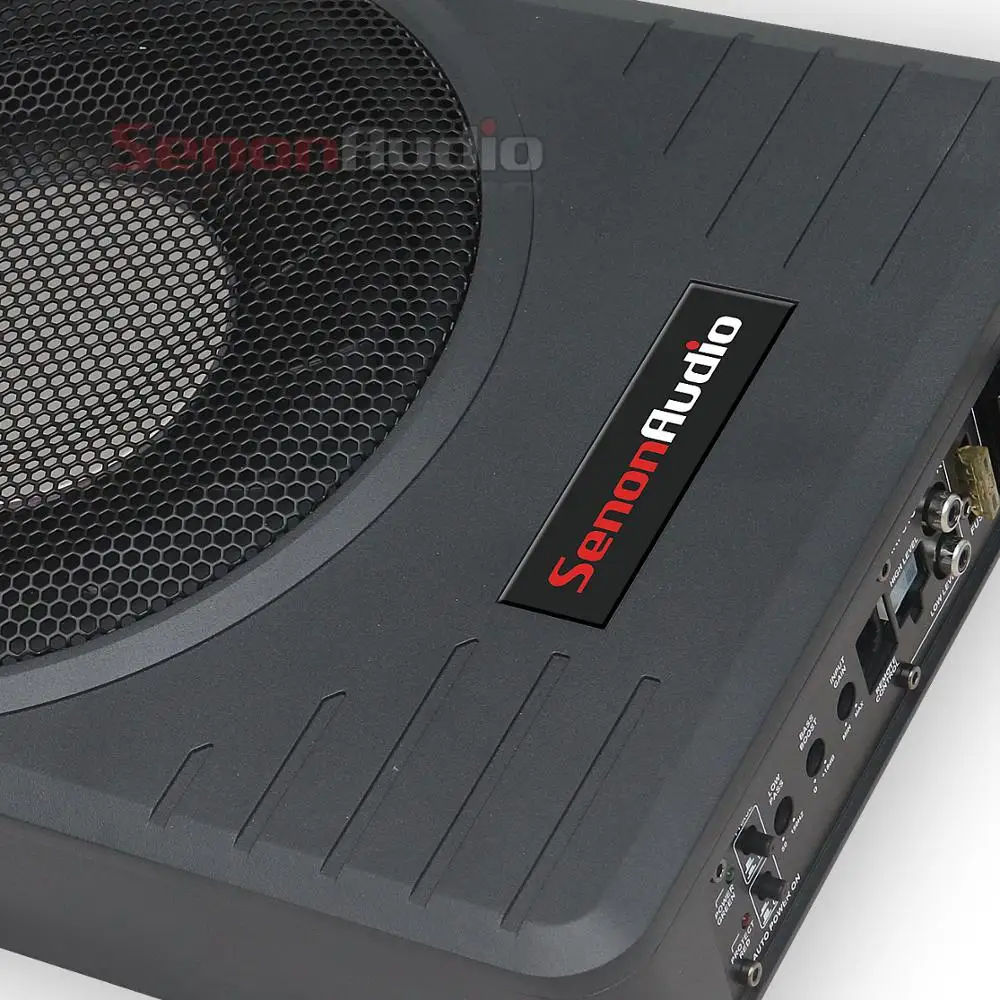

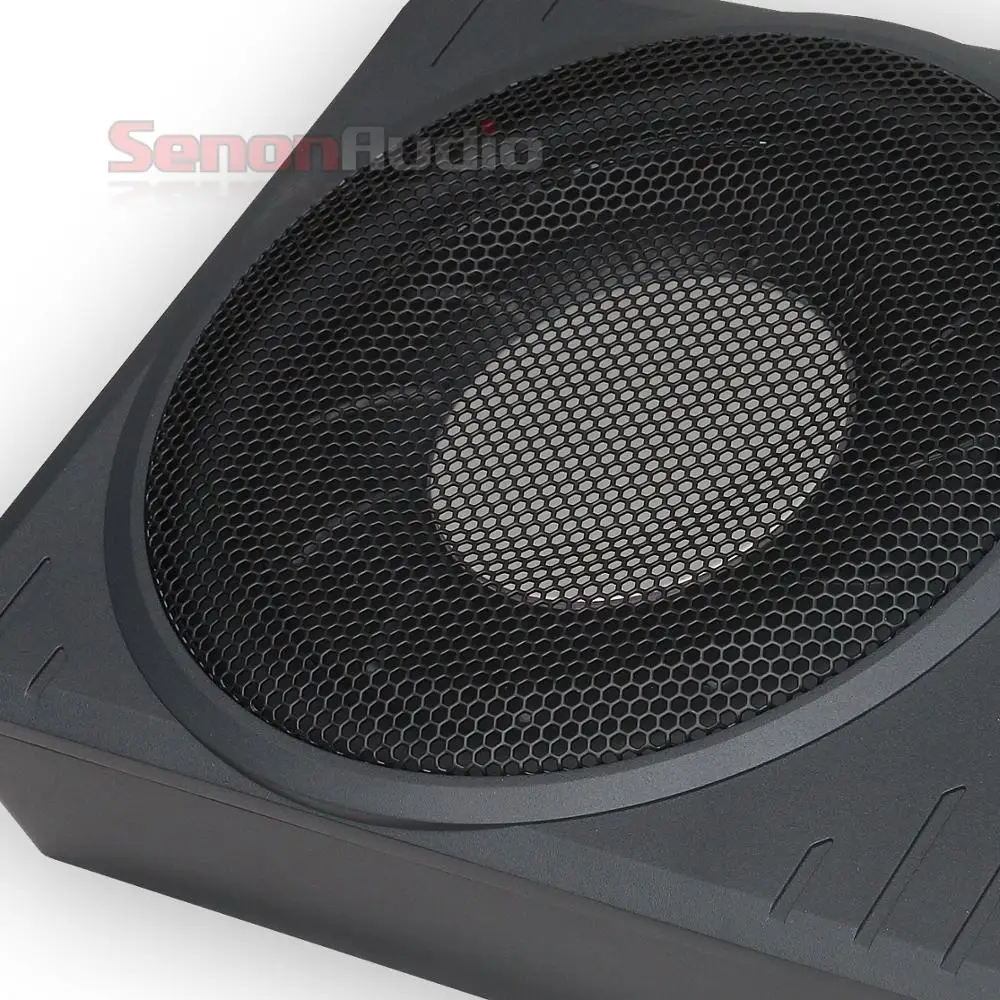

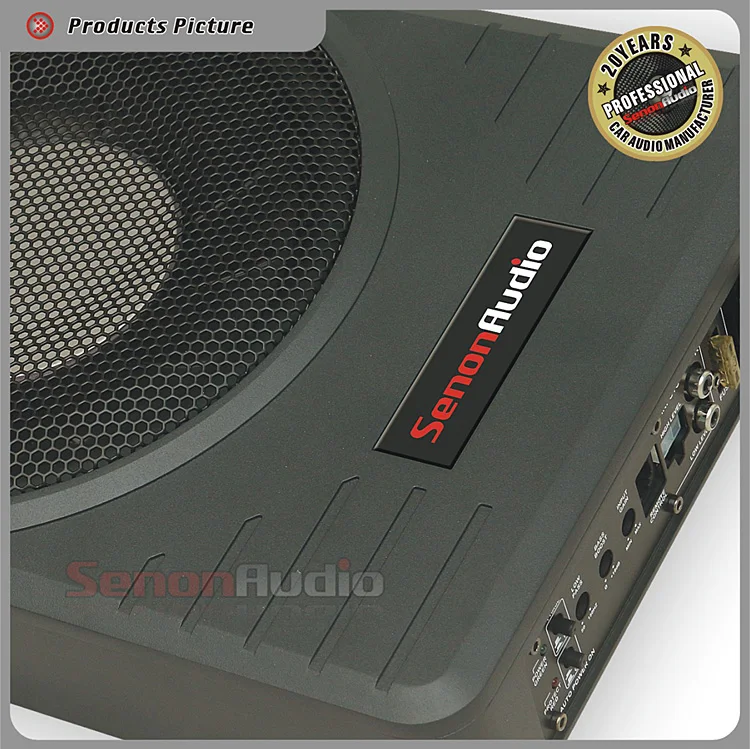

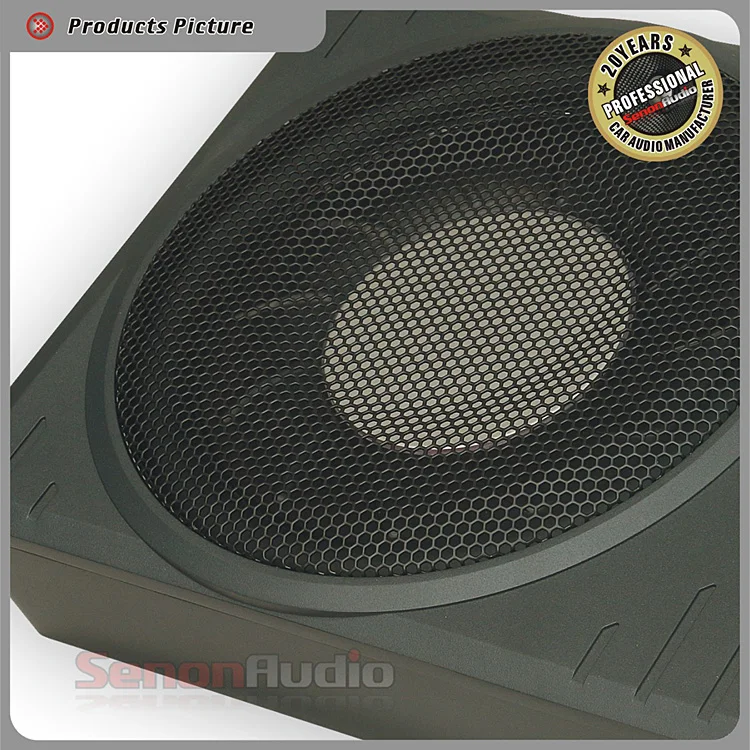

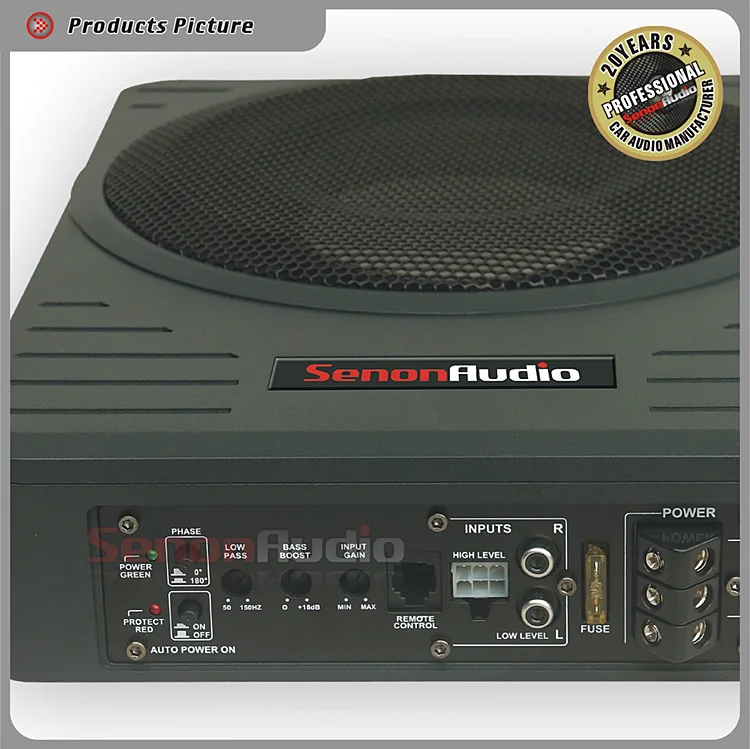

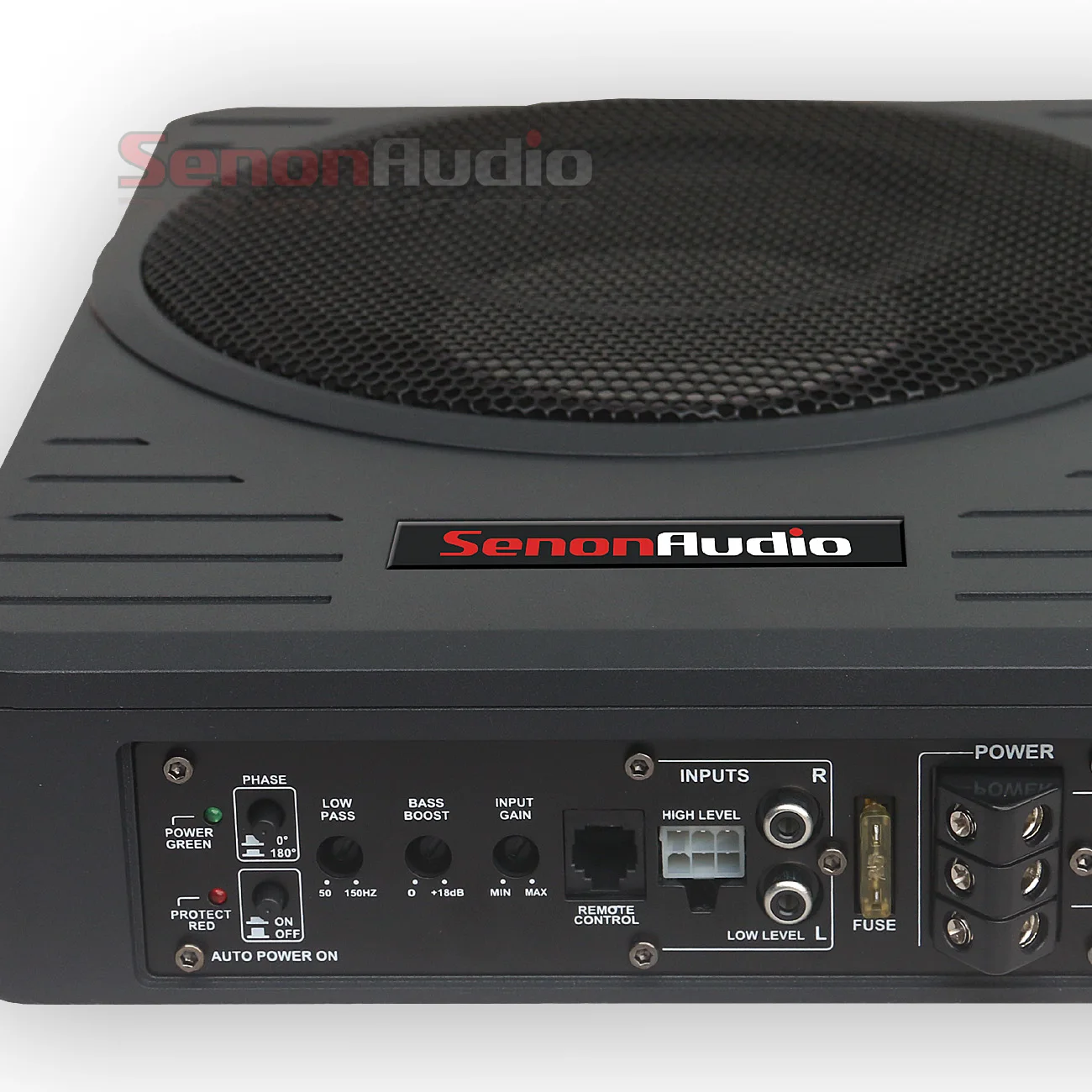

10Inch Aluminum Powered Subwoofer Enclosure 12V Slim Active Under Seat Car Subwoofer Box with Amplifier under seat subwoofer car

Features:

• 10" 400w Slim Under-Seat Active Powered Car/Truck Subwoofer Sub
• Enclosure is made out of cast aluminum which stays cool at all times
• Peak Power Handling: 400 Watts
• RMS Power Handling: 100 Watts
• Heavy Duty Mounting Feet
• PWM MOSFET Power Supply
• Low Level RCA Input
• High Level Inputs with Auto Turn-On Technology
• Adjustable Input Sensitivity
• Soft Delayed Remote Turn-On
• Thermal Protection Circuit, Short Protection Circuit
• Overload Protection Circuit
• Green Power/Red Protect LED
• Phase Switch: 0° or 180°
• Low Pass Filter: 50Hz - 150Hz
• Bass Boost: 0 - 12dB @ 45Hz
• Built in Subsonic Filter @ 20Hz
• THD: < 0.4%
• Subwoofer Level Remote Control

Specifications:

• Peak Power 300 Watts
• RMS Power: 100 Watts
• Impedance: 2 Ohm
• Dimensions (L x W X H): 345x245x70mm
• Frequency Response: 20Hz - 150Hz
• Signal to Noise Ratio: >90dB
• Sensitivity: 90dB @ 1w / 1m
• Input sensitivity, Low level: 300mV
• Input sensitivity, High level: 1.0V

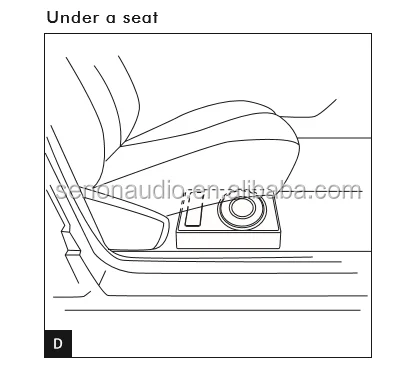

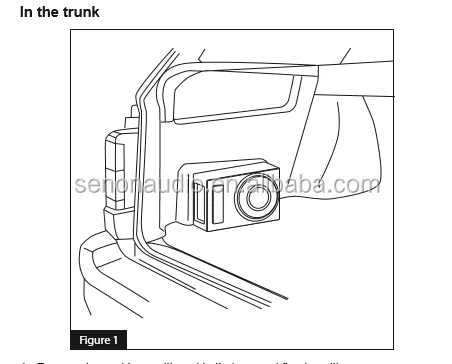

Two Types of Installation Are Possible

Power Connections

1.Connect the ground terminal to the closest point on the chassis of the vehicle. Keep this ground wire to less than 39" (100 cm) in length. Use 8 gauge (or heavier) wire.

2.Connect the remote terminal to the remote output of head unit using 16 gauge ( or heavier ) wire.

3.Connect an empty fuse holder within 18" (45 cm) of the car battery, and run 8 gauge (or heavier) cable from this fuse to the amplifier location. Then connect the fuse holder to the "BATT+" (+12V) connection on the subwoofer rear panel.
