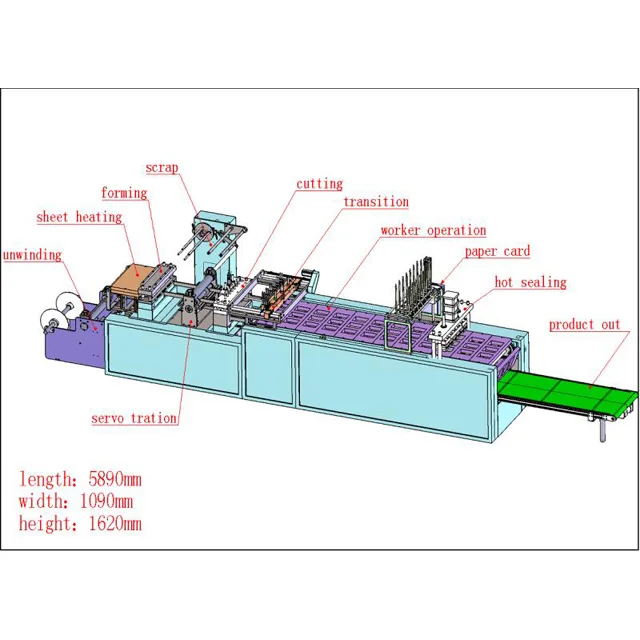

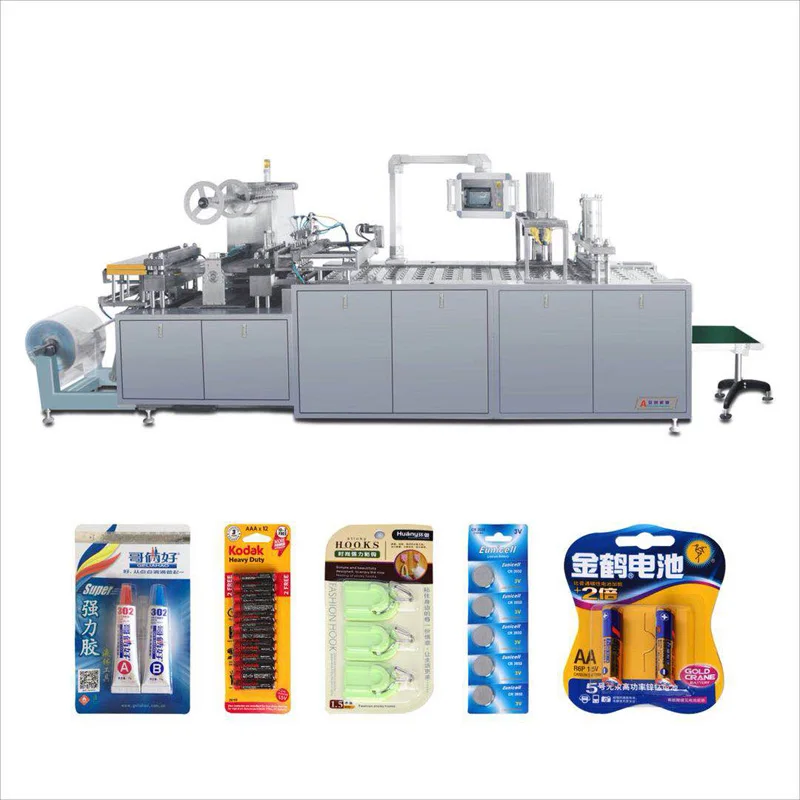

The machine can automatic forming toothbrush blister,droping paper card, hot sealing, cutting, converying finished products out etc.
Technical parameter:
Production speed
15-18 cycles/min
Stroke range
30mm-260mm
Max forming area
500mm*180mm
Max forming depth
35-50mm
Forming heating power
3kw(*2)
Heat sealing power
4.5kw
Total power
13kw
Worker
2 person
Air consumption
consumption ≥0.5m³/min
Air Pressure
0.5-0.8mpa
Packing material(PVC)(PET)
thickness 0.15mm-0.5mm
Max paper dimension
600mm*200mm*0.5mm
Total Weight
2500kg
Machine dimension(L*W*H)
5000*1100*1800mm
Production process
Production process2
Certifications
Company Information
Packaging & Shipping
FAQ

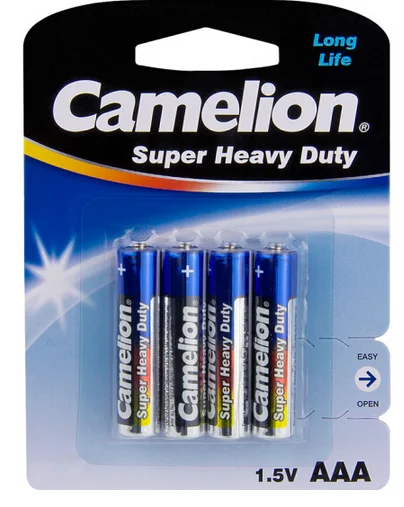

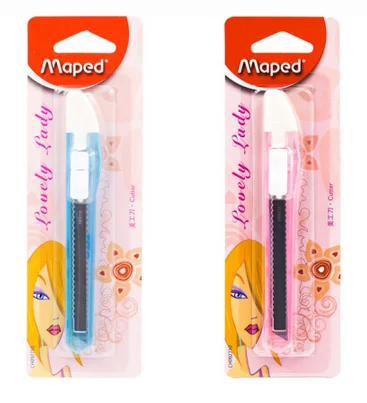

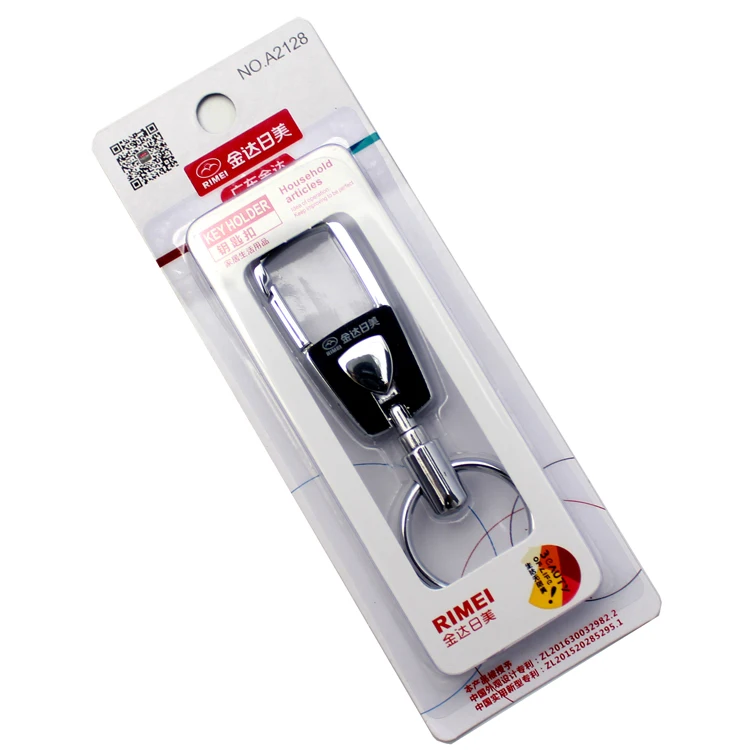

1. What can your machine do? Our machine can pack all kinds of blister and paper cards package that you can see in the supermarket,like the battery,stationery,small products and etc. 2.What size of the package you can make? The forming area is 500x180mm,the depth is 25mm and
other different sizes according to customer's requirements. 3.what about the payment term ? We accept T/T, L/C,cash and credit card(paypal) 4.What information should I offer if I want to get a quotaion? - Speed requirement
- machines requirement
-it is better you can show us the pictures of your sample
5.how to get to your factory?
Our factory is located in No.8 Jingye road developed zone of ruian city
Zhejiang province china,and we can pick up you from wenzhou airport
