Power management IC(3.3V/5V/Adjustable Output, step up dc dc Converters) development kit MAX756/MAX757
- Category: >>>
- Supplier: Shenzhen Res Electronics Limited
Share on (60805386134):
Product Overview
Description
Detailed information
Description:

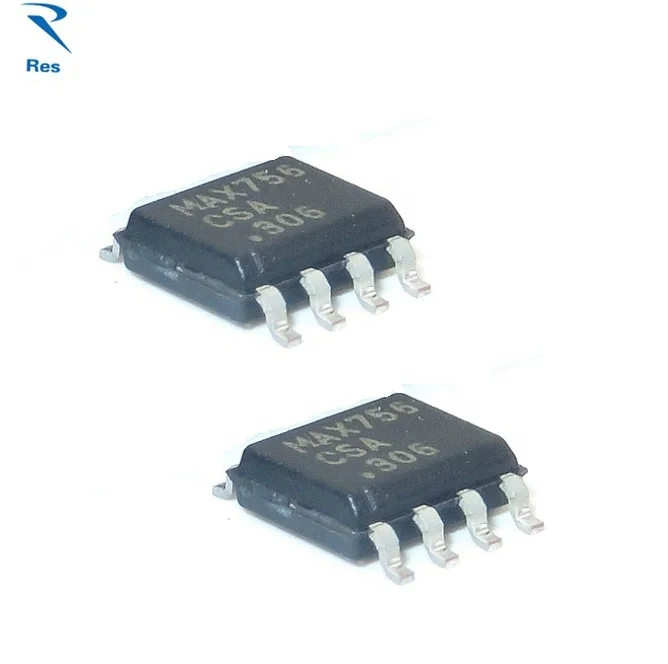

The MAX756/MAX757 are CMOS step-up DC-DC switching regulators for small, low input voltage or battery-powered
systems. The MAX756 accepts a positive input voltage down to 0.7V and converts it to a higher pinselectable output voltage of 3.3V or 5V. The MAX757 is an adjustable version that accepts an input voltage down to 0.7V and generates a higher adjustable output voltage in the range from 2.7V to 5.5V. Typical full-load efficiencies for the MAX756/MAX757 are greater than 87%.
Specification: | ||
Product Category: Switching Voltage Regulators Mounting Style: SMD/SMT Package / Case: SOIC-8 Output Voltage: 5 V Output Current: 200 mA Number of Outputs: 1 Output Input Voltage MAX: 5.5 V | Topology: Boost Input Voltage MIN: 0.7 V Switching Frequency: 500 kHz Minimum Operating Temperature: 0 C Maximum Operating Temperature: + 70 C Series: MAX756 Packaging: Tube | |
Feature: | Application: |
♦ Operates Down to 0.7V Input Supply Voltage ♦ 87% Efficiency at 200mA ♦ 60µA Quiescent Current ♦ 20µA Shutdown Mode with Active Reference and LBI Detector ♦ 500kHz Maximum Switching Frequency ♦ ±1.5% Reference Tolerance Over Temperature ♦ Low-Battery Detector (LBI/LBO) ♦ 8-Pin DIP and SO Packages | ■3.3V to 5V Step-Up Conversion ■Palmtop Computers ■Portable Data-Collection Equipment ■Personal Data Communicators/Computers ■Medical Instrumentation ■2-Cell & 3-Cell Battery-Operated Equipment ■Glucose Meters |
Need more information ,please click====>>Send
FAQ
1. We provide a range of components.
Mosfet, Integrated Circuit, Transistor, Chip capacitor, Diode, resistor, Ceramic capacitor, connector Ic, amplifier.......
2. Do you support BOM lists?
Of course, we have a professional team to provide BOM.
3. Shown below. Behind MOQ?
Our MOQ is flexible and can be provided according to your needs, with a minimum of 10 pieces.
4. What about lead time?
After receiving the deposit, we will arrange to pack the goods and contact logistics for delivery. The duration is 3-7 days.
5. Our advantage?
1. Stable and sufficient supply
2. Competitive pricing
3. Rich BOM experience
4. Perfect after-sales service
5. Professional test certificate
6. Our service?
Payment methods :T/T, L/C, D/P, D/A, MoneyGram, Credit Card, paypal, Western Union, Cash, Escrow, Alipay...
7. Transportation:
DHL, TNT, FedEx, EMS, DEPX, Air, Sea Shipping
Mosfet, Integrated Circuit, Transistor, Chip capacitor, Diode, resistor, Ceramic capacitor, connector Ic, amplifier.......
2. Do you support BOM lists?
Of course, we have a professional team to provide BOM.
3. Shown below. Behind MOQ?
Our MOQ is flexible and can be provided according to your needs, with a minimum of 10 pieces.
4. What about lead time?
After receiving the deposit, we will arrange to pack the goods and contact logistics for delivery. The duration is 3-7 days.
5. Our advantage?
1. Stable and sufficient supply
2. Competitive pricing
3. Rich BOM experience
4. Perfect after-sales service
5. Professional test certificate
6. Our service?
Payment methods :T/T, L/C, D/P, D/A, MoneyGram, Credit Card, paypal, Western Union, Cash, Escrow, Alipay...
7. Transportation:
DHL, TNT, FedEx, EMS, DEPX, Air, Sea Shipping
