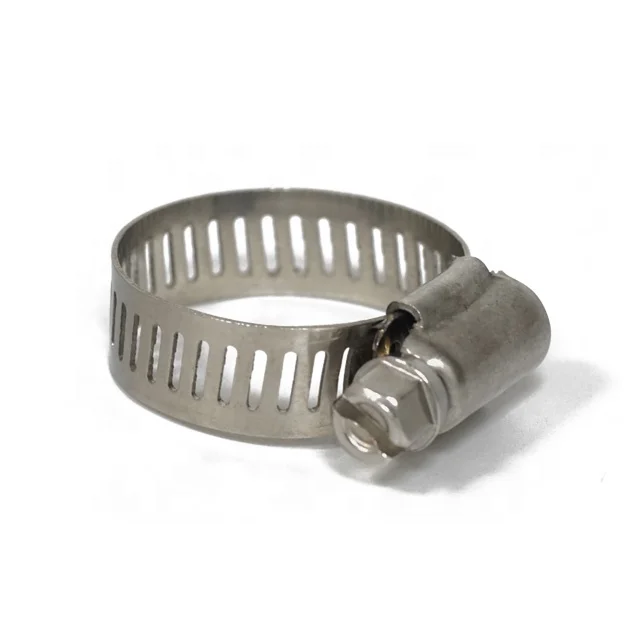

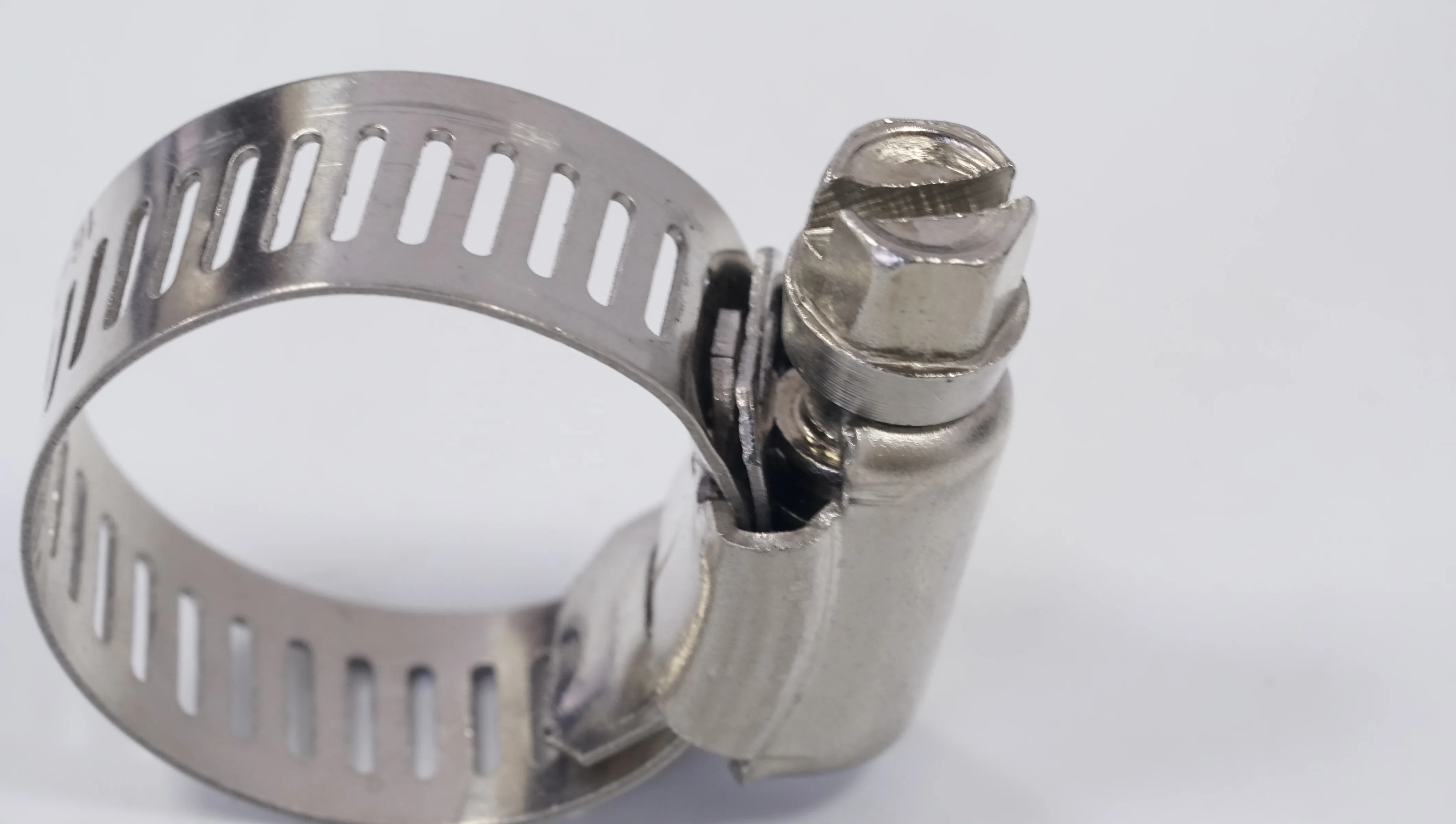

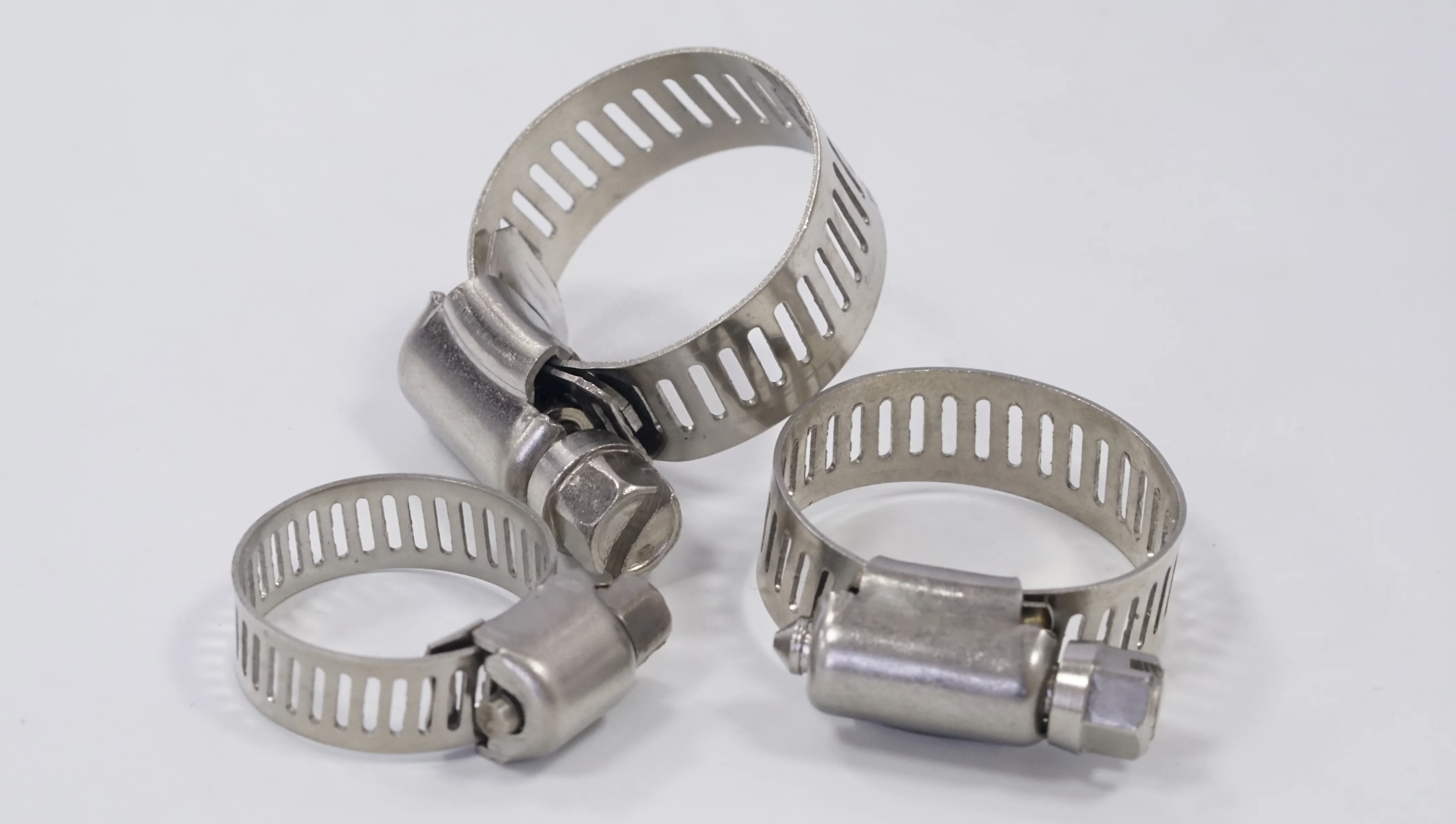

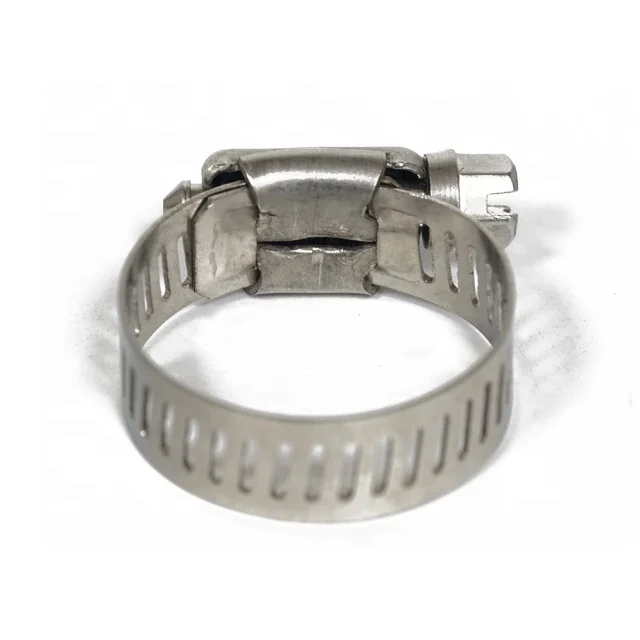

standard stainless steel hose clamp, American type/German type

Product Overview

Description

American type / German type hose clamp

material:  stainless steel

standard: ASME, BS, DIN

finlish: plain/ polishing

Detail specifications



size	working range		band thickness	band width
	MIN	MAX
∅8-16	8	16	0.6mm	9mm
∅13-23	13	23	0.6mm	9mm
∅14-27	14	27	0.6mm	9mm
∅18-32	18	32	0.6mm	9mm
∅21-38	21	38	0.6mm	9mm
∅21-44	21	44	0.6mm	9mm
∅27-51	27	51	0.6mm	9mm
∅33-57	33	57	0.6mm	9mm
∅40-63	40	63	0.6mm	9mm
∅46-70	46	70	0.6mm	9mm
∅52-76	52	76	0.6mm	9mm
∅59-82	59	82	0.6mm	9mm
∅65-89	65	89	0.6mm	9mm
∅72-95	72	95	0.6mm	9mm
∅78-101	78	101	0.6mm	9mm
∅84-108	84	108	0.6mm	9mm
∅91-114	91	114	0.6mm	9mm
∅105-127	105	127	0.6mm	9mm
∅118-140	..	.	.	.
∅130-152	..	.	.	.
∅141-165	..	.	.	.
∅155-178	..	.	.	.
∅175-197	..	.	.	.
.......	..	.	.	.
