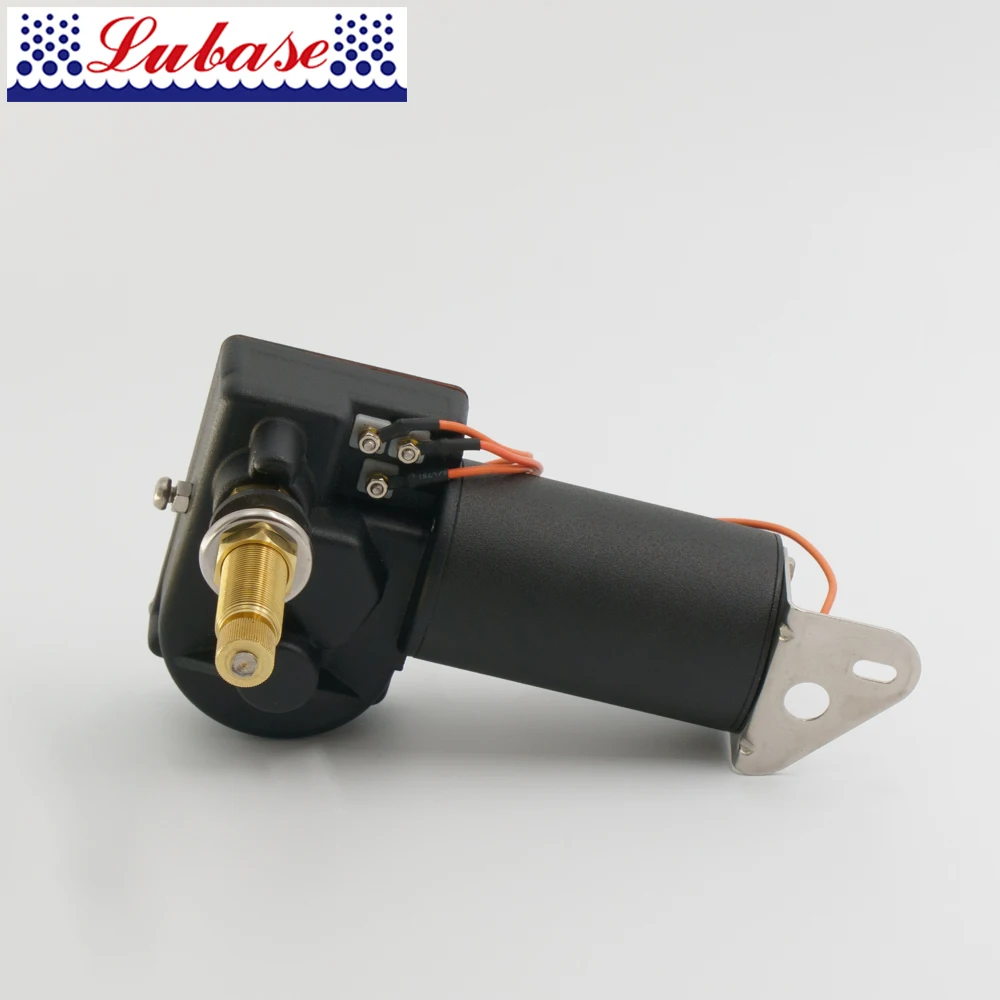

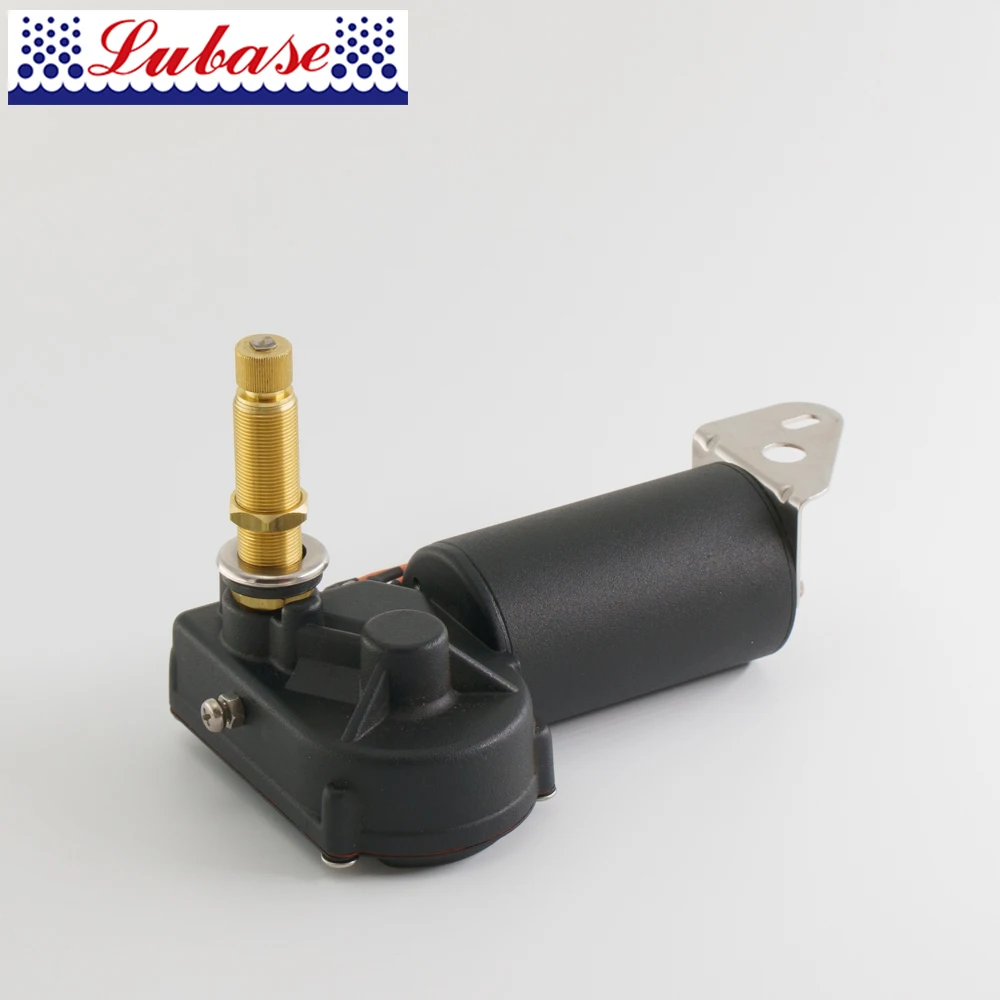

12V / 24V DC Windshield Heavy Duty Wiper Motor

Product Overview

Description

(For Boat, Yacht and Marine) 12V / 24V DC Windshield Heavy Duty Wiper Motor





The most classic windshield heavy duty motors export to the global for over two decades in marine market.

Two speed, adjustable sweep angle, self-parking compose to be the most compatible wiper motor in the world. Also, this heavy duty motor capable to drive longer arms and blades in heavy weather.





Specification

Torque: 18 Nm

Max arm length: 24" (610mm)

Max blade length: 24" (610mm)

Sweep angle: 40~110, 10 increments

Two speeds: Low 40 sweeps/min; High 60 sweeps/min

Park position: Adjustable & Self-parking; Left or Right

Shaft length: 2.5” (63.5 mm) [Optional]

Shaft adapter: 13.85 mm, L9.8 mm, 72 teeth [Optional]

Voltage: 12V/24V

Isolated ground; suitable for steel, aluminum, wooden and GRP boat

Stainless drive shaft with nickel-plated brass socket

Aluminum case

CE Approval

3 years warranty





Left: 4 wires    Right: 3 wires model (isolated ground model)



Item name	Item Number	Shaft Length	Color	Voltage
1681 Series, isolated ground (3 wires)	168111-12 CEB	1.5" (38mm)	black	12V
	168121-12 CEB	2.5" (63mm)	black	12V
	168131-12 CEB	3.5" (89mm)	black	12V
	168111-24 CEB	1.5" (38mm)	black	24V
	168121-24 CEB	2.5" (63mm)	black	24V
	168131-24 CEB	3.5" (89mm)	black	24V

1671 Series, (4 wires)	167111-12 CEB	1.5" (38mm)	black	12V
	167121-12 CEB	2.5" (63mm)	black	12V
	167131-12 CEB	3.5" (89mm)	black	12V
	167111-24 CEB	1.5" (38mm)	black	24V
	167121-24 CEB	2.5" (63mm)	black	24V
	167131-24 CEB	3.5" (89mm)	black	24V







*All products are preset 110 degree & right parking. If you need other setting, please notify in advance.



If you need a quote, please provide 1. Item Number 2. Qtys 3. Your postal code. We will reply you with shipping ASAP.
