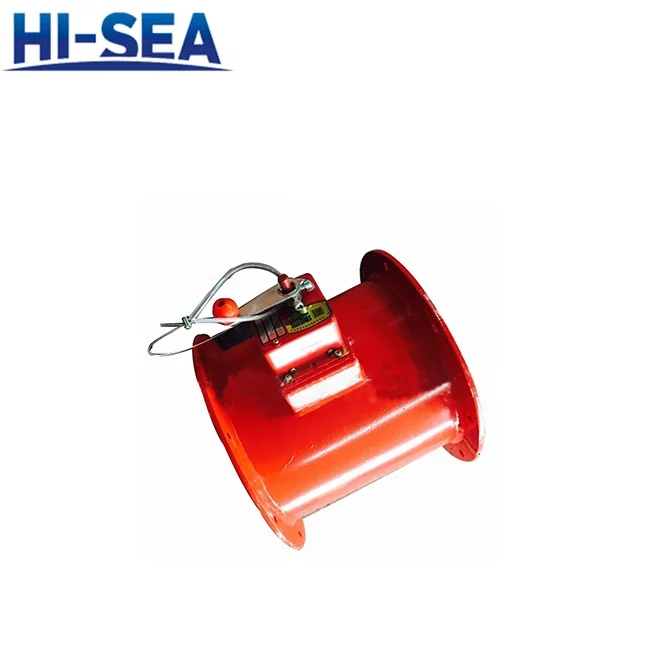

CFH S CFH D Type Marine Manual Fire Damper
- Category: >>>
- Supplier: Chongqing Hi-Sea Marine Equipment Import & Export Co. Ltd.
Share on (60805542578):
Product Overview
Description
CFH-S CFH-D Type Marine Manual Fire Damper
Features
1. Fire damper is open in normal condition
2. If the temperature of air within damper duct exceed 70±3℃, the fusible link of fire damper will be broken to close the fire damper.
3. Handle steel dragline could shut offthe damper locally, the dragline is 1.5m in length

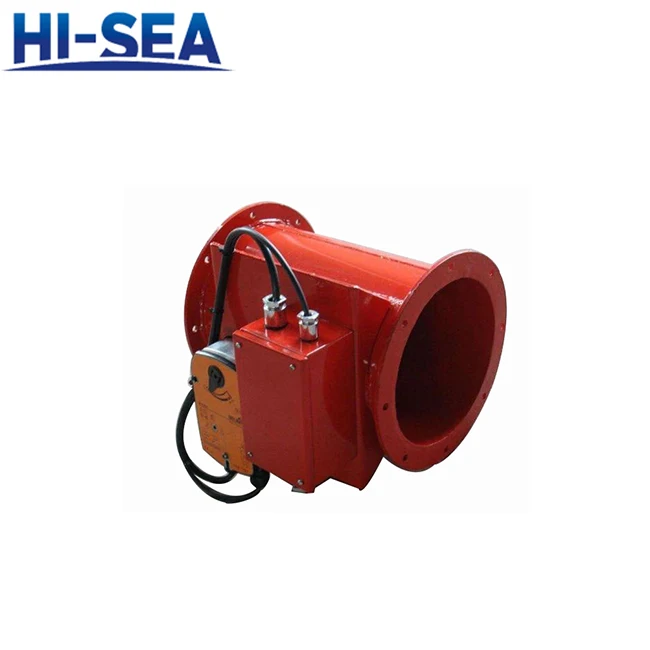

4. The electrical signal could be output according to user’s requirement
5. Fire damper shuold be reset manually.

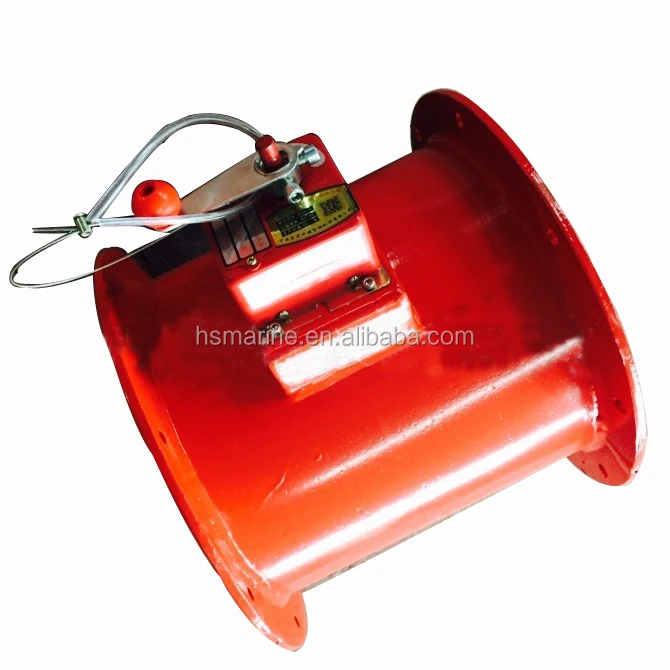

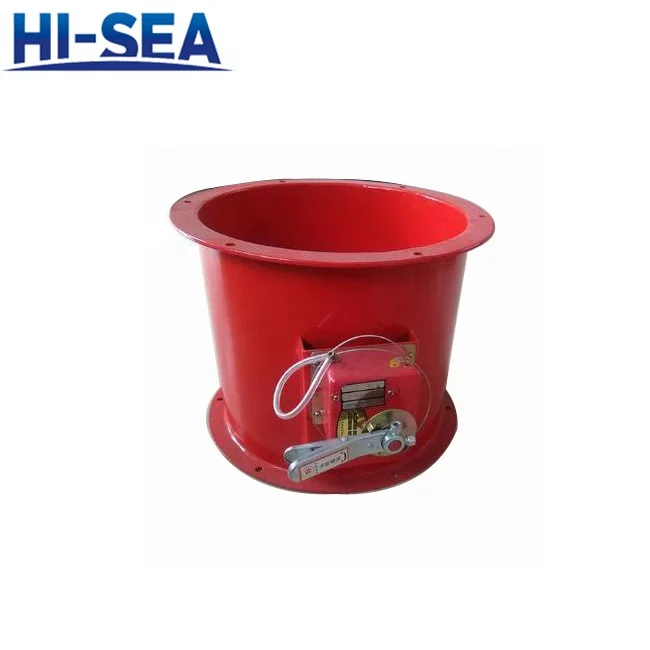

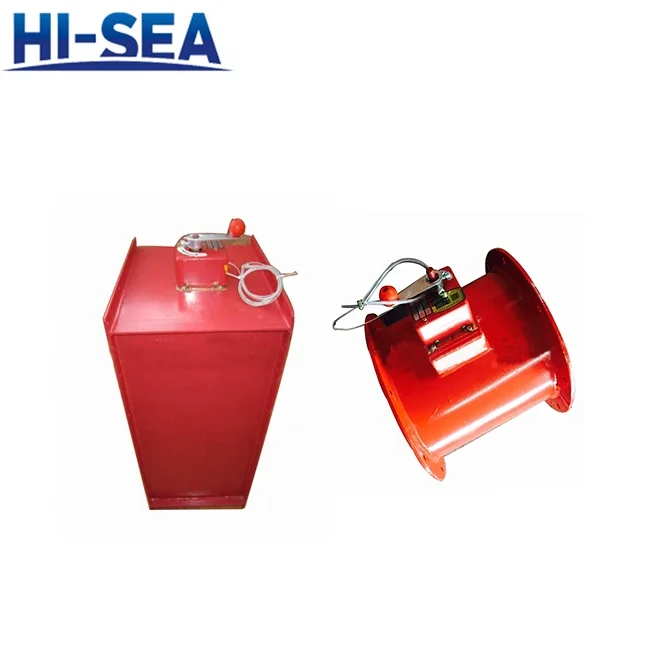

Pictures

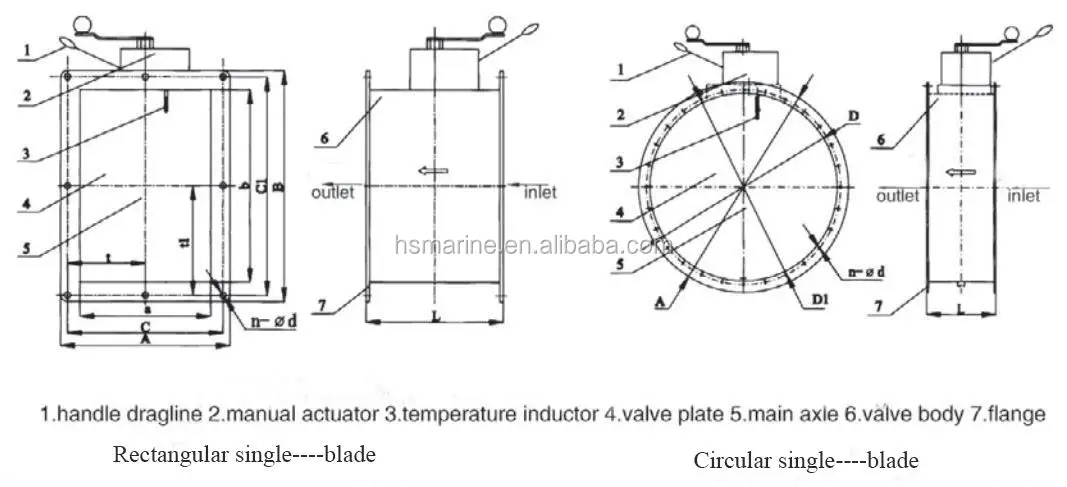

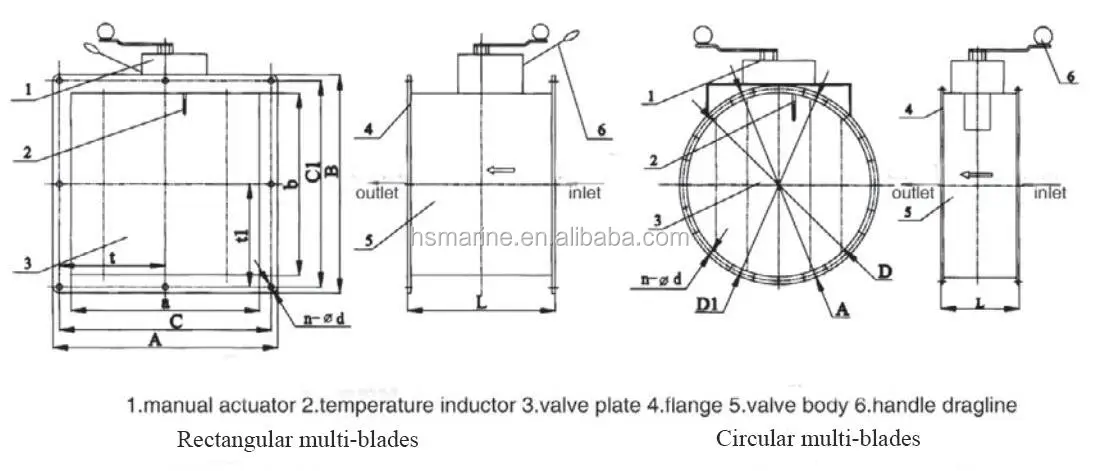

Outline drawing
Type & Parameter
Rectangular single-blade manual fire damper
Type | axb | L | Flange size |
CFH-S axb | 100×100~500×700 | ≥250 | According to GB1561-79 |
Circular single-blade manual fire damper
Type | axb | L | Flange size |
CFH-S ΦD | 100~500 | ≥250 | According to GB1561-79 |
Rectangular multi-blades manual fire damper
Type | axb | L | Flange size |
CFHD-S axb | 300×400~1600×2000 | ≥250 | According to GB1561-79 |
Circular multi-blades manual fire damper
Type | axb | L | Flange size |
CFHD-S ΦD | 300~1800 | ≥300 | According to GB1561-79 |
Packing & Delivery
Packing: Pallet
Delivery: It depends on customer‘s requirements.
Certifications
Our Service
Quality Assurance
All our products are pruduced in strict accdrdance with products standard. All products undergo quality inspection before leaving the factory, and qualified products can be sold.
Product Customization Service
In order to allow customers to find the right products, our company can customize products according to customer requirements.
Providing Classification Society Certificates:
In order to make you feel at ease, We can supply certificates of Classification Societies: CCS, BV, ABS, LR, DNV-GL, RINA and so on.
