Manufacturer high end 300W powerful PA speaker for wholesales
US $66.00-$73.00

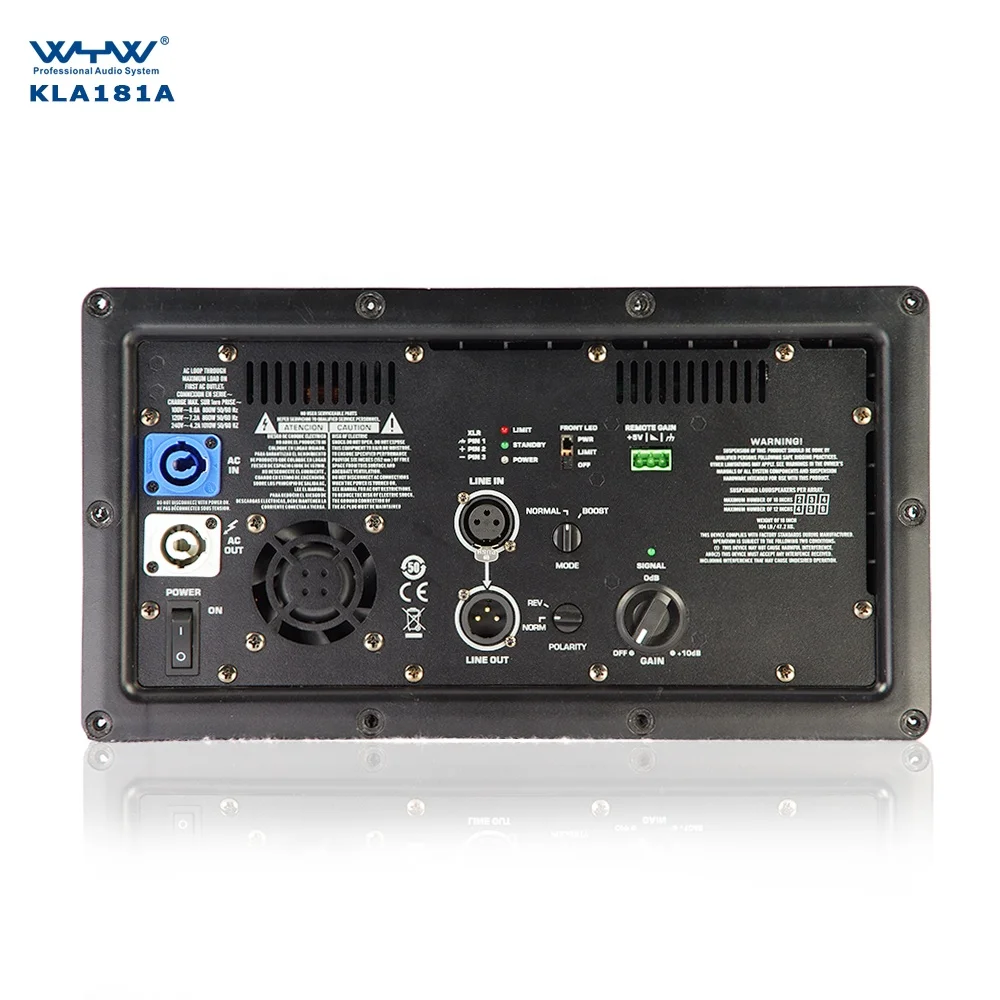

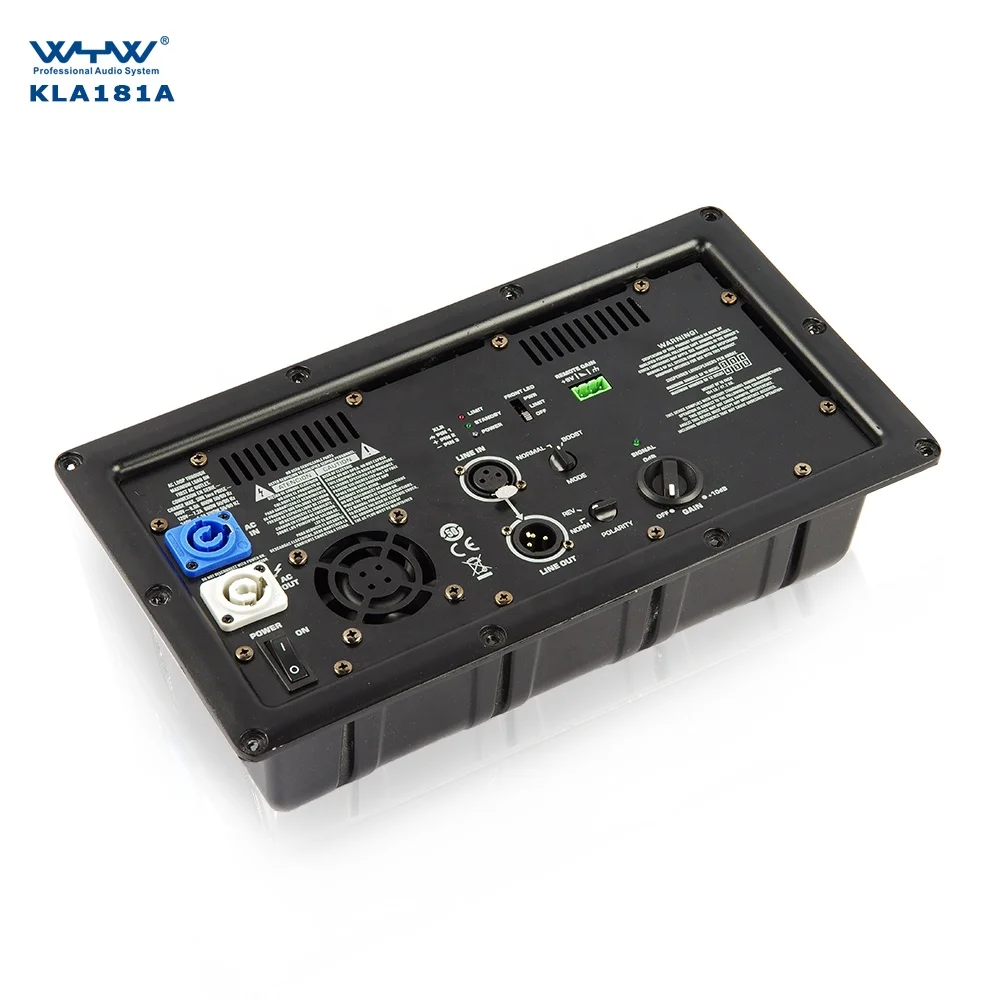

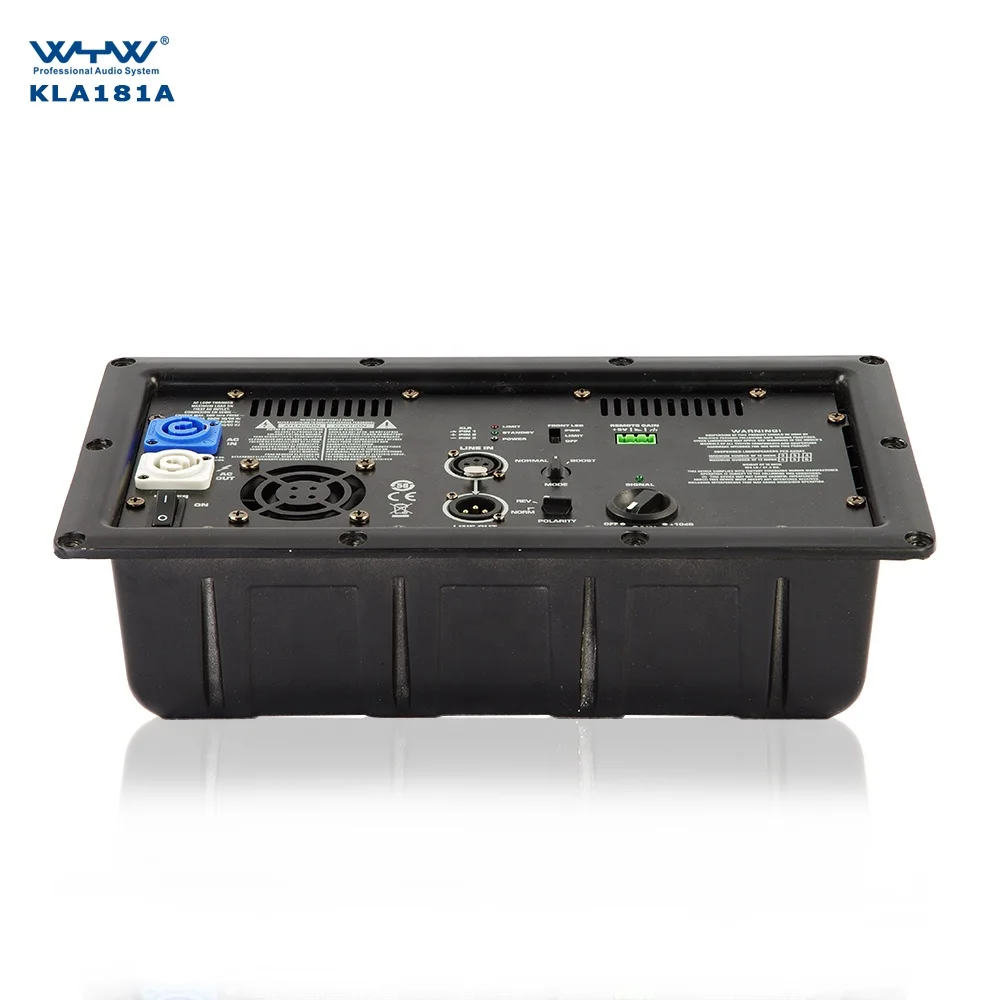

Class D Active Speaker Amplifier Module
- Category: Professional Audio, Video & Lighting new >>>
- Supplier: Enping City Kehua Electronics Co. Ltd.
Share on (60805635176):
Product Overview
Description
- 1,000 watt power module

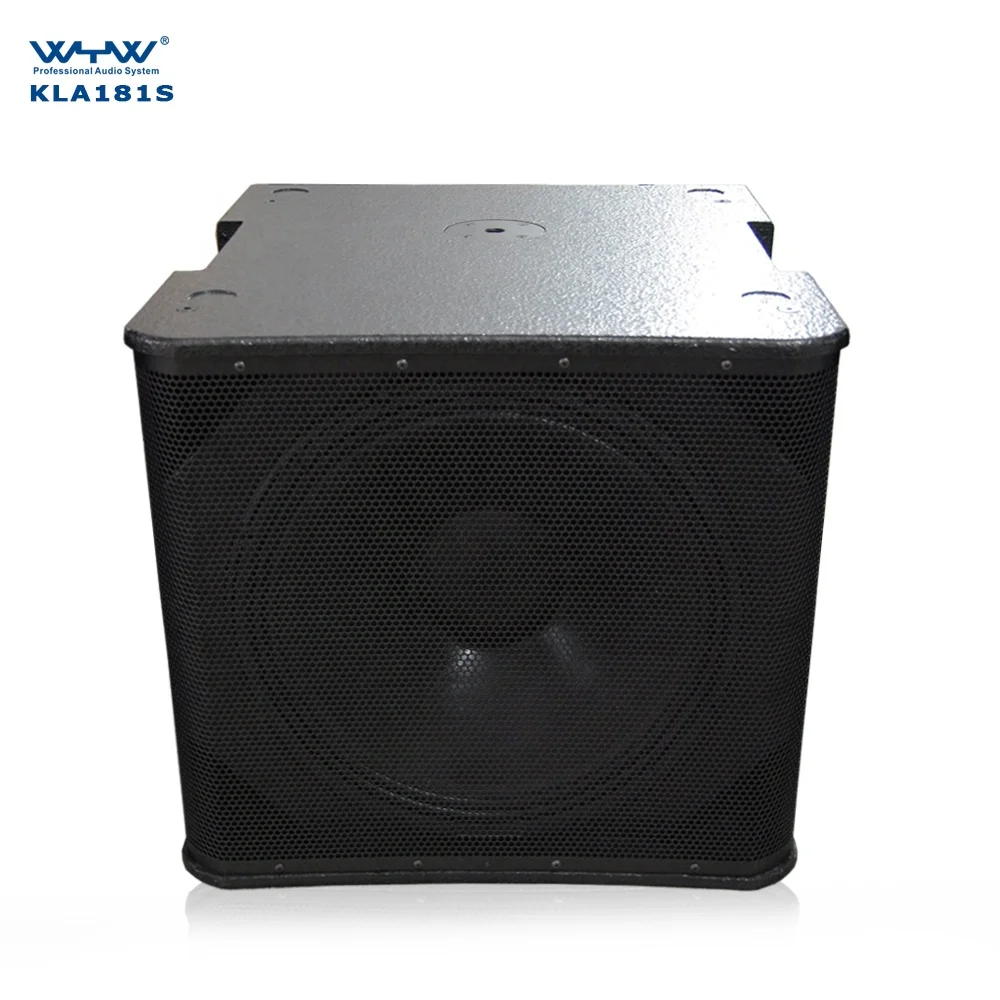

- 18" vented subwoofer
- High acoustic output (135 dB SPL peak)
- Frequency range down to 33 Hz (-10 dB)
- Extensive DSP further enhances and protects performance
- powerCON Input and Thru connections
- hreaded pole receptacle for free-standing applications (black models only)
- Suspension made possible via M10 fittings or KLA12AF Array Frame
- Integrated threaded pole mount supports up to two KLA12 enclosures (black models only)
| Configuration | 18" subwoofer |
| Transducers | 18" cone transducer
|
| High Frequency | |
| Low Frequency | |
| Frequency Response (-6 dB) | 38 Hz |
| Frequency Range (-10 dB) | 33 Hz |
| Nominal Coverage | - |
| Maximum SPL (1 meter) | 135 dB peak |
Amplifiers
Power Output | 1000 W Class D continuous |
| Input Impedance | XLR: 40 kΩ balanced / 20 kΩ unbalanced |
| Controls | Power, Attenuation, LF Mode (Normal/DEEP), Polarity (Normal/Reverse), Front LED (Pwr/Limit/Off) |
| Indicators | Power, Signal, Standby, Limit |
| Connectors | Balanced female XLR line level input, Balanced male XLR full range line level out, Remote attenuation control, Locking powerCON power connector AC In, Locking powerCON® power connector AC Out |
| Cooling | On demand, 50 mm variable speed fan |

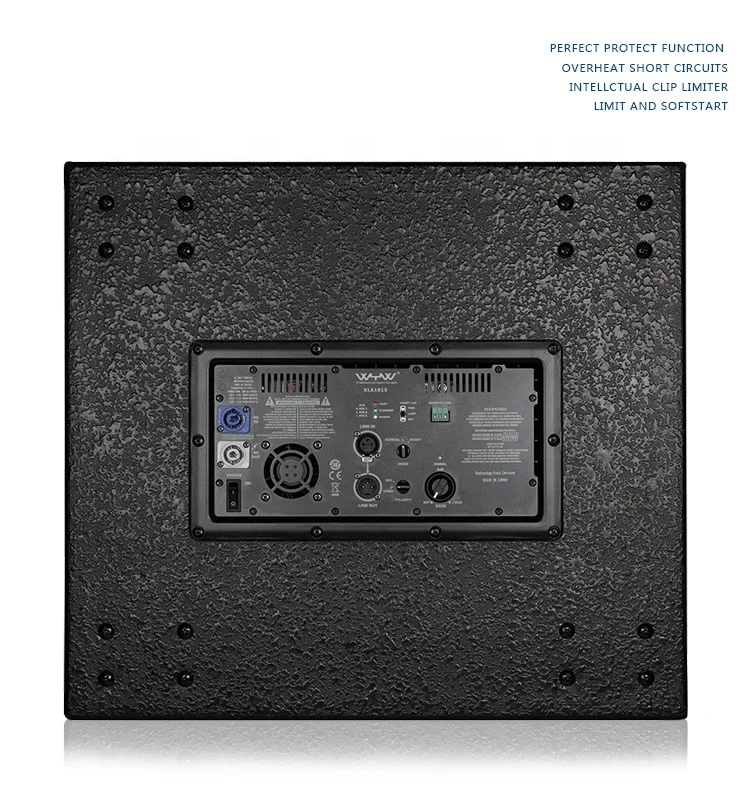

| Amplifier Protection | Thermal limiting, output overcurrent, overtemperature muting, GuardRail™ |
| Transducer Protection | Thermal limiting, excursion limiting |
| AC Power Input | Universal power supply 100–240 VAC, 50 to 60 Hz |
| AC Power Consumption | 100 VAC, 2.3 A |
| (1/8 Power) | 120 VAC, 2.01 A |
| 230 VAC, 1.13 A | |
| Enclosure | |
| Material | Painted birch plywood |
| Finish | Black or white textured paint |
| Grille | Black or white powder coated 16 gauge steel |
