1 MW natural gas generator price for sale
- Category: >>>
- Supplier: Shandong Supermaly Generating Equipment Co. Ltd.
Share on (60805665410):
Product Overview
Description
The specification of 1 MW natural gas generator:
Genset Model | SPT1000GF |
Rated Frequency | 50HZ/60HZ |
Rated Voltage | 220/240/380/400/415/480, 3 phases 4 Wires |
Power Factor (Cosφ) | 0.8 |
Genset Rated Power | 500/625 |
(kW/kVa) | |
Suggested Continuous Power | 400 |
(24 working hours per day, kW) | |
Engine Model | H16V190ZLT |
No. of Cylinders and Type | 16 in Vee |
Bore*Stroke (mm) | 190*210 |
Displacement (L) | 71.5 |
Electrical Efficiency | 33% |
Rotation Speed (RPM) | 1000 (50HZ)/1200 (60HZ) |
Applicable Fuel | Natural Gas, CNG, PNG, LNG, Shale Gas, Oil field gas, Marsh Gas, Coalmine Gas and other methane gases |
Heat Consumption (kj/kw.h) | ≤11000 |
Alternator Model | Siemens IFC Series or Equal |
Cooling System | Heat Exchanger + Cooling Tower or Radiator |
Governor/Actuator | USA Woodward or Germany Heinzmann |
Ignition System | Germany Motortech, USA Altronic or Equal |
Mixer | USA Impco or Equal |
Control System | Standard Control System: with functions including manual keys, alarms, protections, auto start and shut down, showing running parameters in LCD Display |
Genset Overall Size (mm) | 6410×2355×2740 |
Gross Weight (kg) | 19000 |
Optional Equipments | 1).Soundproof Canopy, Synchronization Panel, Parallel Panel, Remote Monitoring System. |
2).Table Type Radiator | |
3). CHP/Heat Recovery System from Exhaust Gas | |
4).High Voltage Alternator 6.3KV, 10.5KV and 13.8KV are available as options |
Supply scope of 1 MW natural gas generator:
Complete 190 Series Natural Gas Engine Generator including gas engine, alternator, base frame, Control System, heat exchanger or radiator (optional), steel canopy (optional), Parallel Control (optional), synchronization panel with states grid (optional), CHP System (optional), ignition system, governor system, mixer, spark plug, User books, testing report and other accessories etc.
Our service of 1 MW natural gas generator:
Supermaly Power provides a full line of brand new and high quality products. Each and every unit is strictly factory tested. Warranty is according to our standard conditions: 12 months or 2000 running hours, subject to the earlier one. And what’s more, Supermaly Power will provid life-span technical support and spare parts at manufacture prices.

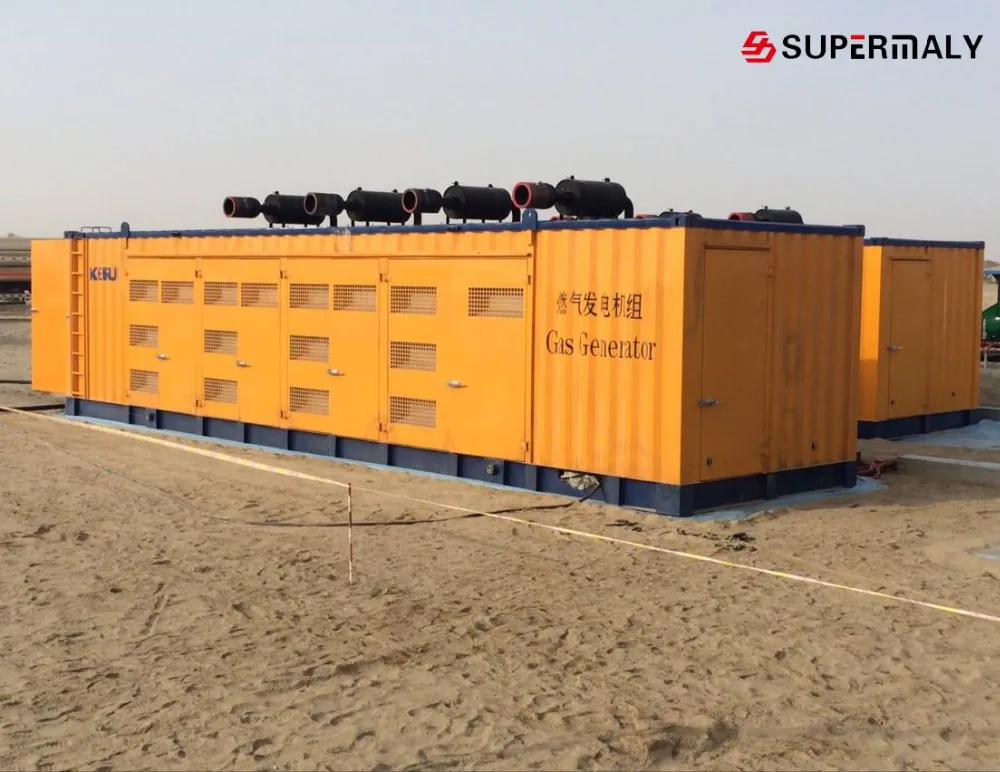

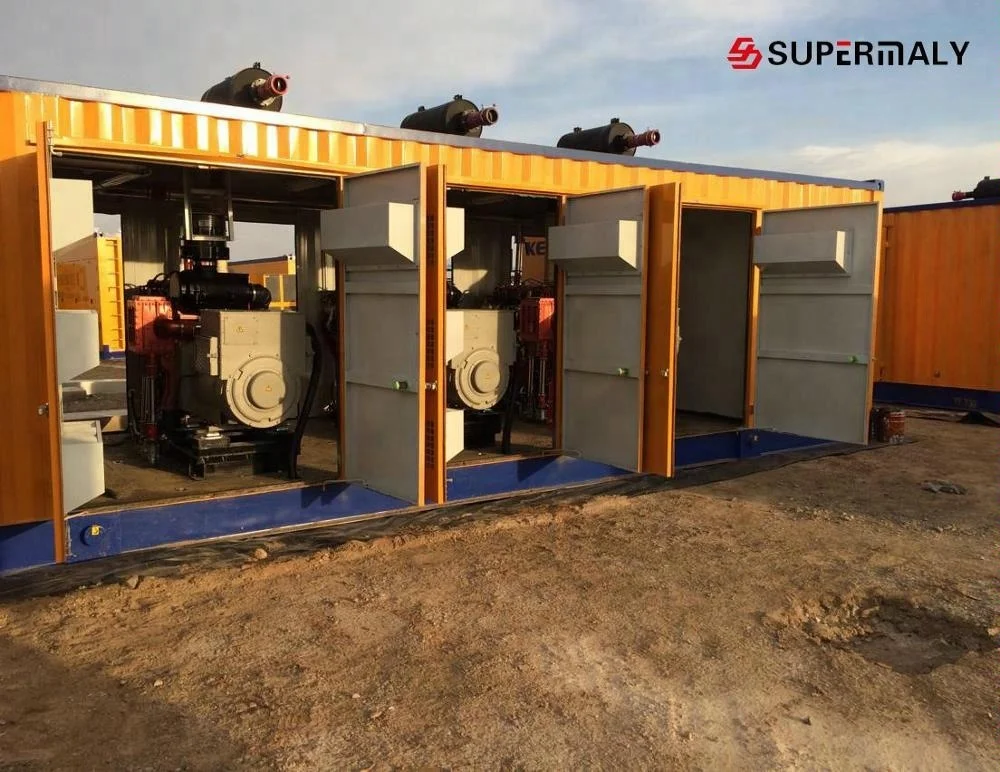

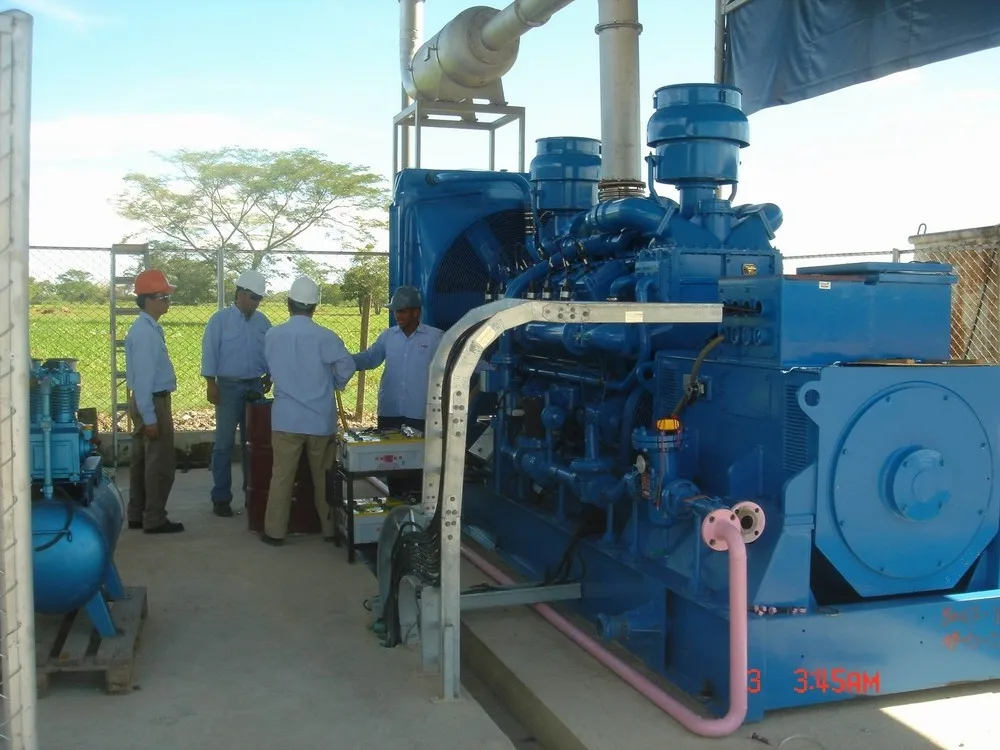

Projects showing of 1 MW natural gas generator:
Supermaly factory:
Supermaly exhibition:
Supermaly certificate:
