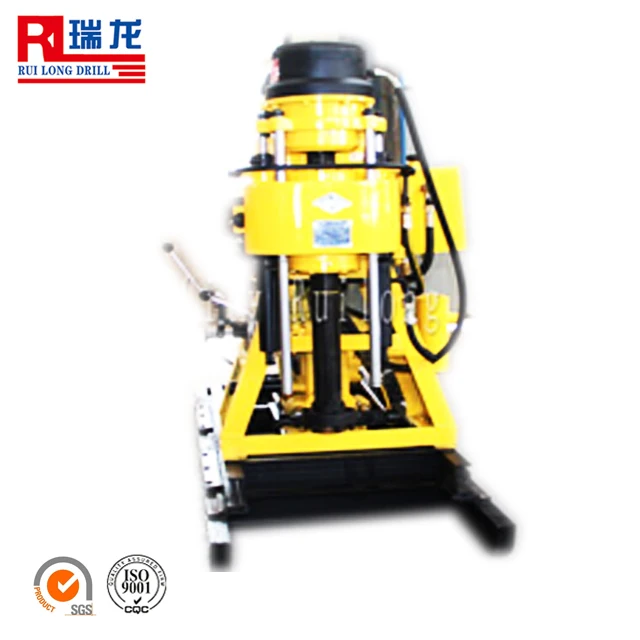

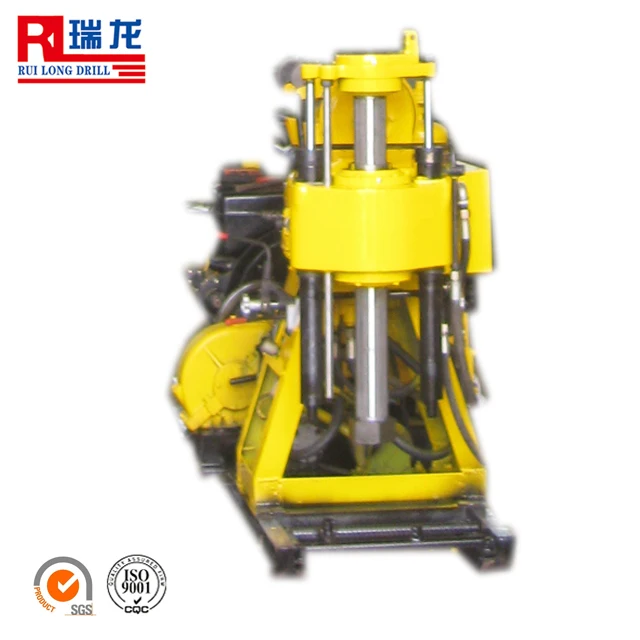

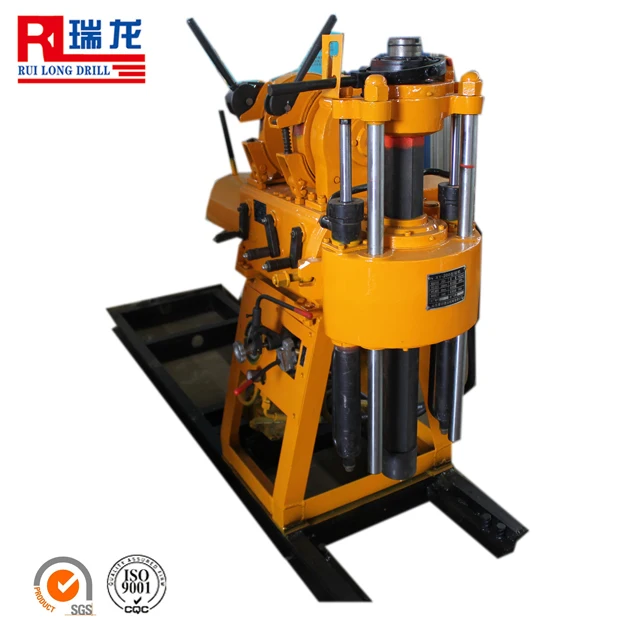

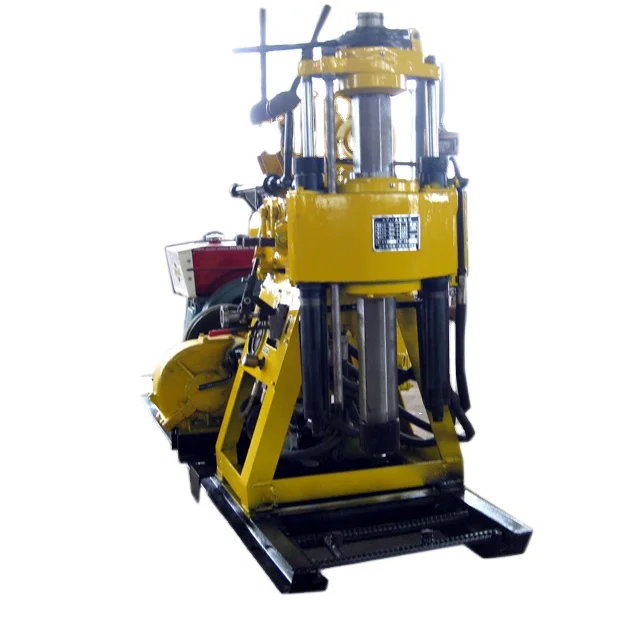

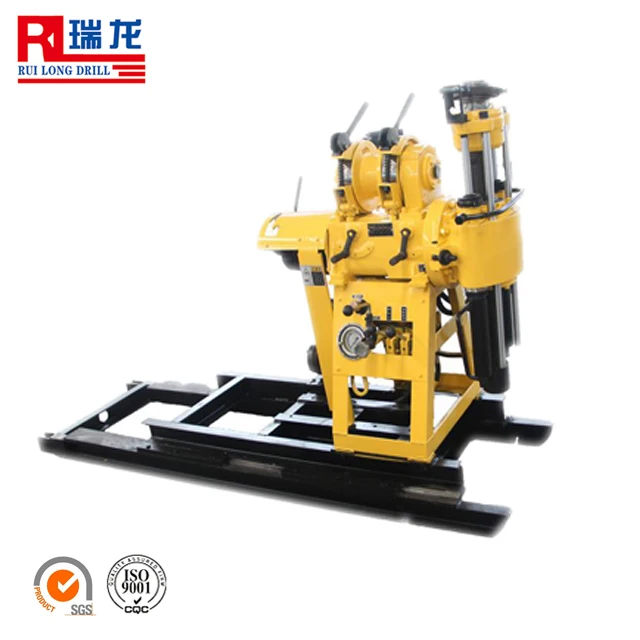

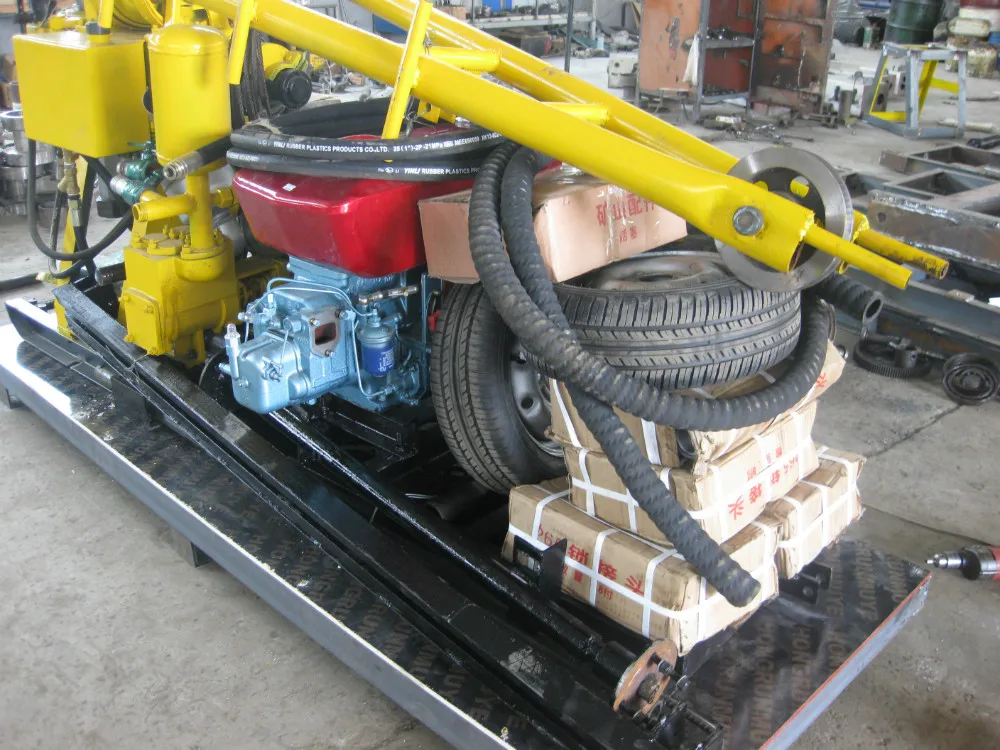

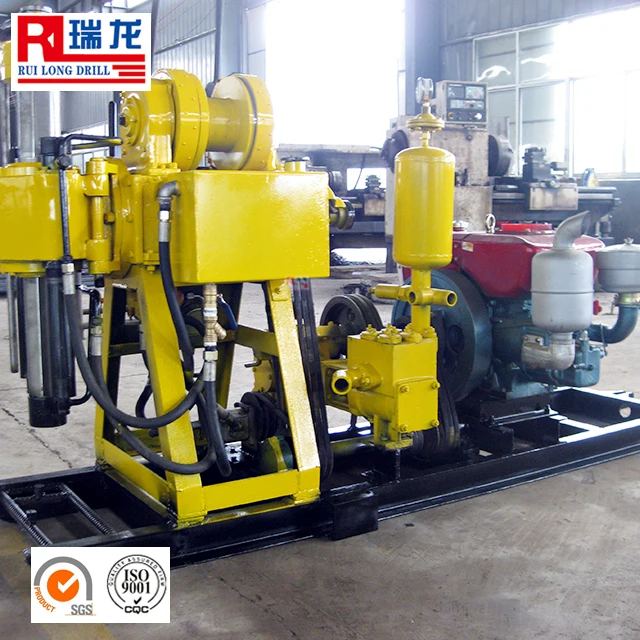

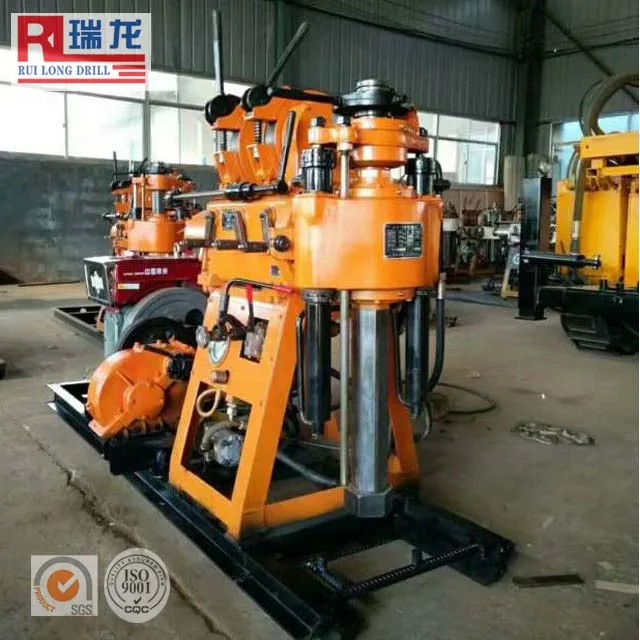

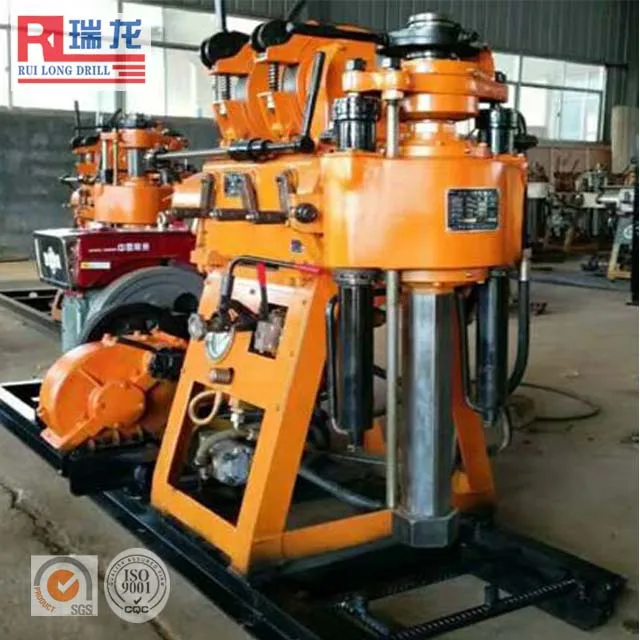

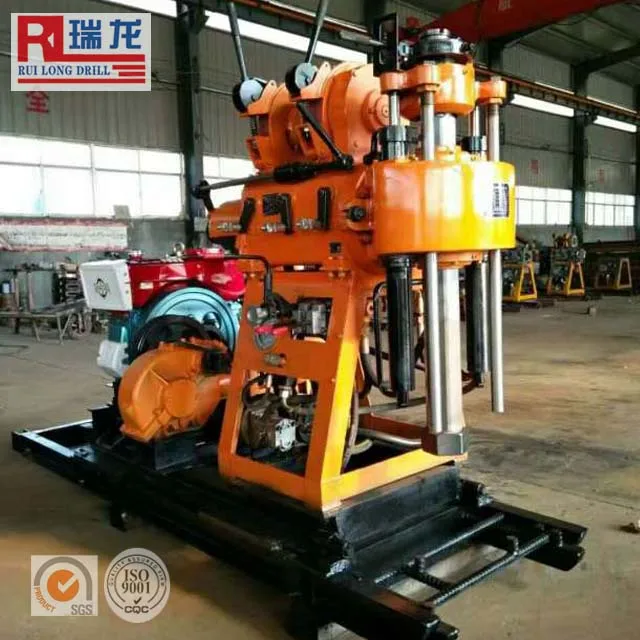

2018 Low price Borehole Drilling Machine /water well drilling rig for Sale 200m
Product Description
drilling rig is a kind of widely used and hydraulic feeding drill, which has the characteristics of big power, great lifting force and high transmission torque.
1.1 Engineering geological investigation of railways, hydropower, traffic, bridges, dam foundations and other buildings.
1.2 Geological core drilling, physical prospecting.
1.3 Small grout Confucius, drill hole drilling.
1.4 Small well drilling.
1.Unity Machine Parameter | |
Drilling Depth(m) | 150~200m |
Hole Diameter(mm) | 75~200mm |
Drill Rod Diameter | 50 |
Drilling Angle | 90~75 |
Drill Weight (No include power) | 910kg |
Overall Dimession | 2750*950*1600mm |
2.Spindle | |
Spindle Speed | 64, 128, 287, 557r/min |
Spindle Stroke | 450mm |
3.Hoist | |
Max. Single Line Hoisting Capacity | 2000kg |
Reel Lifting Speed | 75, 151rm/s |
Tightrope Diameter | 13mm |
Tightrope Cubic Measure | 35mm |
Hug Follgate Belt Width | 70mm |
Distance Between Drill and Hole | 400mm |

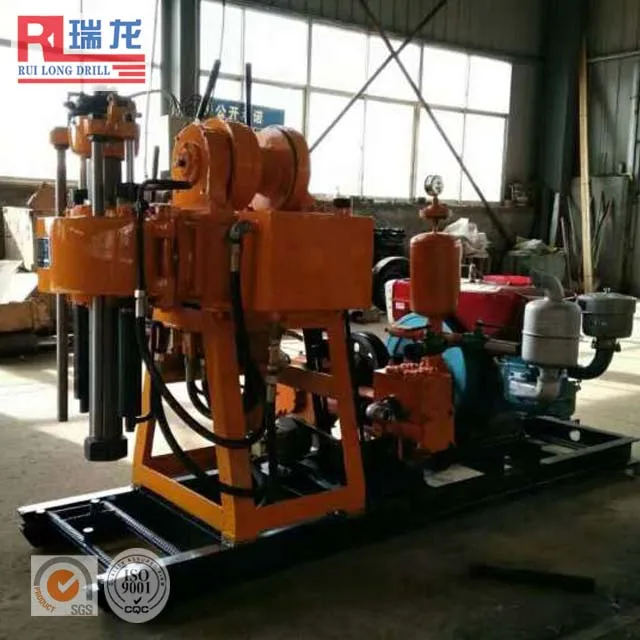

4.Mud Pump | |
Type | Horizontal Single Urn Twin-action |
Discharge/Displacement | 180L/Min. |
Diesel | 22HP |
Electric Motor | 15KW |
Max. Pressure | 1.5Mpa |
Work Pressure | 0.7Mpa |
Water Inlet Diameter | 40mm |
Water Outlet Diameter | 30mm |
